What Is ATC in A Cnc Router Machine?

Contents

1. Introduction

2. What ATC Means in a CNC Router Machine

3. Why ATC Matters for Modern CNC Woodworking and Sign Making

4. How an ATC CNC Router Machine Works

5. Key Components of an ATC System

6. ATC CNC Router Machine Applications and Industry Use Cases

7. Comparing ATC CNC Router Machines vs. Manual Tool-Change Routers

8. Factors to Consider When Choosing an ATC CNC Router Machine

9. Conclusion

10. FAQ

Introduction

Automatic tool changing has become a defining feature of advanced CNC machining, allowing routers to operate with higher precision, speed, and continuity. In modern workshops that work with wood, aluminum, composites, and sign-making materials, production quality and workflow depend heavily on the ability to switch tools seamlessly. Understanding what ATC represents and how it transforms CNC routing is essential for choosing the right atc cnc router machine for professional manufacturing, woodworking, and industrial processing.

What ATC Means in a CNC Router Machine

ATC stands for Automatic Tool Changer, a system built into a CNC router that automatically swaps cutting tools during machining without operator involvement. In an atc cnc router machine, this system boosts performance by eliminating manual tool-change delays, reducing the chance of human error, and enabling complex multi-step machining in a single program. The ATC stores multiple tools in a carousel or linear rack, allowing the router to select the correct tool based on the programmed instructions. This technology is absolutely essential in high-volume production environments, especially in industries using atc CNC Woodworking Makingfor Sign Making and Engraving applications where different bits are required for carving, profiling, pocketing, or 3D engraving.

Why ATC Matters for Modern CNC Woodworking and Sign Making

The value of an ATC system becomes clear when examining the demands of industrial woodworking and sign fabrication. Projects often involve numerous tool types—ball-nose bits, V-bits, compression cutters, and engraving bits—each serving a specific purpose. Without ATC, operators must stop production repeatedly to change tools manually. This slows workflow and introduces potential measurement inconsistencies. By contrast, an atc cnc router machine performs tool changes in seconds, preserving calibration and maintaining identical cutting paths across multiple workpieces.

For sign shops using Factory Customized Sign 1325 atc cnc wood router systems, the ability to shift rapidly between engraving and cutting bits is crucial for producing detailed signage, channel letters, and 3D reliefs. Woodworking professionals using Atc Cnc Machine Woodworking Machinery benefit from smoother production of cabinets, furniture components, moldings, and intricate carvings. The ATC ensures consistent results even with complex multi-tool operations, making it indispensable for professional-grade output.

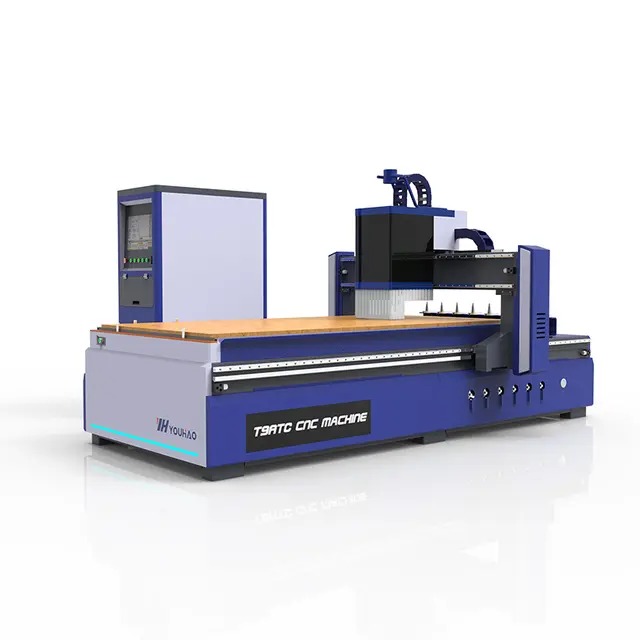

How an ATC CNC Router Machine Works

An ATC-enabled CNC router follows a synchronized process that blends mechanical precision with automated software control. Once a job is loaded into the router’s control system, the machine identifies which tools are required. As machining progresses, the spindle moves to the tool rack, releases the current tool, and picks up the next one using pneumatic or mechanical clamping. This entire sequence is executed based on programmed tool numbers and requires no operator intervention.

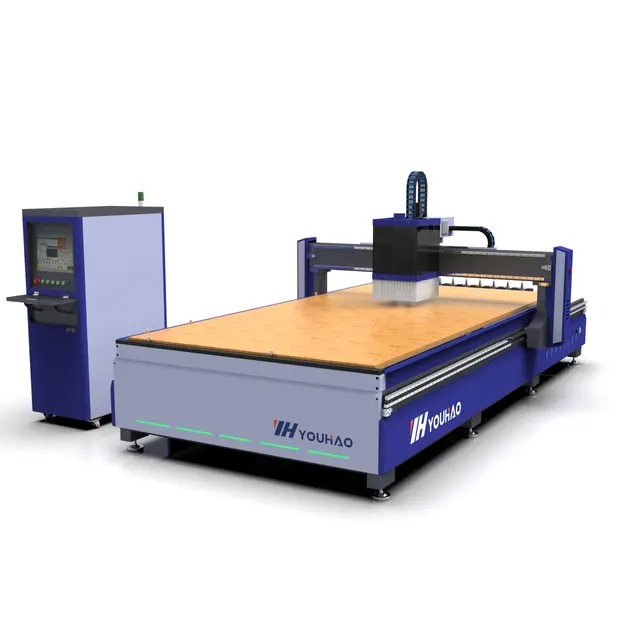

In advanced models such as the ATC CNC Router Machine for Aluminum 1325 cnc Router, tool changes are optimized for materials requiring different feed rates and tool geometries. Aluminum machining, in particular, demands precise tool engagement and minimal vibration. ATC technology ensures the spindle always utilizes the correct bit for drilling, contouring, or finishing, reducing wear and improving accuracy. Larger industrial models such as 4*8FT ATC CNC Router Machine 1325/1530/2030 Wood Carving Machine further expand tool capacity and automation speed, supporting high-production workflows and multi-material projects.

Key Components of an ATC System

Understanding the parts of an ATC system helps buyers evaluate the capabilities of different routers. Although designs differ between manufacturers, most atc cnc router machine models feature several core components.

Tool Carousel or Linear Tool Rack

The tool holder stores anywhere from 6 to 20 tools (or more). Carousel racks rotate like a wheel, whereas linear racks remain fixed in position. Linear racks are common in woodworking systems, while carousel designs shine in high-speed operations.

Spindle with Automatic Tool Clamping

High-precision spindles use pneumatic or mechanical clamps to grab and release tools. A reliable spindle ensures stable cutting and secure retention of tool holders under high RPM.

Tool Holders and Collets

ATC systems typically use standardized holders such as ISO30, HSK63, or ER-series collets. These maintain precise positioning and simplify tool calibration.

Tool Height Sensor

This sensor automatically determines tool length, ensuring accurate depth settings for each bit. Without it, tool calibration would require manual measurement, slowing workflow and increasing error risk.

Table: Common ATC Components Overview

These components work together to automate production, reduce setup time, and support complex CNC programs with multiple operations.

ATC CNC Router Machine Applications and Industry Use Cases

A wide range of industries rely on ATC routers for precision machining and automated production. The flexibility of an atc cnc router machine allows manufacturers to cut wood, plastics, ACM panels, foam, MDF, acrylic, aluminum, and composite materials with maximum efficiency.

Woodworking and Furniture Fabrication

Manufacturers of cabinetry, frames, doors, moldings, and carved furniture require multiple tool types in a single job. ATC routers ensure flawless transitions between roughing, profiling, and finishing bits.

Sign Making and Advertising

Sign shops benefit immensely from ATC technology, especially when using atc CNC Woodworking Makingfor Sign Making and Engraving equipment. Tool changes between engraving and cutting bits allow detailed 3D logos, letters, and textured backgrounds to be machined without delay.

Aluminum and Soft Metal Processing

Machines such as the ATC CNC Router Machine for Aluminum 1325 cnc Router handle drilling, pocketing, and contouring operations with different bits for each step. ATC reduces chip buildup, improves finish quality, and ensures repeatability.

Table: Industries and ATC Benefits

Comparing ATC CNC Router Machines vs. Manual Tool-Change Routers

A comparison between ATC routers and standard routers without automatic tool-change capability reveals significant operational differences. In workshops producing high volumes or complex parts, an atc cnc router machine can outperform manual routers in nearly every category.

Manual routers require operators to stop the machine, loosen the collet, remove the bit, insert a new tool, tighten the collet, and recalibrate each time. This process takes several minutes per change and risks misalignment. By contrast, an ATC router accomplishes the entire process automatically in seconds. ATC systems also track tool life, reduce human error, and support advanced 3D machining where multiple tool types are essential.

For businesses using Atc Cnc Machine Woodworking Machinery or large-format solutions like 4*8FT ATC CNC Router Machine 1325/1530/2030 Wood Carving Machine, the productivity difference becomes even more dramatic. ATC routers minimize downtime and allow operators to oversee multiple tasks simultaneously.

Factors to Consider When Choosing an ATC CNC Router Machine

Selecting the right ATC router involves evaluating size, tool capacity, spindle performance, and intended application. Buyers should consider worktable size—such as the popular 1325 format—tool capacity, control system compatibility, servo vs. stepper motors, and build quality. For sign makers using Factory Customized Sign 1325 atc cnc wood router equipment, dust collection efficiency and engraving precision matter significantly. For metalworking, spindle rigidity and cooling options become top priorities.

A high-quality atc cnc router machine should include a reliable ATC spindle, precise linear guides, industrial-grade motors, and stable machine construction. These factors ensure long-term accuracy, reduced maintenance, and faster return on investment.

Conclusion

Understanding ATC technology is essential for evaluating the performance and efficiency of modern CNC routers. An automatic tool changer transforms the machining process by automating tool transitions, improving accuracy, and enabling multi-operation workflows without interruption. For woodworking, sign making, aluminum machining, and industrial manufacturing, choosing the right atc cnc router machine can dramatically enhance output quality, reduce downtime, and elevate professional capabilities. ATC systems are no longer optional—they are the benchmark of advanced CNC performance.

FAQ

1. What does ATC stand for in CNC routers?
ATC stands for Automatic Tool Changer, a system that switches tools automatically during machining.

2. Do all CNC routers come with ATC?
No. ATC is typically found in mid- to high-end industrial machines.

3. How many tools can an ATC router hold?
Depending on the design, 6–20+ tools can be stored in a rack or carousel.

4. Is an ATC CNC router good for sign making?
Yes, it is essential for shops using atc CNC Woodworking Makingfor Sign Making and Engraving workflows.

5. Does ATC improve machining accuracy?
Yes. Automatic tool measurement and consistent positioning improve accuracy and reduce human error.
