1325 Atc Wood Cnc Router Machine for Mdf

Models: T2ATC-1325 CNC Router
Application: PVC board, solid wood, medium density fiberboard, aluminum, copper, EVA foam
Leadtime: 20-30 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Size：1325,1530,2030,2040（Size can be customized according to customer needs）
Warranty: 1years
Supply Ability: 10 Sets/Month
The automatic tool-changing engraving machine is suitable for complex processing tasks with high precision, multiple materials and multiple processes due to its automation, high efficiency and intelligence.

  • T12

  • YOUHAOCNC

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

air cooling spindle

Air Cooling Spindle


The air-cooled spindle is suitable for a variety of processing scenarios due to its simplicity, convenience and low cost. The maintenance of the air-cooled spindle is relatively simple, and it mainly requires regular cleaning of the fan and heat dissipation channel to ensure good air flow.

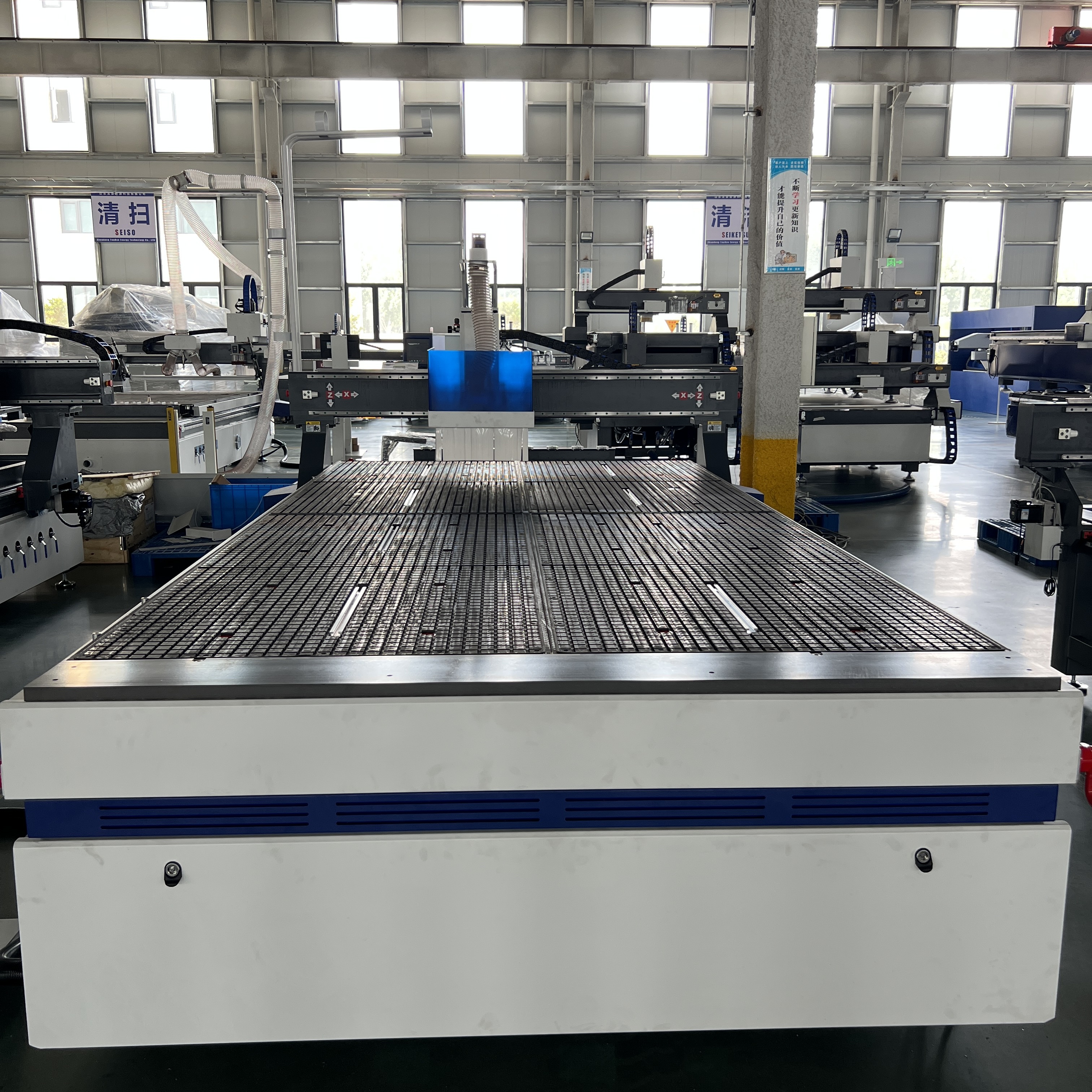

Working Table


The ATC CNC engraving machine is equipped with a multi-zone vacuum adsorption system that can quickly fix materials without complicated clamps or fixtures. This design not only simplifies the desktop layout, but also improves processing efficiency. The desktop size can be customized according to customer needs to accommodate processing tasks of different sizes.

 cnc router working table
导轨1

HIWIN Rails


Youhaocnc cnc routers use hwin rails. The rails can achieve high-precision linear motion in the xyz linear direction under high load.

Toolsensor


Wood routers can add automatic tool setting blocks. It depends on the customer's needs. The main function is to adjust the tool adjustment time after tool change.

 对刀仪
atc cnc router

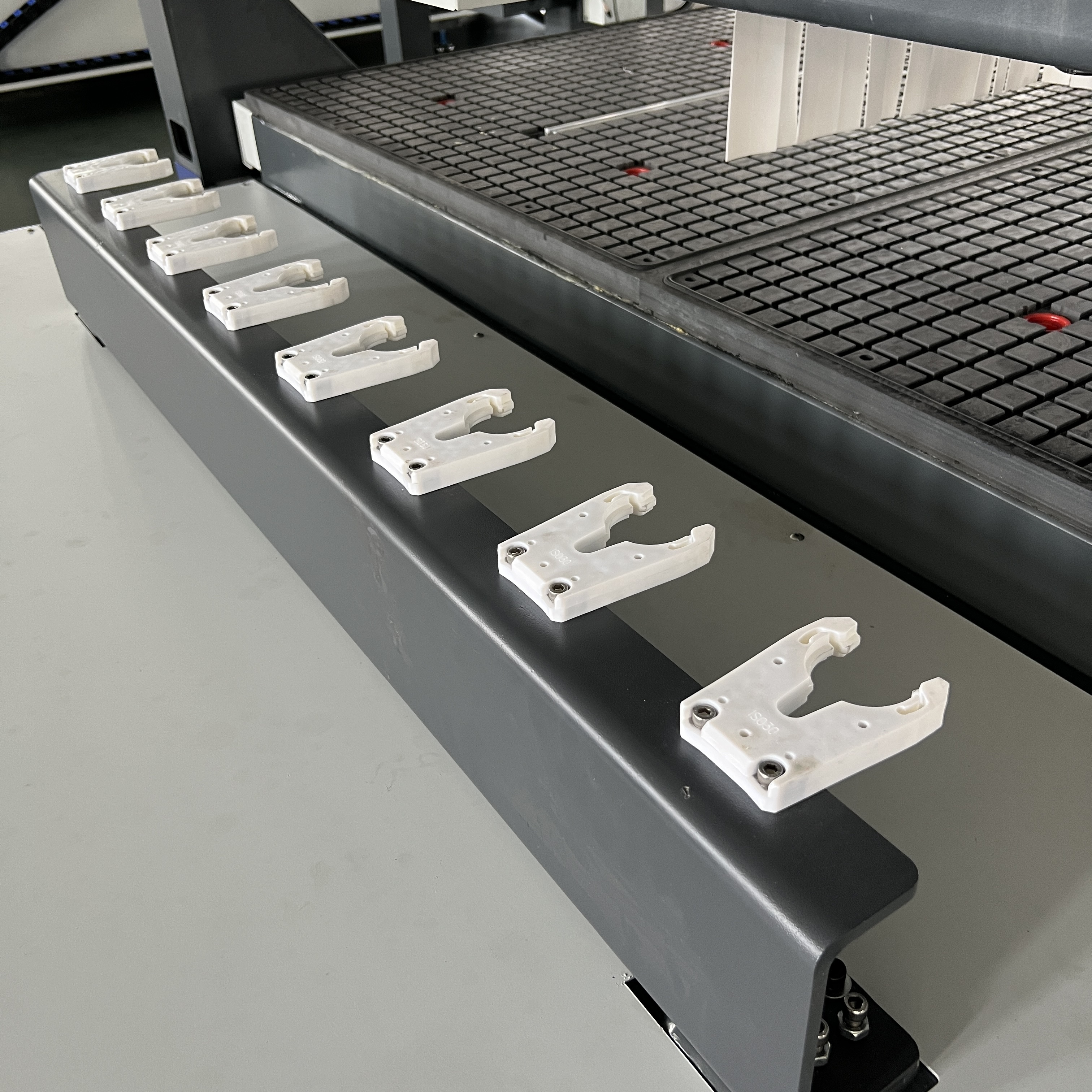

Linear type tool change


With independent tool magazine, it can automatically replace the required tools during the processing of the workpiece without stopping the work.


Advantage

1.Automatic tool changer, commonly called ATC, is part of a fully automated process that saves labor.


2. The array of tools is stored in a tool magazine, which allows the machine to change a wider variety of tools without the need for an operator.


3.Automatic tool changer can improve the processing speed, accuracy and reliability of CNC router machines.


4.Automatic tool changer, which allows a large number of tools to be stored in the tool magazine according to the machine operation, with each tool automatically returned when its task is completed.


5.Can suck away wood chips and debris during processing.


6.We are an industry-trade integrated company with our own foreign trade team and processing factory, as well as professional technical and design consultants.


7.We have a complete sales team, so customers don't have to worry about any problems with the machine. We have professional staff to answer customers' questions before, during and after sales.

Specifications

NO.

Description

Parameter

1

XYZ working area

2000*3000*200mm, 6*10ft

2

Optional working area

1300*2500*200mm, 4*8ft

1500*3000*200mm, 5*10ft

2000*4000*200mm, 6*13ft

3

Guide

Original TAIWAN HIWIN

4

Z Structure

Original TAIWAN TBI Ball Screw transmission

5

Traveling Positioning Accuracy

±0.02/300mm

6

Repositioning Positioning Accuracy

±0.02

7

Table

Aluminum profile table/vacuum table plus T-slot

8

Vacuum pump

7.5KW Taiwan EUROVAC vacuum pump

9

Max. Speed

35000mm/min

10

Max. Working Speed

25000mm/min

11

Spindle Power Motor

9KW air cooling ATC Spindle

12

Spindle Speed

24000RPM

13

Drive Mode

leadshine servo motors and drivers

14

Lubrication system

Automatic lubrication system

14

Working Voltage

380V/50Hz/3 phases

16

Operating System

LNC MW2200

17

Tool change type

Rotary type knife library

18

Tool magazine motor

MIGE servo motors and drives

19

Magazine capacity

8 positions ATC

20

Collet

ER32

21

Software

Type3/Artcam

22

Dust cleaning system

Spindle cover+dust collector+pipe+bags


download YOUHAO CNC Catalog_.pdf
