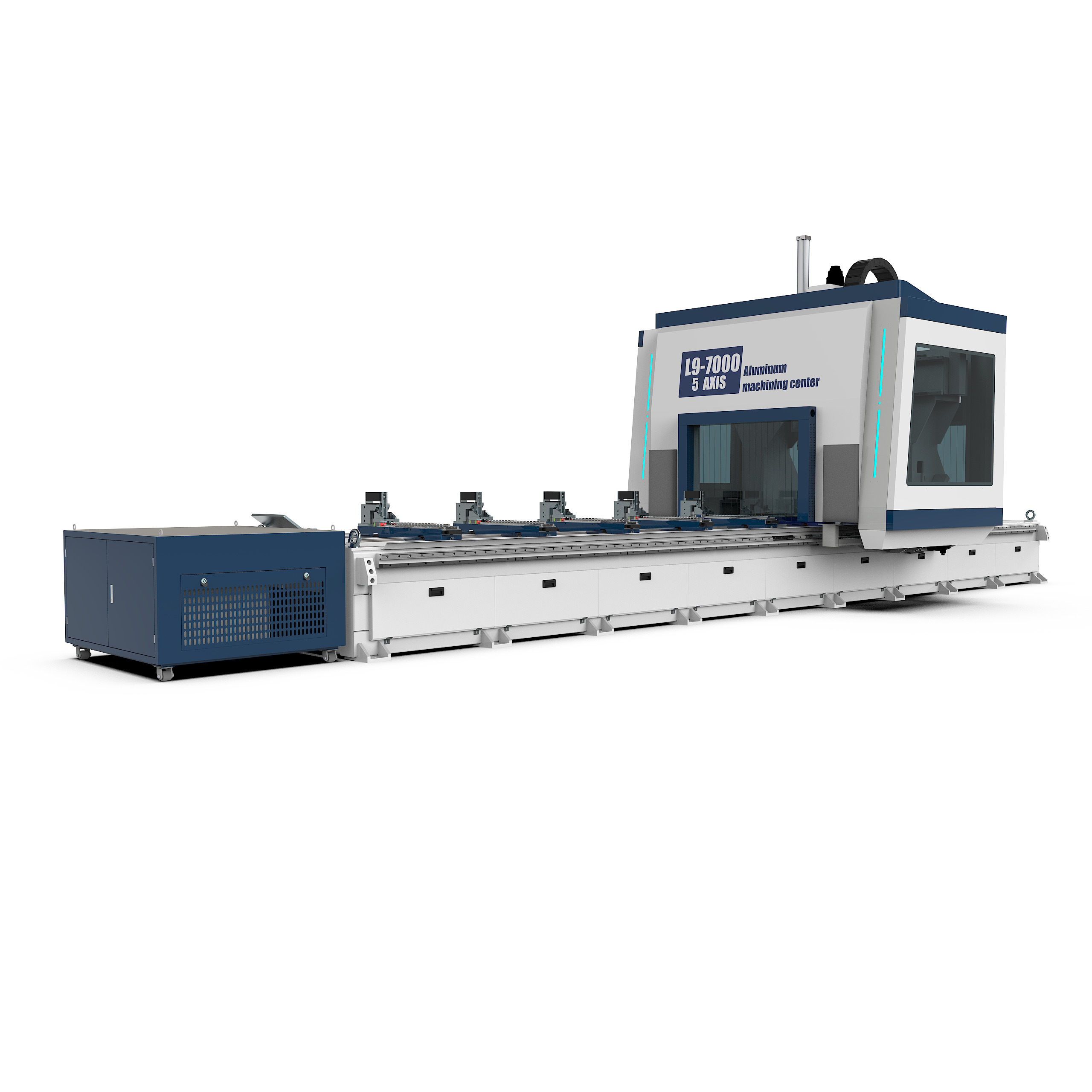

5 Axis Cnc Automatic Milling and Drilling Machine Cnc Machine Aluminum Profile

The YOUHAO L9 5-axis aluminum drilling and milling machining centre is designed for drilling, milling and cutting operations on industrial aluminum and various shaped aluminum profiles.
 It finds application in mold making, as well as the production of aluminum doors, windows, curtain walls, aluminum furniture and sunrooms.
Operating at 380V, it holds CE, ISO and ROHS certifications, with a 45-day lead time and a monthly supply capacity of 20 sets. Backed by a 2-year warranty, it offers OEM services including logo customization, size adjustment and tailored machine modifications to meet specific requirements.

  • L95A

  • YOUHAOCNC

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc.

Auto lubrication

IMG_3390

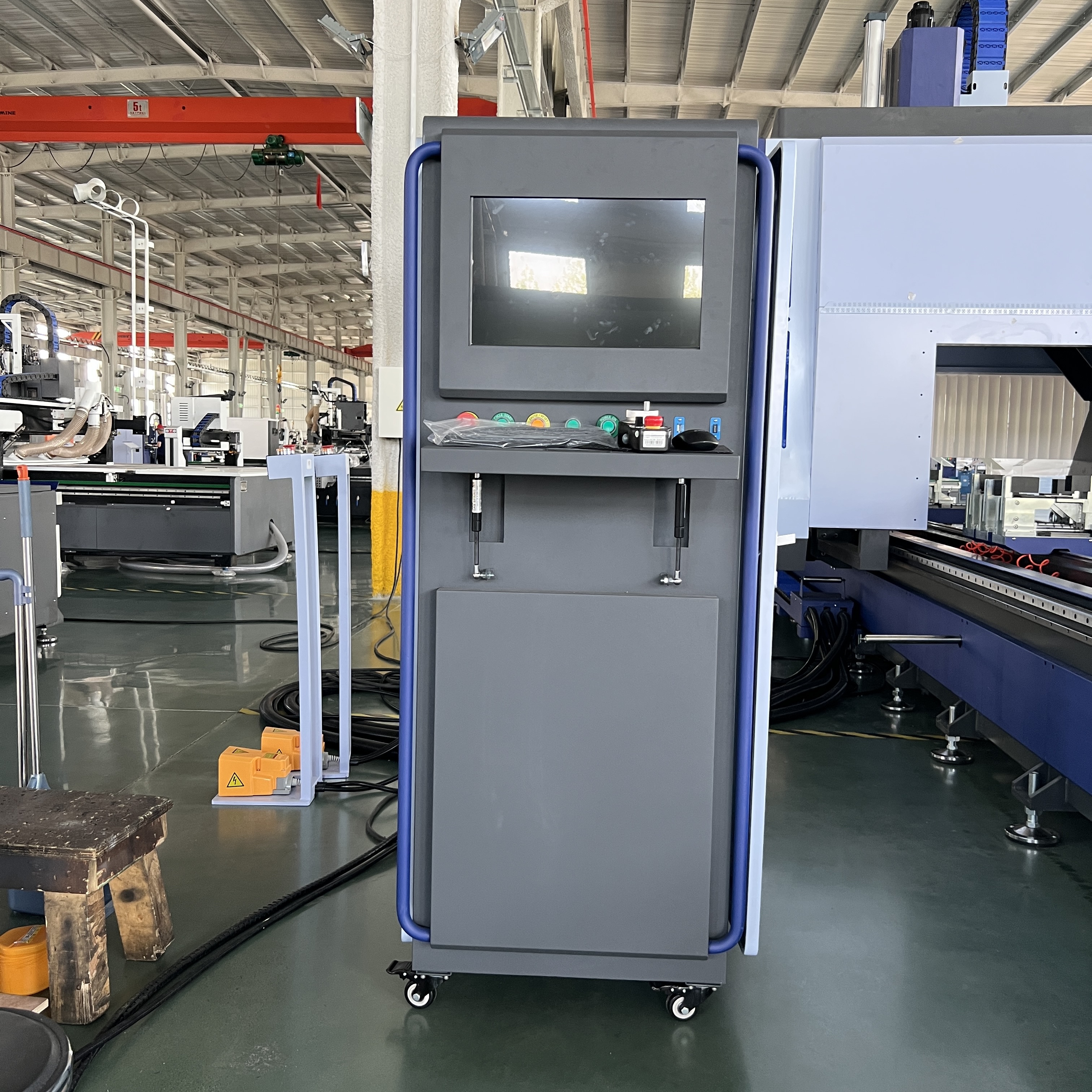

Controller system


The Italian OSAI CNC system comes with a user-friendly interface. It can handle complex five-axis linkage processing and supports the RTCP control function for five-axis machining.

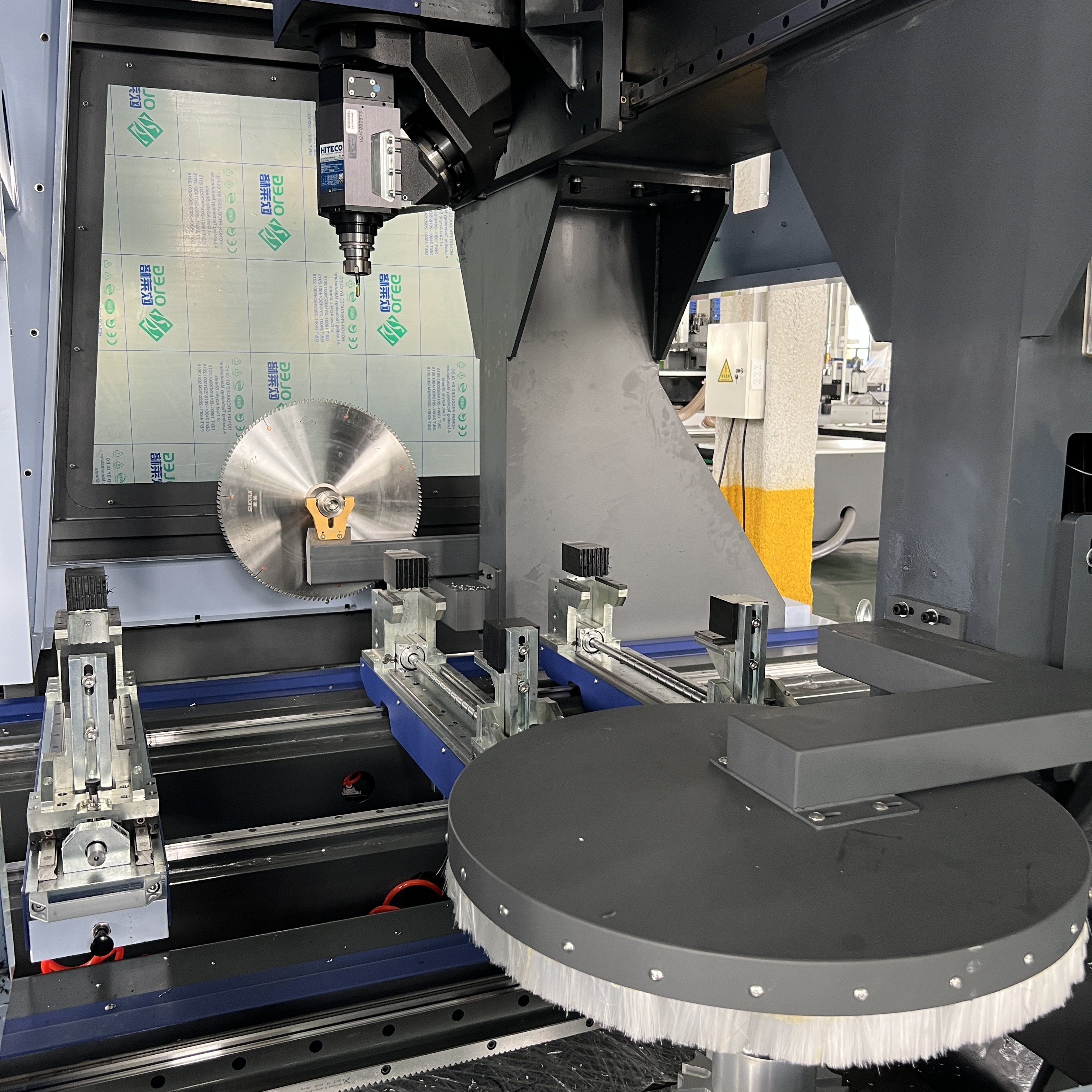

Spindle


It features an imported high-precision double swing head and is fitted with a high-power, high-speed electric spindle. The spindle head's inner taper hole uses an HSK63F interface, enabling a high metal cutting volume per unit time.


IMG_2743
IMG_3380


Water chiller


The electric spindle is equipped with a water circulation cooling system.

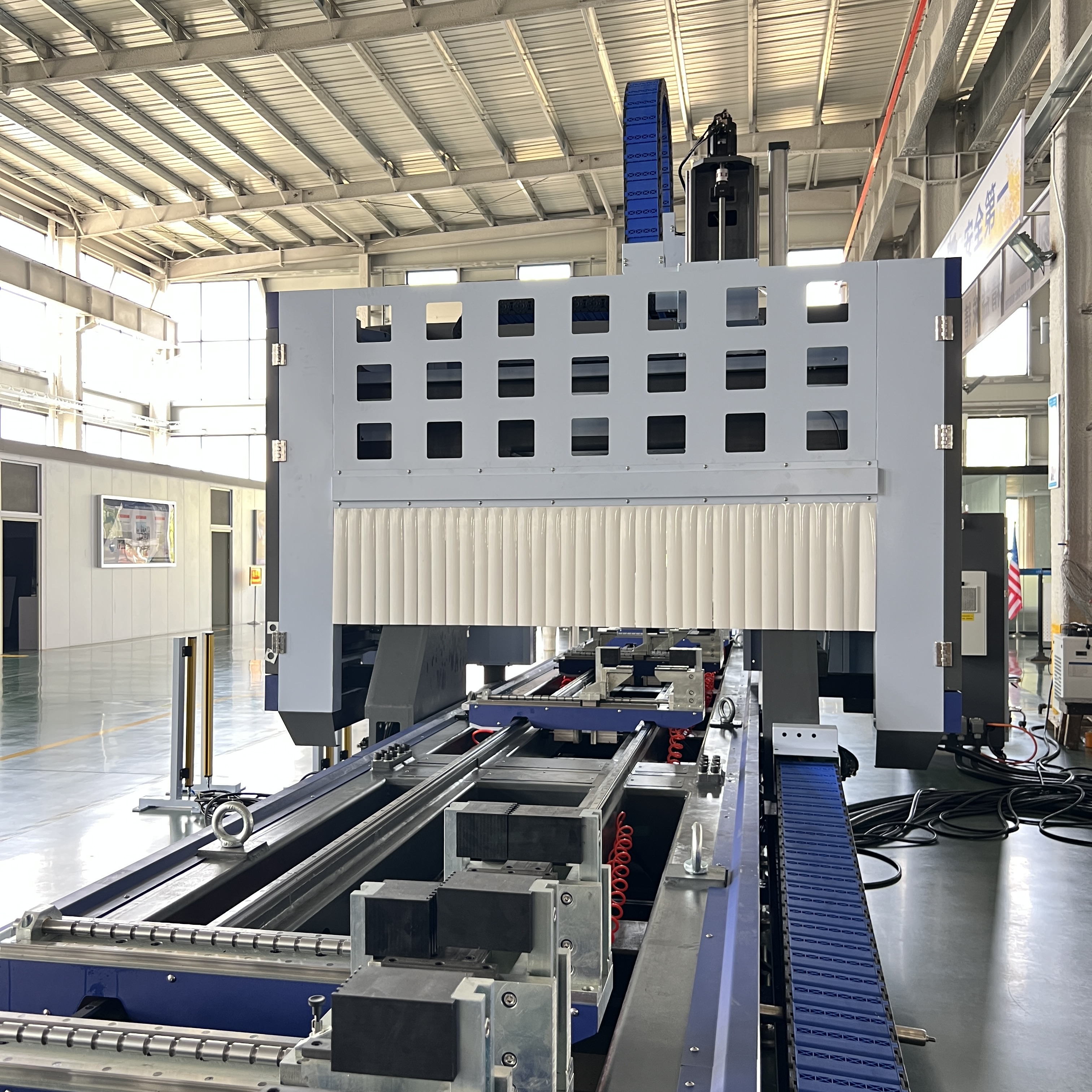

Safety protection


Safety protection devices are in place to safeguard the operator's personal safety.


IMG_3396


Advantage


1. Suitable for three-dimensional space five-axis linkage processing of various types of vehicles, rail transit, and various industrial aluminum materials

2. It adopts imported high-precision double swing head, and is equipped with a high-power, high-speed electric spindle. The inner taper hole of the spindle head is HSK63F interface, which has a high metal cutting amount per unit time.

3. It adopts the Italian Ousai CNC system, with a good user interface, which can complete complex five-axis linkage processing, and can realize the function of RTCP control (five-axis processing)

4. Adopt Japanese Yaskawa servo motor and imported high-precision planetary reducer to ensure machine accuracy

5. Equipped with the water circulation cooling system of the electric spindle, the automatic lubrication system of the feed transmission and the cooling spray system of the tool to ensure the reliable operation and precision stability of the machine tool 6. Equipped with safety protection devices to ensure the personal safety of the operator


Specifications

Max. cutting aluminum profile size

9500*3000*2500mm

Repositioning accuracy

±0.01mm

Working Voltage

380V/220V

Applicable Material

PVC, UPVC, Aluminum,ACP

Operation controller

Italy OSAI Control system

Spindle motor

Italy HSD/HITECO 5 axis, 12kw, HSK-63F-ER32, 24000rpm

Servo

Japan YASKAWA AC servo motor

Rail

Taiwan HIWIN/PMI

Transmission

German WMH/Taiwan HIWIN

Tool sensor

Automatic

Lubrication

Auto lubrication

Packing

Wooden Packing
