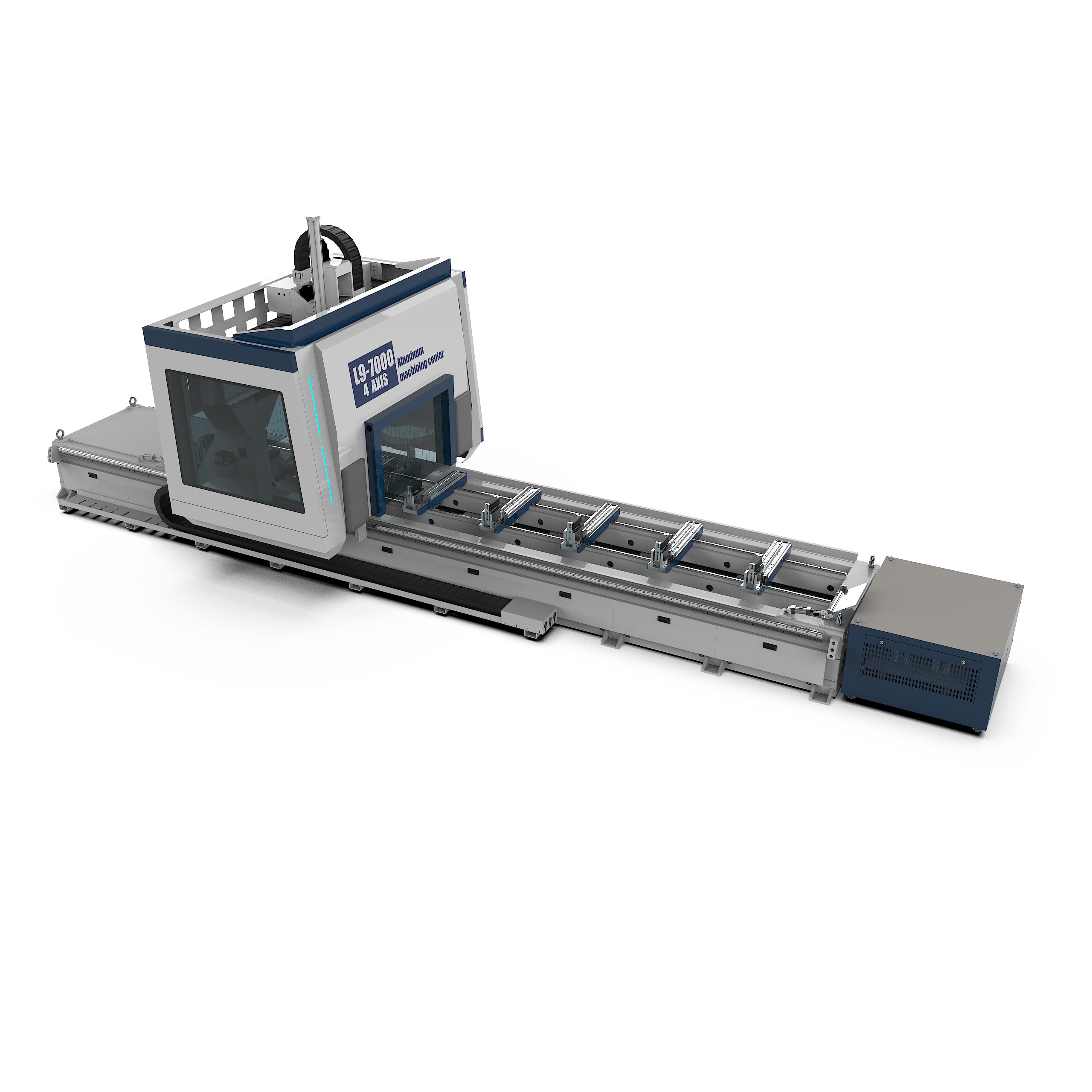

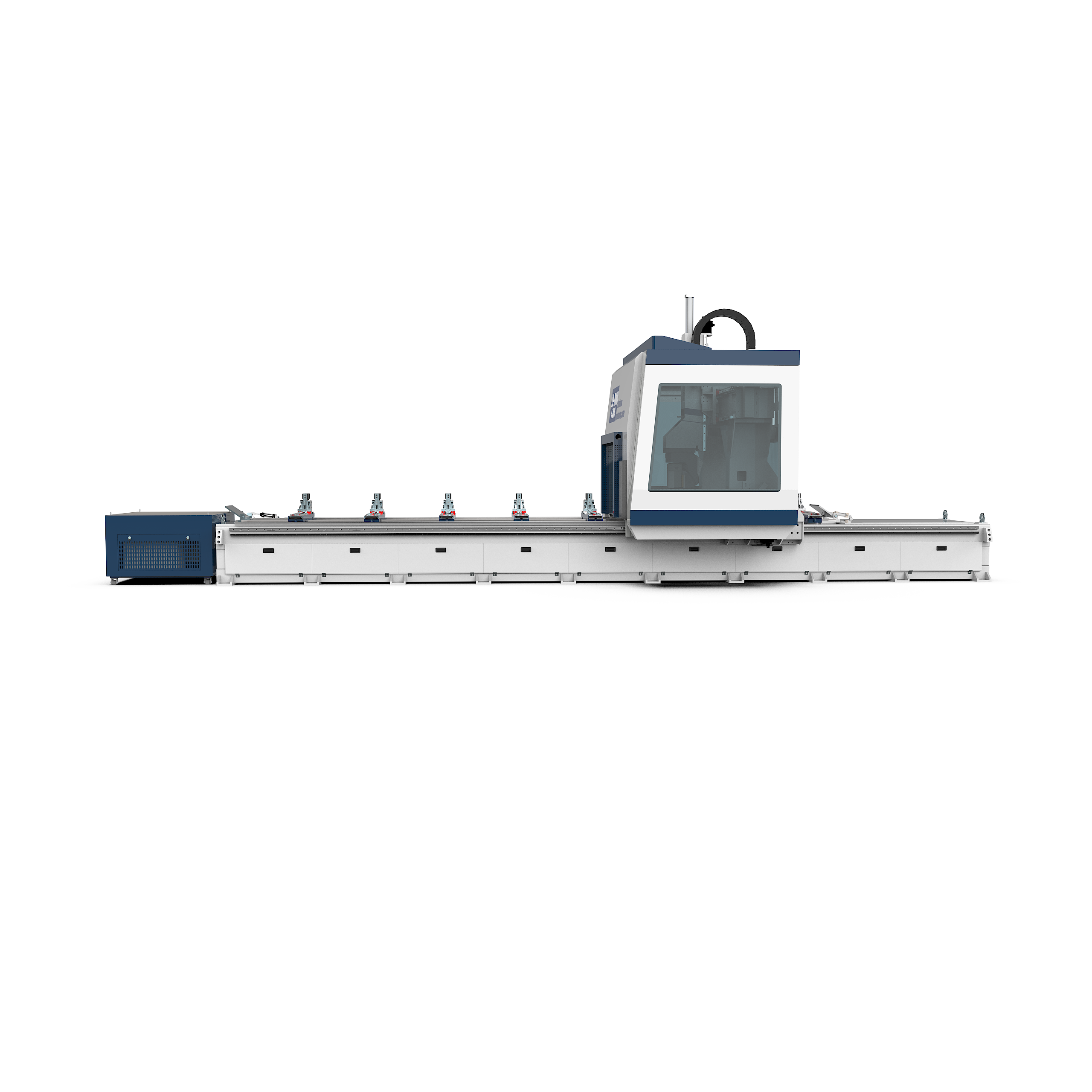

Good Price 4 Axis Cnc Aluminum Profile Machine Drilling And Milling Center

Model & Purpose: YOUHAO L9 4-axis aluminum drilling and milling machining centre, for drilling, milling and cutting industrial aluminum and various shaped aluminum profiles
Applications: Mold making; production of aluminum doors, windows, curtain walls, aluminum furniture
Specs & Certifications: 380V voltage; CE, ISO, ROHS certified
Supply Details: 45-day lead time; 20 sets/month supply capacity
Warranty & Customization: 2-year warranty; OEM services (logo customization, size adjustment, tailored modifications)

  • L94A

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Auto lubrication

IMG_2236

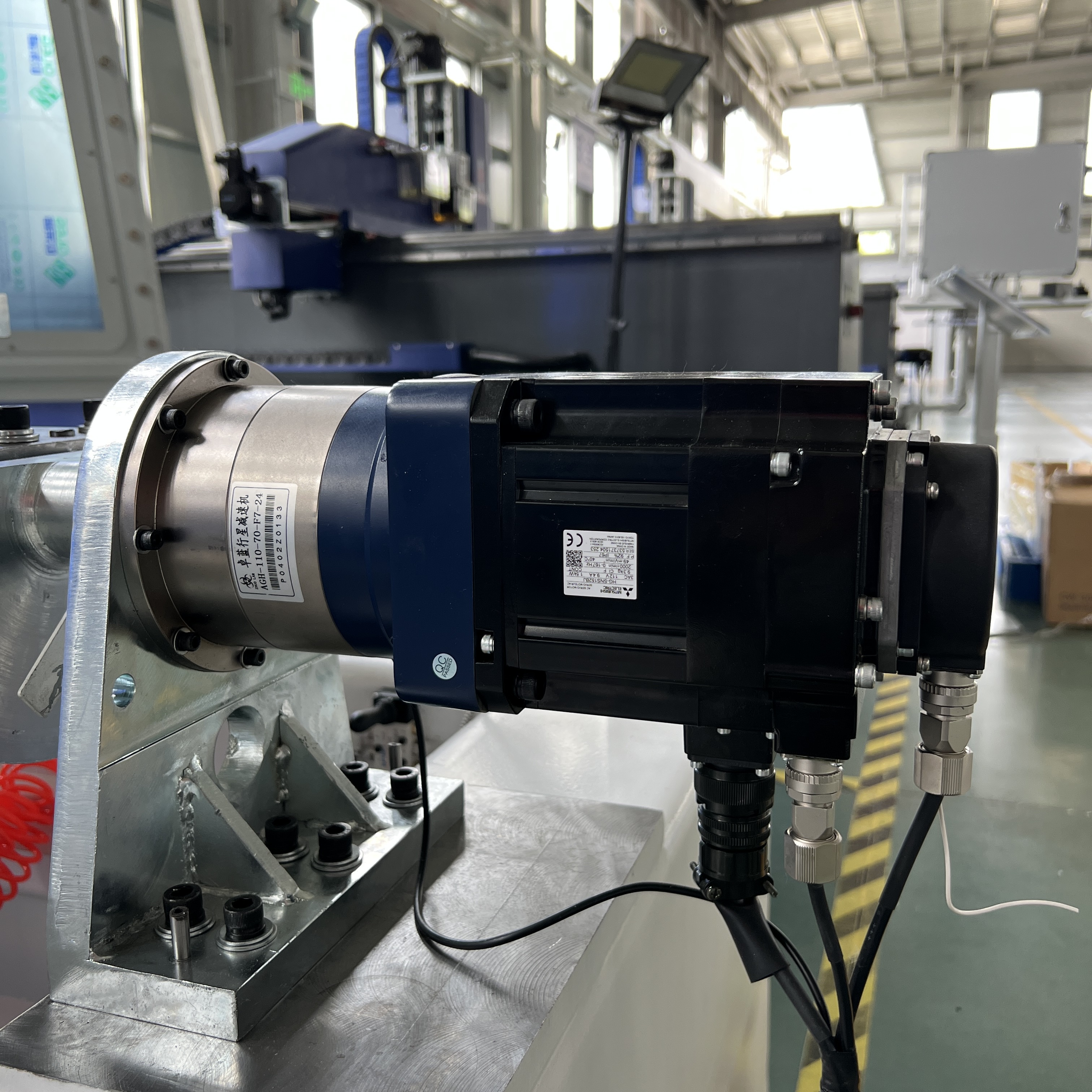

Motor and Drive


Leadshine 2000w servo motor, Z axis with brake

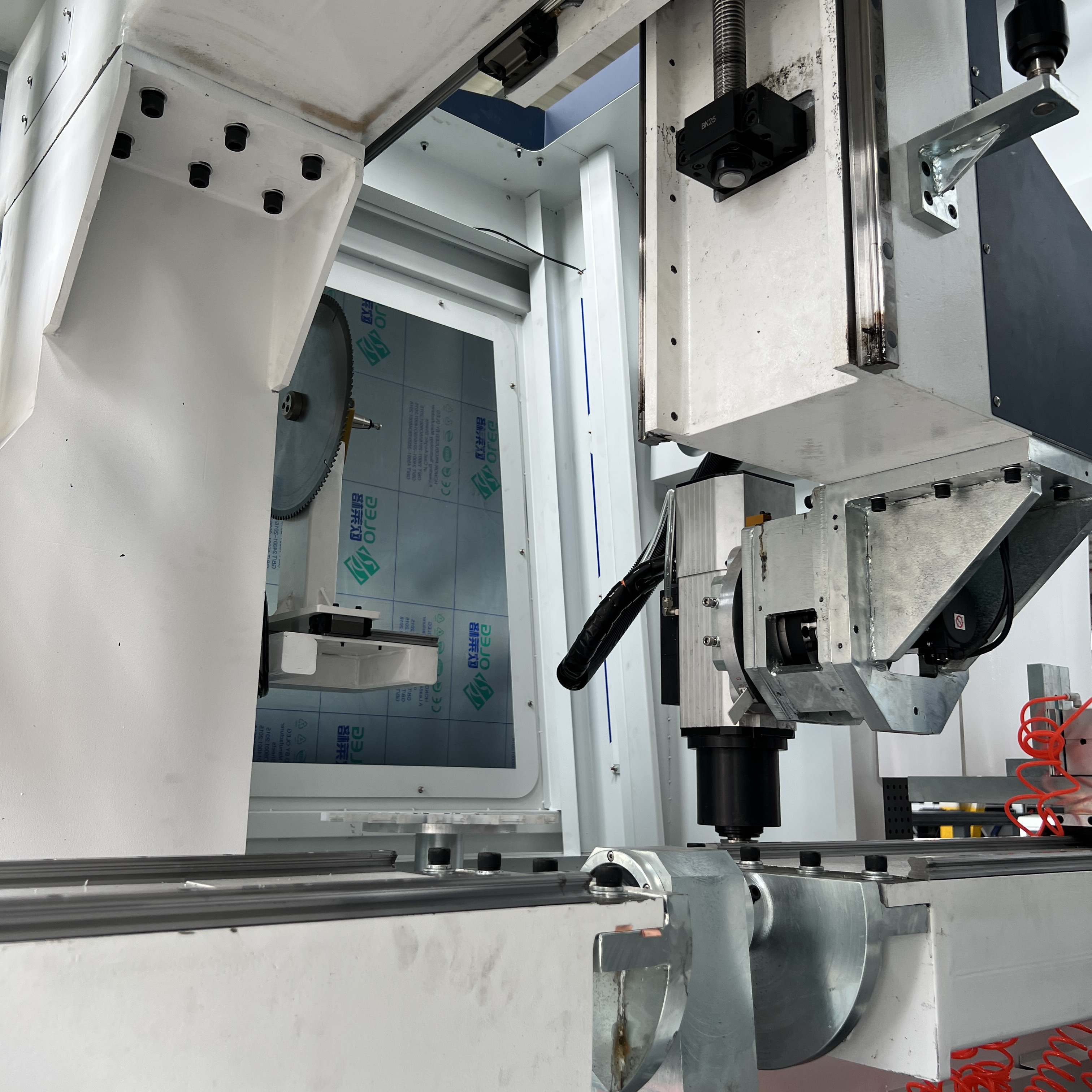

Spindle


HQD 9kw ATC air cooling spindle, 24000rpm


IMG_2161
IMG_2162

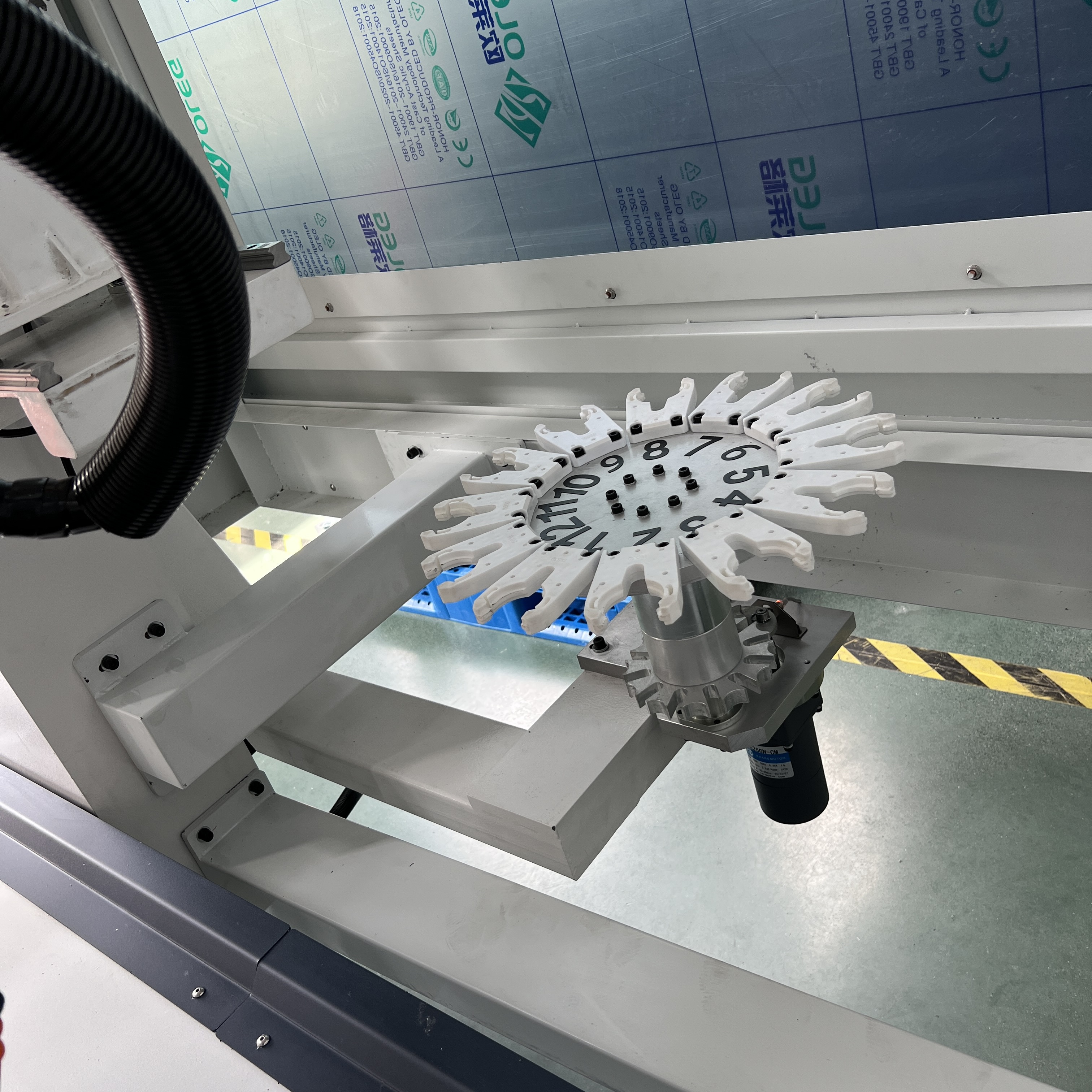

Automatic tool change


The 8-tools carousel tool magazine is a servo-type one, featuring extremely accurate and fast tool change speeds.

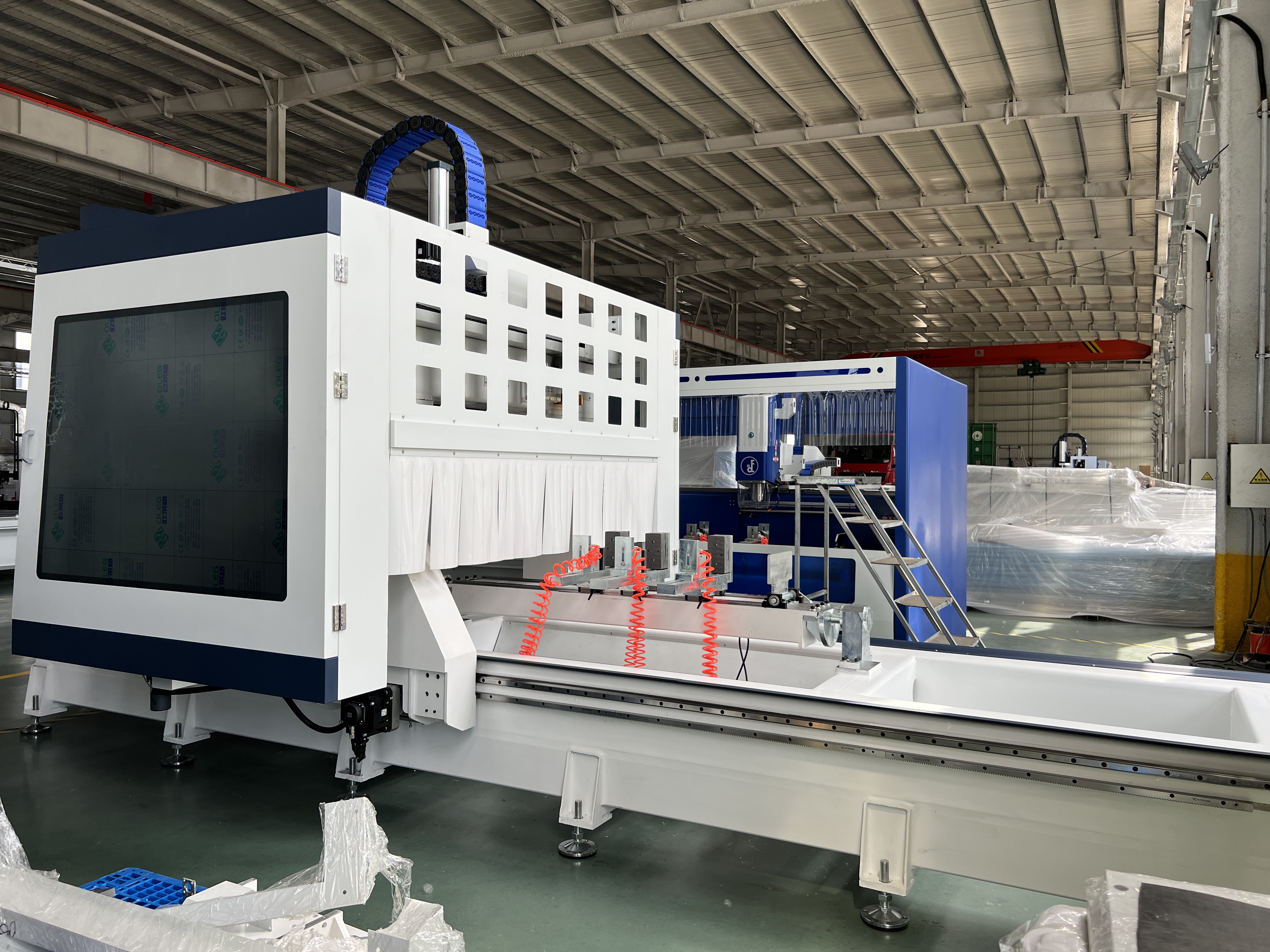

Safety protection


Safety guards are installed to protect the operator's personal safety effectively.
IMG_2153


Advantage


The L9-4A aluminum machining center is with a swing head whc=ich can rotate±90°, can make 3 sided milling

boring and drilling.

It is ideal for processing industrial aluminum materials, handling tasks like holes, grooves, and contour shapes onaluminum profles.




Specifications

Max. cutting aluminum profile size

6500*600*500mm

Repositioning accuracy

±0.01mm

Working Voltage

380V 3Ph 50/60Hz

Applicable Material

PVC, UPVC, Aluminum,ACP

Operation controller

Italy OSAI Control system

Spindle motor

Italy HSD/HITECO 5 axis, 12kw, HSK-63F-ER32, 24000rpm

Servo

Japan YASKAWA AC servo motor

Rail

Taiwan HIWIN/PMI

Transmission

German WMH/Taiwan HIWIN

Tool sensor

Automatic

Lubrication

Auto grease 00# lubrication pump

Max. travelling speed

XYZ: 75/75/15m/min


download YOUHAO CNC catalog.new.pdf
