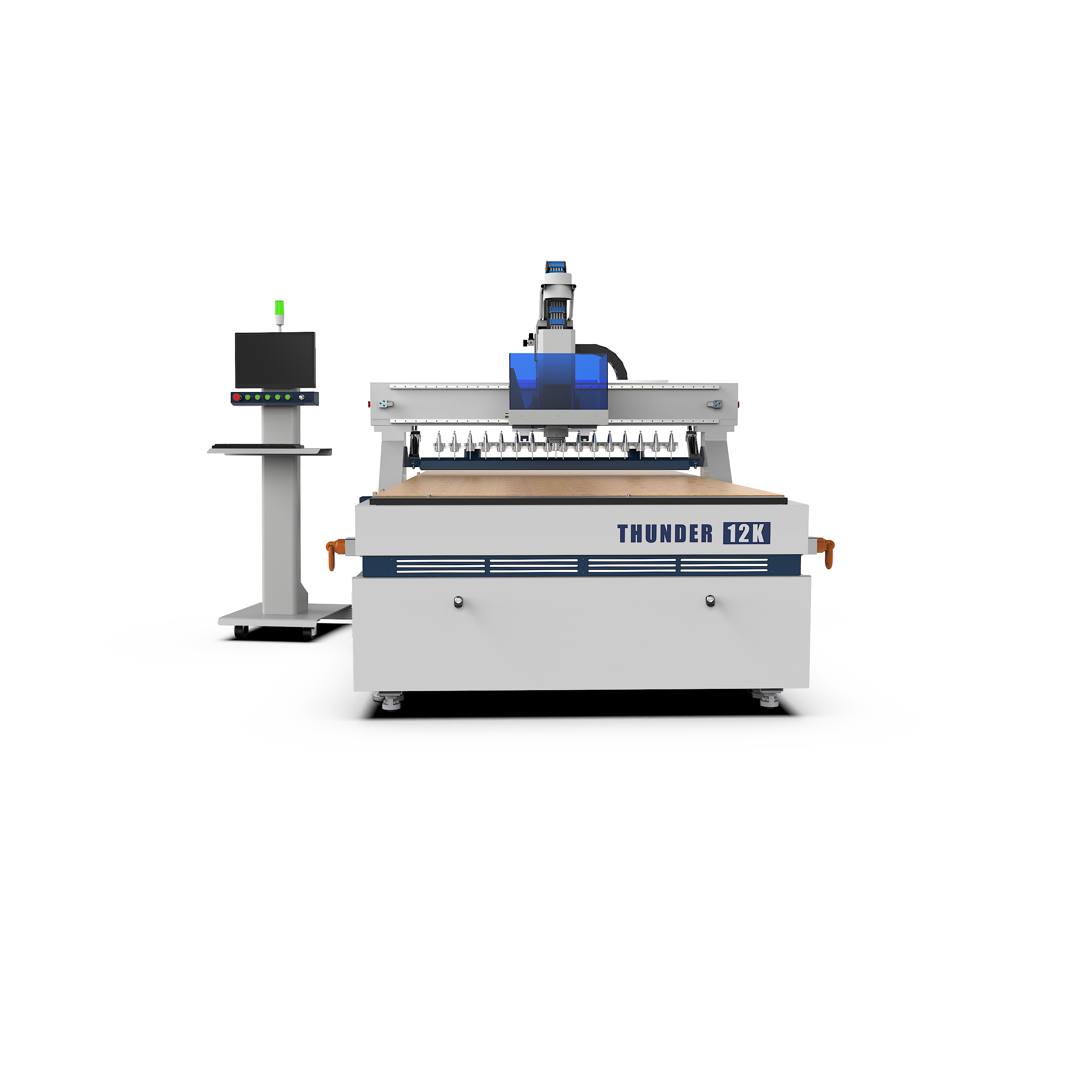

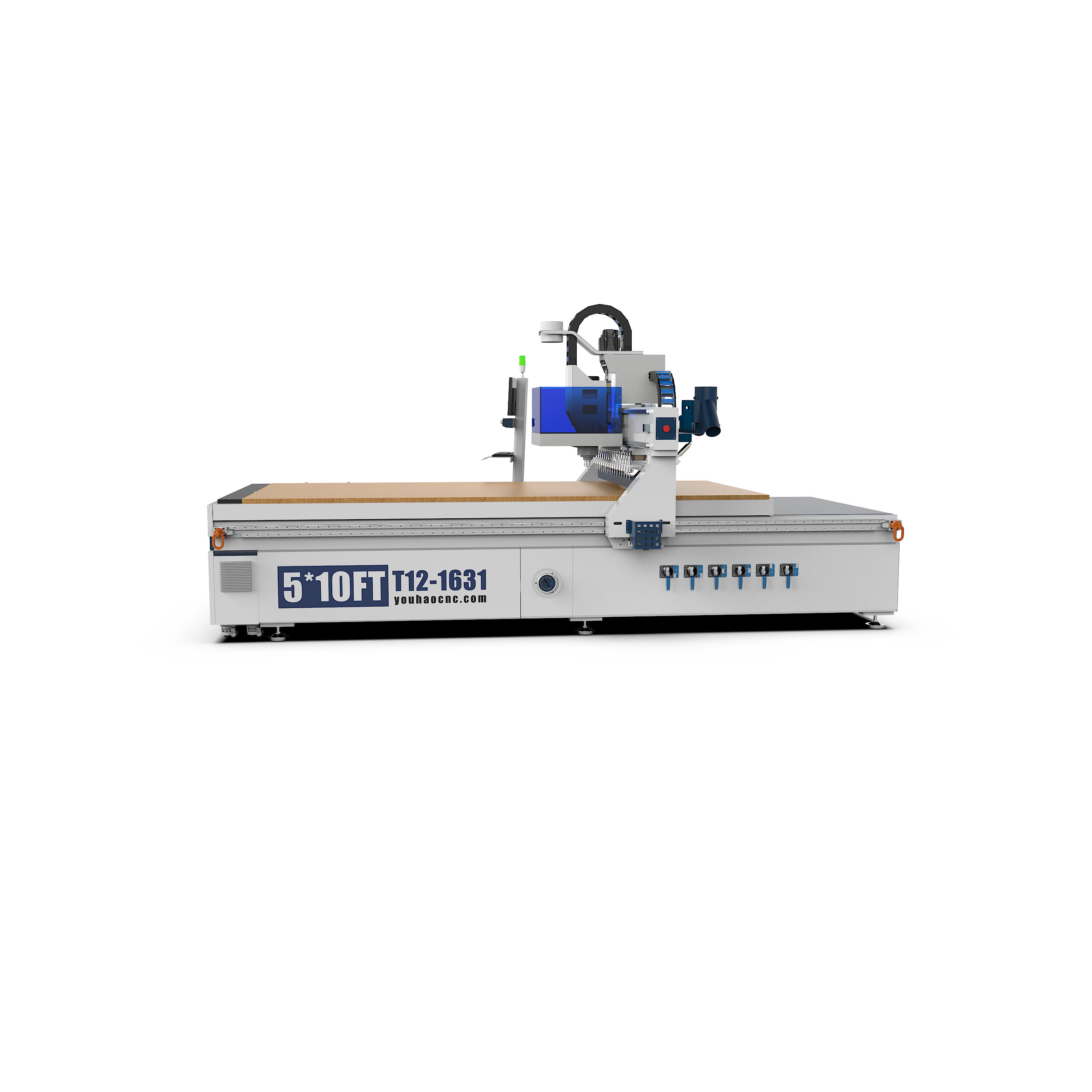

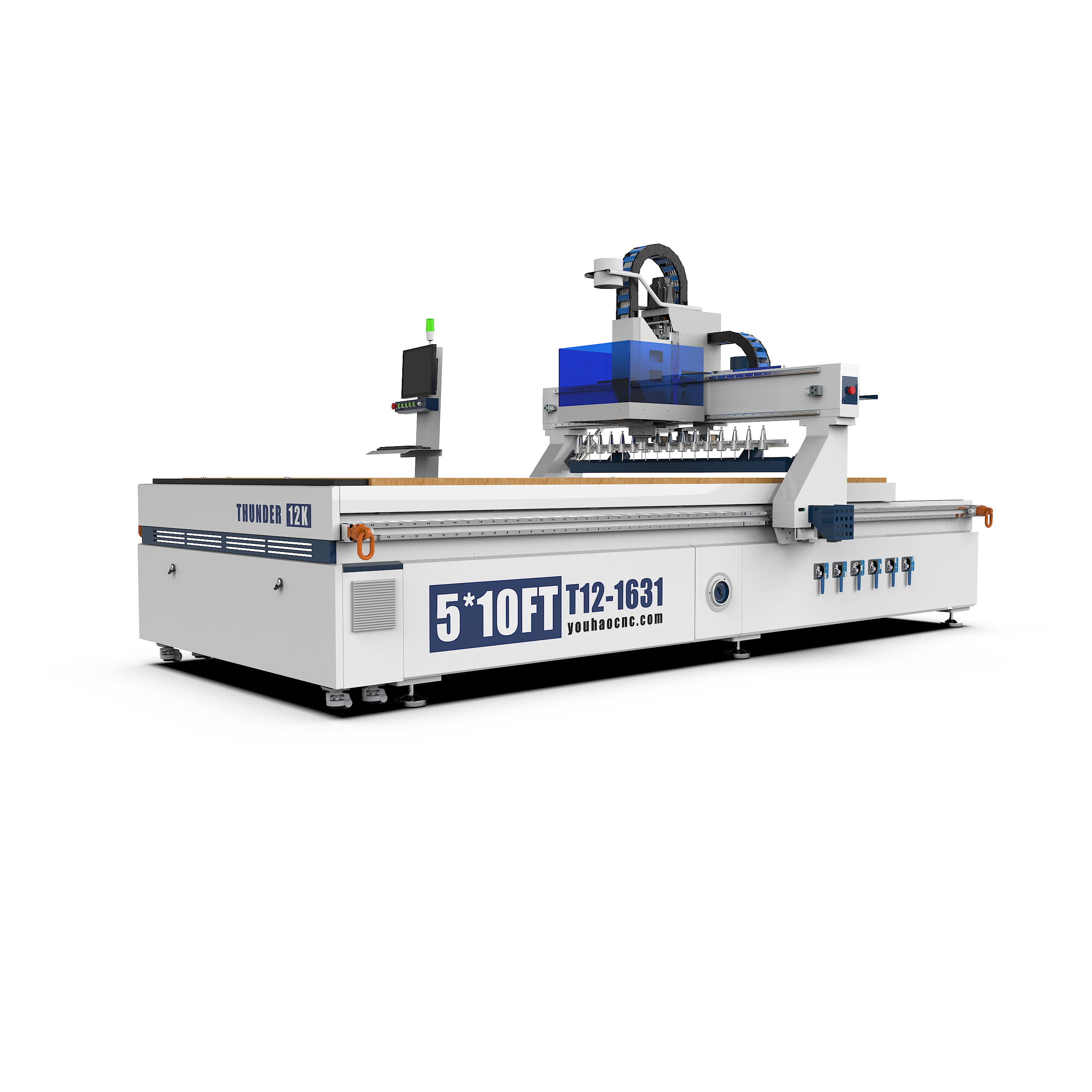

Nesting Cnc Router Machine Automatic Cabinet Panel Furniture Production Line from China manufacturer

Nesting CNC Router Machine is equipped with loading and unloading platform, which is a highly automated production equipment, widely used in furniture manufacturing, cabinet production, advertising production and other fields.

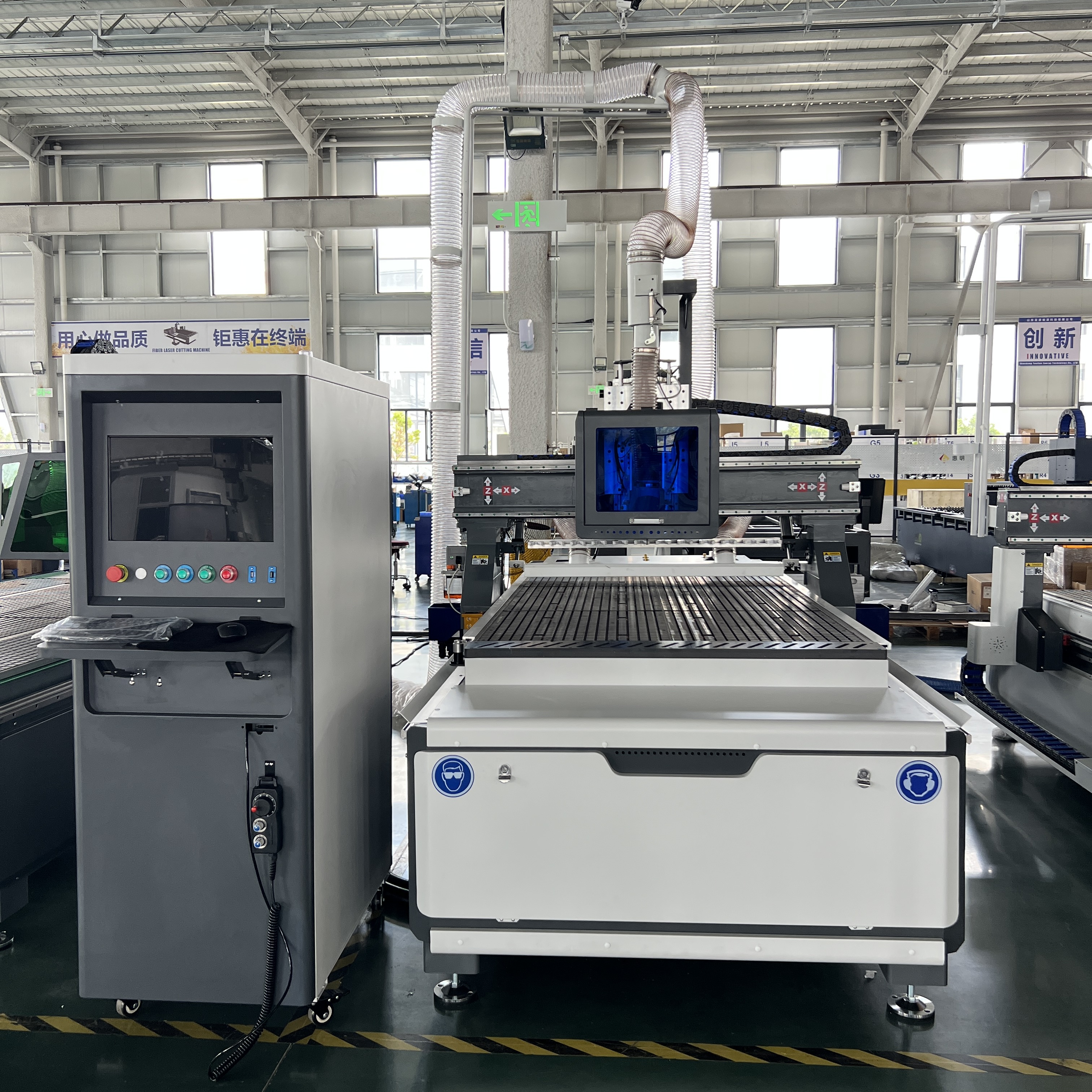

	The size of Nesting ATC CNC Machining Centers is 1325, with functions such as automatic tool changing, nesting, and engraving. It can add loading and unloading platforms and has a side push function. The side push function allows batch processing of small panels without material jamming. The loading and unloading platform fully releases its automation potential, which is truly suitable for one-line continuous operation in mid-to-high-end custom furniture factories.
1325 nesting cnc router machine adds Side Push function, which is a key small module to “save time, manpower, materials, improve efficiency, reduce losses and ensure safety”, improve the overall OEE (overall equipment efficiency) of the cutting machine and realize flexible unmanned production.

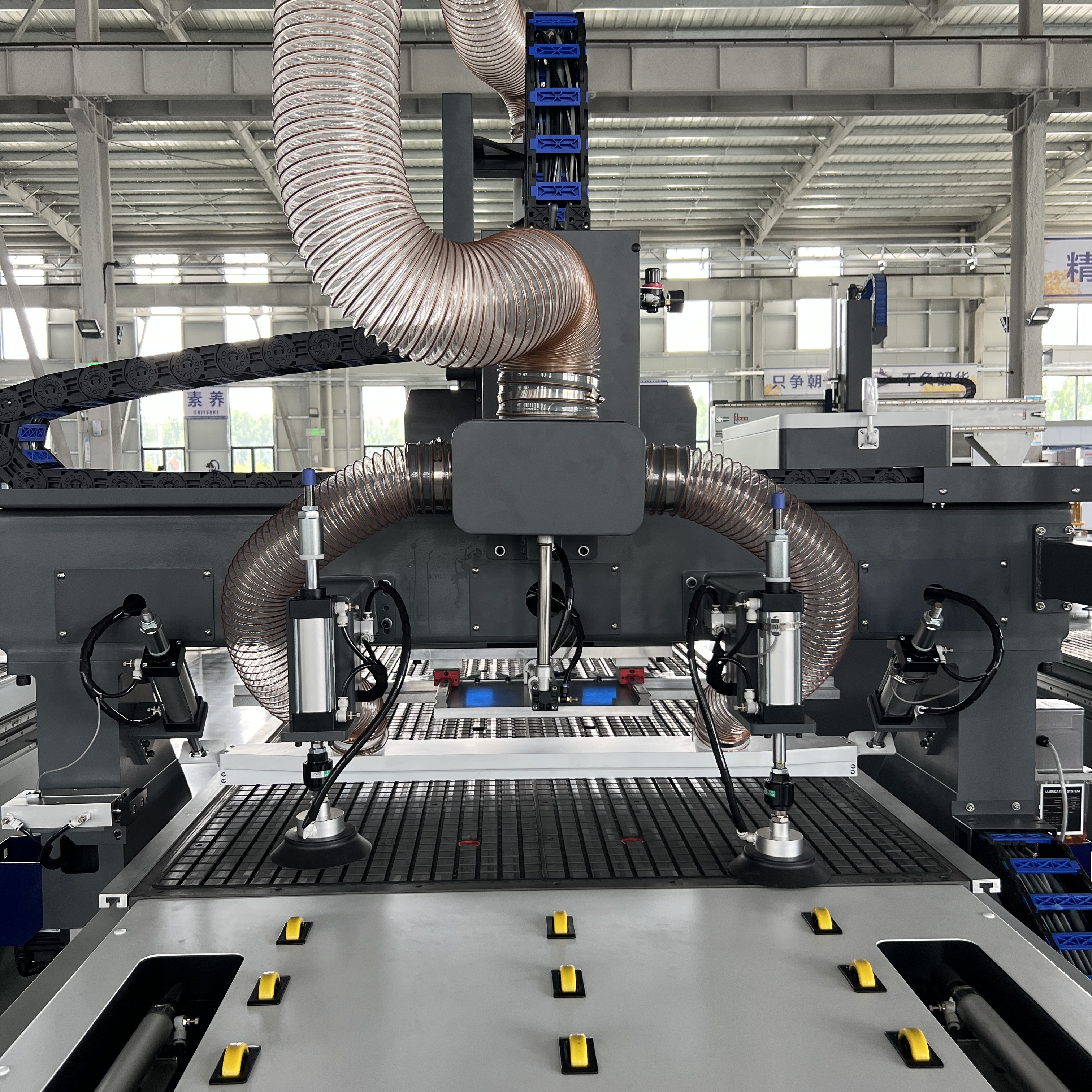

	The Material Loading Suction Cup and loading wheel function of the nesting cnc wood router are both designed to realize automatic loading. The "grabbing function" of the cutting machine changes "manual lifting and positioning" into "automatic grabbing and placing, precise positioning", saving labor, improving accuracy, ensuring safety and reducing losses.
After the suction cup automatically grabs the material, the positioning device adjusts the plate to the state, the system reads the processing code generated software, then the drilling unit will work ,drilling vertical holes and herizonal holes .

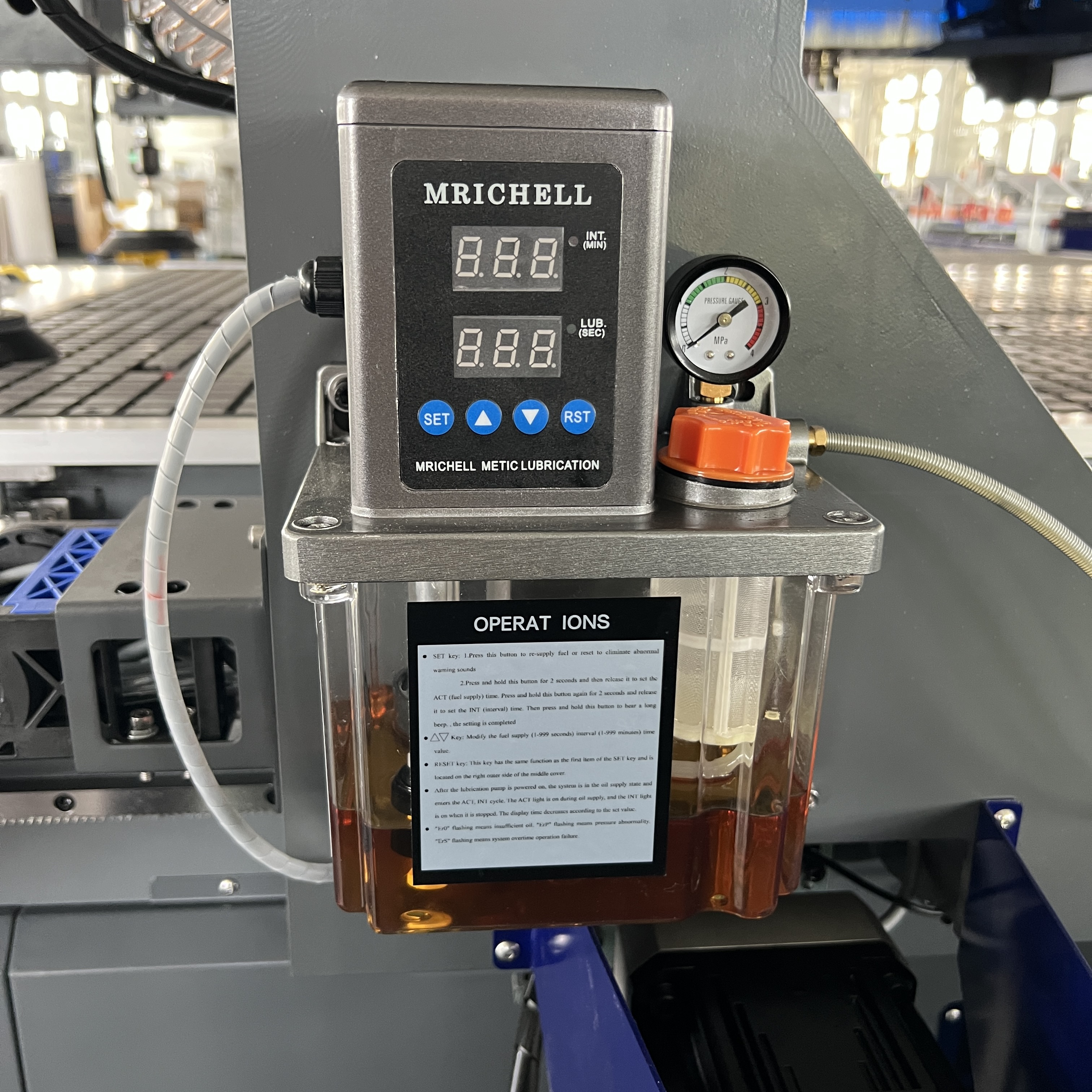

.	The "volumetric automatic lubrication" of the engraving machine is a set of quantitative, timed, fully enclosed centralized lubrication system. The core is to accurately deliver grease or lubricating oil to each pair of guide rails, sliders or lead screw nuts according to a fixed volume. This keeps the engraving machine in the best lubrication state of "just filled with oil", truly achieving "less maintenance, high precision, and long life".
Nesting ATC CNC Router for Furniture upgrades the board processing from "manual + sliding table saw" to "CNC + automation", making more, more accurate and more cost-effective custom furniture with the same time and the same board.

Advantage

There are many benefits of nesting 1325 atc cnc router machine processing, which are mainly reflected in improving efficiency, reducing costs, improving precision and strong adaptability. Specifically, it can realize automated production, reduce dependence on manual labor, and can process various plates to meet the personalized needs of different enterprises.

1. Improve production efficiency:

High degree of automation:

The cutting machine adopts CNC technology, which can realize automatic loading and unloading, automatic typesetting, automatic processing, etc., which greatly improves production efficiency and reduces the time and labor intensity of manual operation.

2. Reduce production costs:

Reduce labor costs:

The use of the cutting machine reduces the dependence on skilled workers and reduces labor costs. One worker can operate multiple machines, and even unmanned operation can be achieved, further reducing labor costs.

The cutting machine has high processing accuracy, which can effectively reduce errors, reduce defective rates, and reduce material loss.

3. Improve processing accuracy:

High-precision processing:

The cutting machine adopts an automatic tool setting instrument, which can accurately position and control the tool to ensure processing accuracy.

High secondary positioning accuracy:

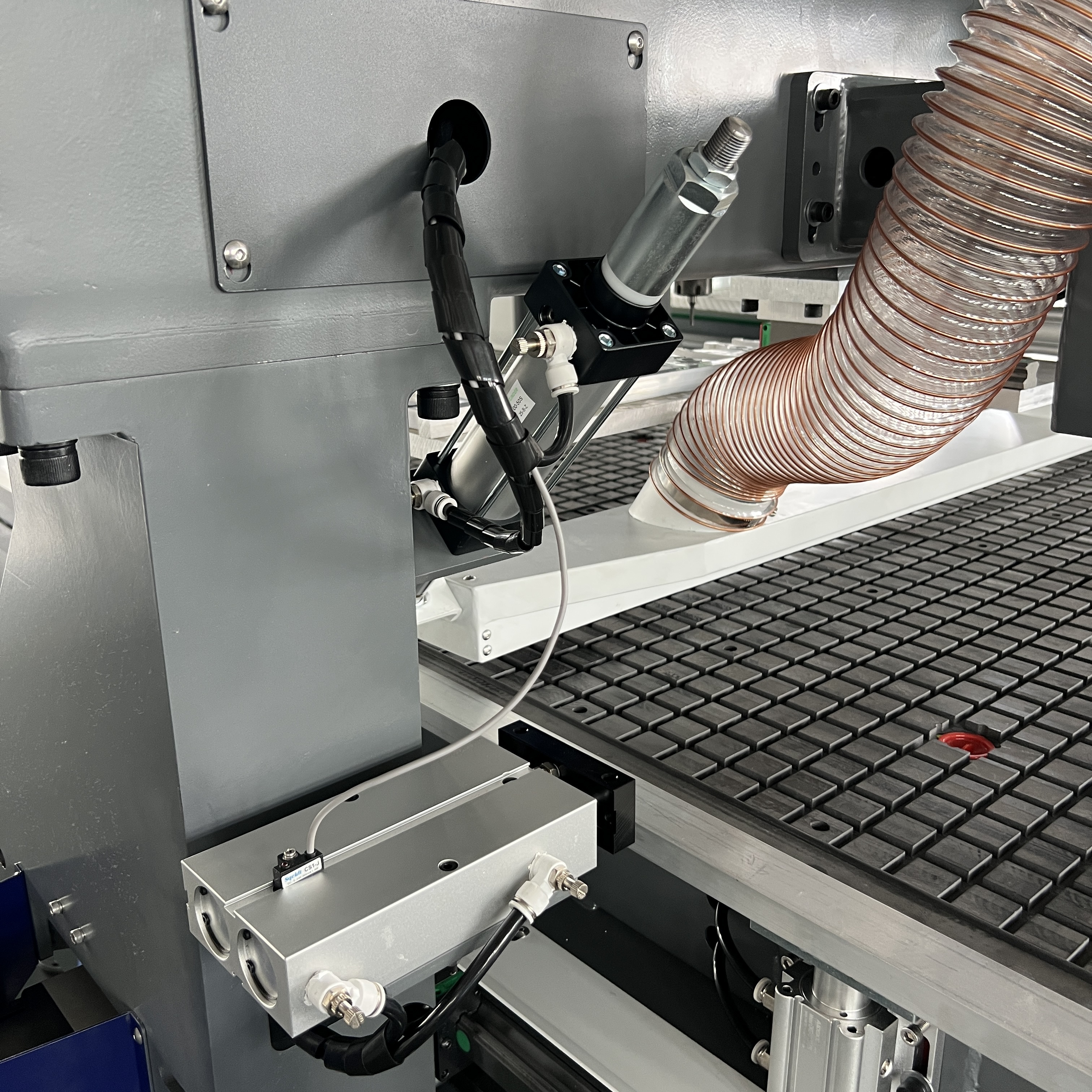

Equipped with a positioning cylinder, it can ensure the secondary positioning accuracy during front and back processing to avoid errors.

Complicated shapes can be processed:

The cutting machine can cut various complex shapes to meet personalized customization needs.

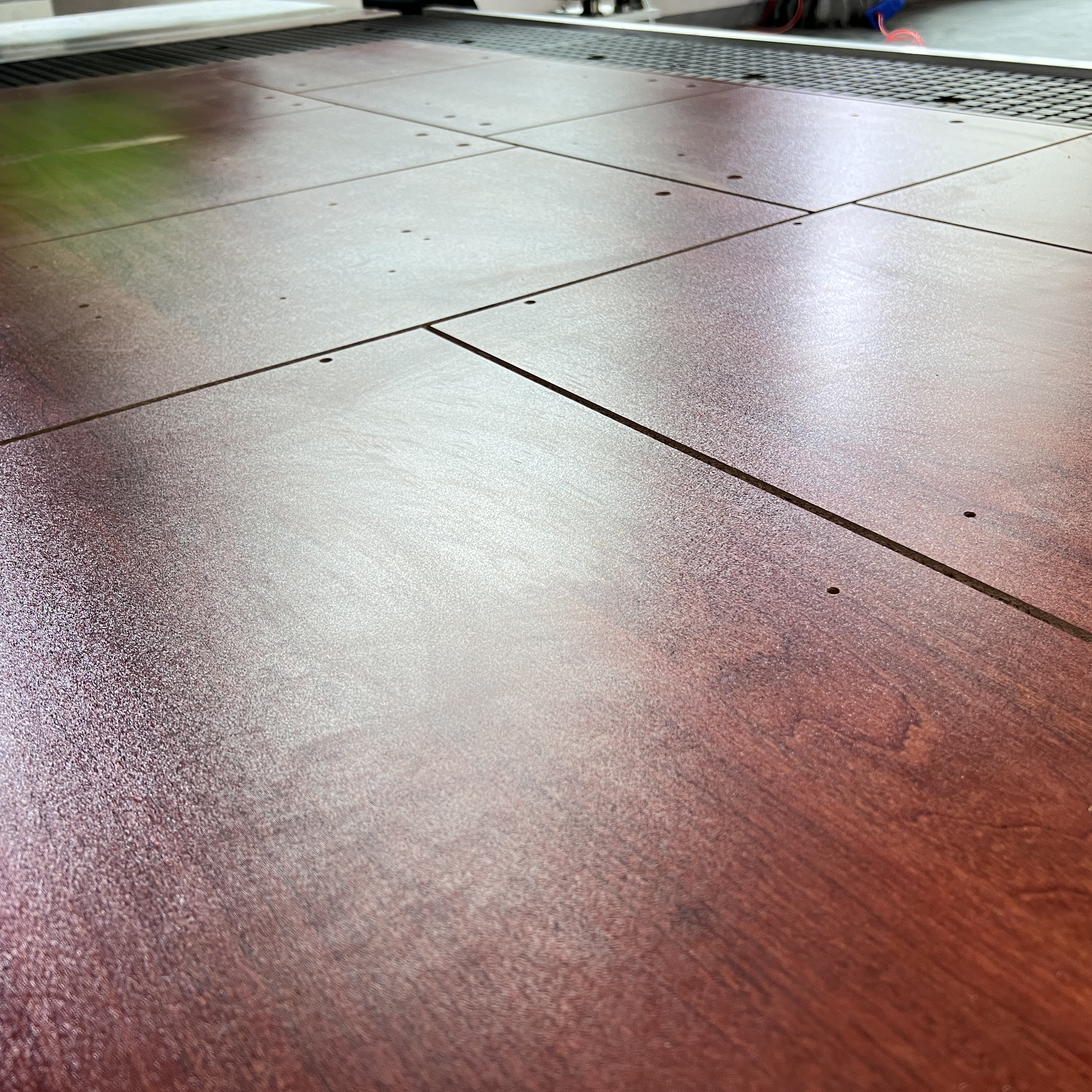

1_0001_sample

Specifications

Description	Parameter
Model	YH-K9
X,Y,Z Working Area	12202440200mm (can be customized)
Reposistioning resolution	0.02mm
System Resolution	0.0025mm
Guide	Taiwan linear 25mm square rail
Table Surface	T-slot and vacuum working table
Structure	heavy duty structure
X Y Z Structure	Germany Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel;
Max. Working Speed	30000m/min
Spindle	HQD 9KW air cooling spindle (HSD is optional)
Spindle Speed	0-24000RPM
Drive Motors	Yaskawa 850w servo motor and driver
Inverter	11kw Fuling
Tool magazine	10pcs linear tool
Electrical component	French shneider
Working voltage	380v/3ph 50-60hz
Software	artcam/Alpacan/router 8
Standard equipment included	1 Drilling unit 2Auto loading and unloading system 3Automatic labling system
Optional	1.Dust collector 2.Germany Becker vacuum pum 3.rotary device 4.Mist cooling system 5.HSD drilling unit 6 Dust collector 7 Vacuum pump
