What Is A 3 Axis CNC Router?

In modern woodworking, sign-making, furniture design, and even light metal processing, CNC technology has transformed how manufacturers and workshops approach cutting and shaping materials. Among the different types of CNC machines, the 3axis CNC router stands as the most common and versatile. But what exactly is a 3 axis CNC router, how does it work, and how does it compare to more advanced 4-axis and 5-axis CNC machines?

What is a 3 Axis CNC Router?

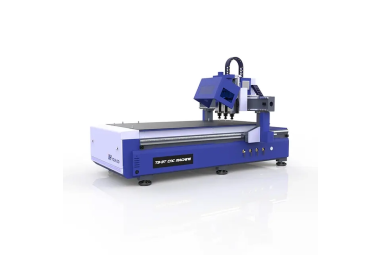

A 3axis CNC router is a computer-controlled cutting machine that operates along three linear axes:

• X-axis (left to right)

• Y-axis (front to back)

• Z-axis (up and down)

The machine uses a spindle equipped with cutting tools that move across these three axes to carve, cut, drill, or engrave materials such as wood, plastics, composites, foam, and even aluminum.

The term “3 axis” means that the spindle can only move in these three directions simultaneously. This configuration makes the machine suitable for producing flat or slightly contoured surfaces, 2D and 2.5D shapes, and parts with depth but without complex undercuts or multi-angle geometries.

Because of its straightforward structure, the 3axis CNC router is widely used in small workshops, furniture factories, cabinetry, signage, and prototyping. Many buyers often research the 3axis CNC router machine price with wood, since this cost can vary depending on machine size, spindle power, and configuration.

Structure of a 3 Axis CNC Router

A typical 3axis CNC router machine consists of the following main components:

• Machine Frame – Provides stability and durability. High-end models use heavy-duty welded steel to minimize vibrations.

• Worktable – The surface where material is fixed. Vacuum tables are common, ensuring firm holding without mechanical clamps.

• Spindle – The heart of the router, rotating tools at speeds from 6,000 to 24,000 RPM.

• Linear Guide Rails & Transmission System – Ensures precise movement via ball screws or rack-and-pinion drives.

• CNC Controller – Interprets design files (G-code) and sends commands to motors.

• Motors (Stepper or Servo) – Drive axis movements. Servo motors offer higher precision.

• Software – CAM/CAD software like ArtCAM, VCarve, or Fusion 360 converts designs into cutting instructions.

Together, these components make the 3axis CNC router a reliable machine for automated cutting and carving.

Working Principle of a 3 Axis CNC Router

The operation of a 3axis CNC router is highly automated and follows a precise sequence to ensure accuracy and efficiency:

• Design Creation – The process begins with creating a detailed CAD (Computer-Aided Design) file that includes all dimensions, shapes, and features required for the final product. This design serves as the blueprint for the machine.

• CAM Processing – The CAD file is then imported into CAM (Computer-Aided Manufacturing) software, which generates G-code instructions. The G-code defines the spindle movement, cutting speed, tool type, depth, and sequence for the machining process.

• Machine Setup – Operators secure the material onto the worktable, attach the correct cutting tool to the spindle, and set the machine’s origin point. Proper setup is crucial for precision and repeatability.

• Machining Process – The CNC controller guides the spindle along the X, Y, and Z axes, cutting the material layer by layer. This automated process ensures consistent results, reduces human error, and significantly increases production efficiency compared to manual cutting.

Advantages of a 3 Axis CNC Router

• Affordability – Compared to 4-axis or 5-axis machines, a 3axis CNC router comes at a significantly lower investment. This makes it a cost-effective solution for small workshops or businesses looking for a reliable entry into CNC machining without overspending.

• Ease of Use – Most 3axis routers are designed with beginner-friendly software and straightforward controls. Even operators with minimal technical training can quickly learn how to program and run the machine, reducing setup time and training costs.

• Versatility – A 3axis CNC router can process a wide range of materials, including wood, MDF, acrylic, PVC, foam, and even soft metals like aluminum. This versatility allows manufacturers to serve diverse markets.

• High Productivity – With automated cutting, engraving, and drilling, the machine delivers faster cycle times and higher precision than manual methods, improving overall efficiency.

• Scalability – Businesses can start with a basic 1325 three-axis CNC wood router door machine and easily upgrade to larger models, such as the 1325, 2030, or 2040 series, as production demands grow.

Comparing 3 Axis vs. 4 Axis vs. 5 Axis CNC Routers

1. 3 Axis CNC Router

Movement: X, Y, Z

Best for: Flat panels, 2D/2.5D machining, cabinet doors, signage, furniture parts

Industries: Woodworking, advertising, prototyping

Example: 1325 three-axis CNC wood router door machine for cutting doors and large panels.

2. 4 Axis CNC Router

Adds A-axis rotation.

Best for: Cylindrical and multi-sided workpieces.

Industries: Furniture, sculptures, mold making.

3. 5 Axis CNC Router

Adds two rotational axes (A and B).

Best for: Complex 3D machining and aerospace-grade precision.

Industries: Aerospace, automotive, high-end furniture.

Choosing the Right CNC Router

When selecting the right model, consider:

• Budget – A 3axis CNC router machine price with wood is significantly lower than 4 or 5 axis machines.

• Applications – Flat panels and cabinet doors suit 3axis, while sculptures may need 4axis.

• Production Scale – Small shops benefit from 3axis; industrial operations may require upgrades.

• Skill Level – Beginners will find 3axis easier to operate.

Common Applications of a 3axis CNC Router

• Cabinet Doors & Furniture Panels – Ideal for precise cutting, shaping, and detailing of wooden panels, helping manufacturers produce stylish and durable cabinetry and furniture.

• Signage & Advertising Boards – Widely used to engrave letters, logos, and intricate patterns on wood, acrylic, and PVC, making it a favorite in the advertising industry.

• Architectural Carvings – Perfect for decorative wall panels, ceiling designs, and artistic elements in modern and traditional architecture.

• Engraving on Wood and MDF – Delivers high-precision engravings for customized designs, ornaments, and artistic patterns.

• Prototyping – Supports product development by creating accurate prototypes before mass production.

• Cutting Acrylic, PVC, and Aluminum – Beyond wood, it handles soft metals and plastics, offering multi-material flexibility.

Conclusion

The 3axis CNC router has become the backbone of modern woodworking and light manufacturing, offering precision, efficiency, and versatility. Operating along three linear axes, it is widely used for producing furniture, cabinetry, signage, and decorative panels. While it may not have the extended flexibility of 4-axis or 5-axis machines, its balance of performance and affordability makes it the most practical choice for workshops, factories, and growing businesses.

For companies exploring the 3axis CNC router machine price with wood or considering popular models such as the 1325 three-axis CNC wood router door machine or the 1325 2030 2040 3axis CNC router machine, cost-effectiveness and production requirements must be carefully evaluated. Entry-level cheap price 3axis wood routers are excellent for small-scale operations, while premium models deliver long-term stability and efficiency.

If you are looking for a trusted manufacturer 3axis CNC router, Shandong Youhao Energy Technology Co., Ltd. provides a full range of solutions designed to meet different woodworking needs. Their machines combine durability, precision, and competitive pricing, making them a reliable partner for businesses worldwide. Contact them today to learn more about models, pricing, and how their CNC routers can support your production growth.
