High Precision Four-axis CNC Wood Router Machine with 180 Swing Head from China manufacturer

	Suitable for four-axis engraving machines, meeting the needs of complex surface processing, friendly interface, easy to use, suitable for factory operators to quickly master, with powerful multi-axis control capabilities, good scalability and easy operation, very suitable for scenes requiring high-precision and high-efficiency processing.

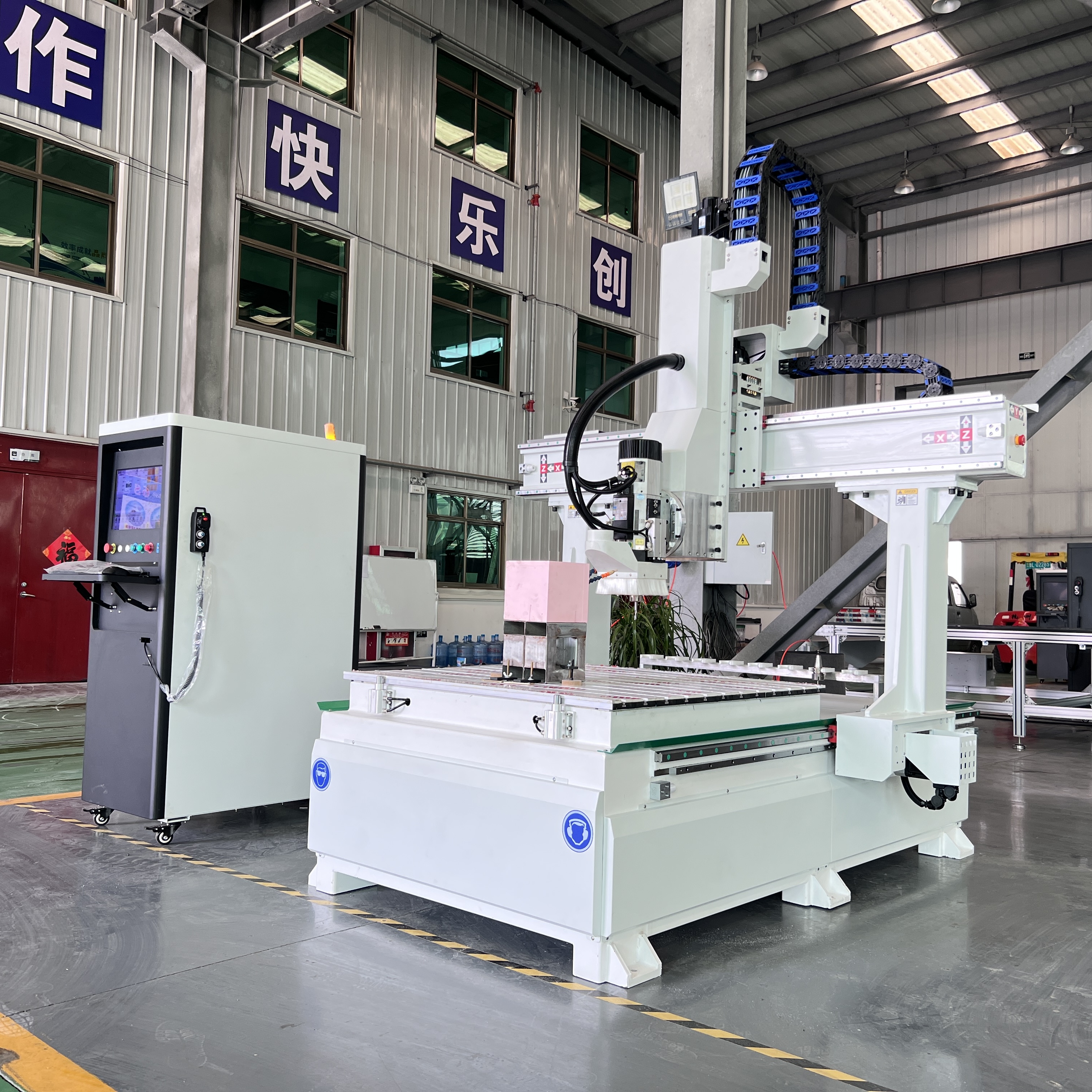

The 1212 size (1200×1200mm) is suitable for processing small and medium-sized workpieces. It occupies a small area and can realize the processing of complex three-dimensional workpieces such as cylinders, solids, and reliefs to meet diverse processing needs. It can be equipped with automatic tool changing spindle, vacuum adsorption table, cooling system, dust prevention device, etc. to improve processing efficiency and safety.

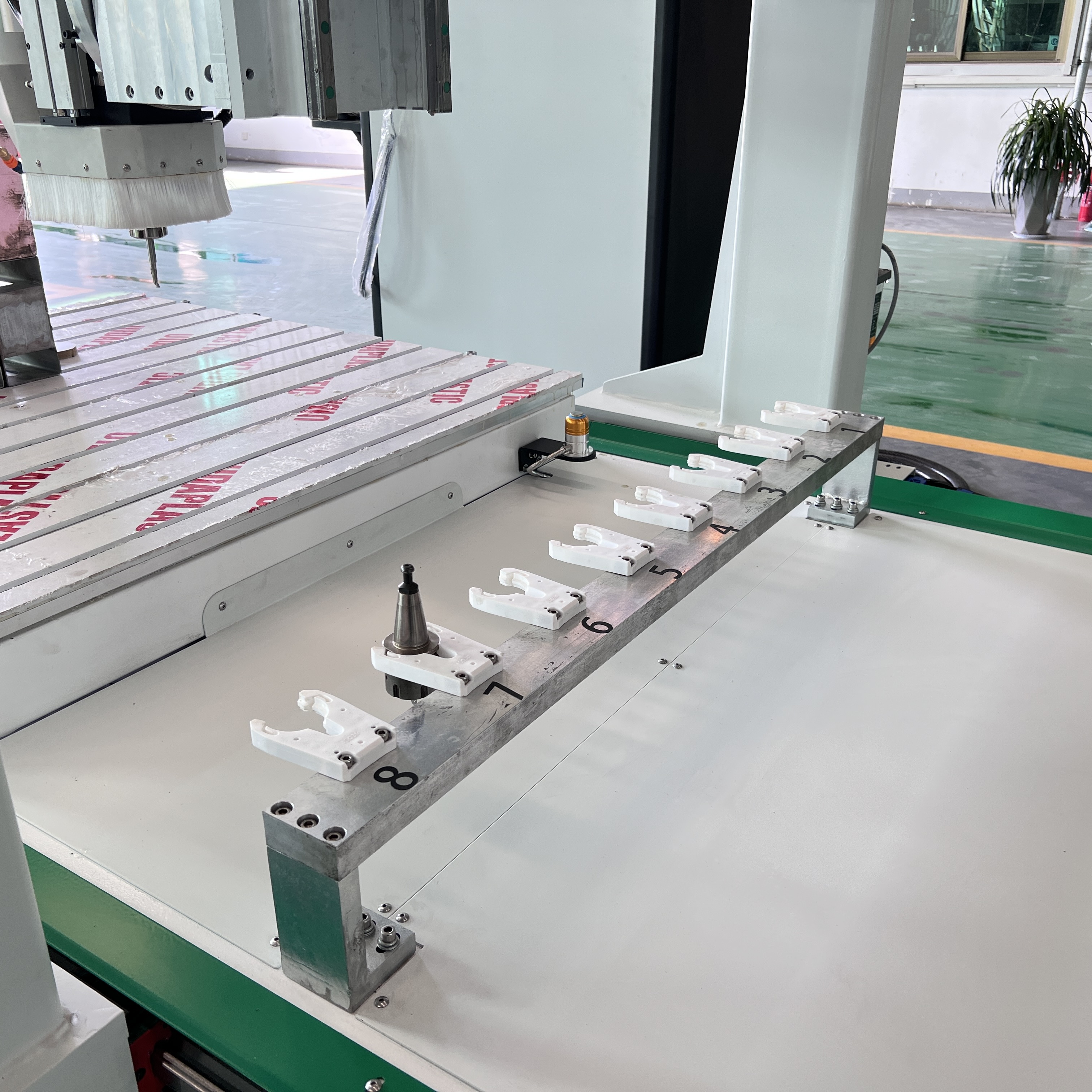

	The tool magazine is installed on the back of the 4axis cnc router machine, which does not occupy the processing area space, which is conducive to the optimization of the overall layout of the equipment. It is suitable for processing workshops with limited space. 8 tool positions can meet the needs of most small and medium-sized processing tasks. It is suitable for woodworking, advertising, molds and other industries. The number can be modified according to customer needs

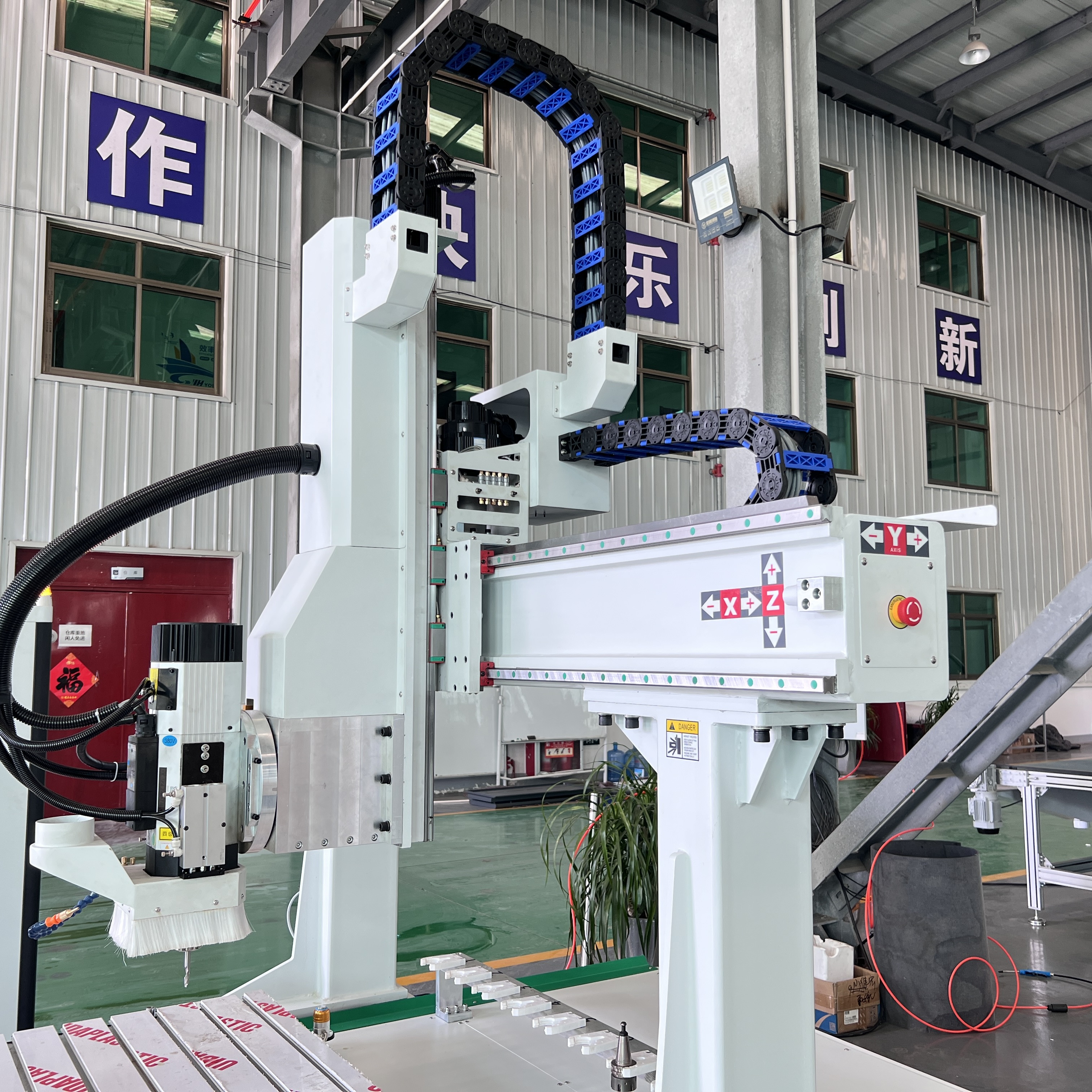

The spindle can be tilted at multiple angles, which is suitable for processing complex structures such as sides, bevels, chamfers, curved surfaces, etc. The four-axis engraving machine with a swing head range of ±90° has extremely high processing flexibility and precision, and is suitable for the processing needs of complex three-dimensional workpieces. It is particularly suitable for scenes that require multi-angle and multi-faceted processing, such as handicrafts, molds, furniture and other industries, and is one of the important configurations of high-end engraving equipment.
	Applicable processing materials (in conjunction with a four-axis engraving machine): Wood: solid wood, density board, plywood, bamboo, etc. Plastic: acrylic, PVC, ABS, foam board, etc. Metal: aluminum, copper, stainless steel (soft metal processing) Stone: marble, artificial stone, ceramics Composite materials: aluminum-plastic board

Advantage

1. True four-axis linkage processing: X, Y, Z, A four-axis linkage can be realized at the same time, which is suitable for processing complex curved surfaces, special-shaped structures, and asymmetric three-dimensional workpieces.

2. Four axis cnc wood router machne Flexible spindle swing: The spindle can swing ±90° or 0~180°, which is suitable for multi-angle processing, such as side milling, bevel punching, curved surface engraving, etc.

3. High processing accuracy: Multi-face processing can be completed in one clamping, reducing repeated positioning errors and improving overall processing accuracy.

4. Higher processing efficiency: Automatic tool change combined with multi-axis linkage reduces manual intervention and tool change time, which is suitable for mass production.

5. Wide range of applicable materials: It can process a variety of materials such as wood, acrylic, plastic, aluminum, copper, foam, stone, etc.

6. Wide range of application industries: Commonly used in furniture manufacturing, mold processing, handicraft engraving, advertising logos, architectural models and other industries.

7. Stable and durable structure: Heavy bed, Taiwan guide rails, Yaskawa servo motors and other high-end accessories are mostly used to ensure long-term stable operation of the equipment.

Specifications

Model	T94A-1325	T94A-1530	T94A-2030	T94A-2130	T94A-2040	T94A-2050
Table Structure	Aluminum + T-Slot Working Table
Working Area	13002500200mm	15003000200mm	20003000200mm	21003000200mm	20004000200mm	20005000200mm

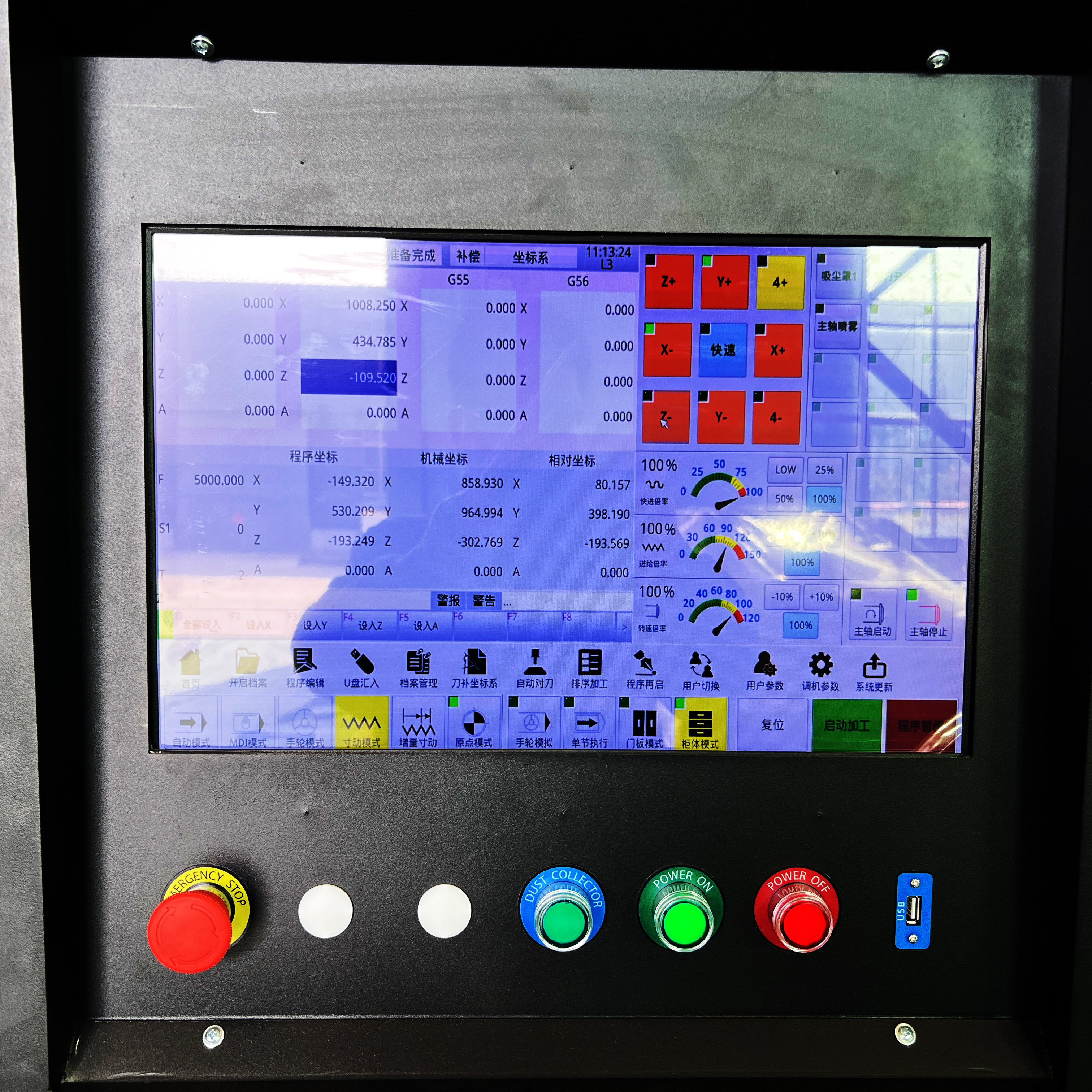

Controller	TAIWAN LNC MW2600 controller system
Spindle	HQD 9kw Air-cooling Spindle
Motor and driver	Leadshine 1500W servo Mortor and Driver,A axis leadshine 750W servo Mortor
Guide rail	HIWIN 25/25/25mm
Working voltage	220V/1PH/50HZ or 380V/3PH/50HZ
Traveling speed	60/60/20m/min
Working speed	0-25m/min

	Model Type	T94A-1325
1	X,Y,Z Working Area	1300x2500x600mm.B axis +-90°
2	X,Y,Z Traveling Positioning Accuracy	±0.05mm
3	X,Y,Z Re-positioning Accuracy	±0.05mm
4	Table Surface	Vacuum table and T-slot
5	Frame	Welded body Structure(6mm), cast iron for gantry (8mm)
6	X, Y Structure	HIWIN Square orbits and helical rack
7	Z Structure	HIWIN square orbit and TBI Ball Screw
8	Max. Rapid Travel Rate	25000mm/min
9	Max. Working Speed	20000mm/min
10	Spindle Power	5kw
11	Spindle Speed	24000RPM
12	Motor and Driver	Leadshine 1.5kw servo motor and driver on B axis
13	Working Voltage	380V/220V
14	Command Language	G Code
15	Operating System	DSP/Ncstusio/Mach3
16	Computer Interface	USB
17	Collet	ER32
18	X,Y,Z Resolution	<0.05mm
19	Software Compatibility	Type3/UcancameV10/Artcam/Artengraver (optional)
20	Running Environment Temperature	0 - 45 Centigrade
21	Relative Humidity	30% - 75%
22	Packing Size	3200 x 2150 x 650mm
23	N.W.	1200KG
24	G.W.	1300KG
25	Optional Parts	Spindle power
		Aluminum and PVC table
		Rotary System
		Servo motor
		Delta/ Panasonic Servo motors
