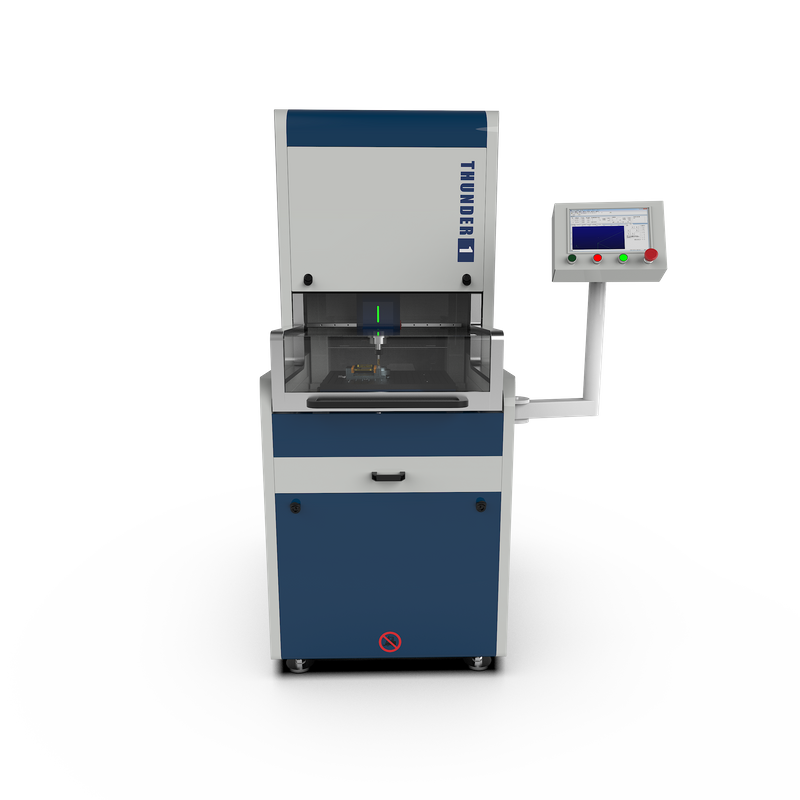

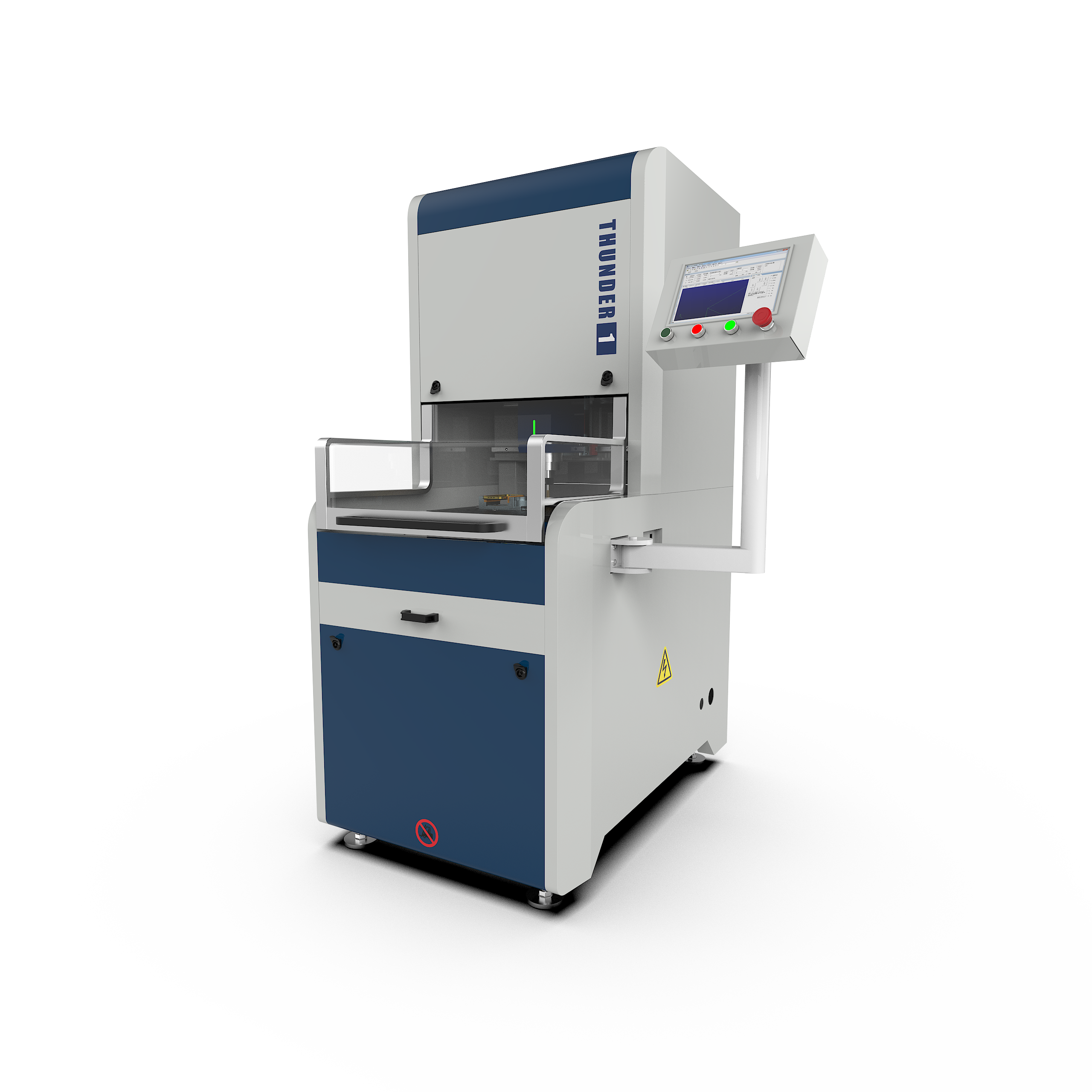

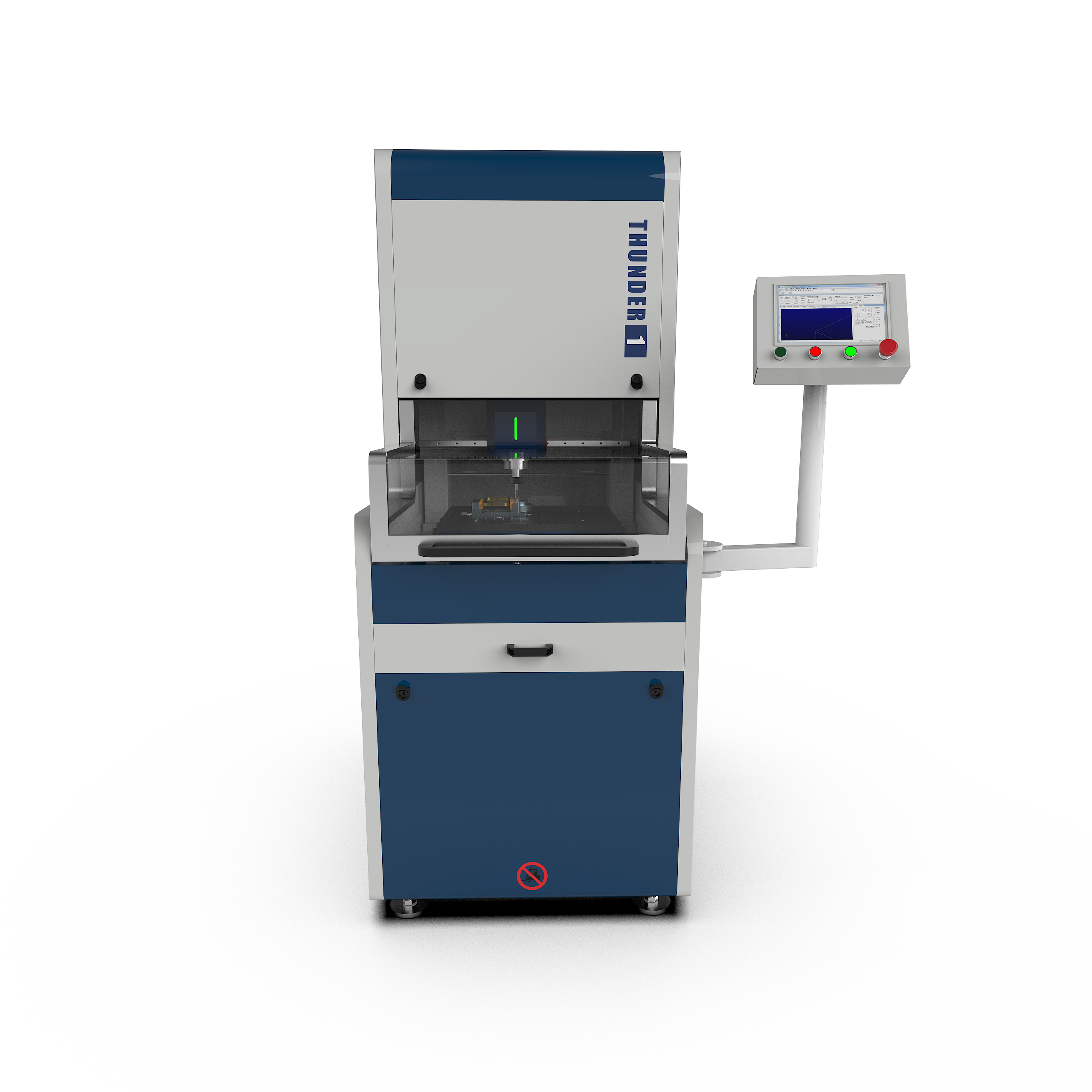

3 Axis High Precision Cnc Milling Machine with Aluminum

Models: SF540 High Precision engraving machine
Application scenarios: automotive industry, aerospace industry, medical industry, mold manufacturing, woodworking industry
Leadtime: 8-15 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Customized: Size,color and logo can be customized
Warranty: 1years
Supply Ability: 20 Sets/Month
3-axis high-precision CNC milling machines have become an indispensable processing equipment in modern manufacturing due to their high precision, high efficiency and versatility.
  • FS540

  • YOUHAO

SKU:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

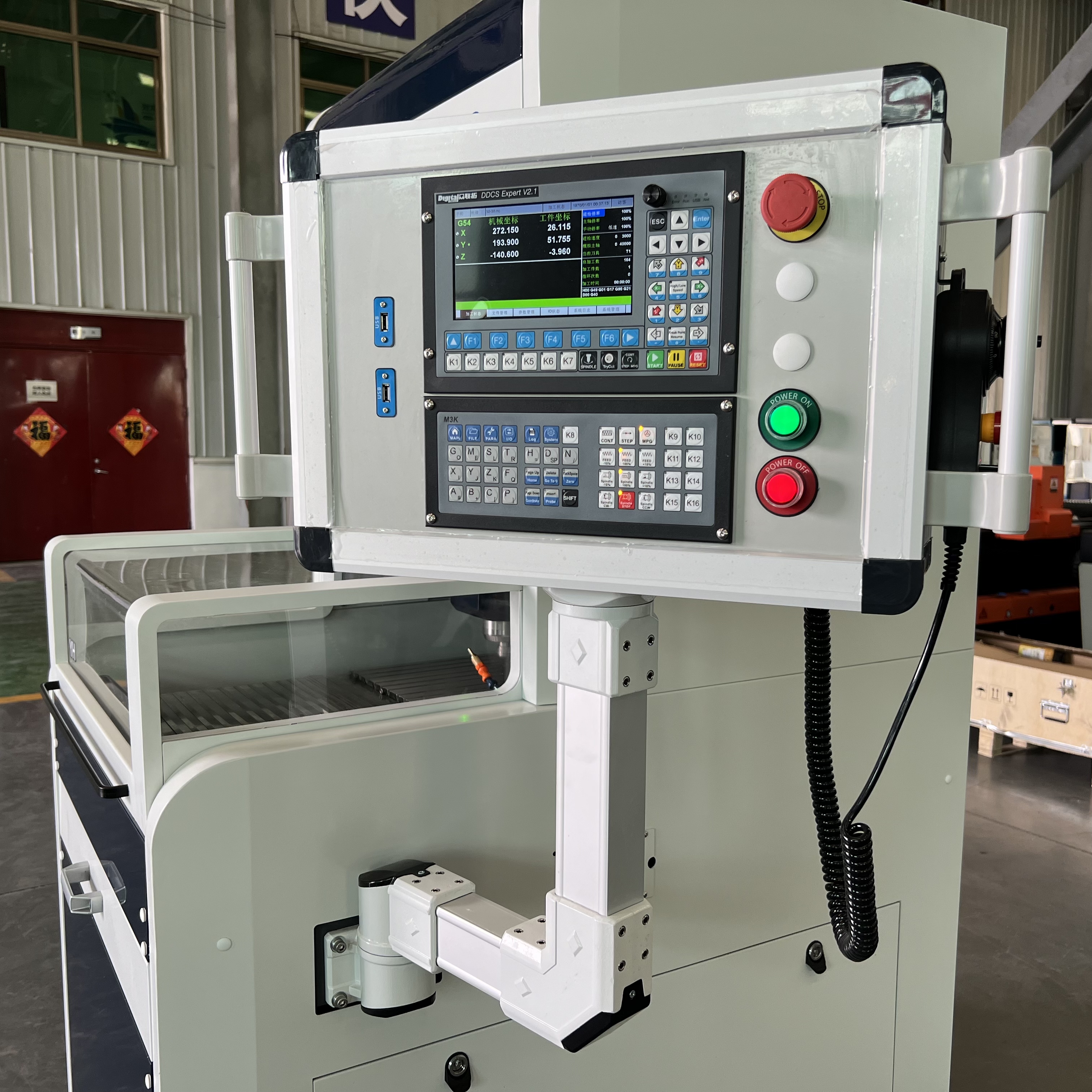

control system


The DDCS control system can accurately control the movement of CNC milling machines and supports 3-axis or 4-axis motion control, ensuring high precision and high efficiency during the processing. Its high repeatability can meet the processing requirements of complex parts.

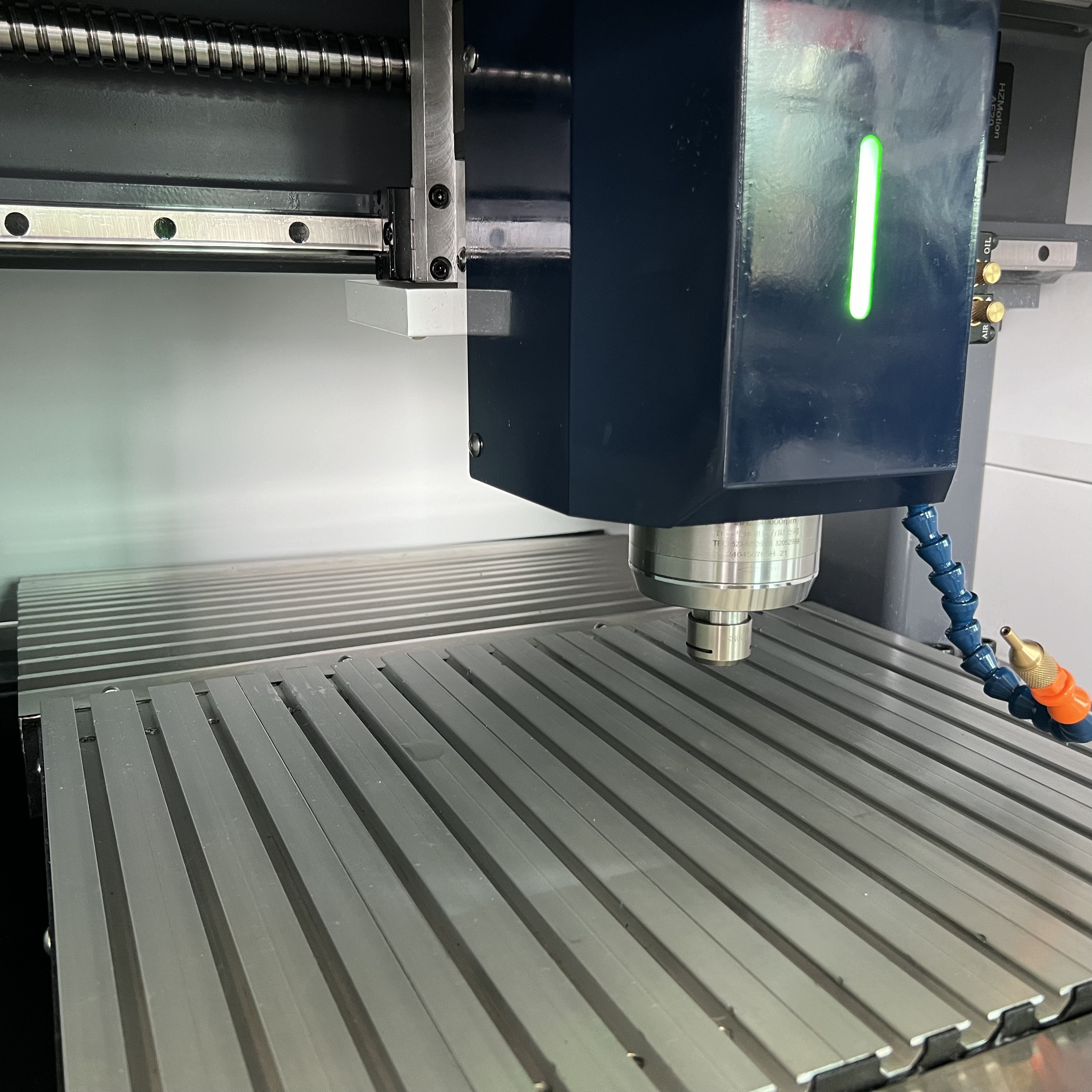

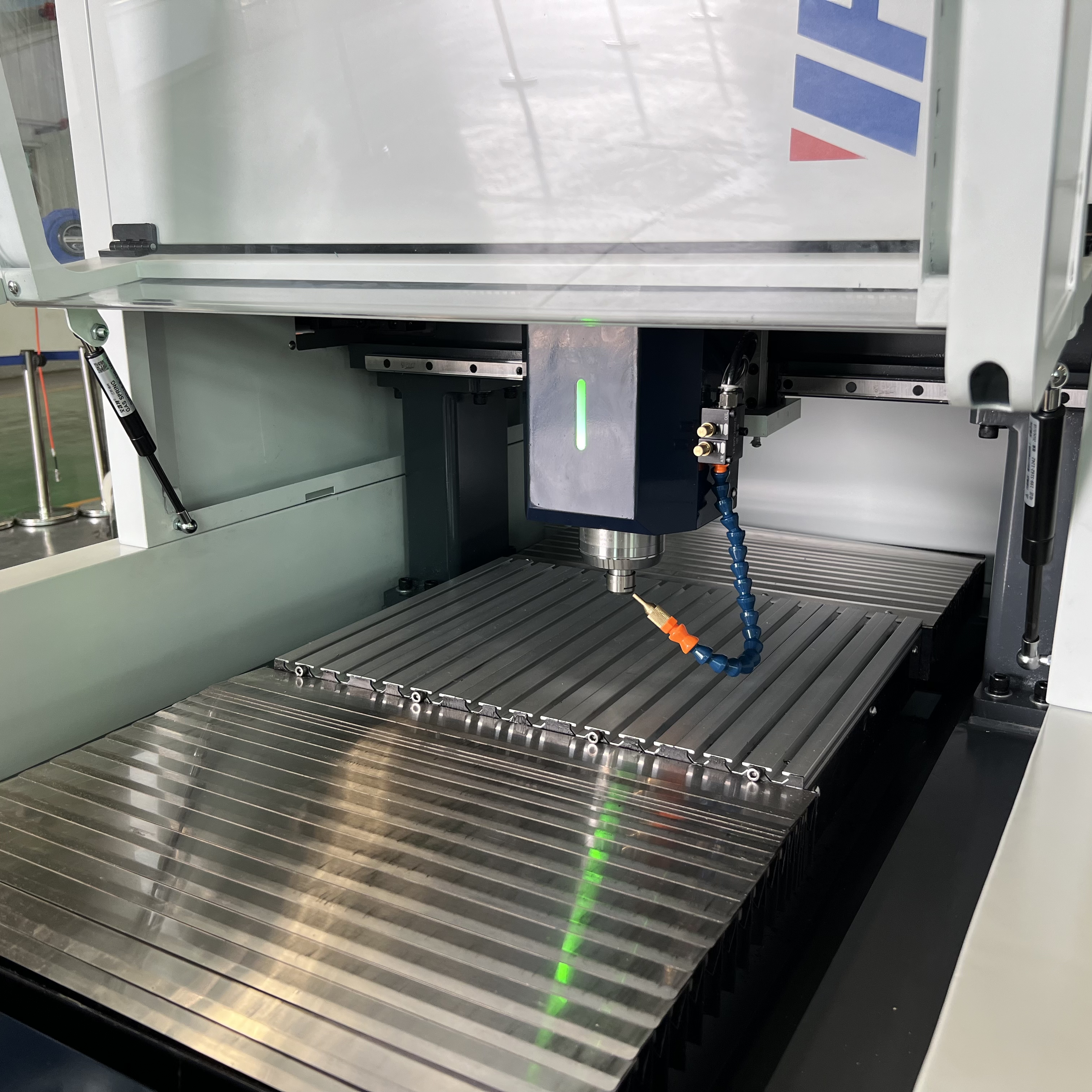

The aluminum plate table is precision machined to provide a high-precision machining reference surface. Its surface flatness and finish are high, which can ensure the positioning accuracy of the workpiece during the machining process, thereby achieving high-precision milling.

woodworking table
4040 cnc milling machine


The water cooling system removes the heat generated by the spindle through circulating coolant, preventing the spindle from thermal expansion due to overheating, thereby maintaining machining accuracy. The water-cooled spindle and oil mist cooling system play an important role in three-axis high-precision CNC milling machines, which can significantly improve machining accuracy, efficiency and equipment reliability.

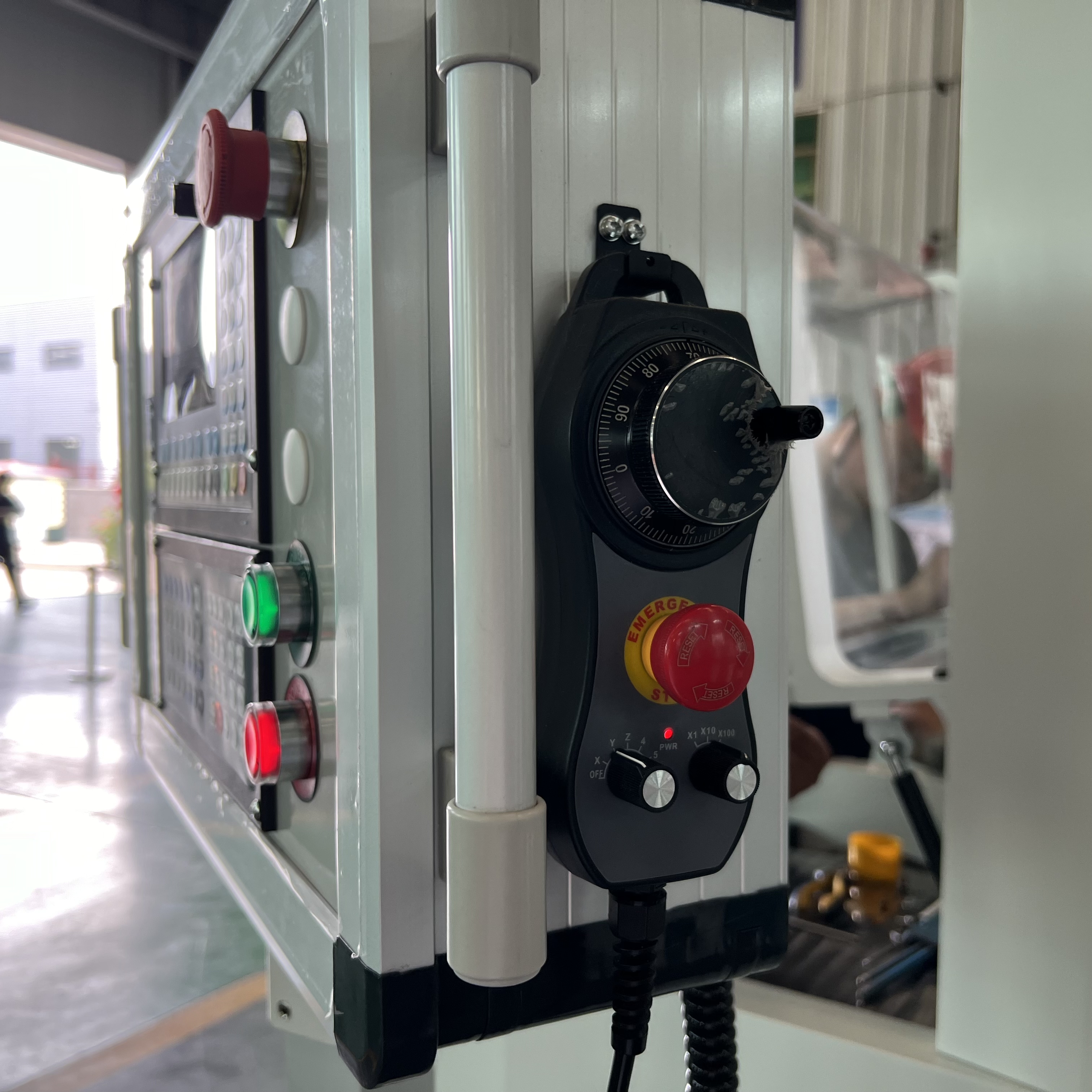

The cnc milling machine handwheel allows the operator to manually move the milling machine's table or tool to make precise movements along a specific axis (X, Y, or Z). This manual control method is more flexible than automatic control in some cases, especially when fine-tuning the machine tool is required.

handwheel

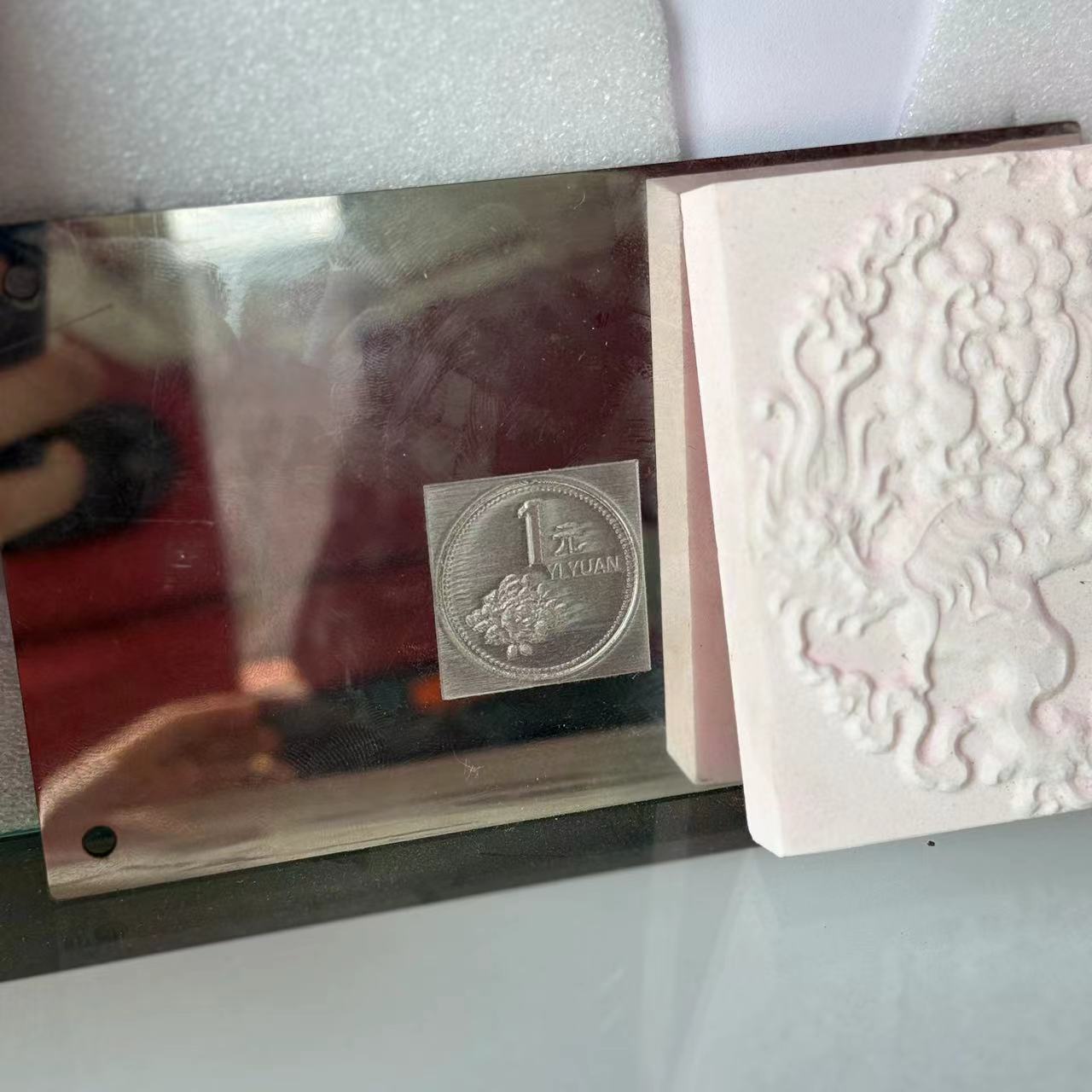

sample


3-axis CNC milling machines can move simultaneously in the X, Y, and Z directions to precisely remove materials and achieve complex geometric shapes. They can process metal parts with fine patterns, complex gears, plates with multiple holes and slots, etc. 3-axis CNC milling machines can process a variety of materials, including metals (such as aluminum and copper), plastics, wood, etc.


Advantage


1. High precision and high repeatability

The 3-axis CNC engraving machine can engrave complex shapes with extremely high precision and repeatability, and the tolerance can be controlled at the millimeter or even micron level. Its processing accuracy is stable, which can ensure that the size and shape of the parts processed each time are highly consistent.\


2. Versatility

The 3-axis CNC engraving machine can handle a variety of materials, including metals (such as aluminum, copper), plastics, wood and composite materials. It can complete a variety of engraving methods such as flat engraving, three-dimensional engraving, hollow engraving, etc.

Suitable for a variety of industries, such as woodworking, advertising production, handicraft processing, mold manufacturing, etc.


3. Easy to operate

The programming and operation of the 3-axis CNC engraving machine are relatively simple, suitable for beginners and experienced users. Its control system (such as Mach3, DSP, etc.) is easy to use and supports a variety of CAD/CAM software.


4. Affordable

The initial investment and maintenance cost of the 3-axis CNC engraving machine is relatively low, which is suitable for small and medium-sized enterprises or users with limited budgets. It is small in size, has fewer moving parts, and is easier to maintain.


5. High efficiency

The 3-axis CNC engraving machine can quickly complete complex engraving tasks, with a processing speed of up to thousands of millimeters per minute. It has a high degree of automation and can work continuously for several hours, significantly shortening production time.



S540 精雕机

Specifications

Product name

metal milling mini cnc router machine 4040 for aluminum mold making

X,Y,Z Working Area

400x500x180mm

X, Y,Z Structure

Hiwin Rail Linear Guide and Ball Screw

Z Structure

Hiwin Rail Linear Guide and Ball Screw

Table Surface

T-slot Table

Max. Power Consumption

(Without Spindle) 1.0Kw

Max. Rapid Travel Rate

16000mm/min

Max. Working Speed

10000mm/min

Frame

cast by iron

Spindle Power

3.0KW water cooling spindle

Drive Motors

Servo Motor

Spindle Speed

0-24000RPM

Operating System

NK 280(Options: Ncstudio/Mach3 PC Software,DSP)

Flash Memory

128M(U Disk)

Relative Humidity

30% - 75%

Inverter

Delta/Fuling

Working Voltage

AC220/380V/50/60Hz,3PH
