How to Set Up a 5 Axis CNC Router Machine

Contents

1. Introduction

2. Understanding the Core Setup Requirements of a 5 Axis CNC Router Machine

3. Preparing the Installation Environment

4. Mechanical Assembly and Calibration Steps

5. Electrical Wiring, Controller Setup, and Safety Verification

6. Software Configuration: CAM, Post-Processor, and Axis Orientation

7. Test Runs, Troubleshooting, and Fine-Tuning

8. Optimizing the Machine for Different Materials and Applications

9. Conclusion

10. FAQ

Introduction

Setting up a 5 Axis CNC Router Machine is a technical process that determines the long-term accuracy, stability, and performance of the equipment. Proper installation prevents vibration issues, inaccurate tool paths, controller failures, and premature component wear. Whether the machine is intended for advanced composite trimming, multi-surface woodworking, intricate mold carving, or stone machining, the setup procedure shapes the efficiency of production. This guide breaks down every essential step—from the installation environment to mechanical calibration and software integration—ensuring that any user can put a five-axis machine into operation with confidence and precision.

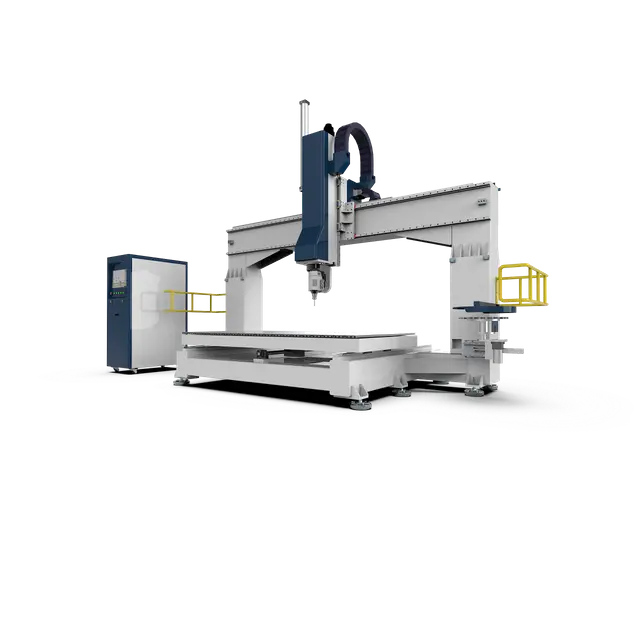

Understanding the Core Setup Requirements of a 5 Axis CNC Router Machine

A 5 Axis CNC Router Machine operates with simultaneous motion across X, Y, Z, A (rotary), and B (tilt) axes. Because of this complexity, the installation must accommodate precise linear movements and synchronized rotational operations. Before any physical assembly, it is essential to clarify the machine’s intended workflow. For example, mold manufacturing for automotive or aerospace may require high-speed spindles and strict tolerances, whereas stone machining—such as with a 5 Axis CNC Router For Stone Used Marble Granite Cutting Machine—requires water-cooled systems and heavier support frames.

Three core requirements define the setup stage:

Table 1: Core Setup Variables

Every setup step must align with the machine’s kinematics. Ignoring one aspect—whether it is spindle wiring, axis direction mapping, lubrication settings, or CAM post-processing—will lead to tool collisions or drifting toolpaths. Proper preparation ensures that the machine performs like a 5-Axis CNC Machining Center for High-Speed Milling and Cutting, even in demanding industrial environments.

Preparing the Installation Environment

The environment where a 5 Axis CNC Router Machine is installed directly determines its long-term stability. Because five-axis motion increases sensitivity to resonance, air quality, and electrical interference, the installation area must follow strict parameters.

Key environmental requirements:

• Flooring: A solid, vibration-dampened concrete base is non-negotiable. Five-axis machines rely on precise geometric relationships. Any floor shift will cause rotational axis errors.

• Temperature control: Ideal range is 18–24°C. Excessive heat can warp machine components, especially during high-speed milling like those performed by a 5-Axis CNC Machining Center for High-Speed Milling and Cutting.

• Humidity: Keep it below 70% to avoid rust on linear guides, ball screws, and rotary components.

• Electrical supply: Provide a dedicated line with surge protection, ensuring interference-free operation for servos and spindle drives.

• Dust and coolant management: Stone routers such as a 5 Axis CNC Router For Stone Used Marble Granite Cutting Machine require drainage systems and water filtration, while foam routers need strong dust extraction.

Table 2: Recommended Site Preparation Checklist

When these conditions are met, the machine can maintain accuracy even during long machining cycles on materials like 3D moulds, foam blocks, or granite slabs.

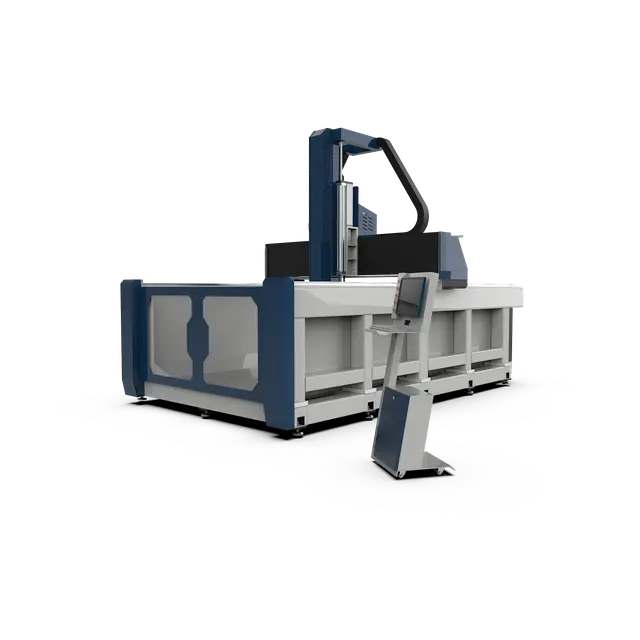

Mechanical Assembly and Calibration Steps

Once the environment is prepared, mechanical assembly begins. This is the heart of setting up any 5 Axis CNC Router Machine, and it demands careful calibration of linear axes, rotary systems, and structural components.

Key assembly tasks:

• Frame positioning: Place the machine using a forklift or crane, adjusting it so that all four corners align perfectly on the foundation.

• Leveling: Use a precision spirit level or laser level to verify that X, Y, and Z axes lie on the correct planes. Minor misalignment amplifies during rotational motion around A and B axes.

• Mounting gantries and rotary tables: For machines such as a 5Axis 3D 4D Wood Mould Polystyrene Foam EPS Plastic Styrofoam Milling Router, ensure that rotary axes are centered to avoid eccentric machining paths.

• Spindle alignment: The spindle must be perpendicular to the table in all orientations. This step determines machining accuracy when performing multi-surface work.

• Ball screw, rack, and pinion tensioning: Apply proper preload to eliminate backlash.

• Lubrication system setup: Prime all lubrication lines to ensure smooth initial operation.

Mechanical calibration concludes with verifying axis limits, homing sensors, and manual jogging. Each axis must move smoothly without binding or hesitation. This guarantees that the machine performs like a high-precision 5-Axis CNC Machining Center for High-Speed Milling and Cutting, even during deep cuts or large-scale 3D milling.

Electrical Wiring, Controller Setup, and Safety Verification

Electrical setup ensures that the 5 Axis CNC Router Machine operates safely and consistently. This stage involves connecting spindle drives, servo motors, emergency circuits, limit switches, and grounding.

Essential electrical steps:

• Main power connection: Confirm the correct voltage for the spindle (often 380V for industrial machines).

• Servo drive wiring: Each servo motor must match its drive output to prevent axis inversions.

• VFD (Variable Frequency Drive) parameters: Spindle speed, acceleration curves, torque protection, and overload settings must be input precisely.

• Grounding: High-power machines—especially stone routers—must have deep grounding to prevent electrical noise from affecting work accuracy.

• E-stop and safety doors: Verify that emergency systems stop all motion instantly.

Safety calibration is crucial. During initial power-on, test each axis movement individually. Ensure that limit switches correctly prevent overtravel. Check the braking system on rotary axes typically found on a 5 Axis CNC Router For Stone Used Marble Granite Cutting Machine.

Software Configuration: CAM, Post-Processor, and Axis Orientation

Software calibration defines how toolpaths translate into real-world movements. Incorrect software setup is the primary cause of tool collisions in a 5 Axis CNC Router Machine.

Steps for accurate software configuration:

• Select the correct post-processor: Each machine model requires a post-processor tuned to its kinematics. Using a wrong one, even if similar, will result in incorrect A/B rotations.

• Set work coordinate systems: For five-axis machining, G54–G59 offsets must be carefully aligned with physical locations.

• Define tool length offsets (TLO): Spindle cones, tool holders, and long cutting tools require separate offsets.

• Axis direction mapping: Verify that positive X, Y, Z, A, and B movements match on-screen simulations.

• Calibration cuts: Running a cube-cutting test or multi-face trimming validates whether CAM configuration matches machine geometry.

This ensures the machine can handle complex operations—from sculpting massive foam molds to engraving marble slabs—with the precision expected from professional machines across categories including 5Axis 3D 4D Wood Mould Polystyrene Foam EPS Plastic Styrofoam Milling Router and 5 Axis CNC Milling Machine Price offerings.

Test Runs, Troubleshooting, and Fine-Tuning

Before production, test runs help verify the complete setup. Performing both dry runs and cutting tests ensures that the 5 Axis CNC Router Machine can execute synchronized movements accurately.

Recommended test procedures:

• Dry run without tools: Check that axes move smoothly across programmed paths.

• Single-surface cut: Validate that the machine cuts flat surfaces without tapering.

• Multi-surface 5-axis test: Use a hemisphere or trunnion test to inspect A/B rotational accuracy.

• Noise and vibration inspection: High vibration indicates poor leveling or spindle imbalance.

If discrepancies appear, adjustments include:

• Re-checking rotary center offsets

• Re-leveling the gantry

• Refining the CAM post-processor

• Correcting servo tuning parameters

These steps ensure that the machine behaves reliably across diverse workloads such as foam mold carving, high-speed aluminum milling, or granite cutting.

Optimizing the Machine for Different Materials and Applications

After completing setup, optimizing for materials is the next step. A single 5 Axis CNC Router Machine may be used for wood, foam, stone, aluminum, or composite machining, but each material demands unique configurations.

Material-specific considerations:

• Foam & EPS: Machines like the 5Axis 3D 4D Wood Mould Polystyrene Foam EPS Plastic Styrofoam Milling Router benefit from high feed rates, minimal spindle load, and dust-optimized extraction.

• Wood: Use moderate spindle speeds and adjust vacuum tables for better hold-down.

• Metal: Requires rigid tool holders, coolant delivery, and balanced spindle operations.

• Stone: When using a 5 Axis CNC Router For Stone Used Marble Granite Cutting Machine, reduce cutting speed, increase torque, and maintain constant water cooling.

Advanced users may also optimize according to the 5 Axis Cnc Milling Machine Price category they are evaluating, adjusting material parameters for cost-performance balance.

Conclusion

Setting up a 5 Axis CNC Router Machine is a structured process that demands precision in mechanical assembly, electrical installation, software calibration, and test verification. By building a stable environment, properly aligning axes, choosing the correct post-processor, and optimizing for material-specific needs, operators ensure the machine performs at peak accuracy and productivity. Whether carving foam molds, machining hardwood, milling aluminum, or cutting marble and granite, correct setup transforms the machine into a reliable, long-lasting production asset.

FAQ

1. How long does it take to set up a 5 Axis CNC Router Machine?

Typically 2–5 days, depending on machine size, environment preparation, and calibration complexity.

2. Do I need special software for a five-axis router?

Yes. Five-axis CAM software and a machine-specific post-processor are mandatory.

3. Can beginners set up a 5-axis machine?

Beginners can follow a guide, but professional calibration is strongly recommended to avoid long-term accuracy problems.

4. What materials can be processed after setup?

Wood, foam, EPS, aluminum, composites, marble, and granite—depending on the machine model.

5. How often should calibration be checked?

Monthly for moderate use, weekly for industrial high-volume production.
