Understanding CNC Nesting Software: A Complete Buyer's Guide

Operating a nesting CNC router without enterprise-grade software is like putting a lawnmower engine in a sports car. The machine's mechanical limits are rarely the bottleneck. Instead, the optimization algorithm dictates your true production ceiling. We need to move past top-of-funnel definitions. You are likely evaluating software upgrades right now. You want to improve material yield, reduce cycle times, and automate production. Standard programs simply cannot handle complex geometries efficiently.

This guide breaks down how you evaluate, shortlist, and implement CNC nesting software. We base these insights on actual production data and hardware compatibility. We will skip generic advice and look at real-world integration factors. You will discover how specific routing strategies directly influence profitability. By aligning your digital algorithms with your shop-floor machinery, you can eliminate expensive scrap. You can also minimize manual intervention and streamline your entire manufacturing process.

Key Takeaways

• Material Yield vs. Software Cost: Premium true-shape nesting algorithms typically offset their higher licensing fees within 3–6 months through scrap reduction.

• Hardware Synergy is Non-Negotiable: Software must natively support your specific machine configuration (e.g., ATC linear, auto-loading platforms) to prevent workflow bottlenecks.

• Hidden TCO Factors: Post-processor configuration, operator training, and annual maintenance fees often exceed initial software purchase prices.

• Proof of Concept: Never purchase based on marketing claims; demand a live test using your proprietary CAD files and daily production volumes.

The Business Case: Framing ROI for CNC Nesting Software

Poor nesting practices drain your operational budget daily. You must identify the exact costs tied to basic software. These include excessive material scrap, high offcut waste, and extended machine idle times. When operators manually program jobs at the machine console, production stops entirely. You lose valuable spindle uptime. Upgrading your software shifts this burden to the office. It keeps your machinery cutting parts instead of waiting for code.

Comparing material utilization metrics reveals stark contrasts. Rectangular nesting treats every part as a block. It leaves massive gaps between angled or curved components. Advanced true-shape nesting algorithms operate differently. They rotate and interlock complex geometries tightly. You often see board yield leap from a standard 75% up to 90% or higher. This single improvement drastically reduces your monthly sheet goods purchasing.

Optimized toolpath generation drives massive cycle time reduction. Basic software often lifts the spindle unnecessarily. It creates excessive Z-axis movements and long rapid traverse times. Premium algorithms keep the tool engaged in the material. They plot the shortest possible path between cuts. This shaves minutes off every single sheet you process.

Upgrading also forces valuable labor reallocation. You shift from manual machine-side programming to a centralized CAD/CAM workflow. Your office staff handles the complex calculations. Your machine operators focus purely on loading, unloading, and quality control. This division of labor maximizes both human and mechanical efficiency.

Core Evaluation Criteria for Software Selection

Algorithm Efficiency & Yield Optimization

Standard algorithms work adequately for simple squares and rectangles. However, advanced algorithms provide massive competitive advantages. They utilize techniques like common-line cutting. Here, the router shares a single cut path between two adjoining parts. This saves machining time and reduces material consumption. Part-in-part nesting is another crucial feature. The software automatically places smaller components inside the waste cutouts of larger ones.

You must evaluate how the software handles grain direction constraints. Veneer and solid wood components demand strict visual alignment. If your algorithm ignores grain direction to save space, the final product looks terrible. Enterprise software lets you lock specific parts to horizontal or vertical grain orientations. It balances aesthetic rules with maximum material yield seamlessly.

CAD/CAM Integration & Data Flow

Assess compatibility closely. Your nesting software must import files flawlessly from your existing design platforms. Whether you use SolidWorks, AutoCAD, or Cabinet Vision, integration is critical. Seamless data flow prevents manual data entry errors. If an engineer updates a CAD model, the nesting software should recognize the revision immediately.

Automated barcode generation plays a massive role here. Printing labels at the machine guides downstream edge-banding and assembly. Operators scan a nested part and instantly see its dimensions and next destination. This eliminates confusion on the shop floor. It ensures every component reaches the correct assembly station without delay.

Scalability and Modularity

Avoid buying bloated software suites packed with features you will never use. We recommend starting with core nesting capabilities. You want a modular software package. As your production scales, you can add new modules. You might add 3D modeling, advanced inventory tracking, or robotics integration later. This modular approach keeps your initial investment reasonable. It prevents your staff from feeling overwhelmed by complex, unnecessary tools.

Hardware Integration: Matching Software to Your Machine Setup

Workflow automation demands flawless communication. Your software must coordinate seamlessly with automation hardware to prevent bottlenecks. For instance, operating a 1228 Nesting cnc Router machine with Loading and unloading platform requires precise timing. The software commands the scissor lifts and pusher arms. It ensures a new raw board enters the cutting zone at the exact moment finished parts exit. Without this deep integration, your expensive auto-loading hardware sits idle waiting for instructions.

Application-specific optimization is equally vital. Routing strategies must adapt to the material you process. Programming a Nesting CNC Router Machine processing Wood Furniture and Wooden Door requires distinct approaches. Heavy solid wood doors need multiple depth passes and lower feed rates to prevent tear-out. In contrast, standard composite panels process rapidly in a single pass. Your software must store these material-specific parameters and apply them automatically during nesting.

Tool management synchronicity directly impacts cycle times. A Nesting CNC router Atc Linear for Furniture relies heavily on its automatic tool changer. Smart software groups machining operations by tool type. It executes all 5mm boring before switching to the 3/8-inch compression bit for profiling. This strategy minimizes unnecessary tool change delays. It keeps the spindle running and reduces mechanical wear on the tool carousel.

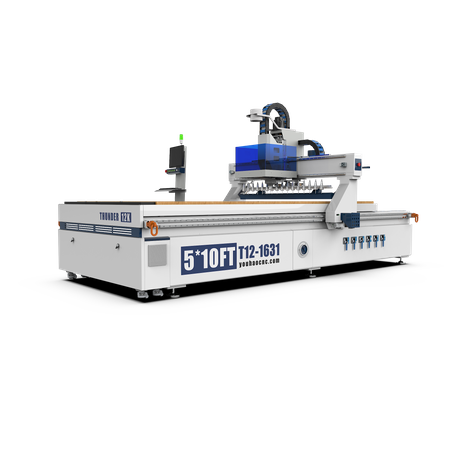

Scaling machine capacity introduces new digital requirements. When you operate larger format equipment, like a 1631 Nesting CNC Router Machine Wood Furniture, vacuum zone management becomes critical. Large panels require immense hold-down force. Advanced software selectively activates specific vacuum zones under the active cutting area. It secures the material firmly without wasting suction on empty sections of the spoilboard. This prevents part movement and saves electrical energy.

Line-level synchronization represents the pinnacle of automation. Managing a complete Nesting cnc Router Wood Router Line requires software that acts as a central conductor. It dictates the operating pace for multiple interconnected stations. The nesting algorithm calculates cycle times and feeds data to downstream edge-banders and dowel inserters. Every machine stays perfectly synchronized, preventing WIP (work-in-progress) pileups on the factory floor.

Common Implementation Risks & Rollout Realities

Post-processor mismatches represent the single biggest point of failure in digital manufacturing. The post-processor translates your nested digital design into G-code that your specific controller understands. Generic post-processors often misinterpret machine commands. They might send the spindle in the wrong direction or fail to activate the dust collector. You need customized machine code generation. This ensures the digital instructions translate flawlessly to your unique hardware configuration.

You must address the operator learning curve immediately. Shop-floor resistance is a harsh reality. Software becomes useless if operators revert to manual overrides because of a poor user interface. Complex screens frustrate workers. You should prioritize intuitive software design. Invest heavily in initial training. Show your operators how the new system makes their daily tasks easier and safer. When they see the benefits, adoption rates soar.

• Network Reliability: Moving to digital nesting requires stable shop-floor networking. You must transmit large G-code files securely. Weak Wi-Fi causes packet loss and mid-cut machine stops. Use hardwired ethernet connections where possible.

• Data Hygiene: The rule "garbage in, garbage out" applies perfectly here. Nesting software cannot fix broken CAD geometry. It cannot repair poorly defined tool libraries. You must enforce strict data standards upfront in the design office.

• Machine Calibration: Software assumes your machine is perfectly square. If your router has mechanical backlash, even the best nesting algorithm will produce flawed parts. Calibrate your hardware before rolling out new software.

Another common mistake involves ignoring maintenance updates. Software companies constantly patch bugs and refine algorithms. Skipping these annual updates leaves you with outdated cutting strategies. It also creates compatibility issues when you eventually upgrade your office computers or CAD programs. Treat software maintenance as a required utility, not an optional luxury.

Shortlisting Framework & Next Steps

1. Step 1: Define the Constraint: Determine your primary bottleneck. Are you optimizing for material cost or labor cost? Yield improvements save expensive sheet goods. Automation features reduce manual labor. Pick your primary goal before evaluating features.

2. Step 2: Request a "Bake-Off": Never trust sterile demo files. Send three software competitors the same complex DXF or DWG files from your own product line. Compare the nested output. Evaluate their yield percentages and estimated machining times side-by-side.

3. Step 3: Evaluate Support SLAs: Response time matters more than feature counts when a machine goes down. Assess local dealer support capabilities. Compare them against international ticketing systems. You need immediate, knowledgeable answers during critical production stops.

4. Step 4: Verify the Complete Investment: Calculate the total three-year financial impact. Factor in initial licensing fees and mandatory training costs. Include the price for custom post-processor writing. Finally, add the required annual update and support fees to see the true budget requirement.

Take your time during this evaluation phase. Rushing a software purchase usually leads to incompatible systems. Involve your lead machine operator in the demonstration meetings. They often spot practical shop-floor issues that office personnel miss. Their early involvement also builds crucial buy-in for the eventual rollout.

Conclusion

High-end nesting software transforms a standard router into a predictive, highly efficient production cell. It removes human error from the programming phase and maximizes every square inch of your raw materials. You shift your focus from putting out daily fires to scaling your manufacturing output strategically.

Base your final decisions on verifiable yield improvements and seamless hardware communication. Do not get distracted by isolated software features that look impressive but offer no real-world utility. Demand real proof of concept using your own daily production data.

Audit your current scrap rates this week. Calculate exactly how much material you throw into the dumpster. Then, schedule a custom demonstration utilizing your own part files. You will quickly see how the right algorithm pays for itself in a matter of months.

FAQ

Q: What is the difference between perpetual licensing and SaaS subscriptions for nesting software?

A: Perpetual licensing requires a large upfront capital expense. You own the software version you purchased permanently, but annual maintenance fees apply for updates. SaaS (Software as a Service) operates on an ongoing operational expense model. You pay a lower monthly or yearly fee, which generally includes automatic, frequent updates and continuous technical support.

Q: Will new nesting software work with my older CNC router?

A: Yes, in most cases. The key bridge is the custom post-processor. A skilled software technician writes this post-processor to translate modern CAM toolpaths into the specific G-code required by your legacy machine's controller. However, older controllers may lack the memory to process highly complex true-shape nesting files quickly.

Q: How long does it take to implement and train staff on new nesting software?

A: A realistic timeline typically ranges from 2 to 6 weeks. This depends heavily on the software's complexity and your team's existing CAD proficiency. The first week focuses on installation and post-processor tuning. Subsequent weeks involve hands-on training, testing scrap reduction, and slowly shifting daily production to the new digital workflow.

Q: Does nesting software automatically handle remnant management (offcuts)?

A: Premium software tiers usually offer robust remnant management. They create a digital inventory of usable scrap and prioritize using these offcuts in future nests. Entry-level tiers typically do not track remnants automatically, requiring operators to manually measure and input offcut dimensions when they want to reuse them.
