4 Axis CNC Router vs 5 Axis CNC: Which is Right for Your Business?

Transitioning from 3-axis to multi-axis machining is a significant capital expense. It reshapes your production workflows and operational overhead entirely. You must carefully weigh this decision before upgrading your shop floor. Both 4-axis and 5-axis machines eliminate manual repositioning. They seamlessly handle highly complex part geometries. However, over-investing in unnecessary axes drains your return on investment quickly. Conversely, under-investing severely limits your overall market competitiveness.

We will evaluate the technical boundaries of a 4 axis CNC router against a comprehensive 5-axis system. You will learn how to analyze your part complexity, production volume, and operator expertise. This guide provides the exact criteria you need. You will confidently make the right machinery choice for your business operations.

Key Takeaways

• Axis Movement Dictates Capability: A 4-axis machine typically adds rotation around the X or Y axis (A-axis), ideal for cylindrical work and angled drilling; 5-axis adds a secondary rotation (B or C-axis) for continuous, multi-sided machining and undercuts.

• ROI Depends on Part Geometry: If your primary output involves architectural millwork, custom furniture, or pillars, a 4-axis setup delivers maximum value. 5-axis is mandatory for advanced aerospace parts, deep-cavity mold making, and complex organic prototyping.

• Hidden Implementation Costs: The leap to multi-axis machining carries steep software (CAD/CAM post-processors) and operator training requirements that must be factored into your overall equipment budget.

Understanding Multi-Axis Mechanics: 4-Axis vs. 5-Axis

Standard CNC routers operate along three fundamental axes. They move across the X, Y, and Z planes. Operators cut flat panels efficiently. However, complex geometries demand more articulation. A 4-axis configuration adds a crucial A-axis. This rotary axis spins the material itself. It functions much like a traditional lathe. You can easily machine cylindrical parts. Think about intricate table legs or decorative pillars. The spindle carves the spinning wood continuously.

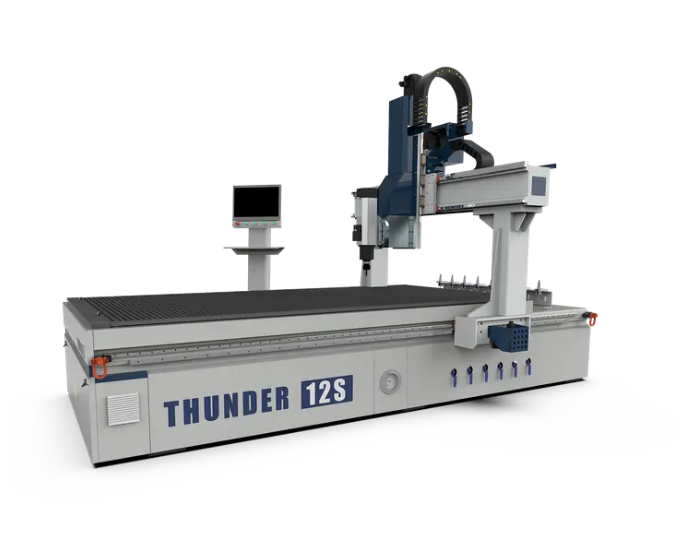

Machining styles differ based on hardware engineering. Some machines rotate the actual workpiece. Others articulate the spindle head directly. For instance, a 1325 4axis cnc router machine with 180 swing head moves the tool around stationary material. This articulation works perfectly for heavy wooden panels. You avoid spinning massive blocks of material. The swing head simply angles the cutting bit. It reaches side profiles easily and accurately.

A 5-axis system takes this articulation much further. It incorporates simultaneous X, Y, Z, A, and B (or C) movements. The spindle tilts and rotates constantly during the cut. You maintain perfect tool engagement at all times. It handles multi-contoured surfaces flawlessly. You can machine complex undercuts without repositioning the part.

Best Practices for Axis Selection

Always map your machine axes to your most common materials. Woodworkers generally benefit from workpiece rotation. Plastics and foam fabricators often prefer spindle articulation. You maintain better cutting speeds this way. It reduces material vibration during aggressive milling passes.

Business Problem Framing: When to Upgrade Your CNC Capabilities

Evaluating an upgrade requires deep operational analysis. You must identify your true production bottlenecks. Manual part repositioning destroys your profit margins. Operators waste valuable hours flipping parts manually. Custom fixture creation adds unnecessary labor expenses. Standard 3-axis setups generate high scrap rates. Every unclamp and re-clamp sequence loses precision. Upgrading eliminates these costly human interventions.

You must evaluate your actual output complexity. Examine your current client contracts closely. Do they demand continuous flowing contours? Perhaps they only require simple angled indexing. Positional machining locks the tool at an angle. It cuts without simultaneous axis motion. We call this 3+1 or 3+2 machining. If your work requires complex organic shapes, continuous articulation matters.

Larger machines demand more from your physical facility. You must factor in space and utility constraints. Consider the massive physical footprint. Multi-axis systems need extensive operational clearance.

1. Verify your electrical draw capabilities.

2. Measure your available compressed air capacity.

3. Ensure concrete floors support added machine weight.

4. Check overhead clearance for tall spindle heads.

You must plan for these facility upgrades beforehand. Neglecting utility requirements delays your installation severely. It forces your operators to work around frustrating electrical limitations.

Evaluating a 4 Axis CNC Router for Your Production Floor

Many shops mistakenly assume they need 5-axis capabilities. A 4-axis machine handles specific profiles perfectly. We highly recommend them for high-end cabinetry. Custom furniture builders rely on them daily. Staircase components require extensive side-drilling operations. Cylindrical carving tasks thrive on a single rotary axis. You achieve beautiful details without extreme hardware costs.

Hardware setups vary across different machine builders. You can choose a simple rotary attachment. Alternatively, you might deploy a dedicated 4 Axis Wood CNC Router Woodworking Engraving Machine. This model handles detailed surface work efficiently. You achieve intricate carvings quickly. You avoid massive capital investments entirely. Operators learn these systems much faster than fully articulating heads.

Automation boosts your daily throughput significantly. Integrating an automatic tool changer transforms your workflow. We suggest evaluating a 4 Axis Wood Cnc Atc Router Cnc Machine. It swaps router bits automatically during complex jobs. You maximize production speed continuously. You gain massive efficiency without paying 5-axis premiums. Tool changers eliminate human error during bit swaps.

We consider 4-axis the absolute sweet spot. It works beautifully for woodworking and light aluminum. You face much lower initial capital expenditures. CAM software integration remains relatively simple. The return on investment materializes much faster. You keep your cash flow healthy while expanding shop capabilities.

Common Mistakes When Evaluating 4-Axis

Buyers often ignore spindle horsepower. A 4-axis machine requires robust cutting power. You cannot rely on lightweight spindles for heavy hardwoods. Always specify a liquid-cooled spindle for continuous carving. It prevents overheating during lengthy 3D relief jobs.

When 5-Axis Machining Becomes a Business Necessity

Certain industries mandate 5-axis technology absolutely. Aerospace components require impossible tolerances. High-precision automotive parts feature compound curves. Complex composite mold making demands continuous five-direction movement. You cannot achieve these results efficiently otherwise. Attempting these parts on lesser machines causes endless frustration.

Deep cavities present huge machining challenges. Standard vertical spindles collide with the workpiece walls. A 5-axis head tilts away from the cavity edge. You reach deep areas flawlessly. You machine severe undercuts without collision risks. This capability defines modern advanced manufacturing.

This immense power comes at a steep price. The capital investment easily doubles or triples. Maintenance schedules become much stricter. You face significantly higher tooling costs. 5-axis heads use complex internal gears. They require meticulous, frequent calibration. You must keep your facility perfectly climate-controlled.

Best Practices for 5-Axis Justification

Never buy 5-axis for hypothetical future work. Secure the client contracts first. You need guaranteed production volume to justify the premium. Calculate the machine runtime required to break even. This discipline prevents catastrophic financial missteps.

Implementation Realities: Software, Tooling, and Operator Training

Multi-axis hardware requires equally robust software solutions. You cannot run complex jobs on basic programs. Upgrading means buying specialized CAM software packages. Licensing fees add up rapidly. A post-processor translates your digital design into machine code. A four-Axis act Cnc Router Machine needs a highly specific post-processor. Full simultaneous 5-axis CAM suites cost thousands more. You must budget for annual software maintenance subscriptions.

Moving from 3-axis creates a massive learning curve. Operators must visualize toolpaths entirely differently. Simultaneous movement increases machine crash risks exponentially. A crash damages highly expensive spindle mechanisms. You must invest heavily in comprehensive operator training. Do not rush this learning phase. Use advanced simulation software before running actual code.

Advanced systems need rigorous and consistent upkeep. Managing an advanced 4axis cnc wood router atc cnc machine takes extreme discipline. Routine maintenance prevents disastrous unplanned downtime.

• Check your spindle alignment weekly.

• Measure and adjust rotary backlash carefully.

• Clean tool-changer pneumatic lines daily.

• Lubricate the swing head bearings regularly.

A sloppy maintenance routine destroys multi-axis precision quickly. You must assign dedicated personnel to these tasks. Keep detailed maintenance logs for warranty compliance.

Shortlisting Logic: Making the Final Decision

Analyze your daily part geometries logically. We recommend following the 80/20 rule. Does 80% of your work fit a 4-axis machine? If so, buy the 4-axis router. You can easily outsource the remaining 20%. Do not absorb massive 5-axis overhead for occasional specialty jobs. This keeps your business lean and highly profitable.

You must calculate your five-year lifecycle expenses accurately. Look beyond the initial acquisition price tag. Factor in expensive software licenses. Add your specialized operator wages and training hours. Include scheduled maintenance parts and consumables. Estimate projected downtime costs. This comprehensive financial matrix reveals the true machine price over time.

Start testing actively before buying anything. Create specific test-cut parameters using your own files. Verify that a reliable CAD/CAM post-processor exists. Read the vendor support agreements carefully. You need guaranteed response times for technical issues. A broken multi-axis machine stops your entire production line instantly.

Conclusion

A 4-axis setup stands out as a highly pragmatic choice. It delivers excellent returns for woodworking and cabinetry. Conversely, 5-axis systems handle strict, high-complexity multi-sided parts. Base your investment purely on verifiable operational bottlenecks. Look strictly at your 12–18 month production forecasts. Do not buy machines for hypothetical future needs. Schedule a capability audit today. Ask a trusted vendor to run a test cut with your specific part files.

FAQ

Q: Can a 4 axis CNC router do 3D carving?

A: Yes. By utilizing the X, Y, Z, and rotary A-axis simultaneously, a 4-axis machine excels at 3D carving. It perfectly handles cylindrical objects like table legs, architectural pillars, and complex corbels without manual repositioning.

Q: What is the price difference between a 4-axis and 5-axis CNC router?

A: True simultaneous 5-axis machines generally cost significantly more. They often double or triple the price of 4-axis systems. This premium accounts for complex spindle mechanisms, advanced controllers, and expensive specialized CAM software requirements.

Q: Do I need special CAD/CAM software for multi-axis machines?

A: Yes. Standard 2.5D or basic 3D CAM software will not work. You need specialized multi-axis software featuring a custom post-processor. It must match your machine's exact axis configuration to prevent costly and dangerous collisions.

Q: Is an Automatic Tool Changer (ATC) necessary for a 4-axis machine?

A: While not strictly necessary, an ATC drastically reduces your cycle times. Complex parts require multiple operations like roughing, finishing, and drilling. An ATC makes it highly recommended for fast-paced production environments.
