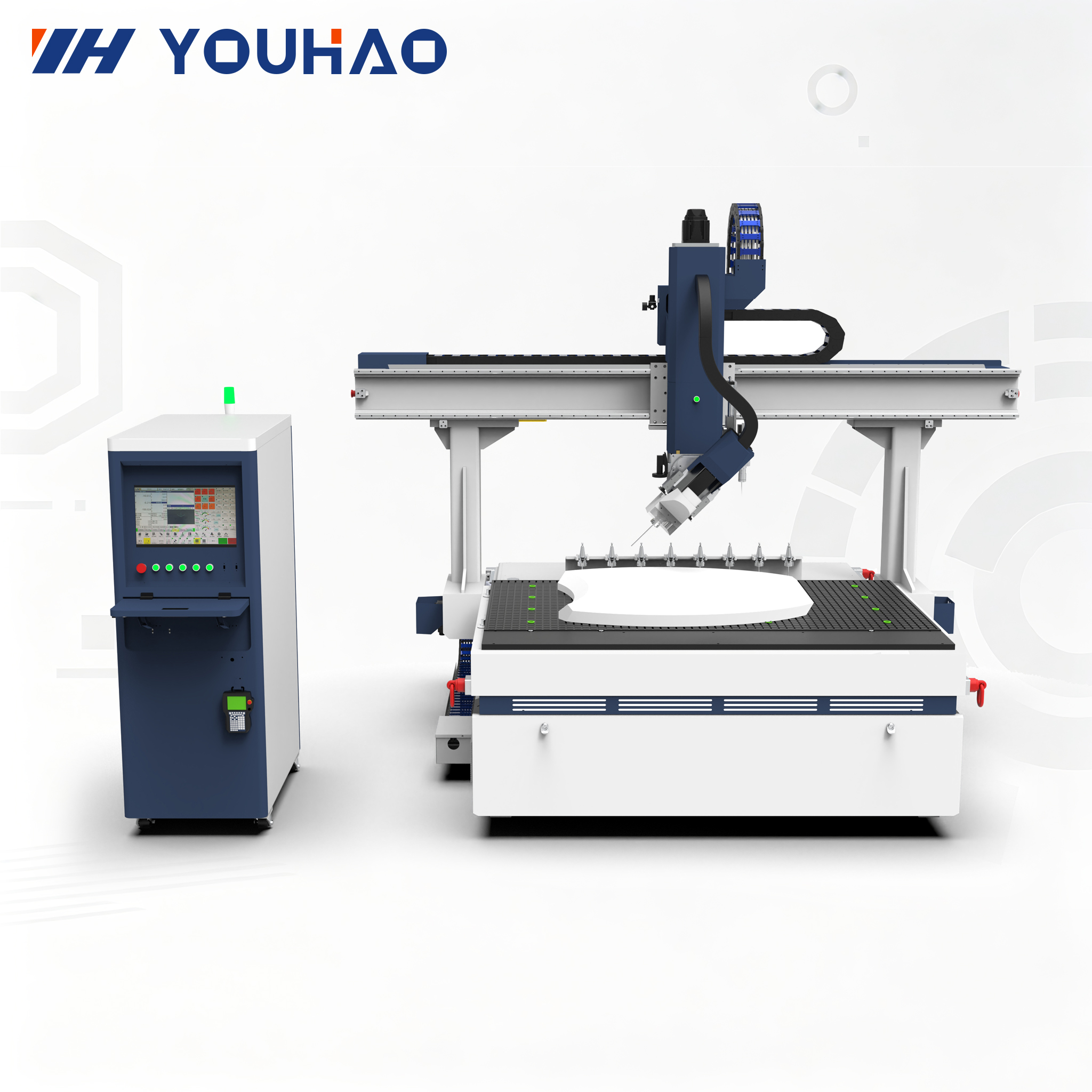

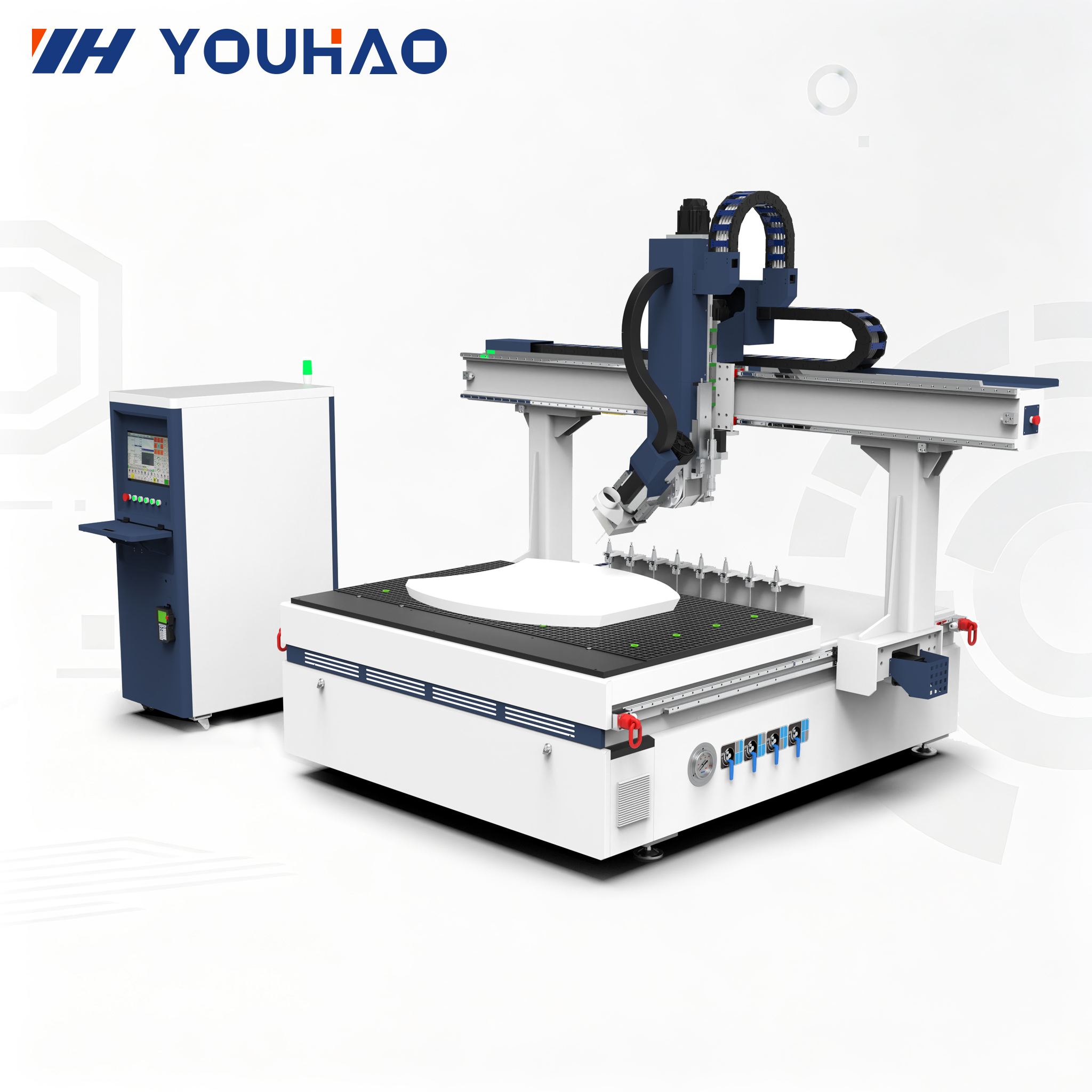

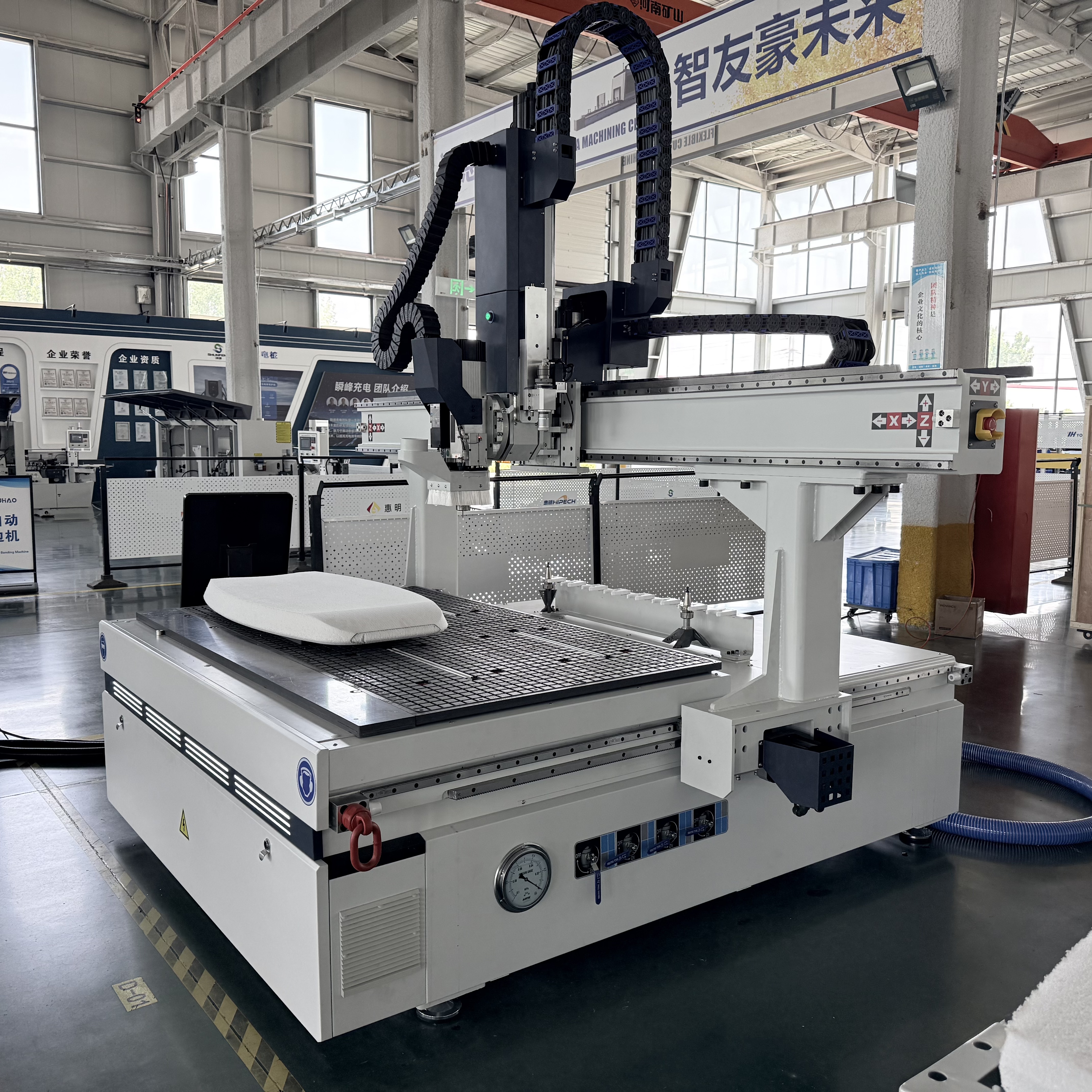

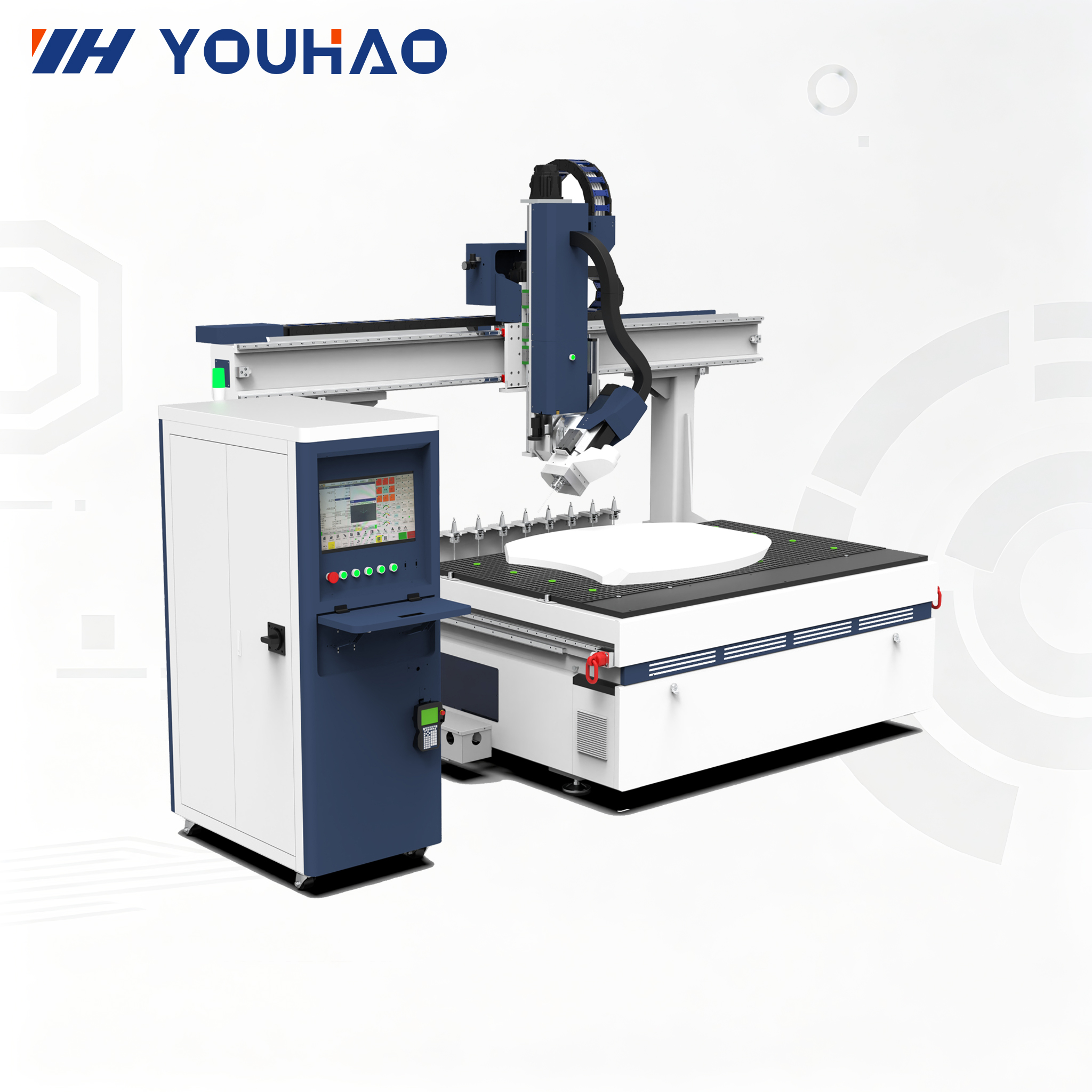

4 Axis 1910 Atc Cnc Wood Router Machine Wood Carving Machine

9kW Italian HSD Automatic Tool Changer Spindle

Tilting Range: 180° tilt + 90° oscillation, enabling multi-angle and multi-directional machining, easily handling complex curved surfaces, sidewall engraving, and deep cavity shaping.

Integrated High-Frequency Vibrating Tool Module—An electric vibrating tool head is installed below the spindle, performing tens of thousands of high-frequency reciprocating cuts per minute, specifically designed for precise cutting of flexible materials.

CCD Vision Positioning Pneumatic Tool—Equipped with an industrial-grade CCD camera, automatically recognizing material contours and positioning marks, working in conjunction with a pneumatic tool changer to achieve intelligent edge-tracking cutting and rapid tool switching.

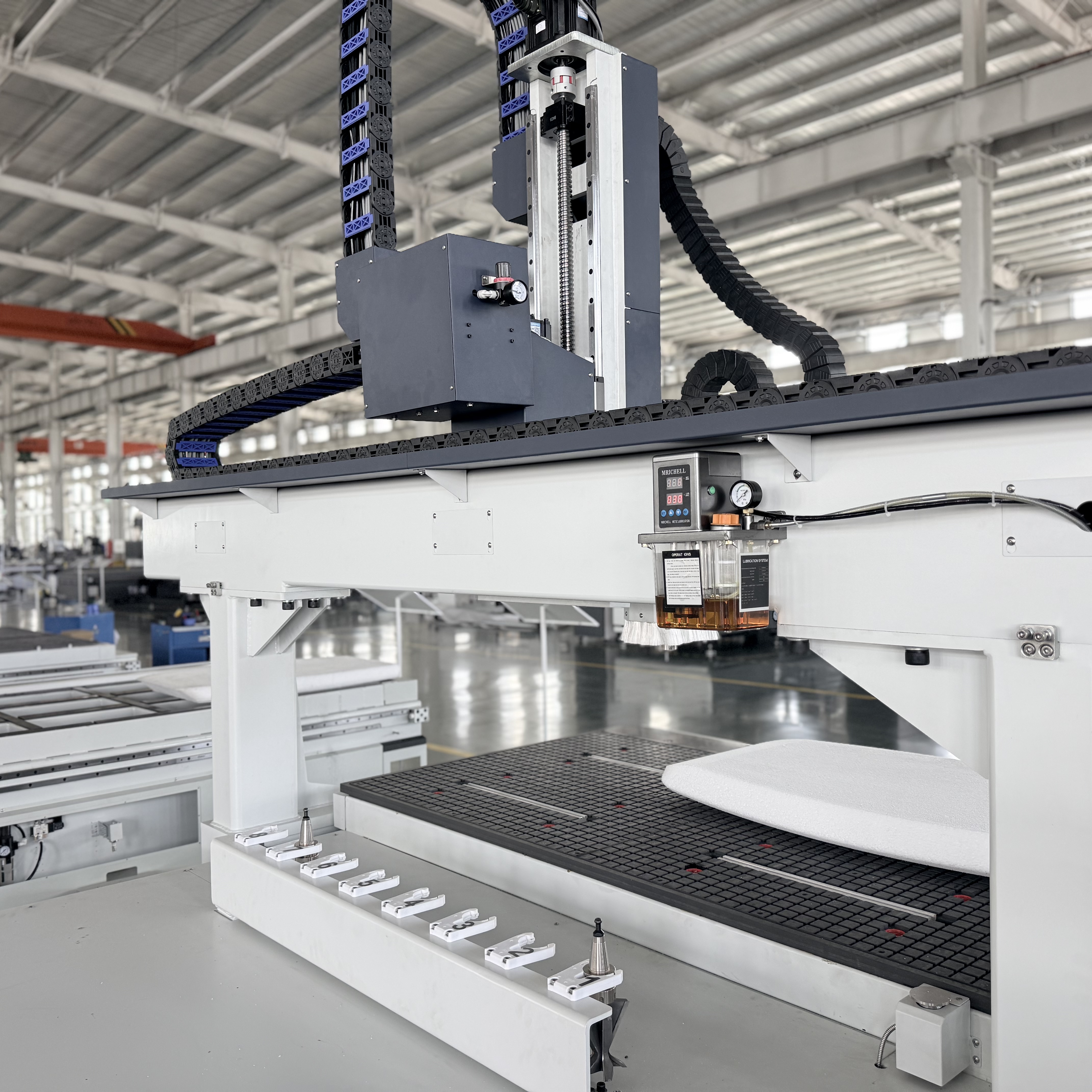

 Automatic tool changer system: 8-position disc tool magazine, automatic and rapid tool changing; tool change time <3 seconds, automating the machining process; supports automatic switching between various tools such as milling cutters, drills, ball end mills, V-cutters, and T-cutters.

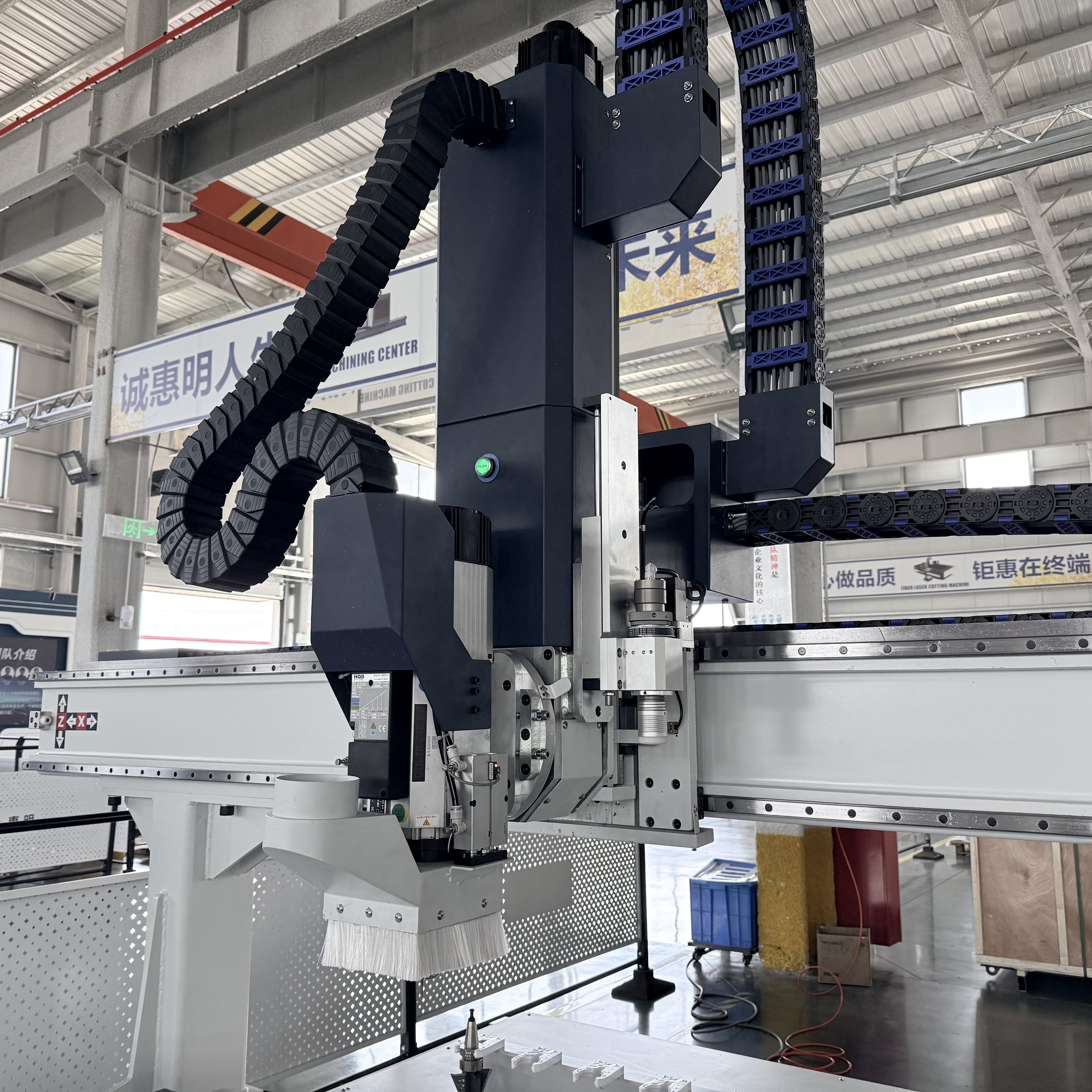

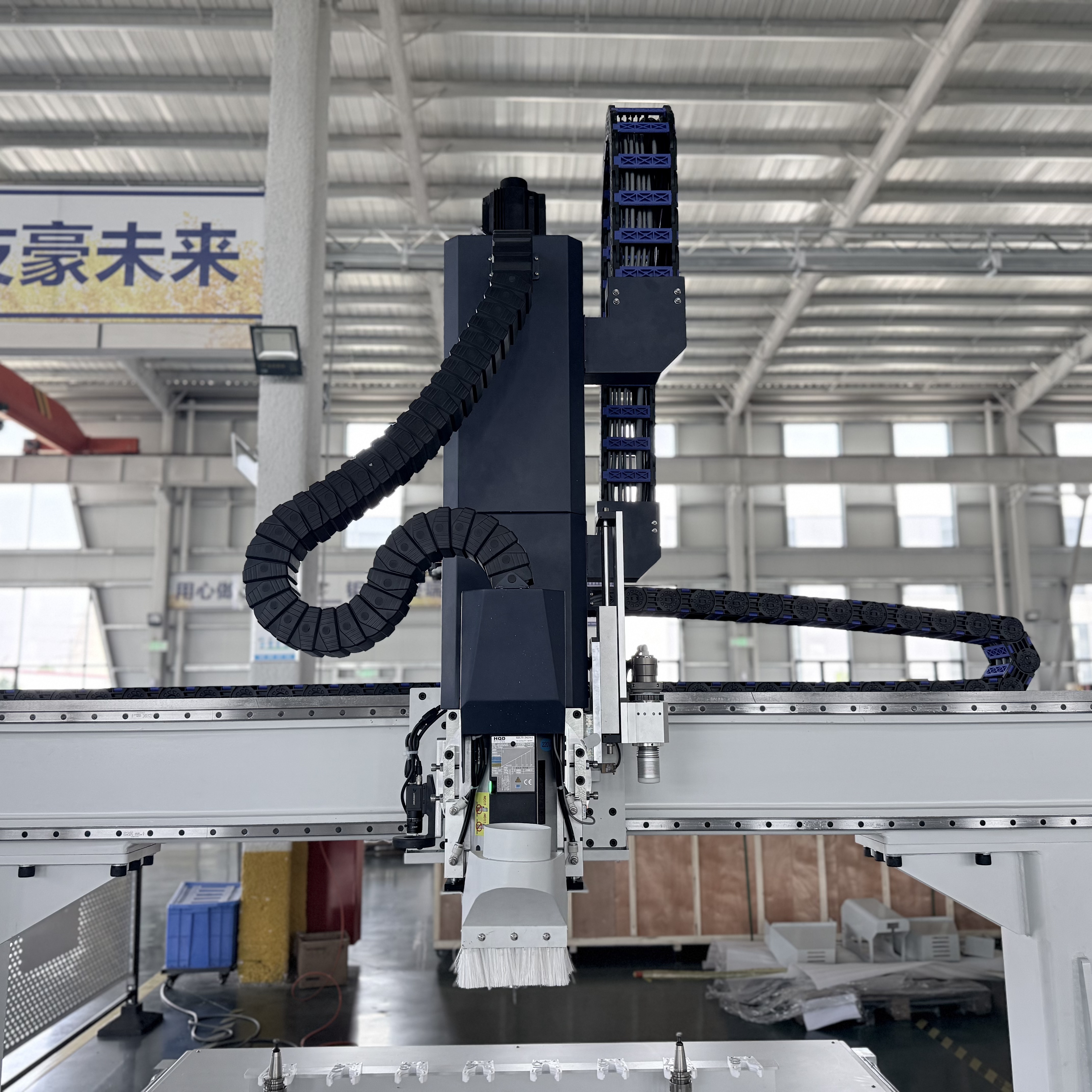

Four-axis sawing head system: X/Y/Z three-axis linear linkage + B-axis swivel head rotation; 180° tilt + ±90° oscillation, dual degrees of freedom coverage, enabling multi-angle and omnidirectional machining; easily handles inclined surfaces, sidewalls, deep cavities, and complex 3D curved surfaces.

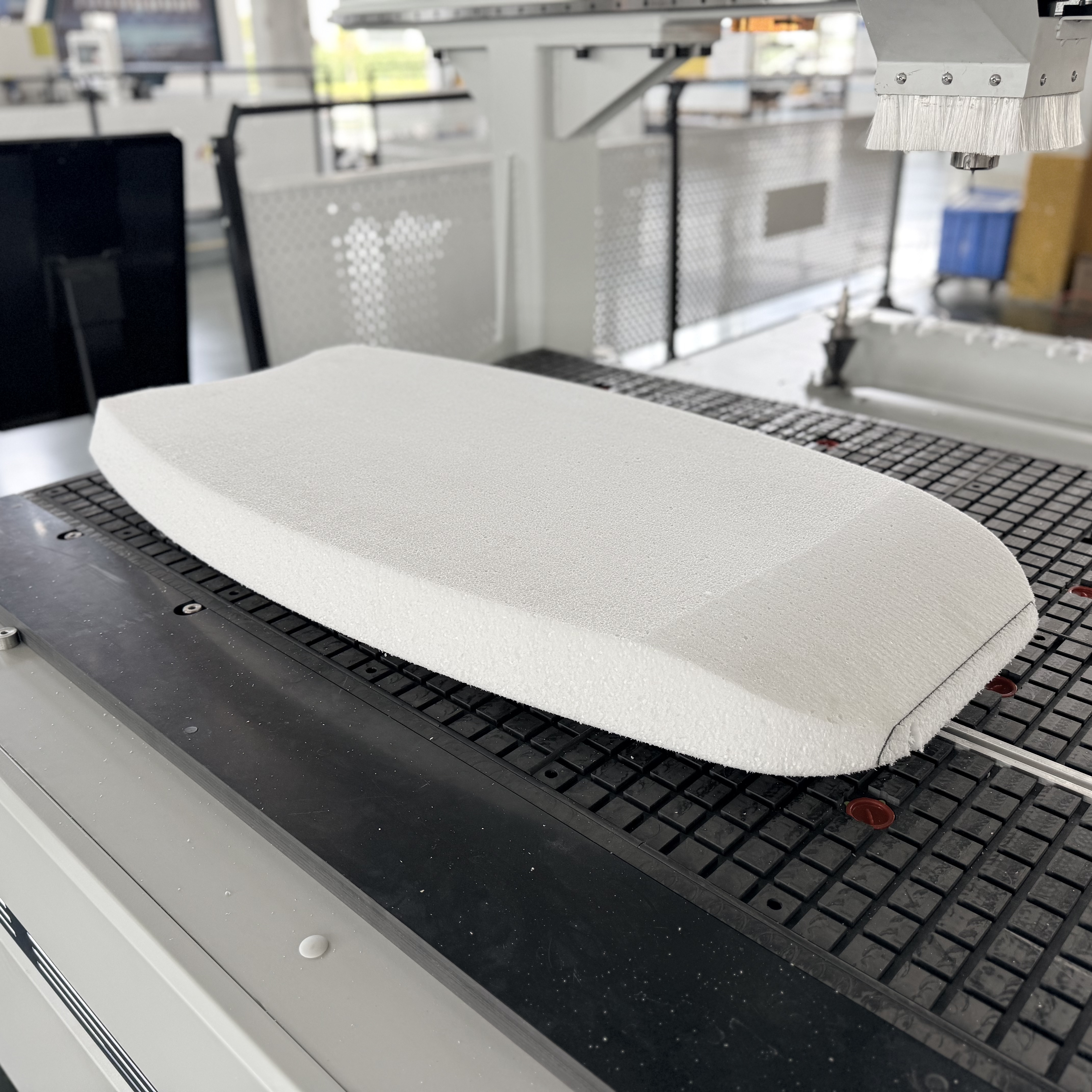

Applicable processing materials (in conjunction with a four-axis engraving machine):

Wood: solid wood, density board, plywood, bamboo, etc.

Plastic: acrylic, PVC, ABS, foam board, etc.

Metal: aluminum, copper, stainless steel (soft metal processing)

Stone: marble, artificial stone, ceramics

Composite materials: aluminum-plastic board
