YOUHAOCNC Four-axis CNC Engraving Machine with A 180-degree

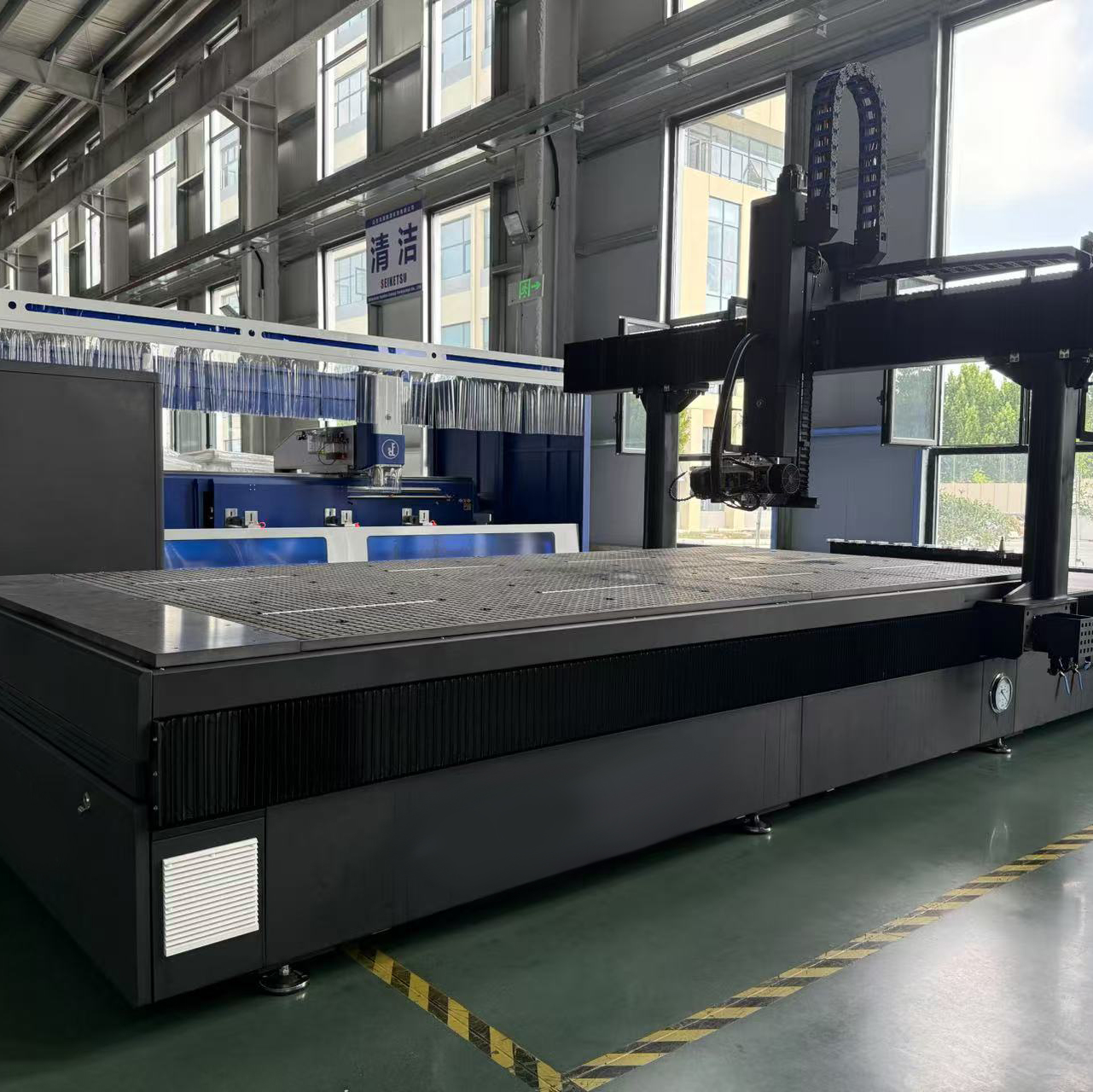

The YOUHAOCNC four-axis CNC engraving machine with a 180-degree oscillation head features a spindle that can oscillate ±90 degrees, suitable for machining complex 3D curved surfaces. Common standard sizes include 1325, 1530, 2030, and 2040 mm. It is equipped with an HQD 9kW spindle and an LNC MW2600 system. The table uses an aluminum profile + T-slot + pressure plate structure.

✅ Key Features: Four-axis linkage (XYZ + A axis), spindle 180-degree oscillation head, oscillation range ±90 degrees, suitable for multi-angle 3D engraving, such as the machining of complex workpieces like portraits, molds, and sculptures.

Standard working dimensions (unit: mm):

1325: 1300×2500

1530: 1500×3000

2030: 2000×3000

2040: 2000×4000

(Custom sizes available)

Table structure: Aluminum profile + T-slot + pressure plate, providing stable clamping, suitable for positioning and clamping irregularly shaped workpieces, compatible with both adsorption and mechanical clamping methods.

Spindle configuration: HQD 9kW air-cooled/water-cooled spindle, speed 0-24000rpm, suitable for engraving, cutting, and drilling processes on materials such as wood, MDF, acrylic, and aluminum.

Control system: Taiwan LNC MW2600 system, four-axis linkage control, supports complex curved surface machining, user-friendly interface, and high stability.

✅ Applicable Industries

Furniture Manufacturing (e.g., carved door panels, stair railings)

Mold Industry (e.g., automotive, shipbuilding, sculpture models)

Advertising Signage (e.g., 3D lettering, display models)

Craft Carving (e.g., Buddha statues, portraits, decorative items)

✅ Optional Configurations (Some Models)

Drive Motor: Leadshine 1500W Servo Motor

Guide Rail/Rack: Taiwan Hiwin Guide Rail

Automatic Tool Change: Supports 8-position linear tool magazine

Vacuum Adsorption Table: Optional vacuum pump for dual adsorption and pressure plate functions

Automatic Material Feeding: One-click unloading after processing, improving efficiency

✅ Summary

This four-axis swivel head engraving machine combines high flexibility, high rigidity, and high precision, making it suitable for users with processing needs for complex 3D workpieces. Its 180-degree swivel head design offers significant advantages in processing sides, chamfers, and curved surfaces. Combined with the LNC MW2600 system and HQD spindle, it offers stable performance and is widely used in mid-to-high-end woodworking, advertising, and mold industries.
