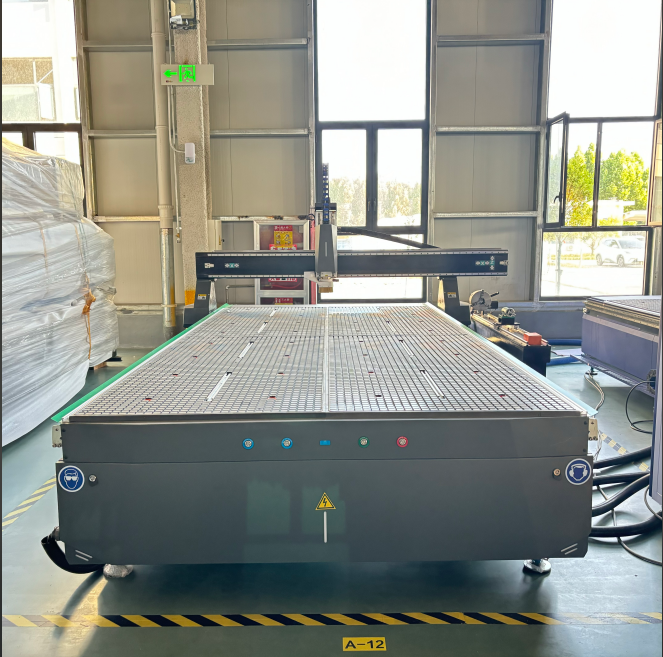

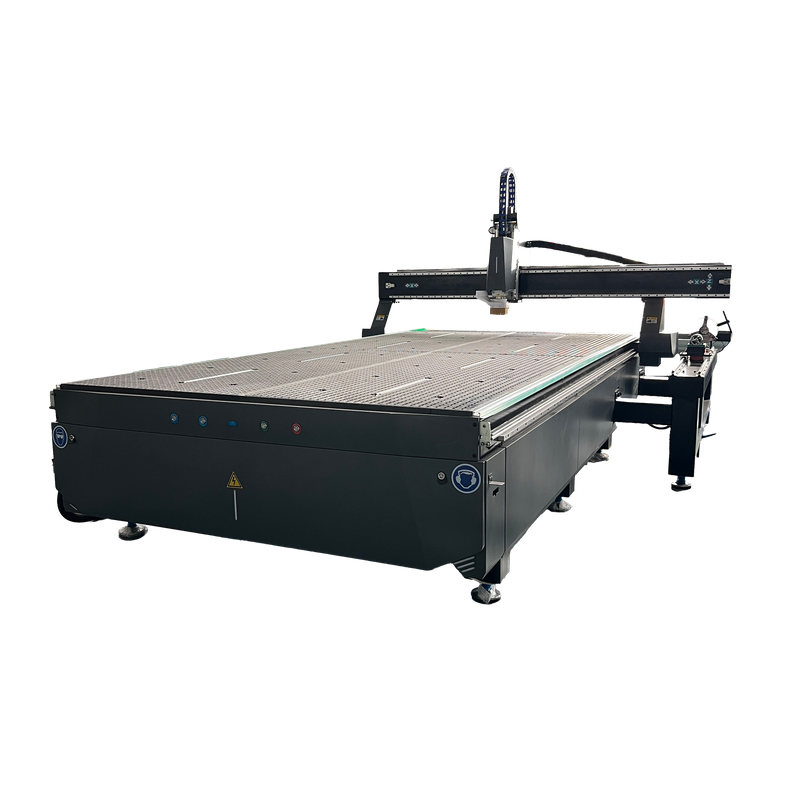

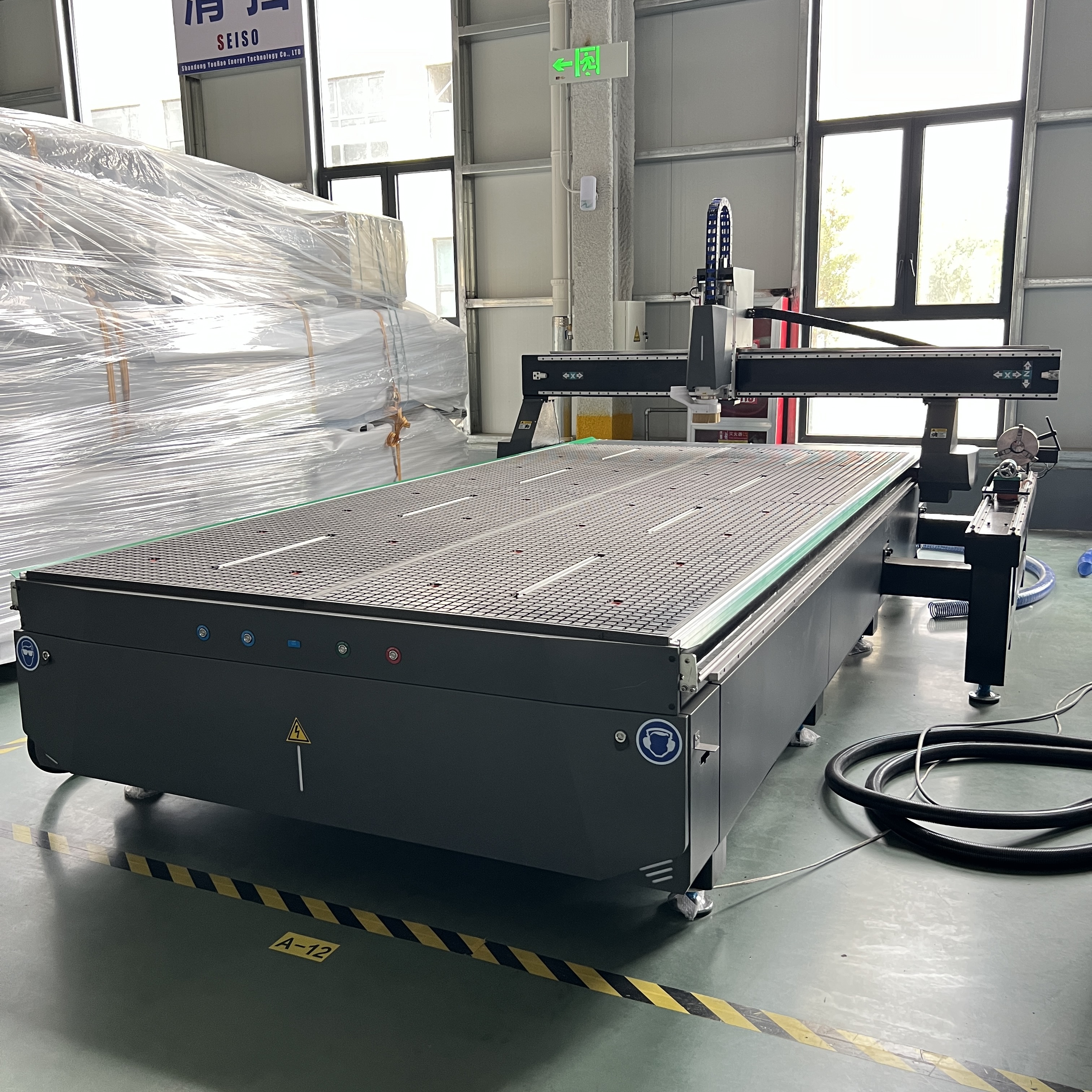

Cheap Price 1325 Wood Cnc Router Engraving Machine with Roatry Axis

T5 wood router with rotary
Application: Columns, table legs, stair railings, reliefs, gun stocks, foam props, acrylic trophies, soft aluminum parts, etc.
Leadtime: 20-25 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Customized: Size Can be customized
Warranty: 1years
Supply Ability: 15 Sets/Month
We accept OEM,can creat your logo,customize machine according to your need.Our 3-axis CNC router with rotary axis (often called the “4th axis” or A-axis) keeps the simple X/Y/Z motion of a standard 3-axis machine, but adds a powered rotary unit that lets the work-piece spin while the spindle cuts.

  • T5-roatry

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

        YOUHAO 4axis wood cnc router machine with roatry axis is Cost-Effective 4th Axis Functionality，Compared to full 4-axis or 5-axis machines, a 3-axis CNC with rotary attachment offers similar benefits for cylindrical work at a lower cost and with simpler operation.High Precision & Stability，User-Friendly Control System，Increased Productivity，Customizable & Expandable

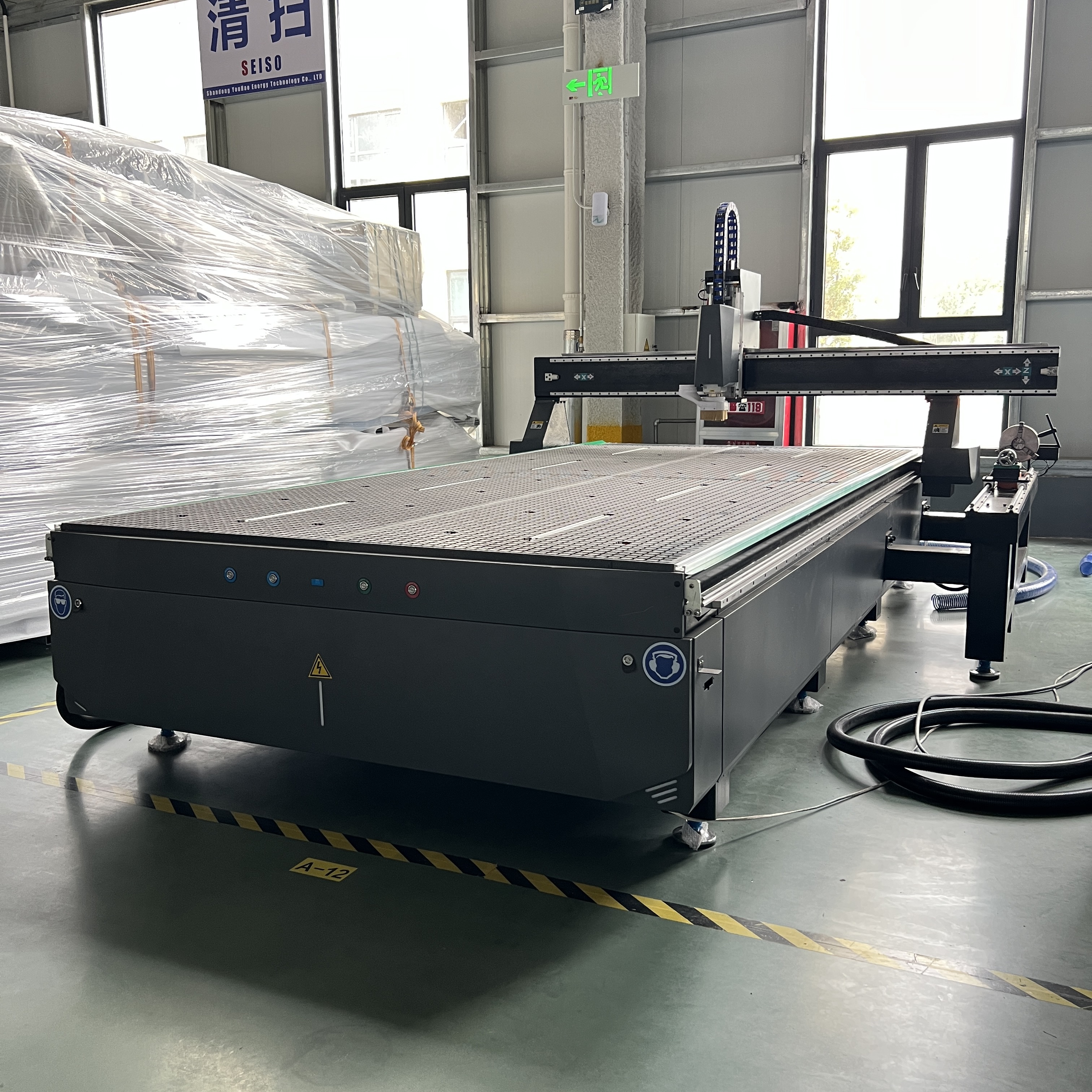

cnc router 4axis with roatry axis

3-Axis CNC Router with Rotary Axis is a powerful and flexible machining solution designed to handle both flat and cylindrical workpieces with high precisionIt combines the simplicity of 3-axis control with the versatility of rotary engraving, making it a smart and efficient solution for both flat and cylindrical projects.

The three-axis engraving machine plus a rotary axis is equivalent to adding a "rotation dimension" to the machine, upgrading the original 2.5D/3D plane engraving that can only perform "up and down, left and right, front and back" to a true three-dimensional cylindrical engraving that can perform 360° surround processing.

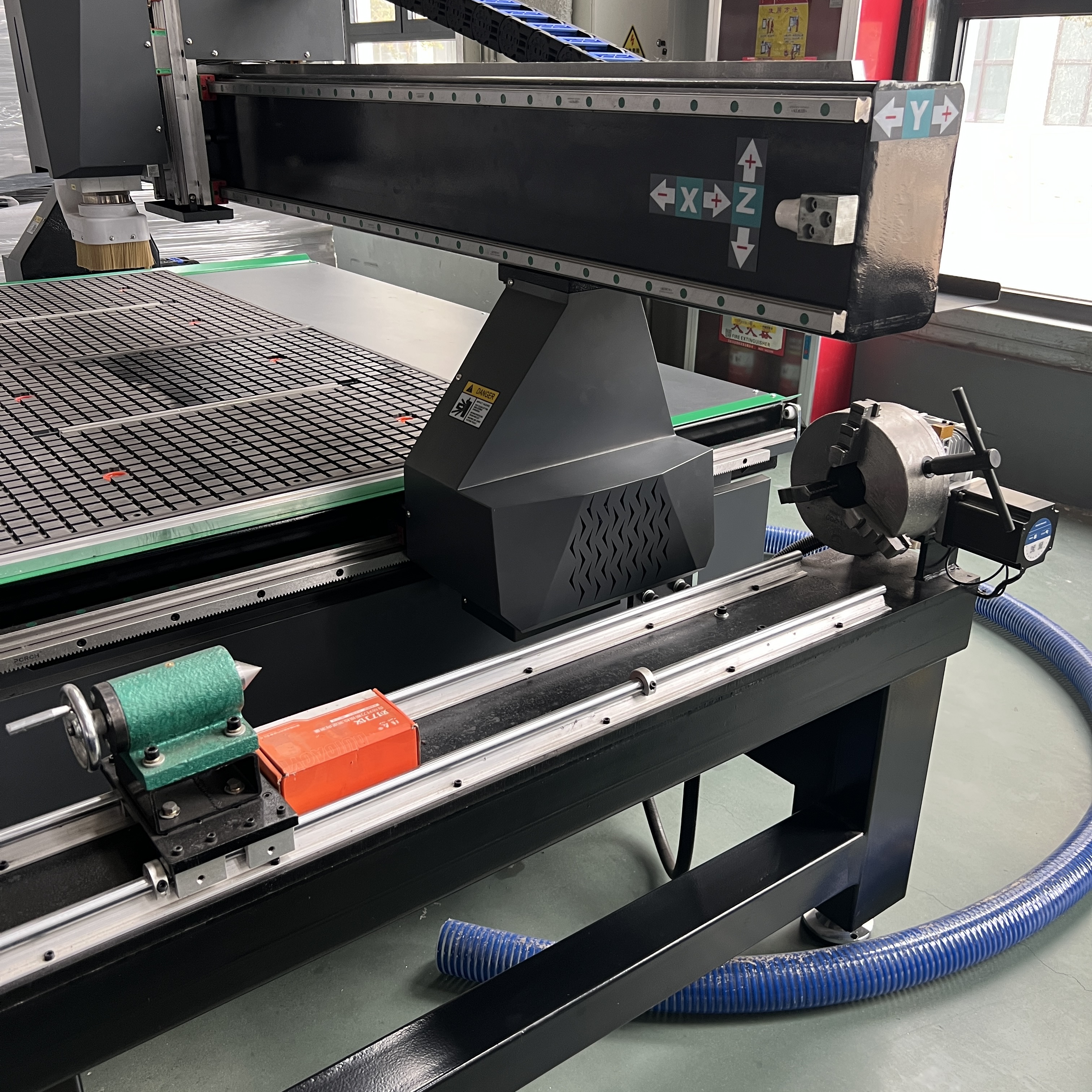

 4axis wood machine
台面

Vacuum Table


      Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece. Also add the T-Slot, if you want engraving, you can clamp the panel so that can save more energy.

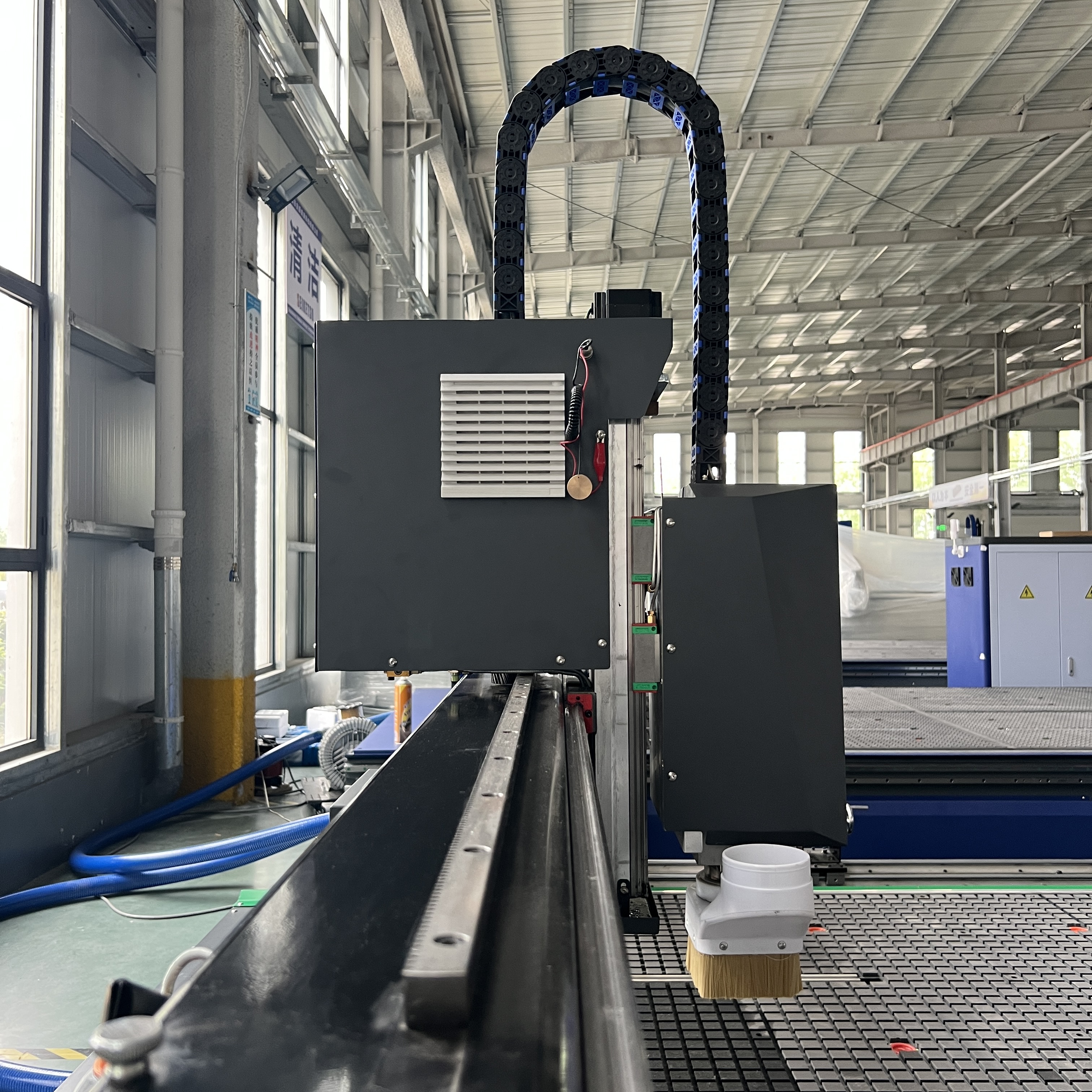

Spindle


China HQD air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work. HSD spindle is optional.youhao cnc router machine can customize according to your needs

 cnc router machine 4axis

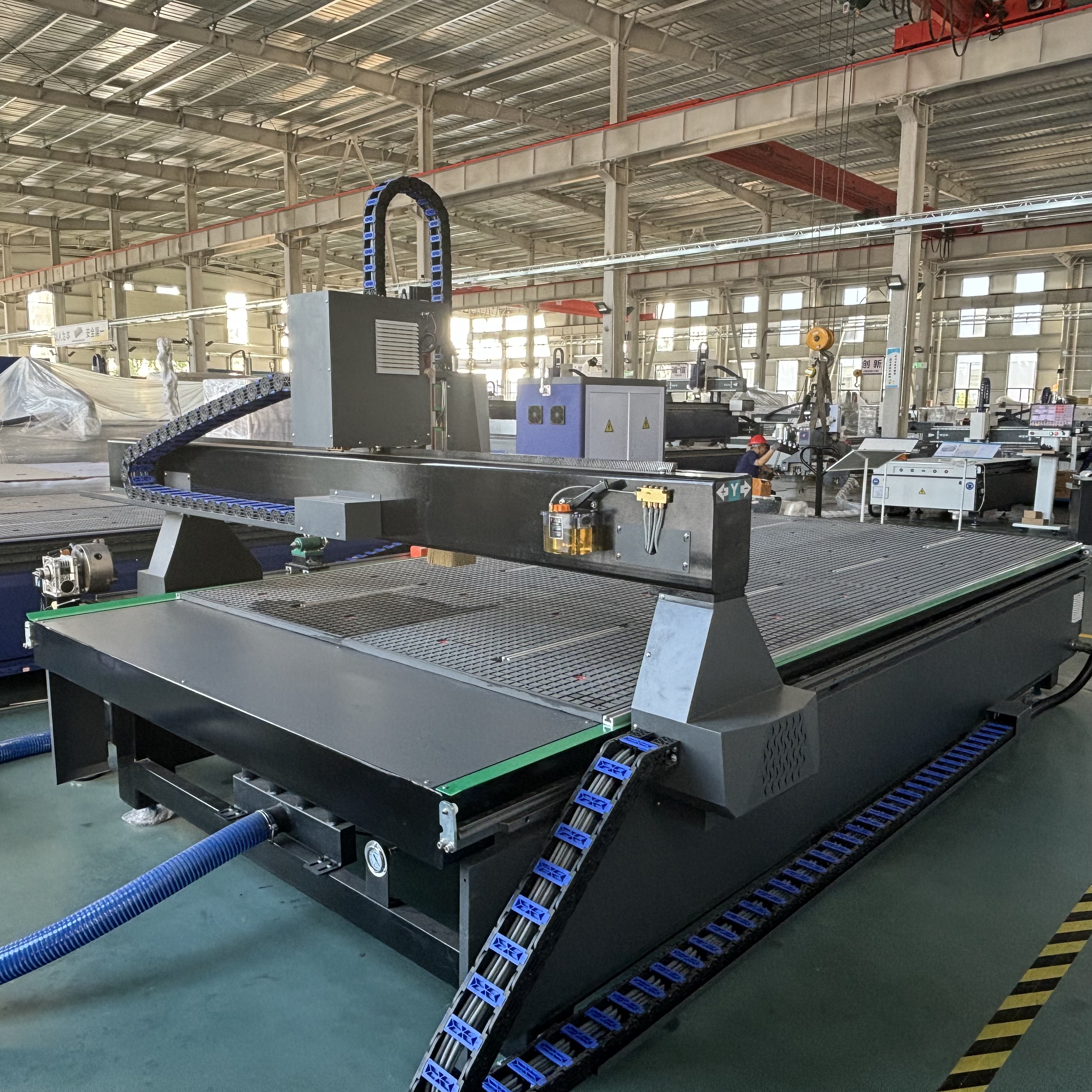

cnc router 2030 4axis

In short, a 3-axis CNC router upgraded with our rotary axis keeps all the simplicity and low cost of 3-axis work, but instantly unlocks profitable 3-D cylindrical jobs—without buying a separate lathe or indexer. Choose the size that fits your workshop (1325, 1530, 2030, 2040) and start cutting in 360°.


Advantage


1) This machine is a economic one, it is suitable for small business and small shop, but it also can meet your engraving and cutting requirements. The precision and speed is nice.


2) The machine bed is constructed by aluminium gantry and thick welded square tube. It can ensure the machine a long life using time.


3) All our accessories adopts the Well-known brands at home and abroad. so the machine service life is can be ensured, the machine function is good. It can't be damaged easily.


4) Can be used for many kinds materials, such as wood, aluminium, acrylic and son on. YOUHAO CNC ROUTER is your best choice.



For option, we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.



All these feedback comes from our customer .  All our customers is satisfied with our cnc router machine , so call us ,bring your machine home


微信图片_20220815143952

Specifications

Model

T5-YH1325

Table

T-slot Vacuum adsorption table

Table size

1300*2500*200mm

Transmitting way

X,Y axis transmitting by gear and rack,Z axis transmitting by rolling ball screw

Spindle motor

leadshine stepper motor

Spindle motor speed

0~24000rpm/min

Driver system

Servo Motor or stepper

Control system

The Original Ncsutido Control System

Limit stop

Hard limit stop and omron etromic

Inverter

follin inverter

Working table

T-slot +PVC table

Working votage

AC380V/50Hz

Optional

Dust collector, Servo system, Vacuum system, Oil spray system, Oil lubrication system


download YOUHAO CNC Catalog_.pdf
