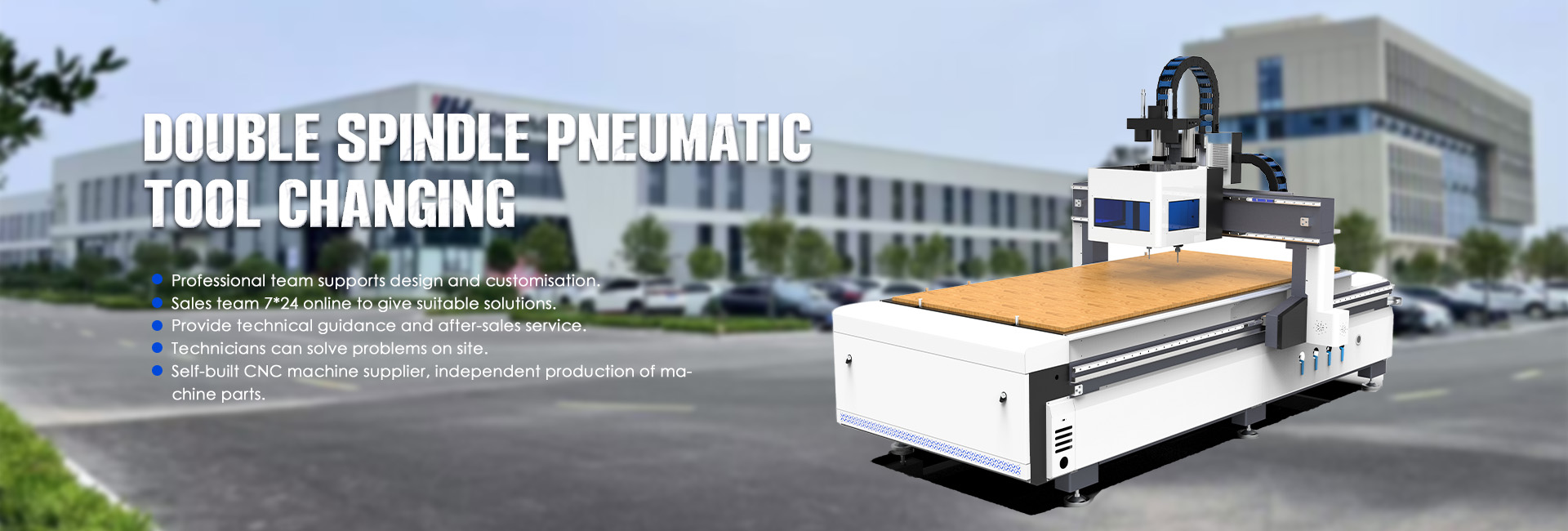

YOUHAOCNC Dual-Process CNC Engraving Machine – Two Tools for Mass Production, Setting A New Benchmark for Cost-Effectiveness

I. Product Positioning

The minimalist ATC with "two tools." When your processing flow only requires two tools alternating (e.g., material cutting + milling, relief carving + cutting), the YOUHAOCNC dual-process engraving machine achieves 90% automatic tool changing efficiency at less than 40% of the cost of an ATC, making it the top choice for small to medium batch orders in advertising signage, solid wood furniture, composite doors, and ABS/aluminum composite panel processing.

II. Core Selling Points

True Dual-Process: Two 4.5 kW HQD constant power spindles with independent lifting, 0-3 second electric spindle switching, no need for manual tool changing during machine downtime, significantly increasing daily output efficiency.

Savings Money and Worry-Free: Compared to comparable ATC cnc router, the purchase price is 60% lower, eliminating the need for tool magazine maintenance and reducing potential failure points by 50%. One table with two fixing methods: The vacuum adsorption area firmly holds MDF/aluminum sheets with a single click; the built-in T-slot area can clamp solid wood/irregularly shaped workpieces, making it multi-functional and allowing for job changes without changing the mounting.

DSP B55 industrial-grade handle: Operates independently of a computer; plug and play from a USB drive; supports breakpoint resume carving and array processing; simple and quick to learn operation.

Standard floating tool setter: Dual spindles with one-click automatic tool setting, accuracy ≤0.02 mm, eliminating manual tool setting errors.

CCD edge tracking (optional): One-click extraction of printing contours, automatic compensation for board skew, "zero scrap" for acrylic UV inkjet printing and cutting, and irregular edge tracking of KT boards.

Flexible sizes: Mainly 1325/1530/2030/2040 mm; X/Y/Z travel can be customized to meet all customer processing needs.

III. Technical Parameters

Processing Dimensions: 1300×2500×200 mm

Tabletop Structure: Vacuum adsorption tabletop + built-in T-slot

Transmission: XY helical rack 1.5 M, TBI 2505 ball screw

Guide Rail: HIWIN 25/25/25

Repeat Positioning Accuracy: ±0.02 mm

Spindle: HQD 4.5 kW ×2, 0-24000 rpm

System: DSP B55 handle

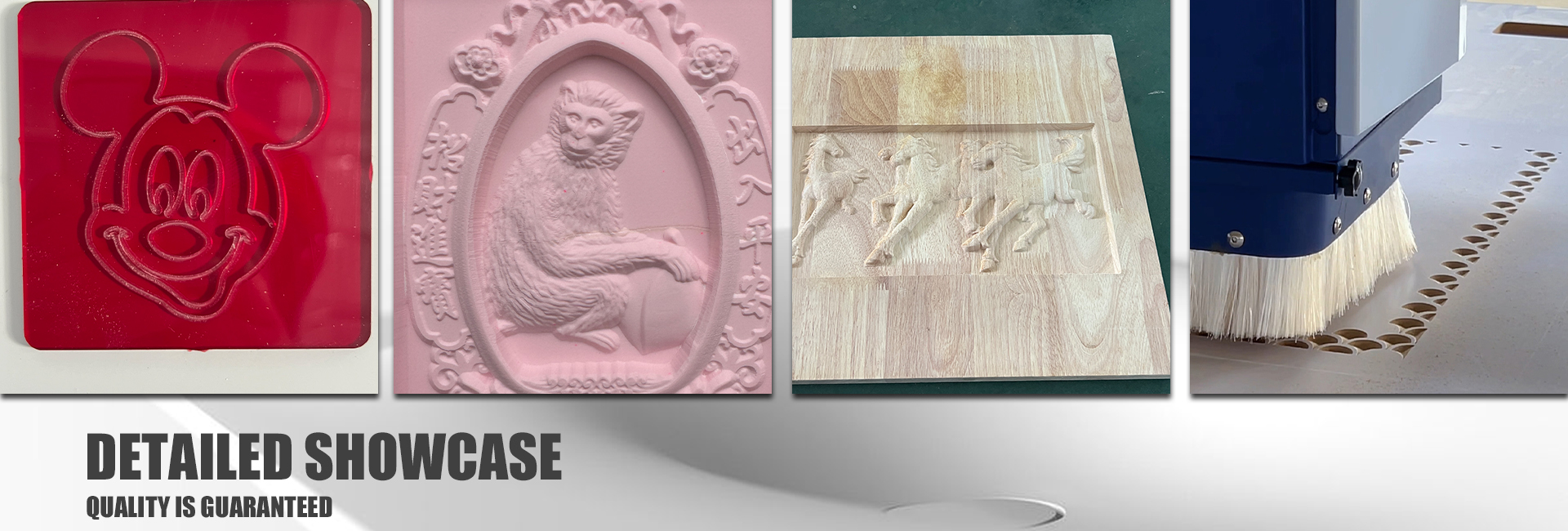

IV. Typical Applications

Furniture: Cabinet doors, solid wood composite doors, tatami mats, drawer panel cutting and shaping completed in one go

Advertising: Acrylic UV printing followed by irregular cutting, PVC illuminated signs, aluminum composite panel background walls

Models: ABS/epoxy board/aluminum composite panel fixtures, exhibition models, musical instrument bodies

Insulation: FR4, bakelite board, nylon board processing

V. Service and Delivery

7×24-hour online process support, free sampling

72 hours before shipment Burn-in test, accuracy report included.

12-month warranty on the whole machine.

VI. Summary in one sentence: YOUHAOCNC 1325 Dual-Process cnc routers—at the price of "two tools," achieves the speed of automatic tool changing, allowing small and medium batch processing to enjoy a high-capacity, low-investment, fast engraving experience!
