YOUHAO C9 Large Format Vision CNC Oscillating Knife Cutting Machine with Auto Feeding Table for Foam, Fabric & Packaging Materials

Models: YOUHAO C9 -1625 Large Format Vision CNC oscillating knife cutting machine
Working Area :1600 × 2500 × 100 mm
Control System: RUIDA 6584G-DFM
Motor: Delta Servo Motor (XY 400W, Z 100W)
Tool Holder: Double Tool Holder
Cutting Tools: Oscillating Knife / Pneumatic Knife / Brush
Transmission: Helical Rack + Planetary Reducer
Guide Rails :Taiwan HIWIN Linear Guides
Vacuum Pump: 7.5KW
Table Type: Vacuum Partition Table with Auto Feeding
Electrical Components :Schneider (France)
Cylinder: Airtac
Cable: Igus (Germany)
Voltage :380V / 3 Phase / 50Hz

  • C9-1625 Large Format Vision

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


553ddca34e5792bdc870d1bb9915dc0


Taiwan Delta Servo Motor System


The machine is equipped with a high-performance Taiwan Delta servo motor system, delivering fast response, high precision, and stable operation. With XY axes powered by 400W servo motors and a 100W motor on the Z axis (with brake), it ensures accurate positioning and smooth motion even during high-speed cutting, making it ideal for demanding industrial applications.


Knife

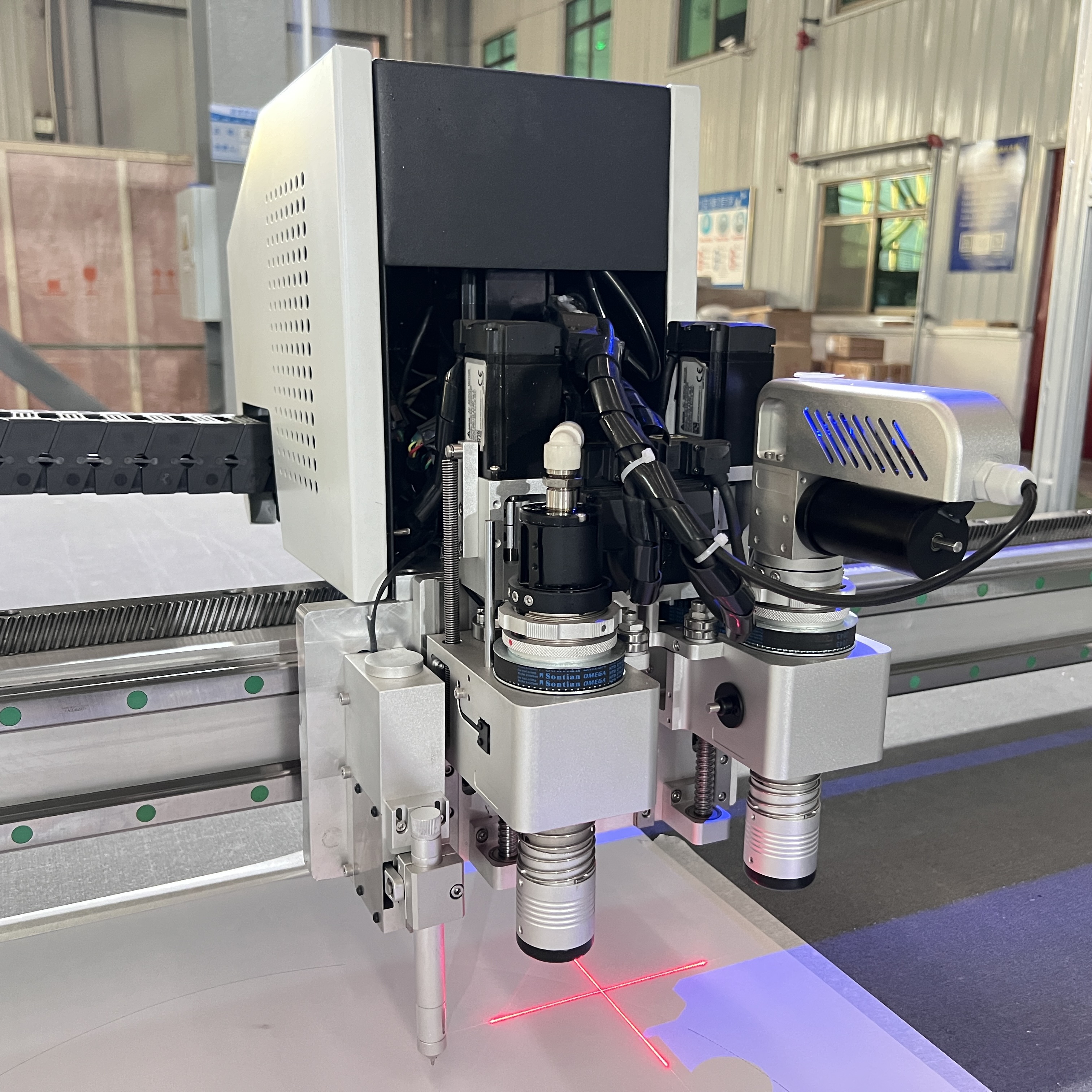

Equipped with a versatile tool platform supporting multiple tools, including Electric Oscillating Tool (EOT), Pneumatic Oscillating Tool (POT), Wheel Knife Tool (WKT / Round Knife), Creasing Tool (CT), V-Cut Tool (VCT), Kiss-Cut Tool (KCT), Universal Drawing Tool (UDT / painting brush), drag knife, and punching tools. This allows the machine to handle cutting, creasing, marking, and drawing processes in one system.

1_0002_knife

4a47760b33a8dc5c1df7aa2cf8e4b0d


Vacuum Table System


The machine adopts an aluminum honeycomb vacuum adsorption table combined with an automatic feeding system. This structure ensures strong suction, excellent material fixation, and continuous feeding capability, making it ideal for high-efficiency processing of flexible materials.



Vision System (Large Format Visual Positioning)

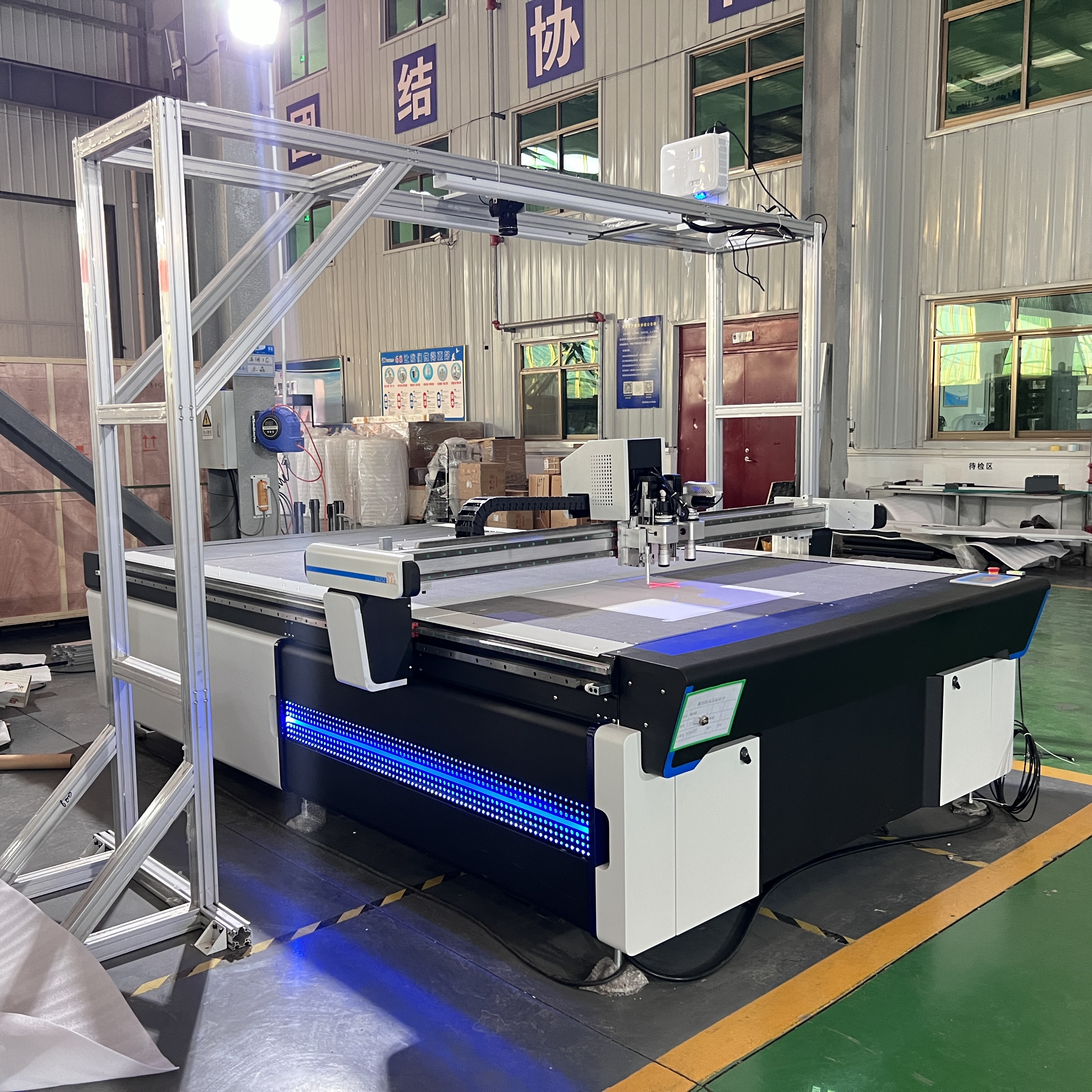

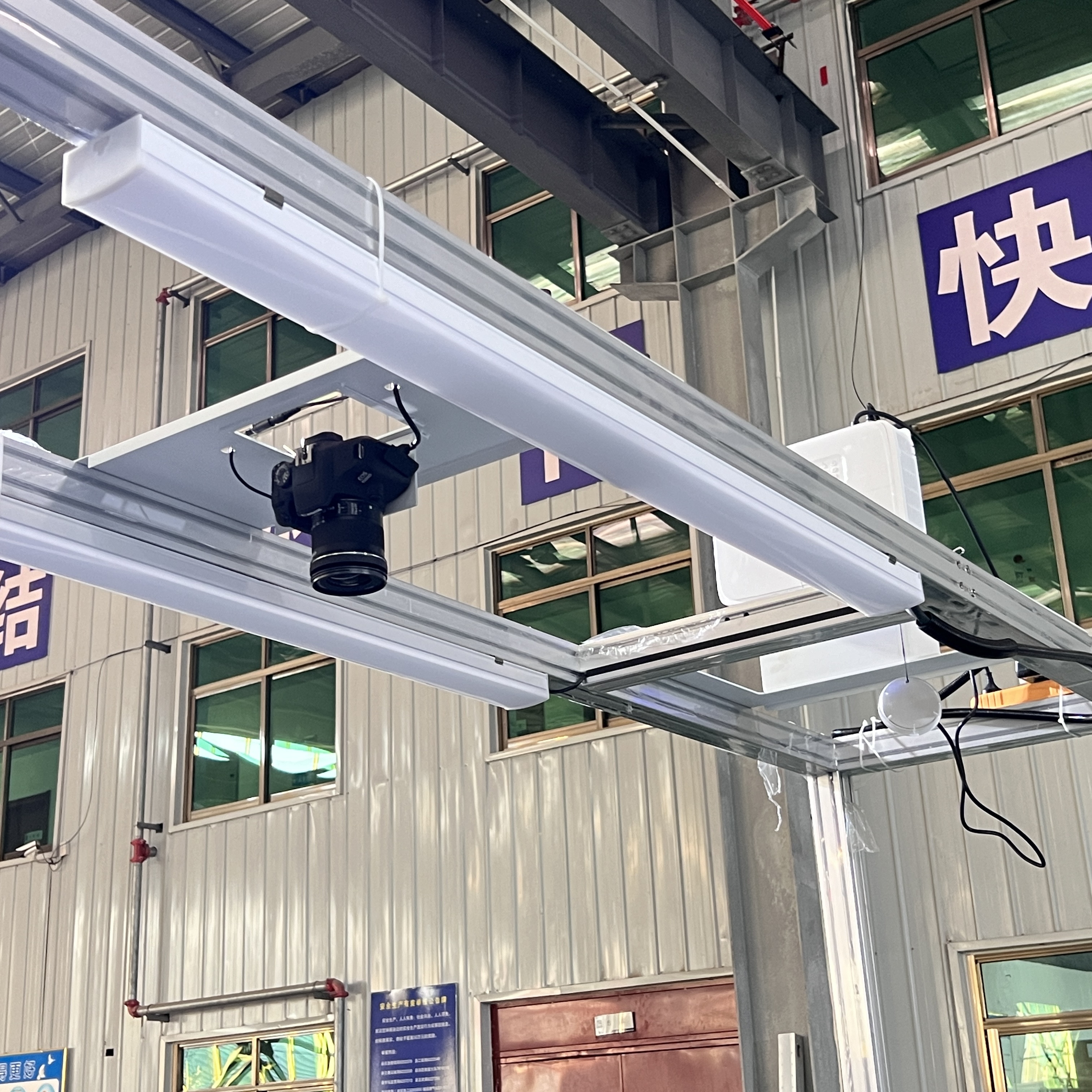

The large-format vision system is enhanced with an industrial camera mounted on an elevated aluminum frame structure, ensuring wider coverage and higher positioning accuracy. It can be integrated with a projector system, which is commonly required for visual alignment and pattern positioning in large-scale cutting applications.


5ef4ec009476d6ea666d65e3873480d


eeb35a42e2ca4b1b3655a107766a21e

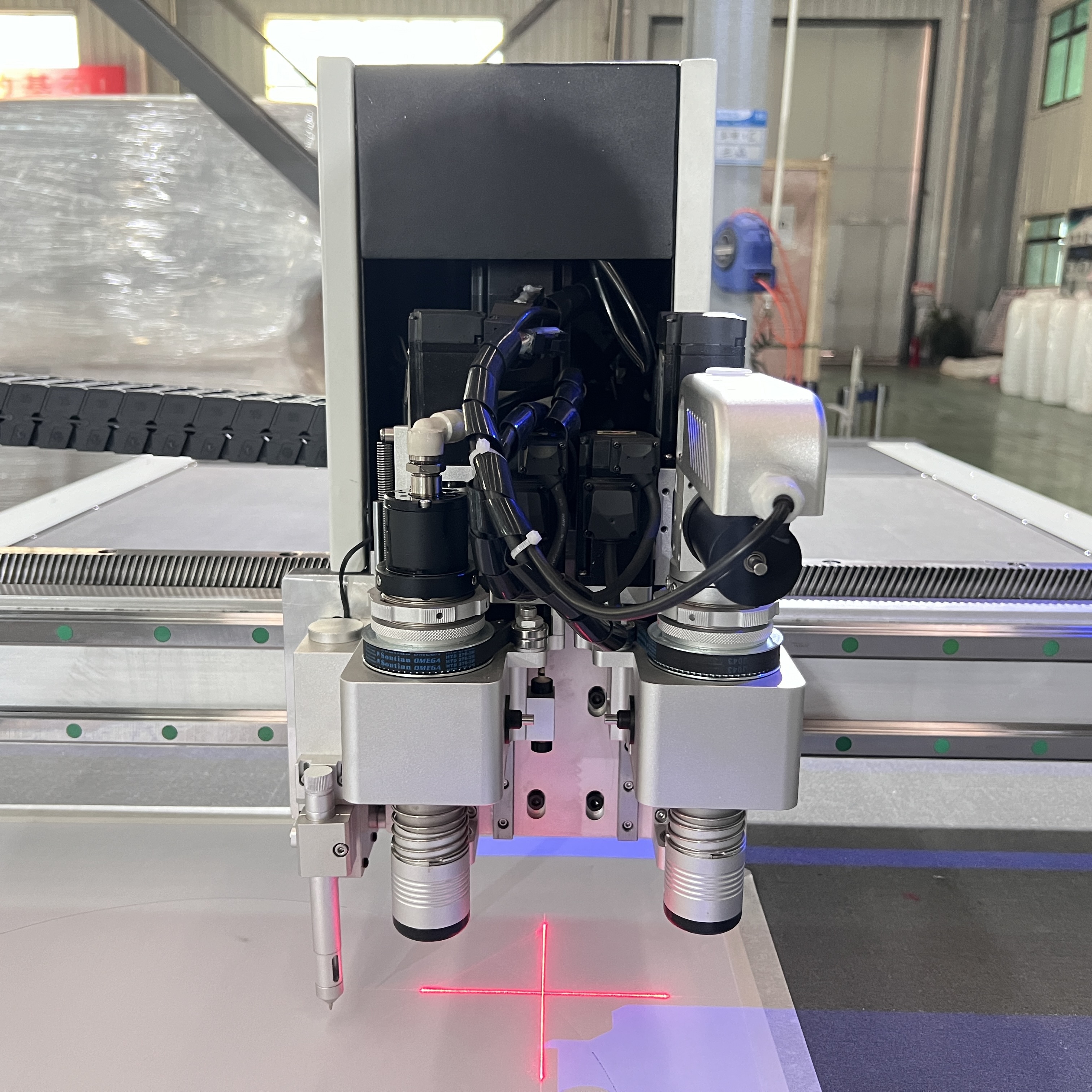

CCD Mark Positioning Function


Upgraded with CCD mark edge tracking function based on the RDD 6584G-Net control system, the machine can automatically detect printed marks and perform precise contour cutting, greatly improving accuracy and reducing manual intervention.


The C9 1625 CNC oscillating knife cutting machine is designed for high-precision cutting of flexible materials such as foam, textiles, leather, and packaging composites. Equipped with a large-format visual positioning system and automatic feeding table, it significantly improves cutting accuracy and production efficiency.

This machine integrates intelligent control, stable transmission components, and industrial-grade electrical systems to ensure long-term reliable performance. It is an ideal solution for industries requiring fast, accurate, and continuous cutting processes.

Key Features

  • Large Format Cutting Area: 1600×2500mm working size for handling large sheets

  • Auto Feeding System: Vacuum partition table with automatic feeding for continuous production

  • Vision Positioning System: Projector-assisted visual alignment for precise cutting

  • Multi-Tool Configuration: Supports oscillating knife, pneumatic knife, and brush tool

  • High Precision Transmission: Helical rack and planetary reducer ensure smooth motion

  • Stable Control System: Advanced controller with touch screen for easy operation

  • Industrial Components: Equipped with premium electrical and motion parts

  • Safety Design: Dual-side emergency switches for operator protection

Advantages

  • Improves cutting accuracy with visual positioning system

  • Reduces labor cost through automated feeding

  • Ensures stable operation with high-end components

  • Supports multiple materials with flexible tool configuration

  • Suitable for large-scale industrial production

Application

This machine is widely used in:

  • Foam cutting

  • Textile and fabric processing

  • Leather cutting

  • Packaging materials

  • Composite soft materials

  • Advertising and display industries


Specifications

Model

 C9-1625 Large Format Vision
Y and Z work areas 1600*2500*200 mm
Cutting System Oscillating knife + round knife combination for multi-material cutting

Power

12KW

Multi-functional tool head

Oscillating straight knife/Round knife/pneumatic knife/identification

roller/marker pen holder/punching hole device/V-groove cut tool/

CCD camera/tangential knife/drilling tool/projector/etc.(optional)

Positioning

Integrated red light positioning system for improved accuracy

Travelling speed

Maximum 1500mm/s

Cutting speed

Max. 1200mm/s (can be set up according to different materials)

Movement speed

1200mm/s Maximum 1200mm/s

Cutting speed

Maximum 800mm/s (can be set up according to different cutting

materials)
Control System Integrated red light positioning system for improved accuracy
Drive System Taiwan Delta servo motors (XY 400W / Z axis 100W with brake)
Transmission Helical rack with planetary double reducer for smooth and precise motion
Guide System

Taiwan HIWIN linear rails on X/Y axis for stability and durability
Vacuum System 7.5KW high-power pump with partition suction structure

Cutting material

Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey

board, paperboard, car sticker, adhesive sticker, etc.

Table Surface

Felt-covered adsorption table to protect material surface

Electrical Components

Electrical Components

Repeated positioning accuracy

±0.03mm

Pneumatics

AIRTAC cylinder with reliable performance

Cable System

Germany Igus high-flex industrial cables

Power Supply

380V / 3 Phase / 50Hz

All sizes are customizable to your needs.

download 2025友豪雕刻机画册_compressed.pdf

download 振动刀画册（中英文）.pdf
