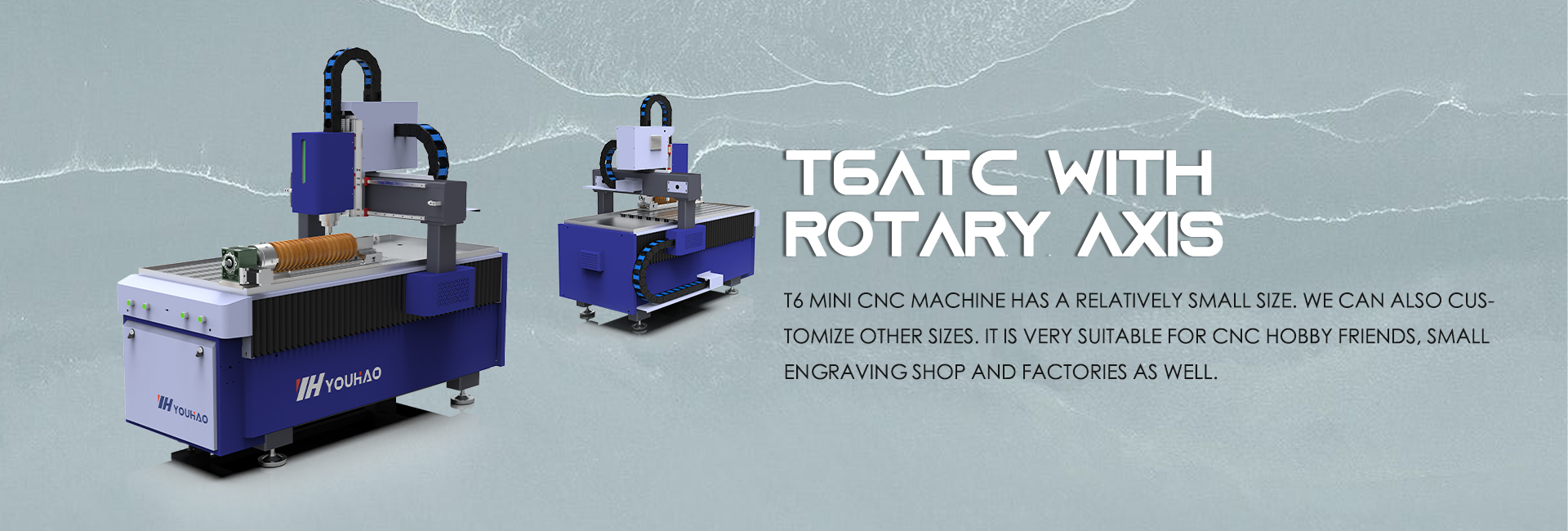

Amidst the growing global demand for small-scale precision machining, YouhaoCNC, a renowned Chinese CNC equipment manufacturer, has launched the Mini CNC Router series. This model's key feature is its rotary axis, allowing users to freely choose between fixed and movable axis options on the countertop. This offers unprecedented flexibility and cost-effectiveness for industries such as advertising signs, handicrafts, and aluminum alloy parts.
One machine serves two purposes, with the rotary axis capable of assembly and disassembly in seconds.
The fixed rotary axis is suitable for mass-produced 360° relief machining of round bars, wine glasses, pen holders, and other items. It features a repeatability of ≤0.02 mm and a three-jaw chuck for high stability.
The movable rotary axis utilizes a quick-acting positioning pin and T-slot design, allowing a single operator to complete assembly and disassembly in 30 seconds. When machining flat sheet materials, the rotary axis can be completely removed, freeing up workspace and truly achieving "one machine serving two purposes."
Standard sizes cover 6090/6012/6015.
The machine's tabletop is constructed of aircraft-grade aluminum profiles with multiple T-slots and a pressure plate, ensuring both lightweight and rigidity. The effective machining areas are 600×900 mm, 600×1200 mm, and 600×1500 mm, respectively, with a thickness of up to 180 mm. It easily accommodates both flat and rotary machining.
DSP A11E handle system: Getting started in 10 minutes, no experience required.
The standard DSP A11E offline handle supports direct G-code reading from a USB flash drive, eliminating the need for a computer connection. It also features a built-in multi-language interface and a manual tool setter with one-touch automatic zeroing. This eliminates the need for resetting after tool changes, allowing even novice operators to perform high-precision, repetitive machining.
3.5 kW HQD air-cooled spindle + FOLINN inverter
The spindle has a maximum speed of 18,000 RPM and is equipped with a FOLINN 3.7 kW vector inverter, enabling stepless speed regulation from 0-100%. Ceramic bearings achieve a noise level of ≤65 dB and a lifespan of ≥8,000 hours. For soft metals such as aluminum, copper, and brass, an optional oil mist cooling system effectively prevents tool sticking and improves surface finish.
Belt drive for both speed and precision
All three axes utilize imported German 10 mm toothed belts and high-precision synchronous pulleys. Operating speeds range from 0-12,000 mm/min with a repeatability of 0.02 mm. This allows for both high-speed engraving and delicate relief, making it ideal for cutting delicate details such as advertising logos, small signs, badges, and aluminum panels.
First Application Cases
Advertising Industry: Bevel cutting of 3D acrylic illuminated characters, processing 3 mm acrylic at speeds of up to 8 m/min, with crack-free edges.
Crafts: 360° relief engraving of cylindrical bamboo tubes, using a 0.8 mm tungsten steel ball cutter to achieve a 0.2 mm depth in one pass, with clear details.
Aluminum Industry: Cutting 2 mm thick aluminum alloy nameplates, using oil mist cooling, increases single-tool life by 35%, and eliminates burrs.
Pricing and Delivery
YouhaoCNC stated that it is accepting pre-orders worldwide starting today, with standard configurations shipping in mid-October. The company offers a 12-month warranty, lifetime technical support, and optional CE and FDA certification packages, helping customers quickly enter the European and American markets.
Enabling every small device to enjoy an industrial-grade rotary machining experience is the core of YouhaoCNC's continuous innovation.
About YouhaoCNC
YouhaoCNC specializes in the research, development, and manufacturing of 3-5-axis CNC engraving and cutting equipment. Our products are sold in 86 countries and regions, serving clients in advertising, woodworking, and metalworking worldwide. For more information, please email info@youhaocnc.com or leave a direct message.
