3axis High-Precision Cnc Engraving Machines

In modern manufacturing, CNC engraving machines, as key equipment, are widely used in a variety of fields, including advertising production, mold processing, furniture manufacturing, and the electronics industry. Their precise engraving capabilities and high production efficiency have brought significant economic benefits and technological breakthroughs to companies. As a leader in the industry, YouhaoCNC has earned wide market recognition for its superior technical expertise and extensive product line. This article will focus on three star models in YouhaoCNC's High-Precision Engraving Machine series: the T1, T1S, and T1ATC. Each model offers unique features, meeting the diverse needs of different users for precision, efficiency, and functionality.

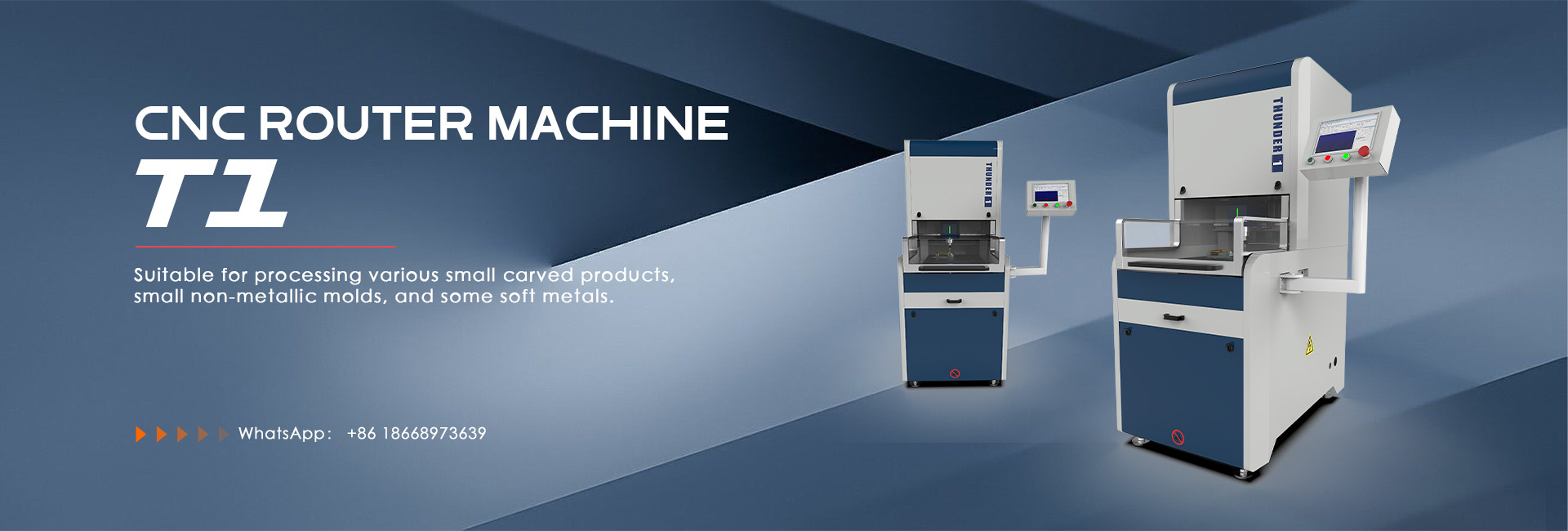

1. T1: A Basic and Reliable Engraving Tool

The T1 is the entry-level model in the YouhaoCNC High-Precision Engraving Machine series, yet its performance and features are unmatched. The T1 features a sturdy aluminum tabletop, which not only offers excellent flatness and stability but also effectively resists environmental influences, ensuring precise engraving. The T1 also offers an optional vacuum tabletop, which is extremely helpful for securing thin materials such as acrylic and plastic, effectively preventing material displacement during the engraving process and ensuring flawless engraving results.

As its core component, the T1 precision engraving machine is equipped with the Shenzhen DDCS EXPERT V1.1 system. This market-proven, high-performance CNC system boasts powerful computing power and stable control performance. It accurately interprets user engraving commands and converts them into precise mechanical motion, achieving high-precision engraving results. The T1 utilizes a Huadiao 2.2kW - 24,000 RPM spindle motor. This motor offers high speed and stable power output, easily handling a wide range of engraving tasks, from intricate pattern engraving to deep milling operations.

The T1 precision engraving machine's drive system is also uncompromising, equipped with a Leadsight 750W servo motor. Leadsight servo motors are renowned for their high precision, rapid response, and excellent stability. During the engraving process, they ensure precise tool movement, resulting in high-quality engraving results. Furthermore, the T1's drive system utilizes an XYZ-TBI 2510 C5 ground-grade lead screw. This screw offers exceptional precision and excellent wear resistance, effectively reducing transmission errors and further enhancing engraving accuracy.

With its reliable configuration and excellent performance, the T1 precision engraving machine is ideal for small and medium-sized businesses and those just entering the engraving industry. It can easily meet most common engraving needs, from creating advertising signs to machining small molds to engraving furniture components. Furthermore, the T1 precision engraving machine offers excellent scalability, allowing users to add movable rotary axes to achieve more complex 3D engraving functions, further expanding its application range.

2. T1S Precision Engraving Machine: An Upgraded Choice for Higher Precision

For users seeking higher precision and more efficient engraving performance, the T1S precision engraving machine is undoubtedly the superior choice. Based on the T1, the T1S has undergone a comprehensive upgrade, significantly improving spindle performance, drive system, and transmission accuracy.

The T1S precision engraving machine also utilizes an aluminum tabletop and offers an optional vacuum tabletop to ensure stable material retention during engraving. Its CNC system remains the Shenzhen DDCS EXPERT V1.1, which has proven its reliability and high performance on the T1 and therefore performs equally well on the T1S.

The T1S is equipped with a Huadiao 3kW - 40,000 RPM spindle motor. Compared to the T1's spindle, the T1S boasts greater power and higher speed. This means it offers greater cutting capacity and higher engraving accuracy, making it particularly suitable for engraving complex patterns and high-precision mold processing requiring high precision. The high-speed spindle enables finer engraving textures, making engravings more refined and realistic.

The T1S utilizes a 750W Delta servo motor for its drive system. Delta servo motors are highly sought after for their superior performance and stability. Compared to Leadshine servo motors, Delta servo motors offer superior precision control and dynamic response. They enable more precise control of tool motion, further enhancing engraving accuracy and quality.

The T1S utilizes an XYZ-TBI 2510 C3 ground-grade lead screw. This optimized lead screw design, combined with other high-performance components, enables high-precision engraving. Furthermore, the T1S's overall structure has been optimized to further enhance its stability and rigidity, providing a stronger guarantee for high-precision engraving.

The T1S's upgraded configuration surpasses the T1 in both precision and efficiency, enabling it to meet even higher-level engraving requirements. It's not only suitable for conventional advertising production and mold processing, but also for high-end applications requiring the utmost precision, such as engraving electronic product casings and fine jewelry processing. For companies with high demands for engraving quality, the T1S small cnc precision engraving machine is undoubtedly a worthwhile investment.

3. T1ATC Precision Engraving Machine: A Solution for Efficient Automated Engraving

In modern manufacturing, automation and efficient production are core goals. YouhaoCNC's T1ATC precision engraving machine is a high-end model designed to meet this demand. The T1ATC is an upgrade from the T1S, adding an automatic tool changer (ATC) function. This feature significantly improves engraving efficiency, reduces labor costs, and brings higher production benefits to companies.

The T1ATC precision engraving machine features the same table configuration as the T1 and T1S, with an aluminum plate top and an optional vacuum table. This configuration not only ensures stable material fixation but also accommodates a variety of different engraving materials. The T1ATC's CNC system remains the Shenzhen DDCS EXPERT V1.1. Its stability and high performance provide a solid foundation for the T1ATC's efficient operation.

The T1ATC is equipped with a Huadiao 3.2kW, 24,000RPM, water-cooled tool-changing spindle. This spindle is not only powerful but also utilizes water-cooling technology, effectively reducing spindle temperature during extended, high-load operation, thereby extending its lifespan and ensuring stable performance. Furthermore, the T1ATC's automatic tool changing function is a major highlight. During the engraving process, when a tool needs to be changed, the device automatically completes the change without manual intervention. This not only saves significant tool-changing time but also avoids the errors and safety hazards that can arise from manual tool changes.

The T1ATC utilizes a Delta 750W servo motor, the same drive system as the T1S. The high precision and responsiveness of Delta's servo motor ensure precise tool movement during automatic tool changes and engraving, resulting in high-quality engraving results. The T1ATC utilizes an XYZ-TBI 2510 C3 ground-grade lead screw in its transmission system. Its high precision and excellent wear resistance meet the demands of high-precision engraving.

The T1ATC precision engraving machine's automatic tool changing function significantly improves engraving efficiency. Traditionally, tool changing on engraving machines is a time-consuming and tedious process requiring manual operation, which is both inefficient and error-prone. The T1ATC's automatic tool changing system quickly changes tools and automatically selects the appropriate tool based on pre-set programs, significantly improving engraving automation and productivity. For example, when machining complex molds, multiple different tool types may be required for different engraving steps. The T1ATC's automatic tool changing function seamlessly integrates these steps without requiring machine downtime for tool changes, significantly reducing processing time.

The automatic tool changing function also reduces labor costs. Traditional engraving operations require dedicated personnel to perform tool changes, which not only increases labor costs but also can compromise engraving quality due to the instability of manual operation. The T1ATC's automated tool changing system completely replaces manual tool changing, reducing reliance on labor and lowering labor costs while also improving production stability and reliability.

The T1ATC precision engraving machine not only excels in efficiency but also in precision. Through its optimized structural design and the synergistic effect of high-performance components, the T1ATC achieves high-precision engraving results. It is suitable for a variety of complex and high-precision engraving tasks, such as machining large molds and engraving high-precision parts. For companies with extremely high demands on production efficiency and engraving quality, the T1ATC precision engraving machine is undoubtedly the best choice.

4. Movable Rotary Axis: A Powerful Tool for Expanding Engraving Dimensions

In addition to the powerful features of the three precision engraving machines mentioned above, YouhaoCNC also offers users an optional movable rotary axis. We can add rotary axis functionality if needed.
