high performance 3axis aluminum cnc milling drilling machine for Windows

Advantage

1All guide rail and slider adopts Taiwan Hivin brand ,high aulity ensure high precision.

2.The machine can change different tools automatically to process different aluminium profile holes

3 .The table can rotate ±90°。can process 3 sides one clamping

4.we will customize different pressing device according to your profile  to make the machine go well.

5.The machine can automatically turn profiles from multiple angles for processingimprove work efficiency.

6.By using programming software to transform and process G code automatically, easy operation, high efficiency and low labor intensity.

If you only buy aone machine we will pakage it into a wood box.

IF you buy a full container ,we will do a We'll make you a professional loading diagram such like the belowing

A9-6000 ATC Drilling and Milling with Tapping

-CE certification

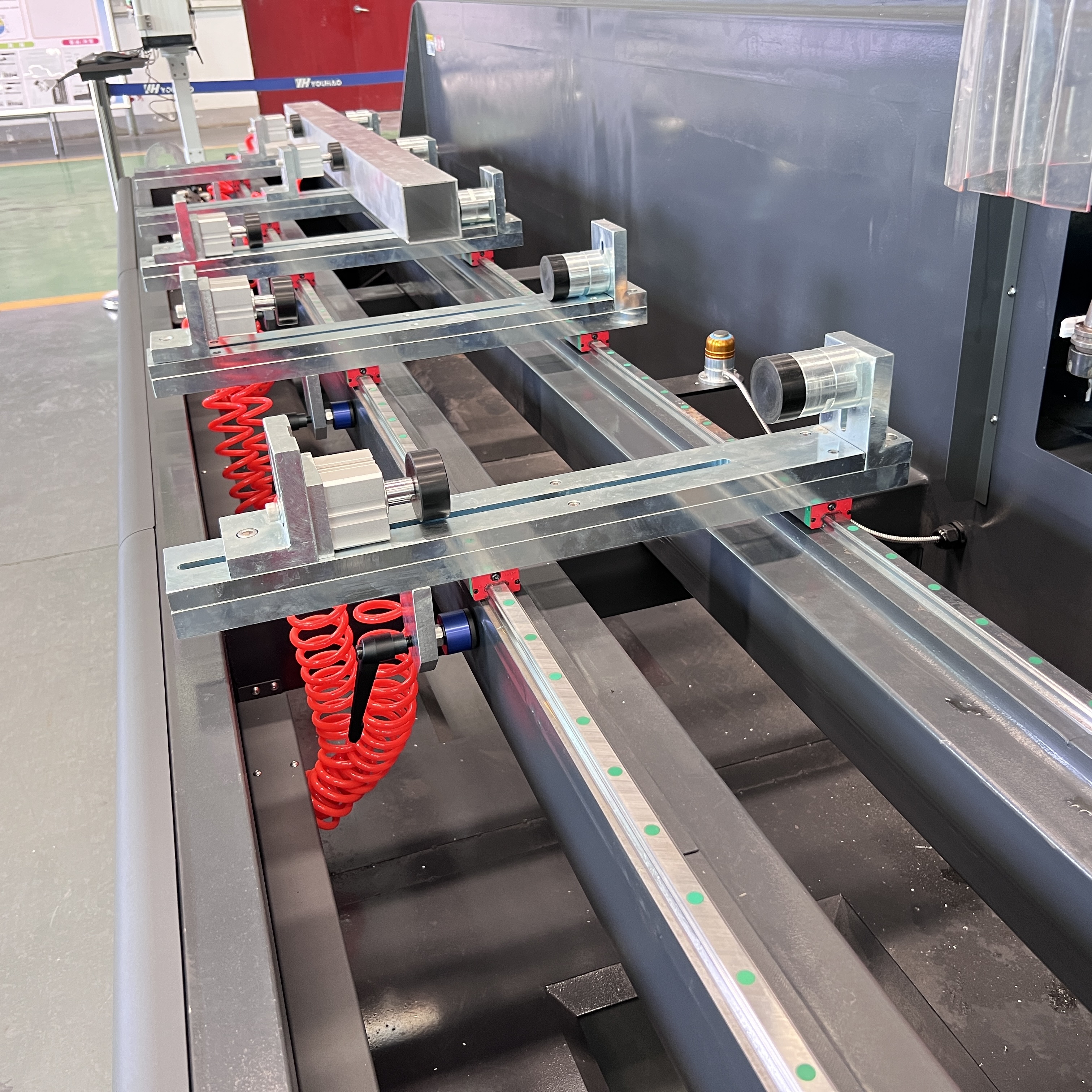

-Pneumatic clamps to fix the materials 10 pcs

-6000*400*350mm

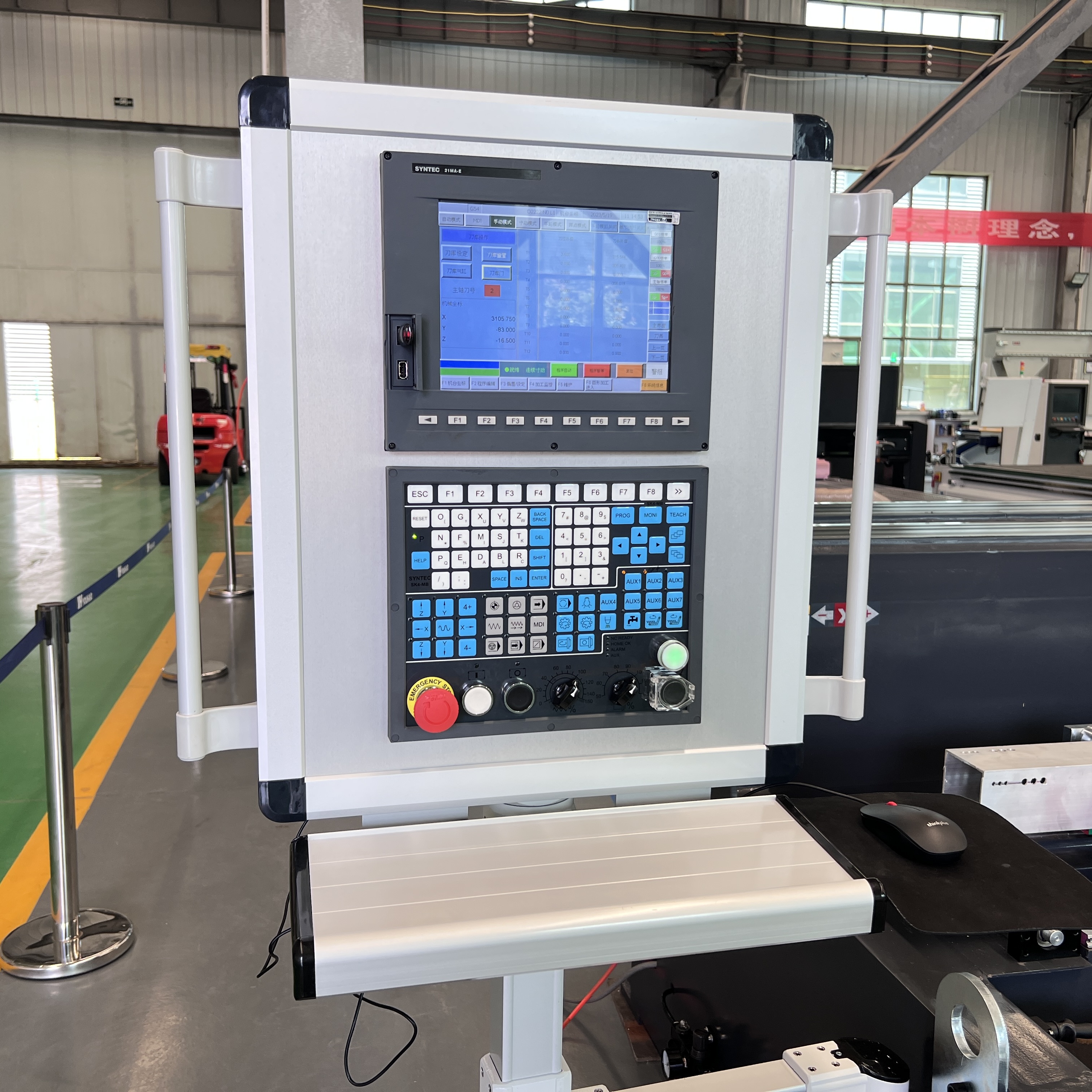

-SYNTEC  control system

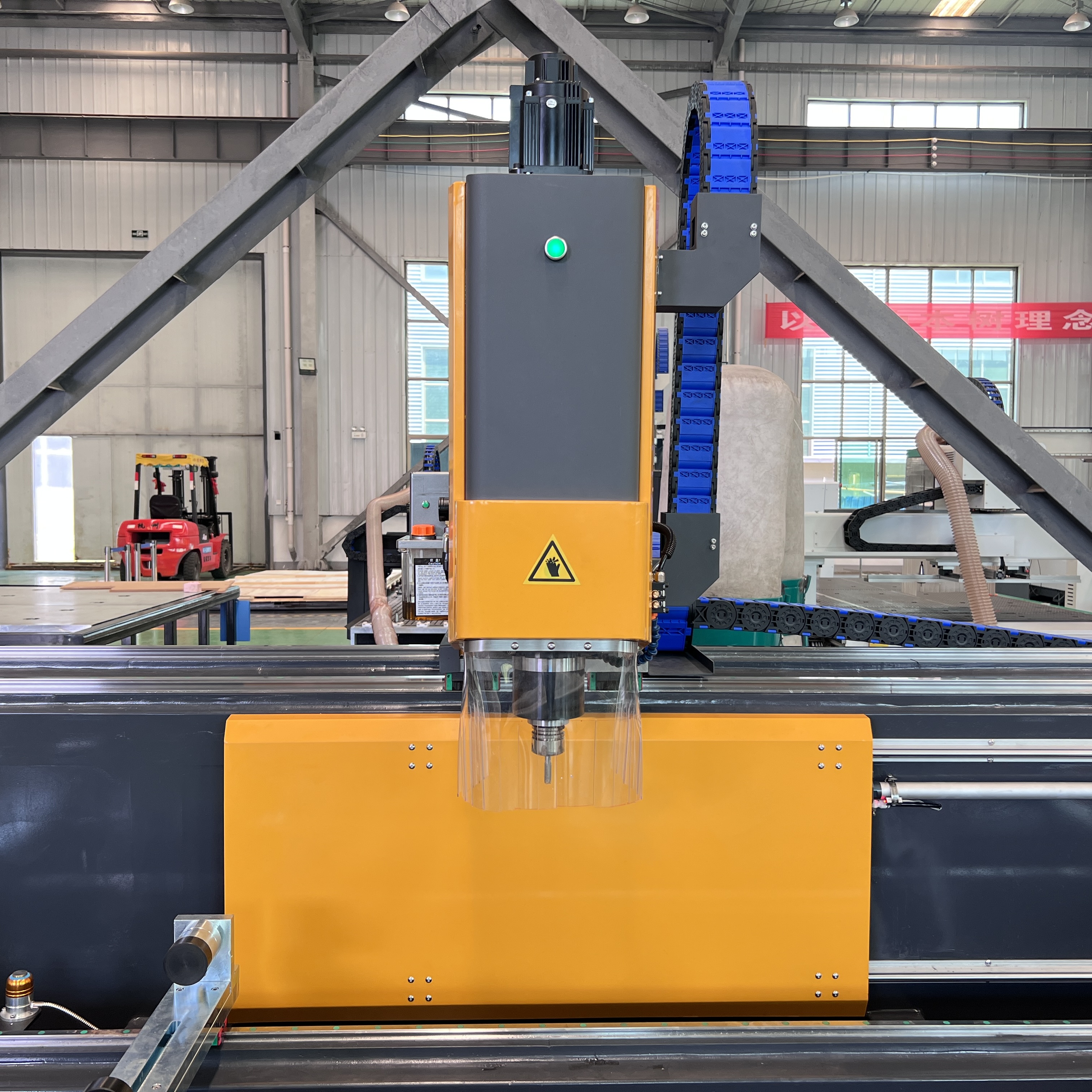

-9kw ATC air-cooling spindle,ISO30-Er32-24000rpm

-Machine with Tapping function

-WOLONG 11kw inverter

-LEADSHINE 1500W servo motor and driver

-Japan SHIMPO reducer

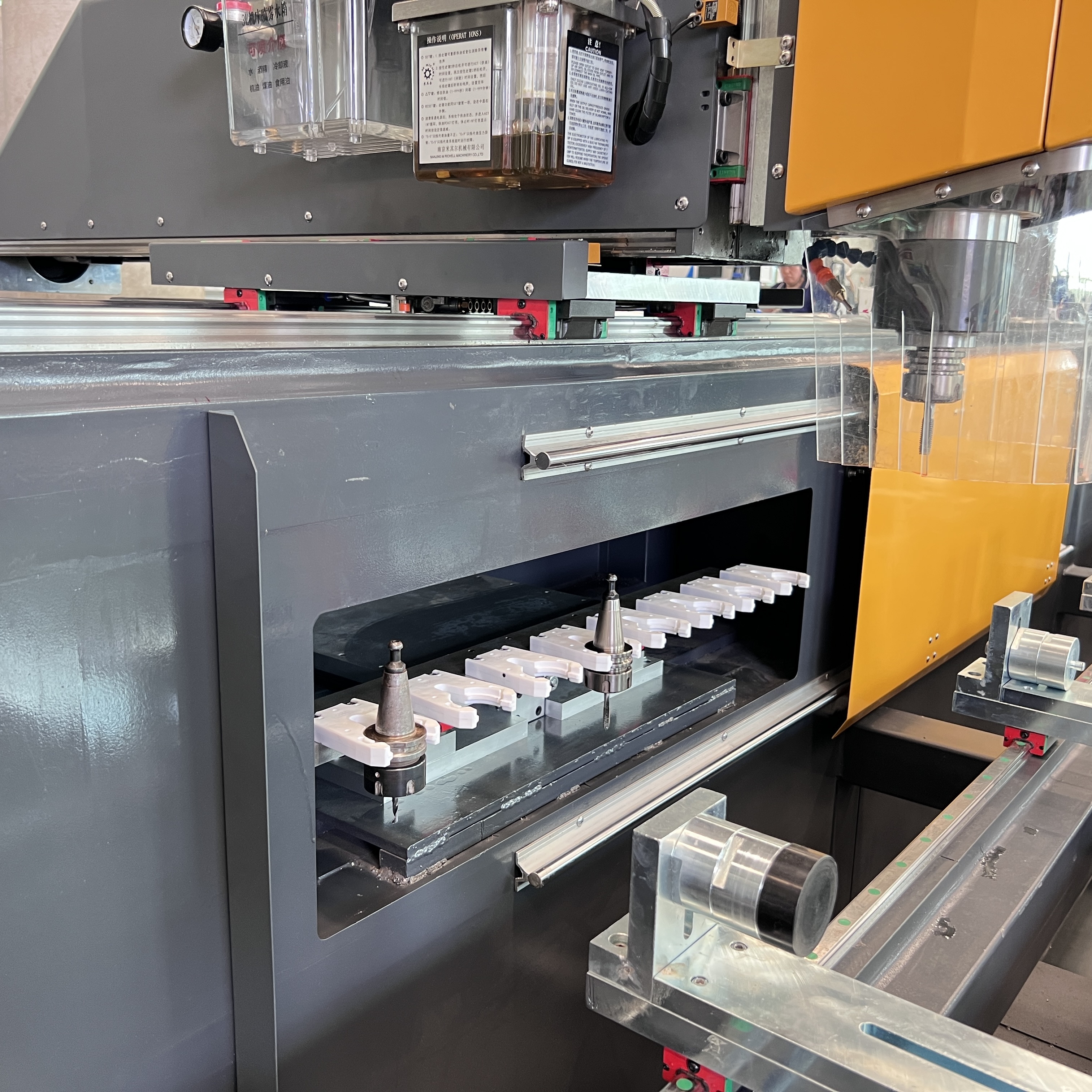

-Hidden linear auto tool change 8 slots

-HIWIN 30/25/25 square rails

-1.5M helical rack

-TAIWAN TBI 2505 ball screw

-M RICHEL oil Auto lubrication system

-Pneumatic positioning with manual brake

-Full closed drag chain

-Autonics Auto tool sensor

-Heavy duty thicker machine bed

-Put the cabinet back of the machine

-Schneider Electric Cable by France

-Autonics homing and limited switches

-380V/3Ph/60Hz
