automatic tool change aluminum profile cnc milling machine foe window and door

Models: A8 aliuminum profile drilling and milling machine
Application : Suitable for industrial aluminum alloy profiles, doors and Windows, curtain wall aluminum alloy profiles round holes, slot holes, keyholes, profiled holes and aluminum profiles milling, chamfering, plane engraving and other processes of processing
Leadtime :45days
Certificate :CE,lSO, ROHS
Voltage: 380V
Customized: Size Can be customized
Warranty: 2years
Supply Ability: 20 Sets/Month
We accept OEM, can creat your logo, customize machine according to your need.

  • A8-1200

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


photobank (44)

   Used for aluminum doors and Windows and curtain wall profiles installation holes, flume, keyholes, shaped holes, end milling and tapping and other processing processes, it is high quality and high precision.

Using Taiwan LNC high quality industrial special computer control system, with a good user interface, graphic programming and processing tracking interface Equipped with professional CAD-CAM programming software. Automatic conversion processing G code, simple operation, high efficiency, low labor intensity.

 1_0002_Contoller System
photobank (43)

Different clamps  are available according to customer profiles,

the woktabel can fixed or rotate ±90°。

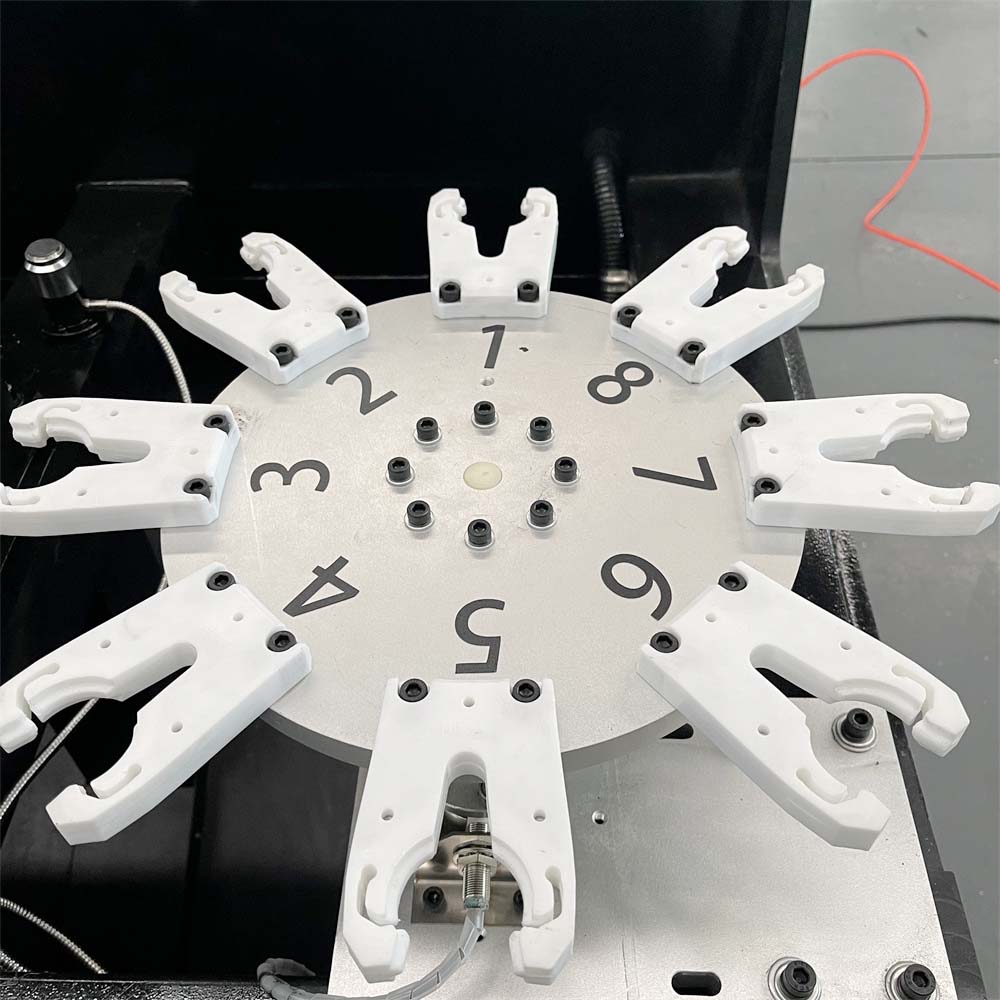

8 tools Carousel tool magazine , It's a servo tool magazine, and the tool change speed is very accurate and very fast. Rack and square rails are also used differently. More suitable for diversified composite product processing, a wide range of functions: router, drilling, cutting and so on. High speed and high precision .

 photobank (45)
1_0001_Lubricatio System


Lubricatio System


Automatic lubrication and automaticoil separation.

Protective guardrail to avoid personal injury during processing

 photobank (59)


Advantage


1.Aluminum profile CNC drilling and milling machine is suitable for industrial aluminum profile holes, slots, round holes, shaped holes, plane engraving and other processing, is a good helper for processing aluminum profile doors and Windows.


2.X axis adopts high precision helical gear, German Henryan helical rack, Y axis, Z axis adopts Taiwan TBI high precision ball screw drive, smooth transmission, high precision.


3Adopt air-cooled 6kw electric spindle, speed 18000R/min, good safety, high reliability.


4Simple operation, high efficiency, low labor intensity. Smooth transmission, high precision.


5Full CNC operation, automatic cutting, touch screen control length, number of cutting segments, cutting speed adjustable, can cut multiple segments of different lengths, materials, safer, reflecting the humanization of one multi-purpose. Can be customized according to customer requirements, its Chen welcome you to come to consult and negotiate.


photobank (61)



Specifications

Bed

Heavy duty

Working range

3500*200*200mm  .6500*200*200mm.1200*200*200mm

Electric spindle

HQD 6kw air cooling  automatic tool change spindle, 24000 rpm

Control system

Taiwan LNC MA 2700 control system

Drive motor

Leadshine 1500W servo motor with Japanese shimpo reducer, the fourth axis 2000W Leadshine servo motor

Rail

Taiwan HWIN30/25/25

Rack and screw

1.5M crescent and TBI screw

Inverter

Fuling 7.5KW

Table

fixed table (rotated table is optional)

Lubrication

automatic lubrication and automatic oil separation

Power supply voltage

380V/3Ph/50Hz

Tool changer magazines

8 automatic tool changer magazines

Autonics proximity switches, Sch neider electrical components, AirTAC cylinders, high-flex shielded wires


download YOUHAO CNC Catalog_.pdf
