YOUHAO T9 new design 4*8 feet 1530 2030 2040 1325 wood cnc router for sale

Models: T9 CNC Router
This machine is our ordinary modle ,this machine also can add atc function ,swing head function according to your needs.
Leadtime: 15-20 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Customized: Size Can be customized
Warranty: 2years
Supply Ability: 20 Sets/Month
We accept OEM,can creat your logo,customize machine according to your need.

  • T9

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

7

Air Cooling Spindle


China HQD air or water cooling spindle, more powerful, low noise, not easy to break cutters, suitable for engraving and cutting work. HSD spindle is optional.youhao cnc router machine can customize according to your needs

DSP System


Very popular control system with high quality. this system is easy to control, more stabilize.(march 3 is optional)

 8


1_0005_motor and drier

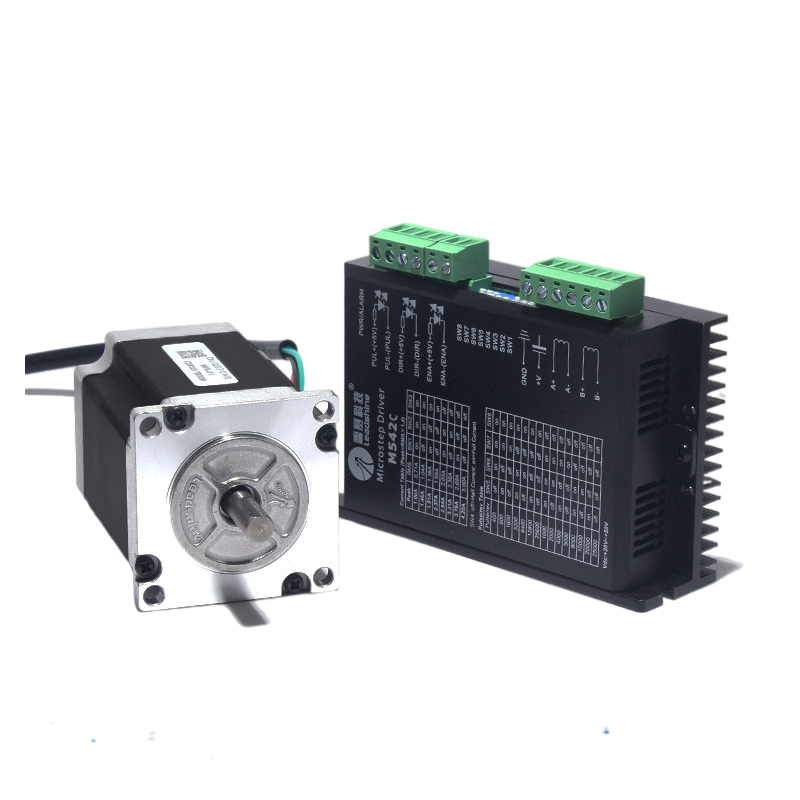

Motor and Drier


China local Step motors and lead-shinedrivers, which is very stable formachinelong time working.

Inverter


The inverter can adjust the speed of  the motor according to actual needs, avoid excessive energy consumption, extend the service life of the motor, and reduce the noise and vibration in the operation of the motor.

 4
10

Working Table


Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece. Also add the T-Slot, if you want engraving, you can clamp the panel so that can save more energy.

HIWIN Rails


Linear square guide rail with automatic oil lubrication device, ensuring long life time working, reduce the time of machine maintenance.

 1_0001_hivin rail
T9细节图  Our machine detailed pictures ,if you buy pur machine .we also will take all detailed pictures for you  before shipping. If you are satisfied ,then we arrange shipping .


Advantage


1.High strength and stable machine bed design and structure can make the machine run smoothly, improve the machine working accuracy.

2.Three types table to choose:aluminum profile table,vacuum T slot table and vacuum table.

3. It adopts DSP controller,easy to operate, offline supporting without connecting computer.

4. Using famous brand air-cooled spindle with low working noisy, and the good quality motors have large cutting force to ensure bulk processing for long time.

5. Using linear square rails and Taiwan TBI ball-screw can ensure that the machine works with high precision.


5




Specifications

Specification

Parameters

Size

Working area

1300*2500*200mm, 4*8ft

1500*3000*200mm, 5*10ft

2000*3000*200mm, 6*10ft

2000*4000*200mm, 6*13ft

2000*6000*200mm, 6*20ft

Table

Vacuum table plus 5.5KW air vacuum pump

Weight

950kgs

Accuracy

Positional accuracy

±0.03/300mm

Repeatability

±0.03

Spindle motor

Power

5.5KW water-cooling spindle

NO. of revolution

24000rpm

Motor and drivers

Servo motor and drivers

Traverse system

Rapid Traverse

20000mm/min

Cutting Speed

15000mm/min

Guide

Original TAIWAN HIWIN

Control parts

Controller

DSP control system

Software

Type3

Format

G code HPGL

Lubrication system

Automatic lubrication system

Tool diameter

3.175-12.7mm

Power supply

220V/380V,50HZ

Package dimension

3.1LX2.23WX1.76H

Options:

1. Aluminium plus PVC slot table

2. Dust collector
3. TAIWAN DELTA servo
4. JAPAN SHIPMO reducer
5.Removable rotary axis


download YOUHAO CNC Catalog_.pdf

wood cnc router 1325 cnc router cnc router for sale 1325 wood cnc router wood 1325 cnc router wood cnc router for sale

Solution & Application

1_0003_1

YOUHAO Panel Furniture Production Line
1_0002_2

Automatic Edge Banding Machine
1_0001_3

Customer Case
1_0000_4

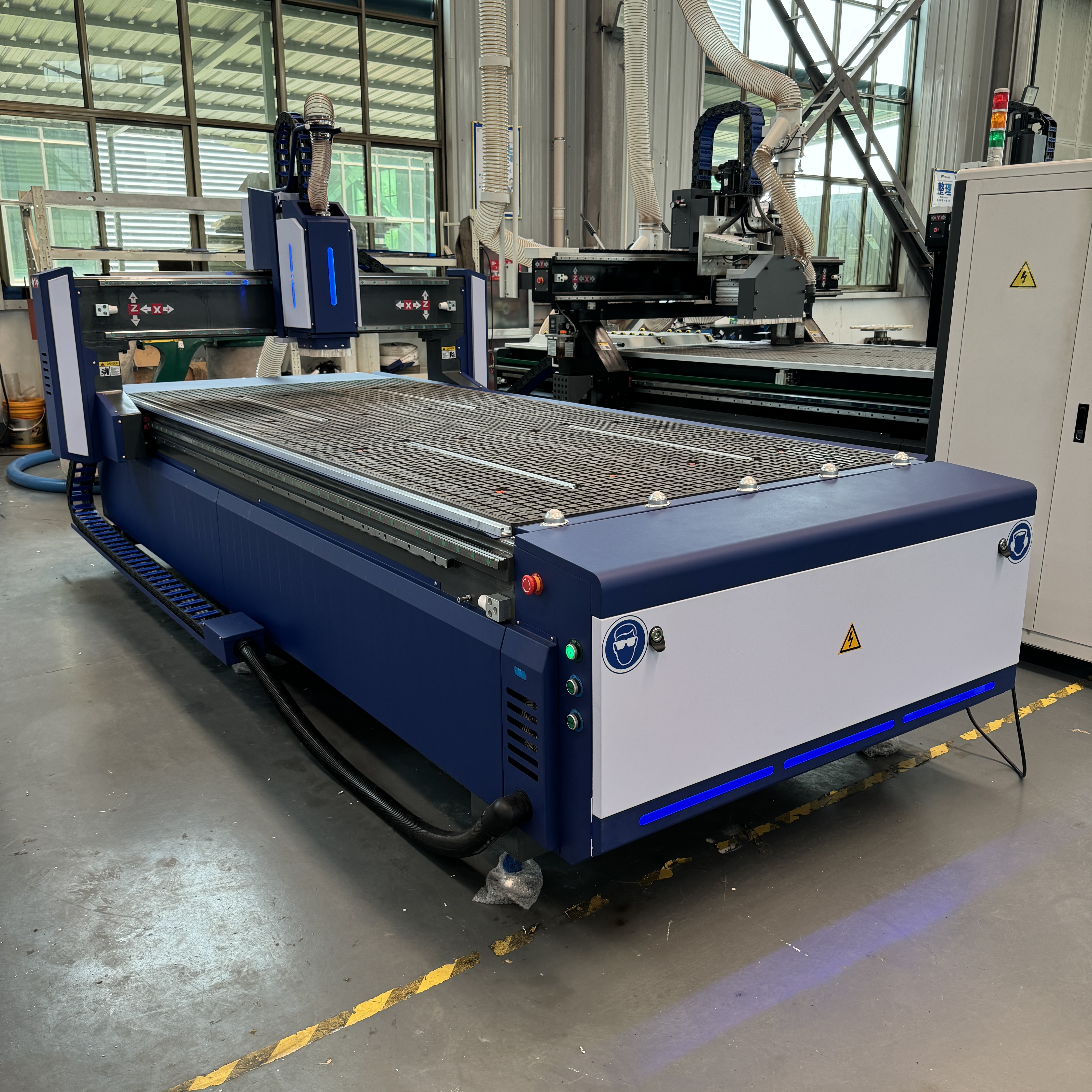

YOUHAO 1325 T9 SERIES CNC ROUTER
