YOUHAO Hot Sale 1530 2030 2040 1325 Wood Cnc Router 3d Wood Carving Machine

T9 CNC ROUTER
Application: wood, plastic, aluminium, acrylic, composite aluminium.signMaking
Leadtime: 15-20 days
Certificate: CE, lSO，RoHS
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Customized: Size
Warranty: 2 years
Supply Ability: 20 Sets/Month
We offer OEM services, are able to create your logo, and can customize machines based on your specific requirements.

  • T9 cnc

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

3

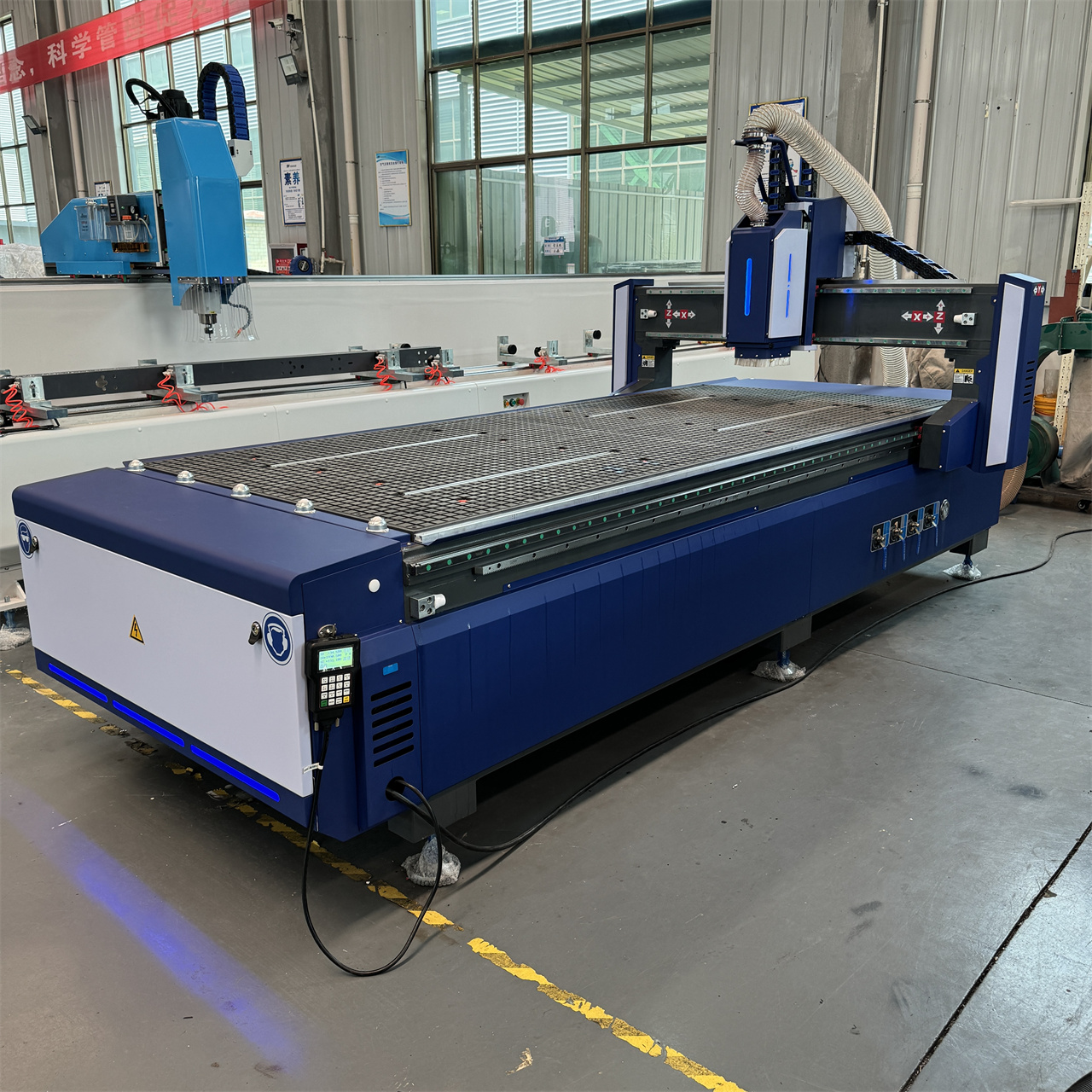

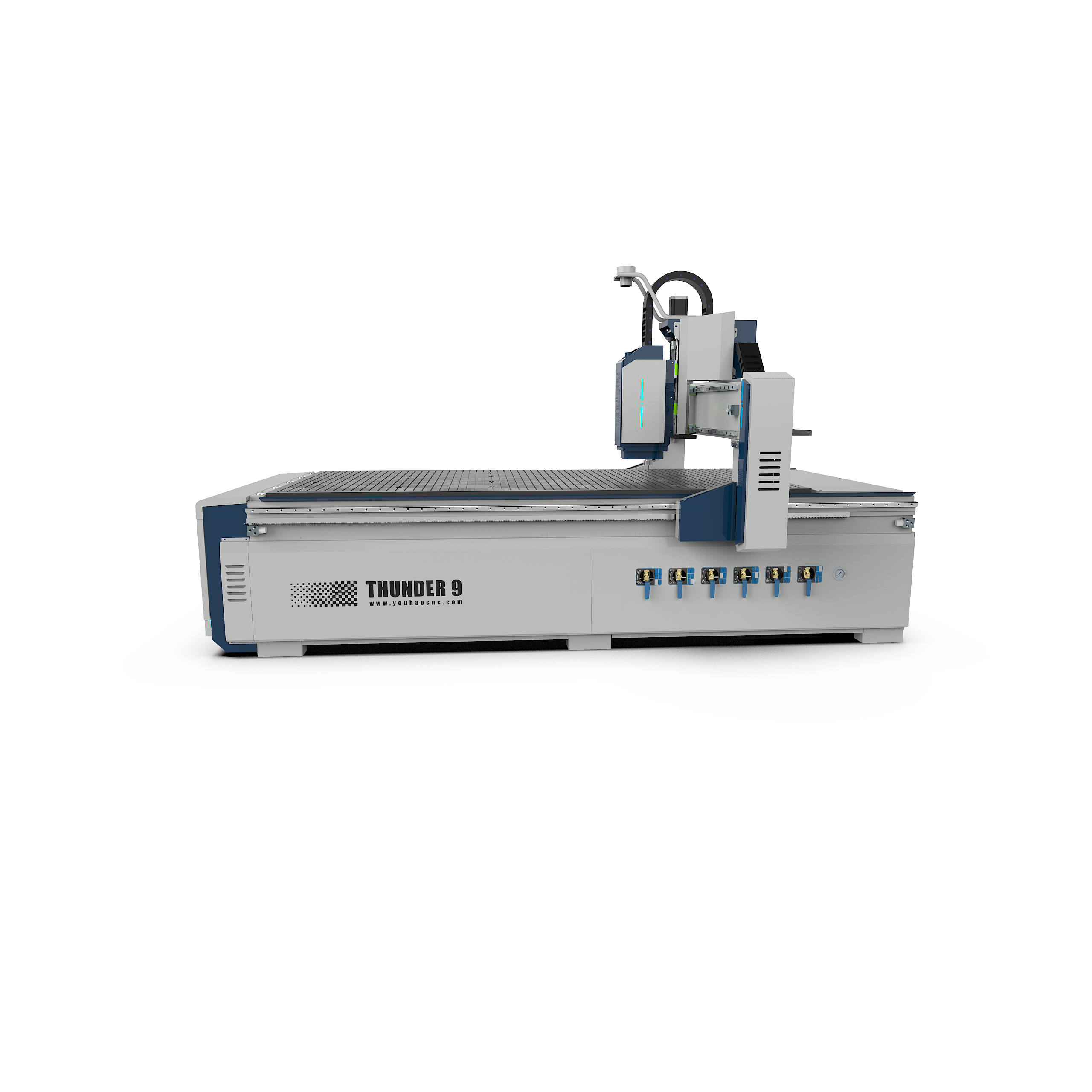

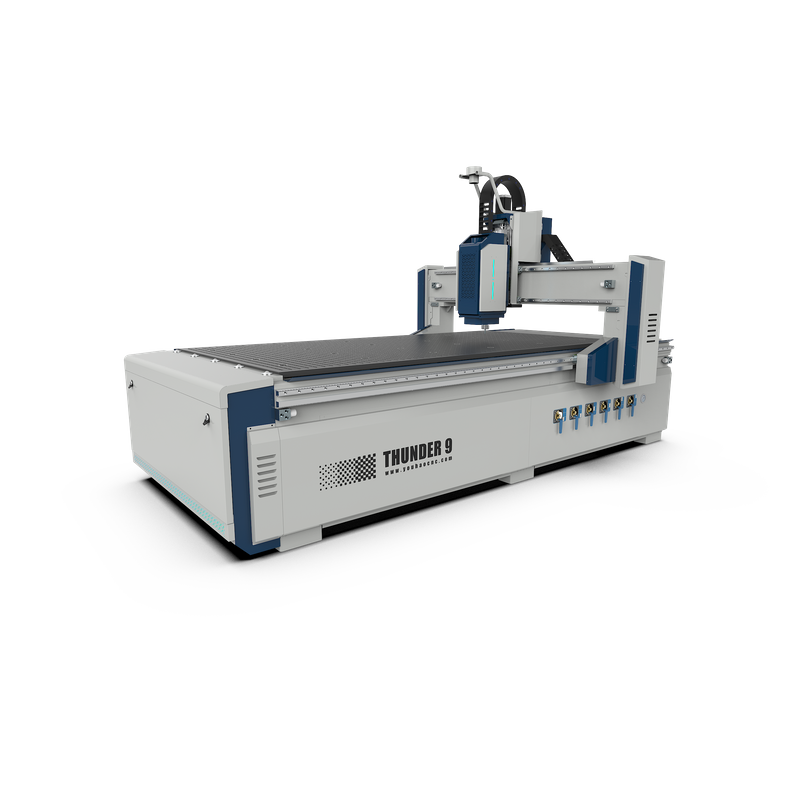

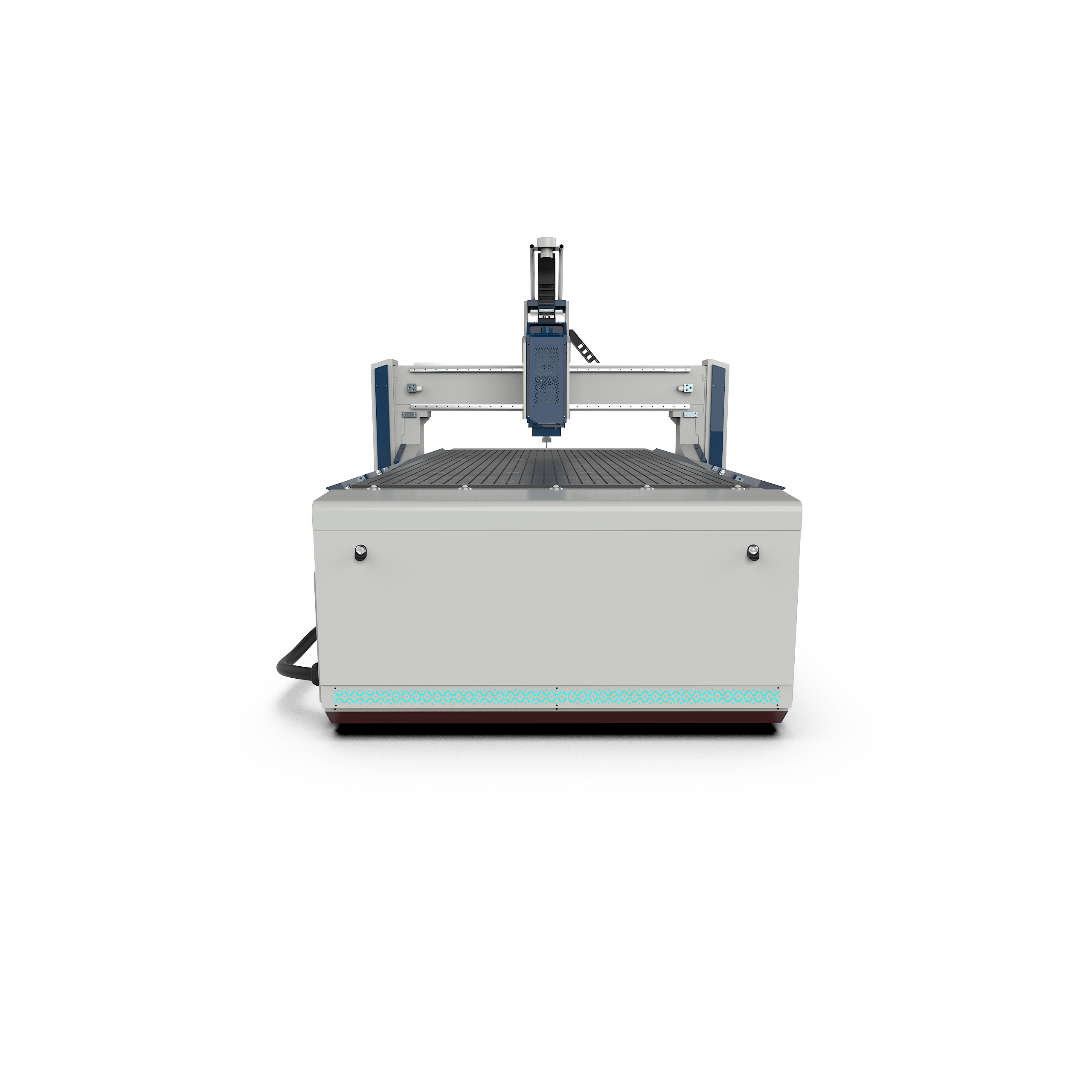

Our T9 cnc model, one of our best-selling models, is highly regarded by our customers and agents for its design. Many customers have used this machine for many years without encountering any issues.

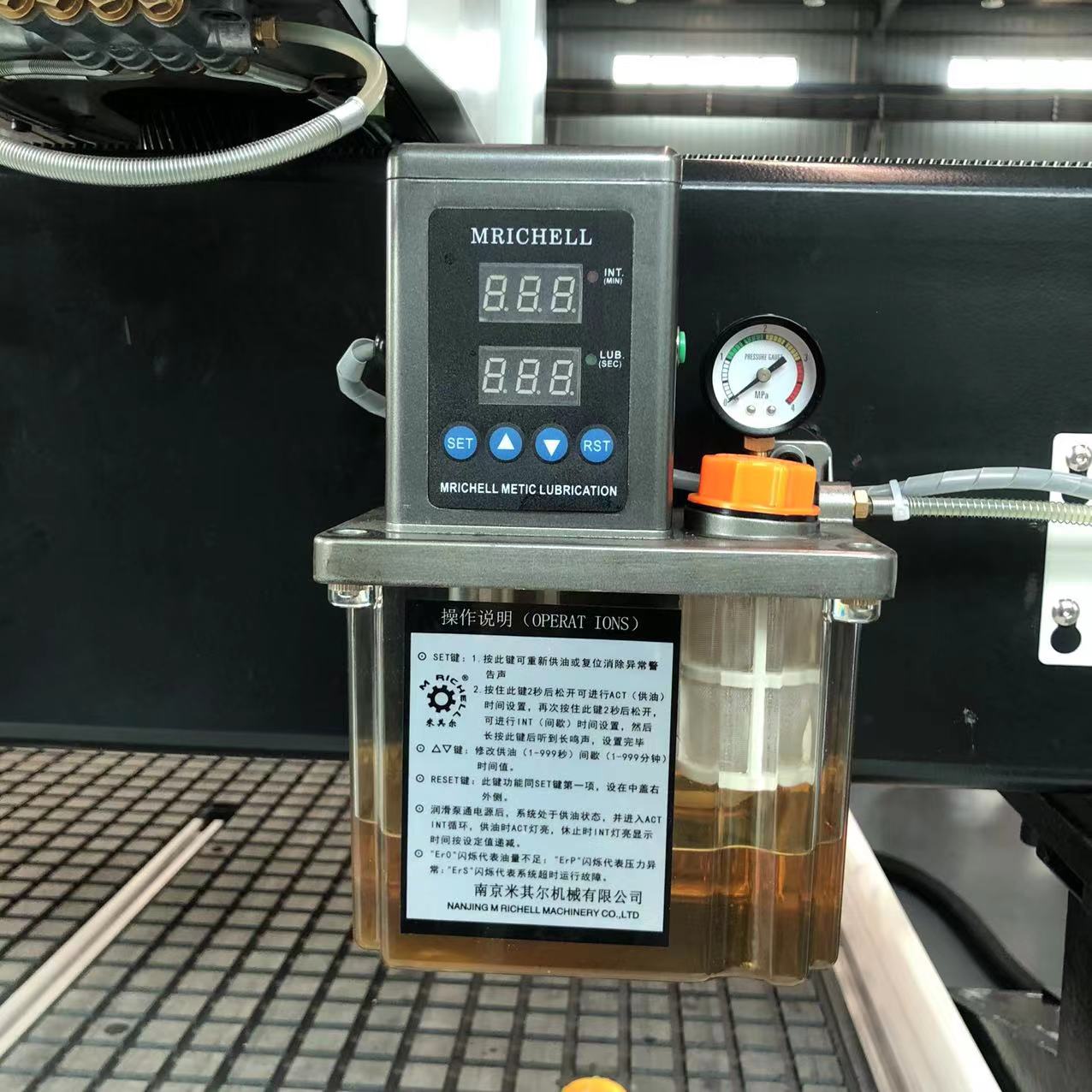

Automatic lubrication


Automatic lubrication can reduce friction loss and component wear, prevent rust, extend equipment service life, reduce maintenance costs, and improve equipment operating efficiency, production efficiency and product quality.

 自动润滑


12

Our experienced assemblers ensure uniform lines and precise workmanship, with every detail reflecting our commitment to quality.

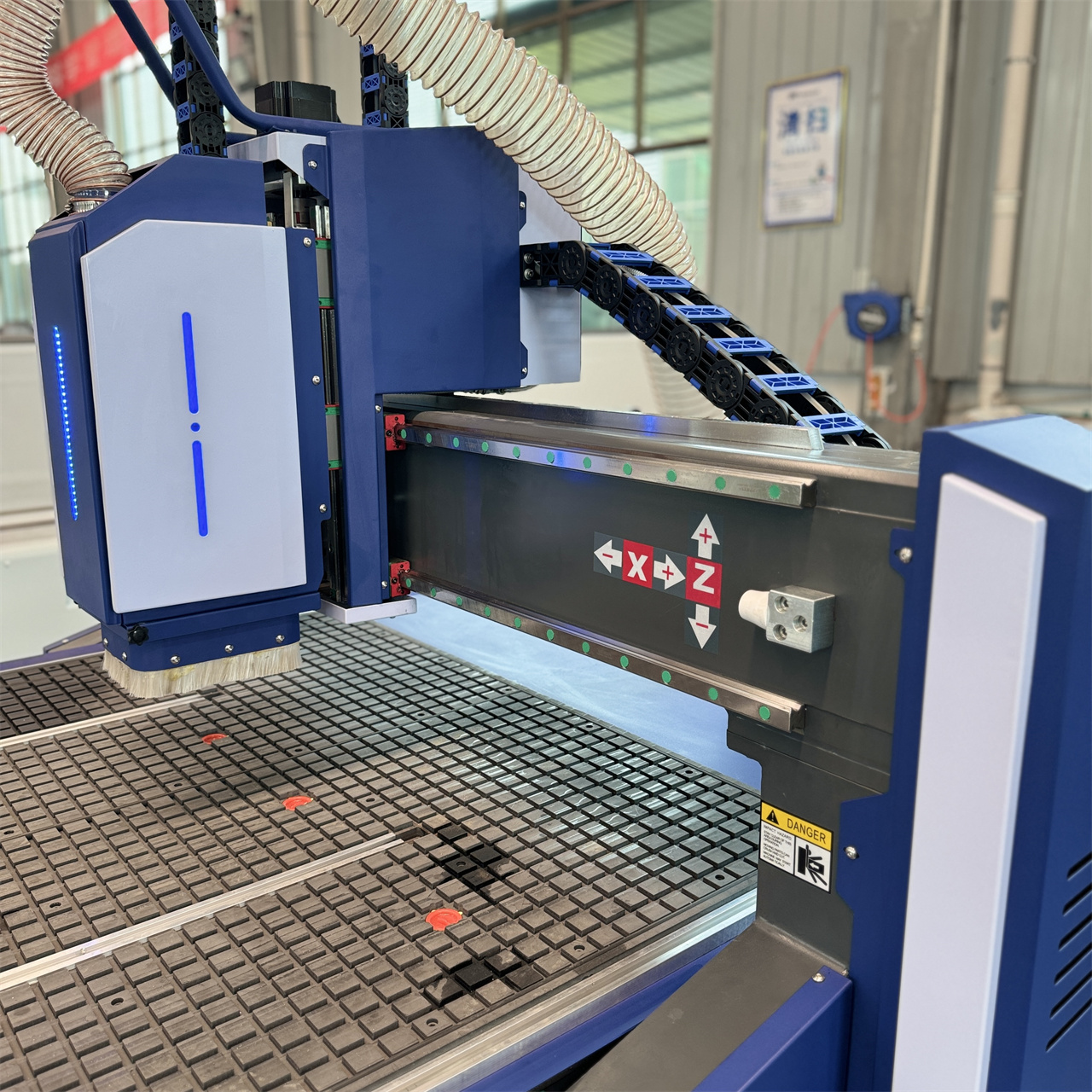

Air Cooling spindle


Our CNC router machines feature China HQD air or water-cooled spindles, offering high power with low noise and reduced tool breakage. These spindles are ideal for engraving and cutting tasks, with HSD spindle options available. Youhao CNC router machines can be customized according to your needs.

 5
10

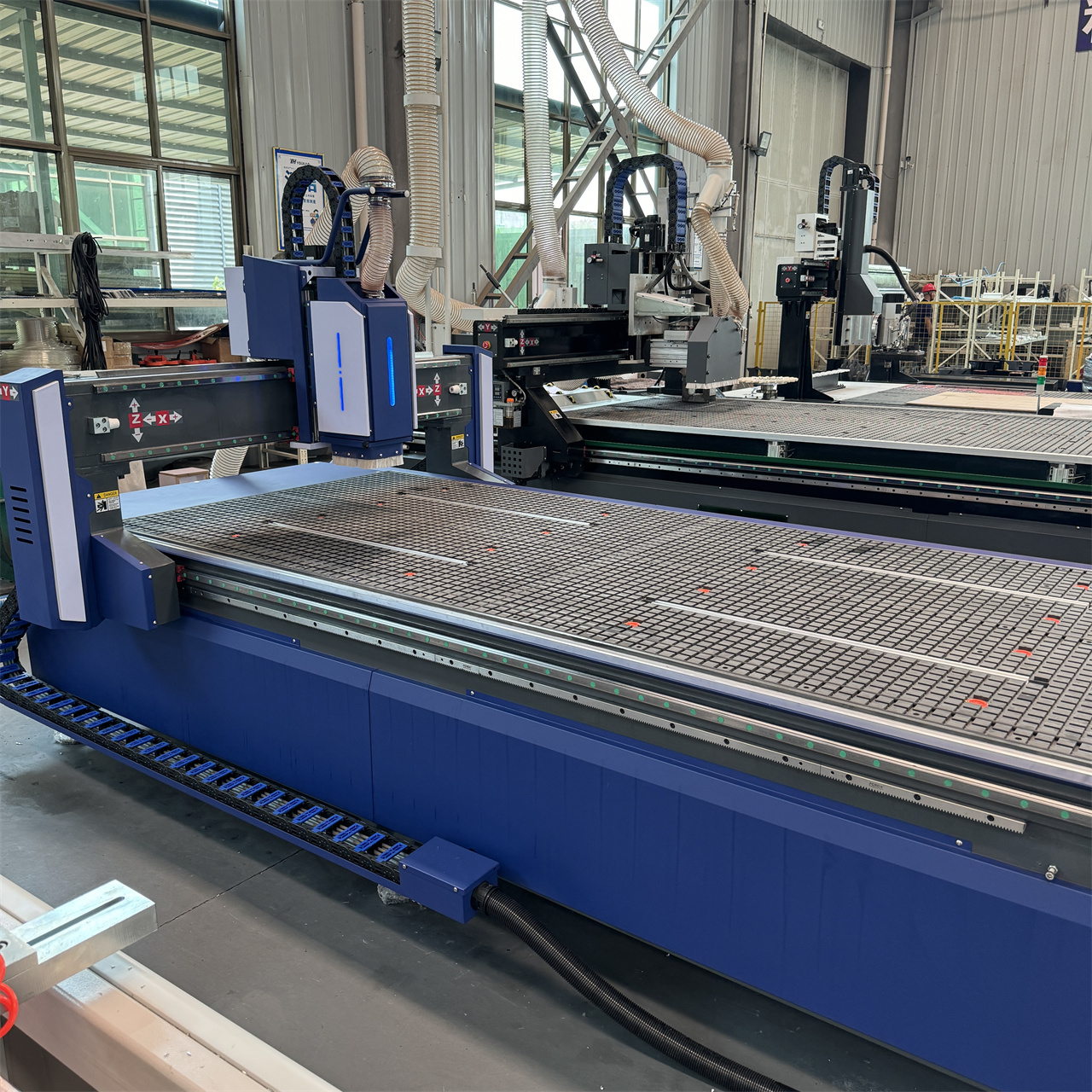

Working Table


The vacuum T-slot table satisfies various processing needs, allowing you to select clamps for engraving and the vacuum table for cutting.

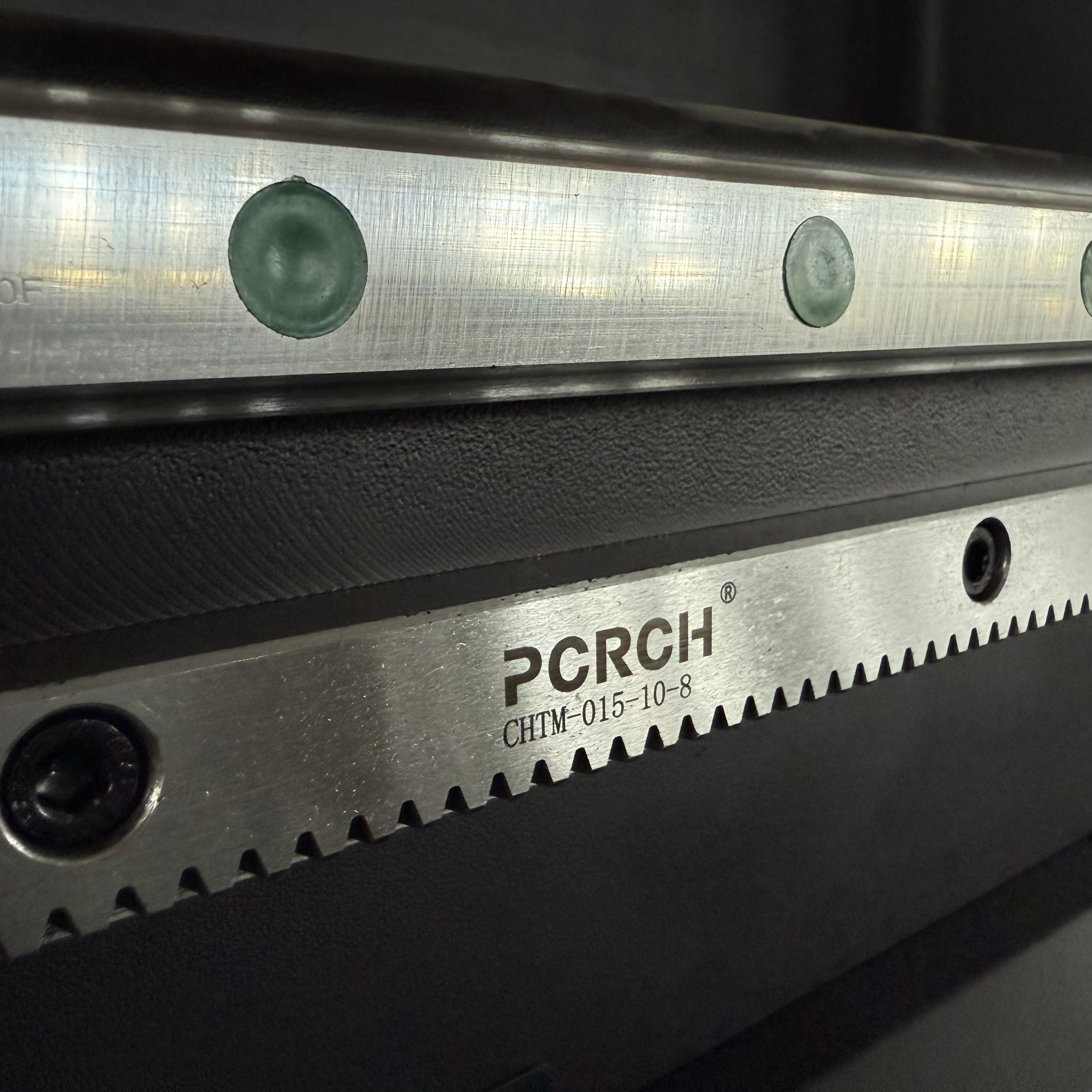

Rails


The linear square guide rail comes with an automatic oil lubrication system, ensuring long-term operation and cutting maintenance downtime.

 导轨


Advantage

1. Imported original TBI 20 square guide rails, longer life and smooth moving

2.  Chinese best water cooling spindle with 24000rpm


3. Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger
   power,longer lifetime,and it makes the machine more stable.

4. With DSP control system, It can support offline operation. easy to operate.

5. Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful.

For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.


Model
Table size 1300*2500*200mm
Transmitting way X,Y axis transmitting by gear and rack,Z axis transmitting by rolling ball screw
motor leadshine stepper motor and driver
Limit stop Hard limit stop and omron etromic
Inverter Follin inverter
Working table T-slot +PVC table
Working votage AC380V/50Hz


download YOUHAO CNC catalog.new.pdf
