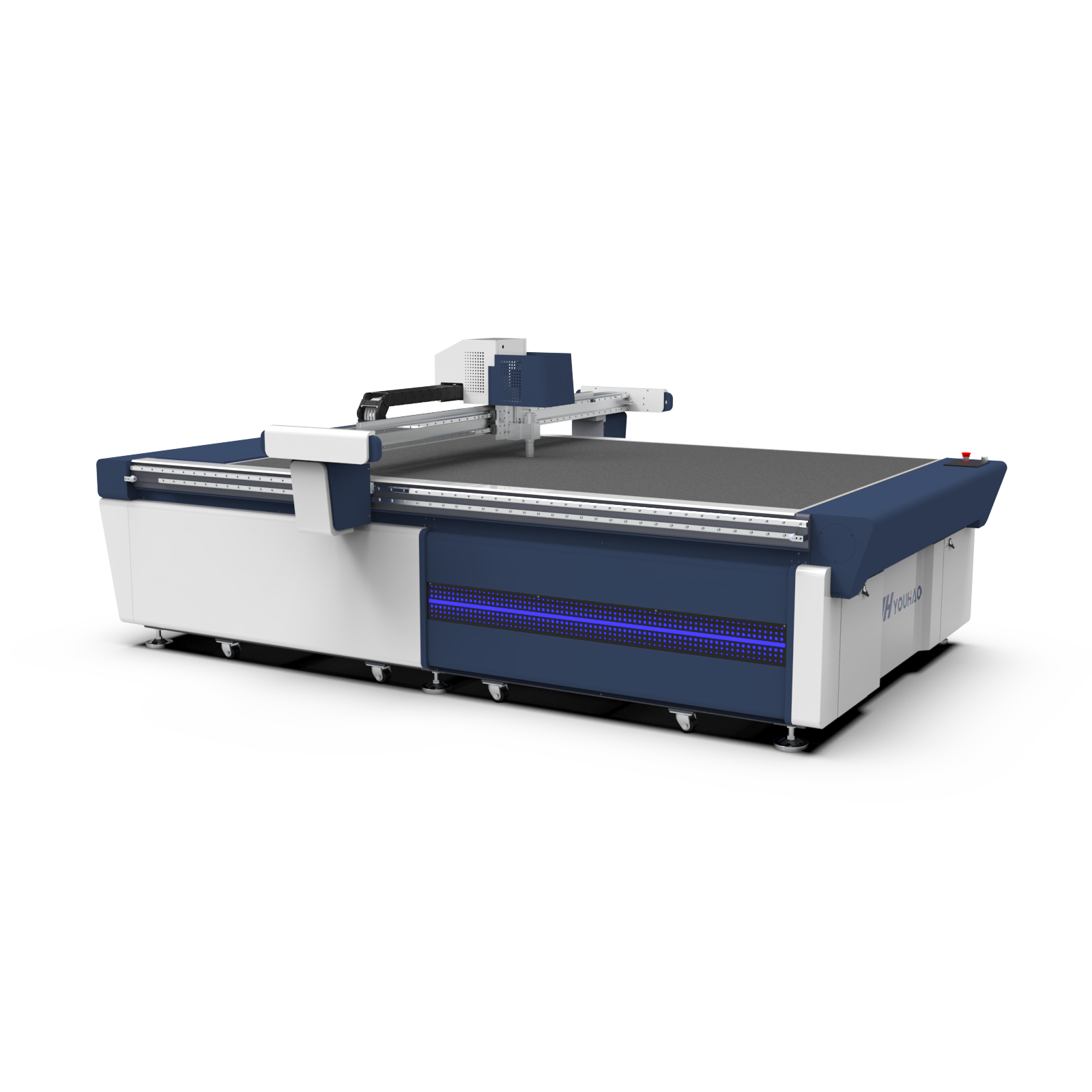

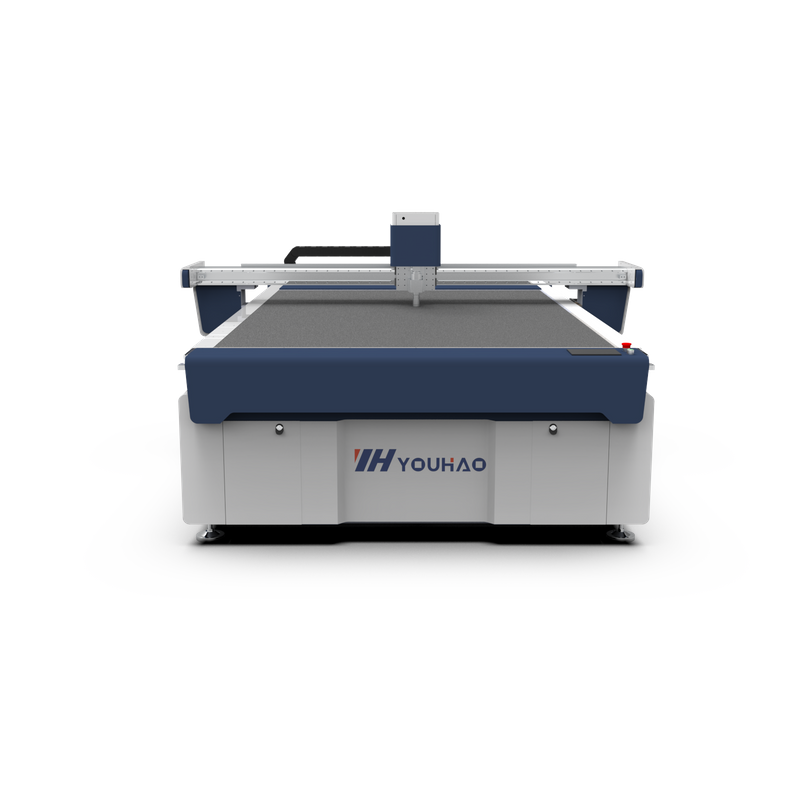

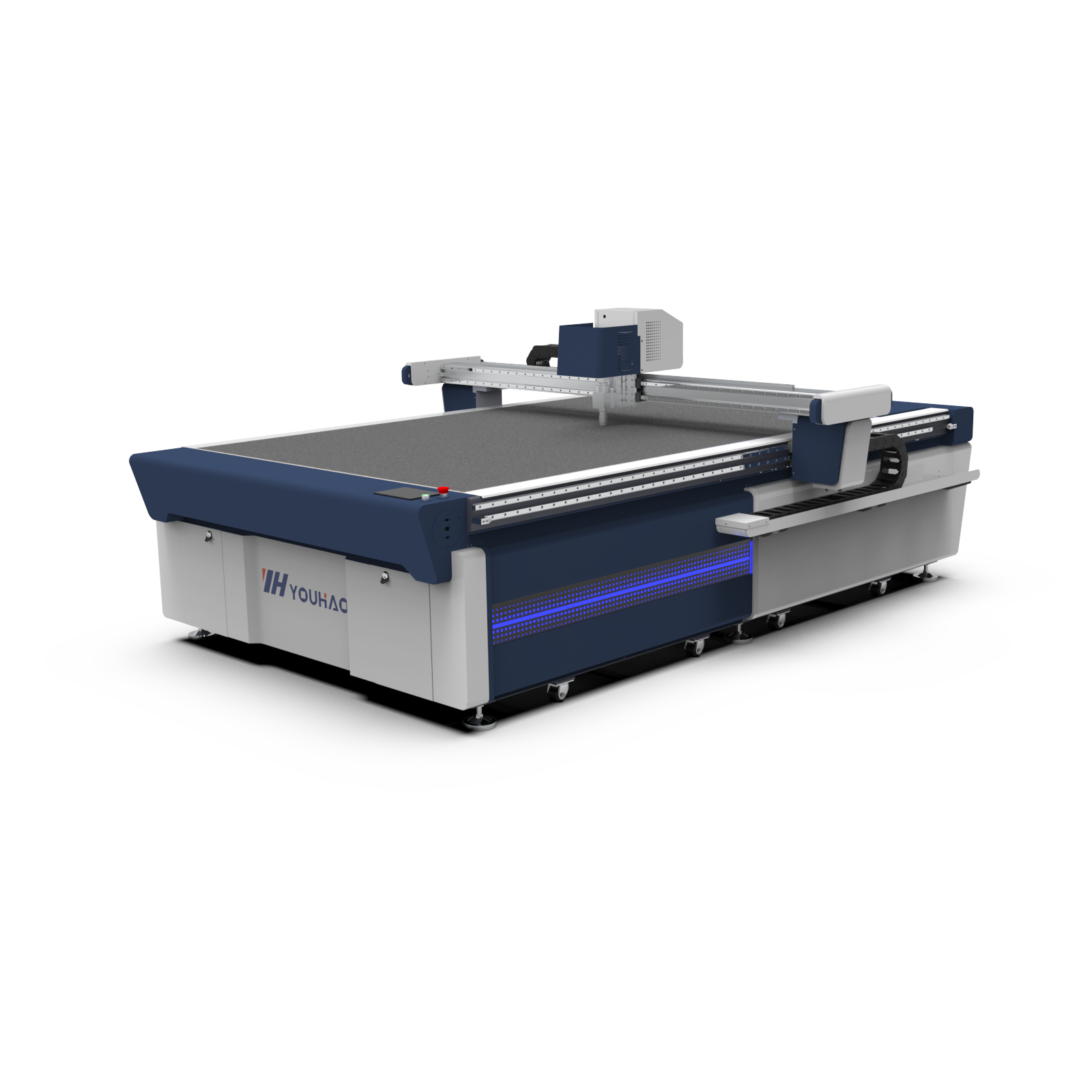

YOUHAO C8-1625 Precision Oscillating Knife Cutting Machine for Foam, Leather, Fabric, EVA And Flexible Materials

Models: YOUHAO C8 -1625 Single-head vibrating knife cutting machine
Application: Suitable for cutting sponge, leather, fabric, EVA, foam, cardboard, KT board, silicone, composite materials and more etc
High cutting precision & smooth edge:
High-frequency vibrating cutting ensures flat and burr-free edges, ideal for precision flexible material processing.
Easy to operate:
Equipped with visual control system, it supports direct cutting after graphic import, no professional operator required.
Leadtime: 20-25 days
Certificate: CE
Voltage: 380V/3P/50HZ,220V/3P/50HZ.110V/3P/50HZ
Customized: Size Can be customized Warranty :2years
Supply Ability: 20 Sets/Month
We accept OEM,can creat your logo,customize machine according to your need.
The machine supports multiple cutting tools, allowing manufacturers to process different materials efficiently. With a visual control system and simple graphic import, users can perform precise cutting without complex programming or professional operators.

  • C8-1625

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

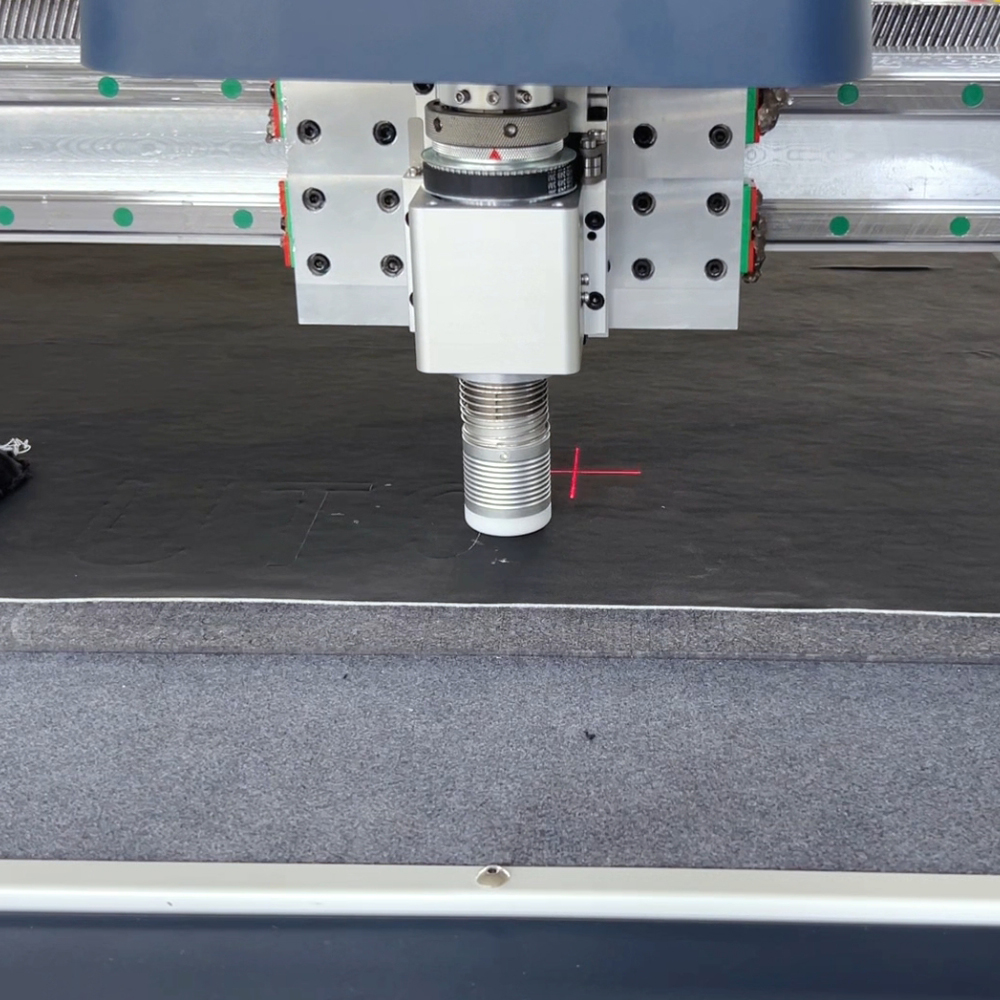

IMG_7986


Head


The high-frequency oscillating cutting head ensures smooth, precise cutting with clean edges and no smoke. It is ideal for processing flexible materials such as foam, leather, fabric, and EVA.


Knife


Equipped with a quick tool change module, the machine supports multiple tools including oscillating knife, V knife, foam knife, round knife, and milling cutter to meet different cutting needs.

1_0002_knife

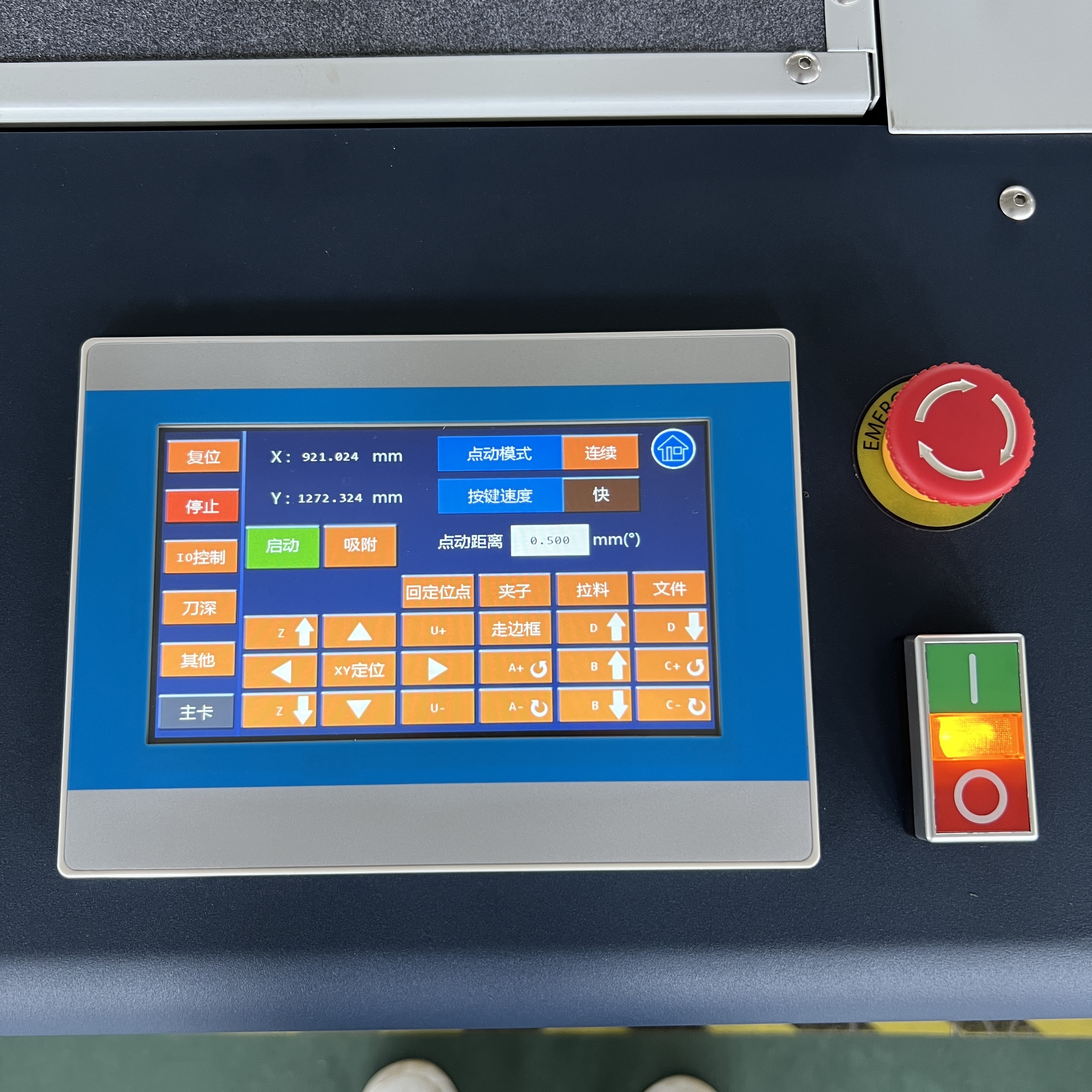

IMG_7975


Controller


The RUIDA controller with LCD touch screen provides an easy and intelligent operating system, allowing users to import graphics and start cutting quickly.


Hivin rail


High-precision HIWIN linear guide rails ensure smooth motion, stable operation, and long service life with reduced maintenance.

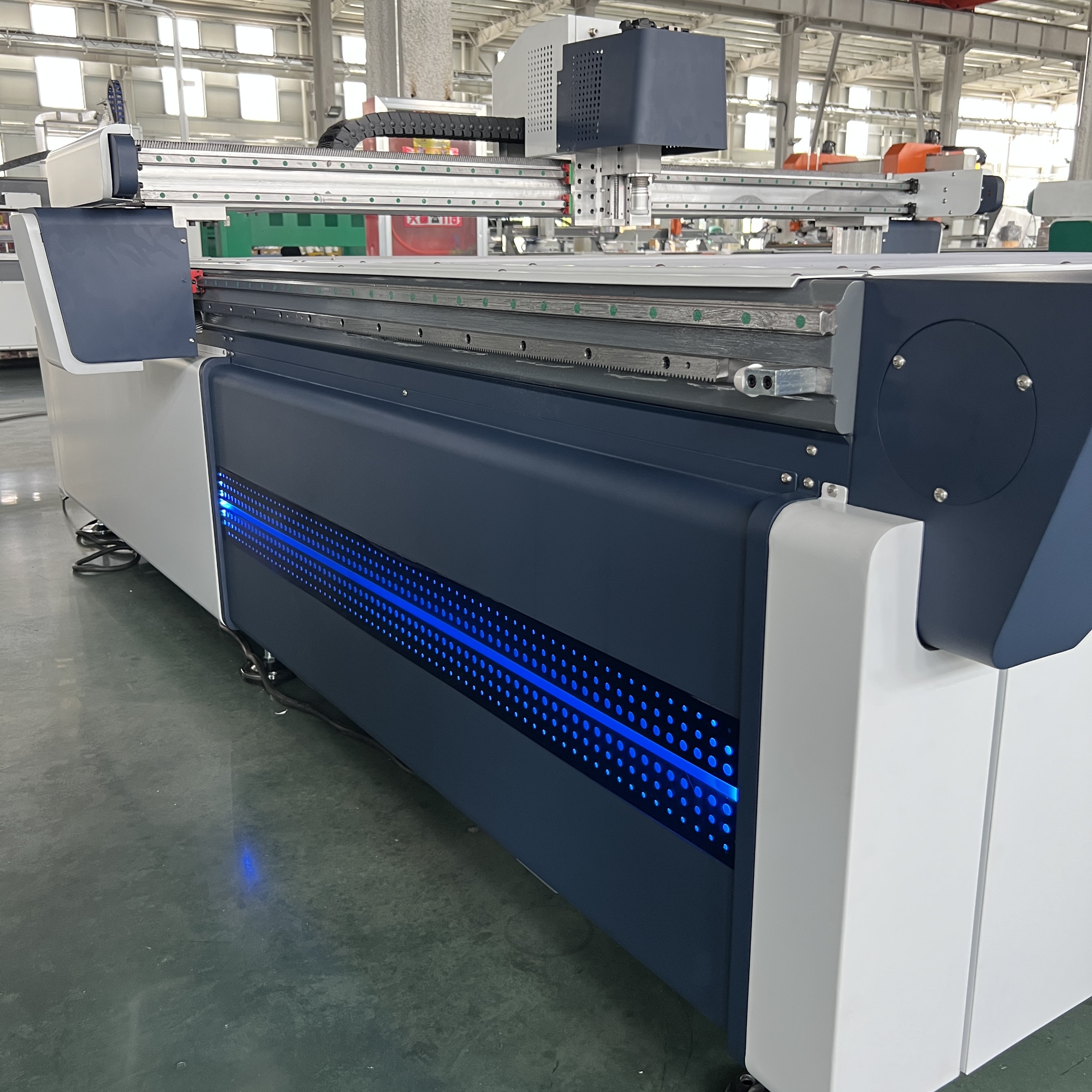

IMG_7980

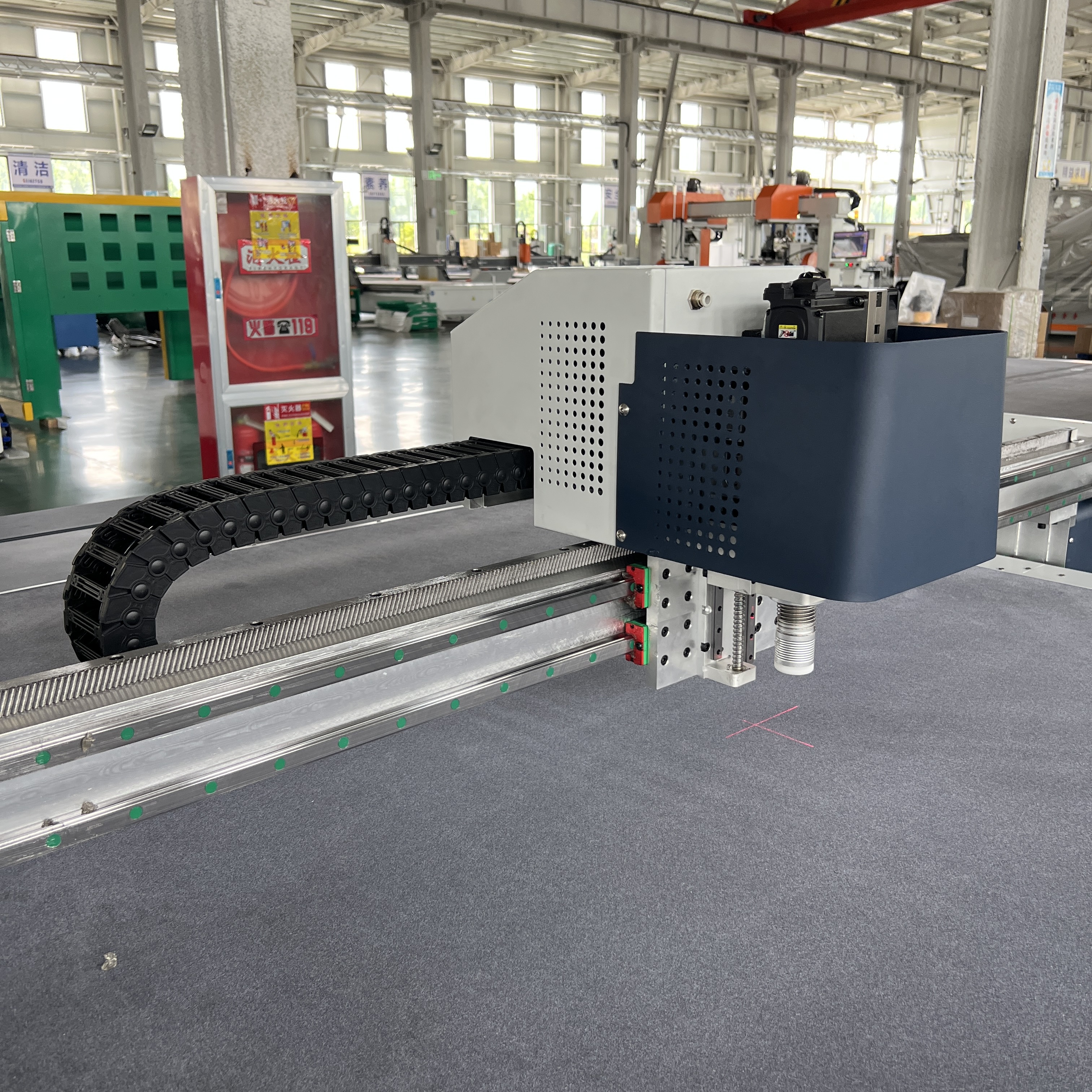

IMG_7974


Table


The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc. Fixed table and rolling table can be choosed according to your needs.


High Precision Cutting

High-frequency vibrating cutting technology ensures clean edges and accurate cutting paths, making it ideal for precision flexible material processing.

Wide Material Compatibility

Suitable for cutting a variety of materials including:

  • Sponge

  • Leather

  • Fabric

  • EVA

  • Foam

  • Cardboard

  • KT board

  • Silicone

  • Composite materials

High-Speed Oscillating Head

The high-speed oscillating head delivers efficient cutting performance while maintaining excellent cutting quality.

Easy Operation System

The RUIDA controller with LCD touch screen supports direct graphic import for cutting, making the machine simple to operate even for beginners.

Safety Protection System

An infrared anti-collision safety device ensures operator safety and meets international safety standards.

Intelligent Vacuum Adsorption Table

The machine features a multi-zone vacuum adsorption table (8-48 zones) that automatically adjusts suction areas to ensure material stability and cutting precision.

Optional CCD Camera Positioning

An optional automatic camera positioning system allows precise cutting of printed materials without manual alignment.

Flexible Tool System

The machine supports quick tool change modules, allowing users to switch tools easily for different applications.

Available tools include:

  • Oscillating Knife

  • Presser Tool

  • Half Knife

  • V Knife

  • Foam Knife

  • Milling Cutter

  • Round Knife


Specifications

odel

H8-1625
Y and Z work areas 1600*2500*200 mm
Optional working area 1800*2500*200 mm

Power

12KW

Multi-functional tool head

Oscillating straight knife/Round knife/pneumatic knife/identification

roller/marker pen holder/punching hole device/V-groove cut tool/

CCD camera/tangential knife/drilling tool/projector/etc.(optional)

Security configuration

High sensitive infrared induction

Travelling speed

Maximum 1500mm/s

Cutting speed

Max. 1200mm/s (can be set up according to different materials)

Movement speed

1200mm/s Maximum 1200mm/s

Cutting speed

Maximum 800mm/s (can be set up according to different cutting

materials)
Pump Golden Bridge 9KW vacuum pump
Linear guide HIWIN linear guide 20/20 on XY axis C
Cylinder AIRTAC cylinder
Electrical components

French Schneider electrical components
Reducer Zhuolan planetary double reducer

Cutting material

Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey

board, paperboard, car sticker, adhesive sticker, etc.

Cutting thickness

Maximum 20mm (can be set up according to different materials

and tools)

Material fixing method

High power vacuum absorption with felt

Repeated positioning accuracy

±0.03mm

Drive system

Taiwan Delta servo motor, Taiwan Hivin linear guide rails

Control system

Ruida control system

Data transmission method

USB port or Ethernet

All sizes are customizable to your needs.
