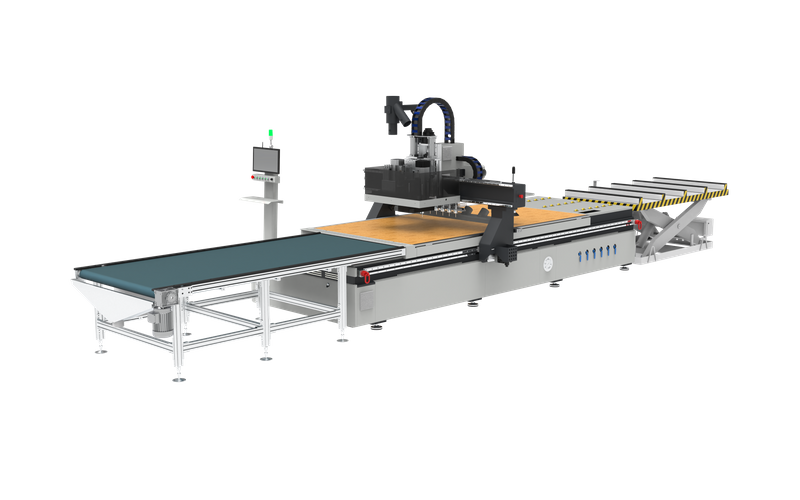

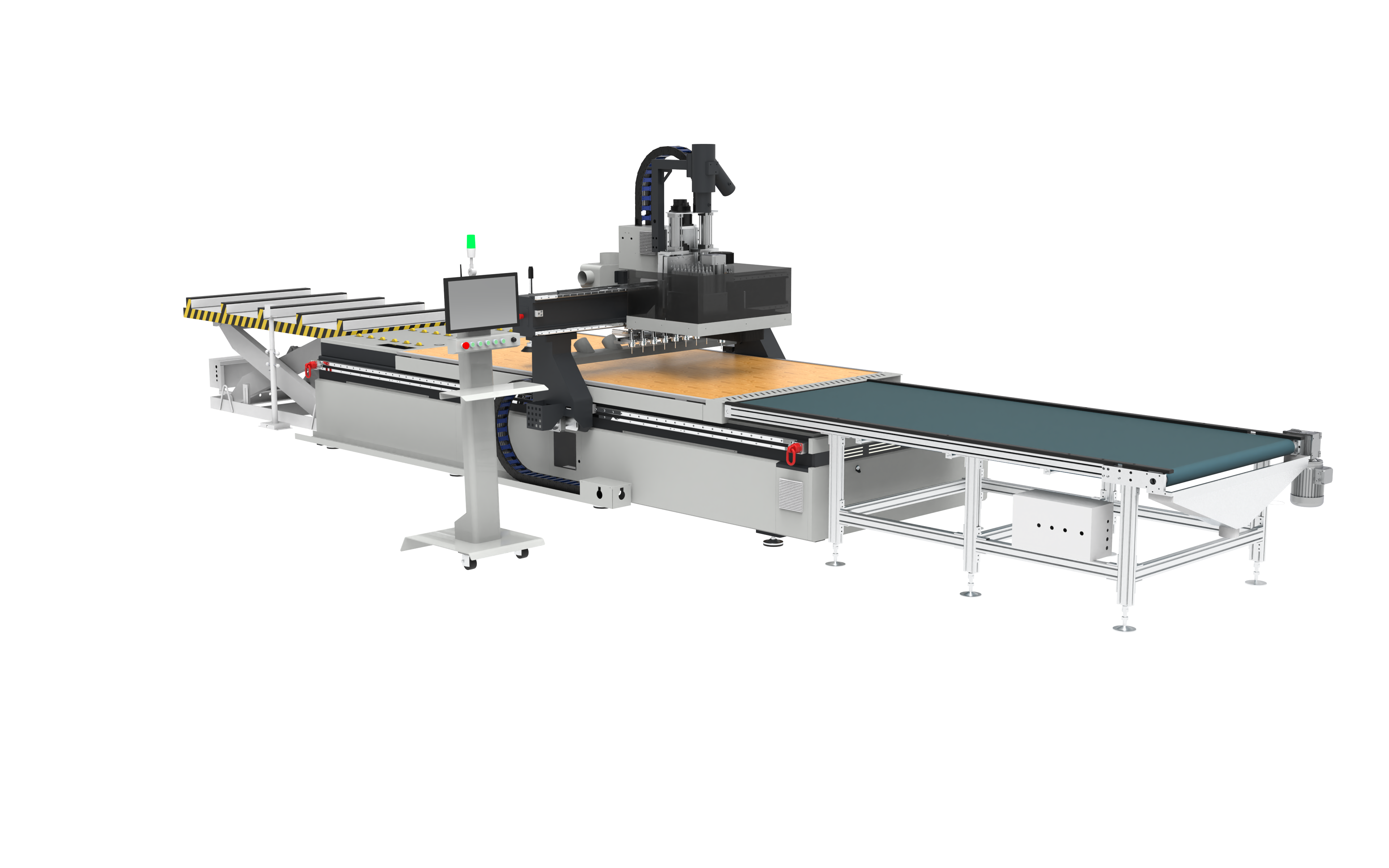

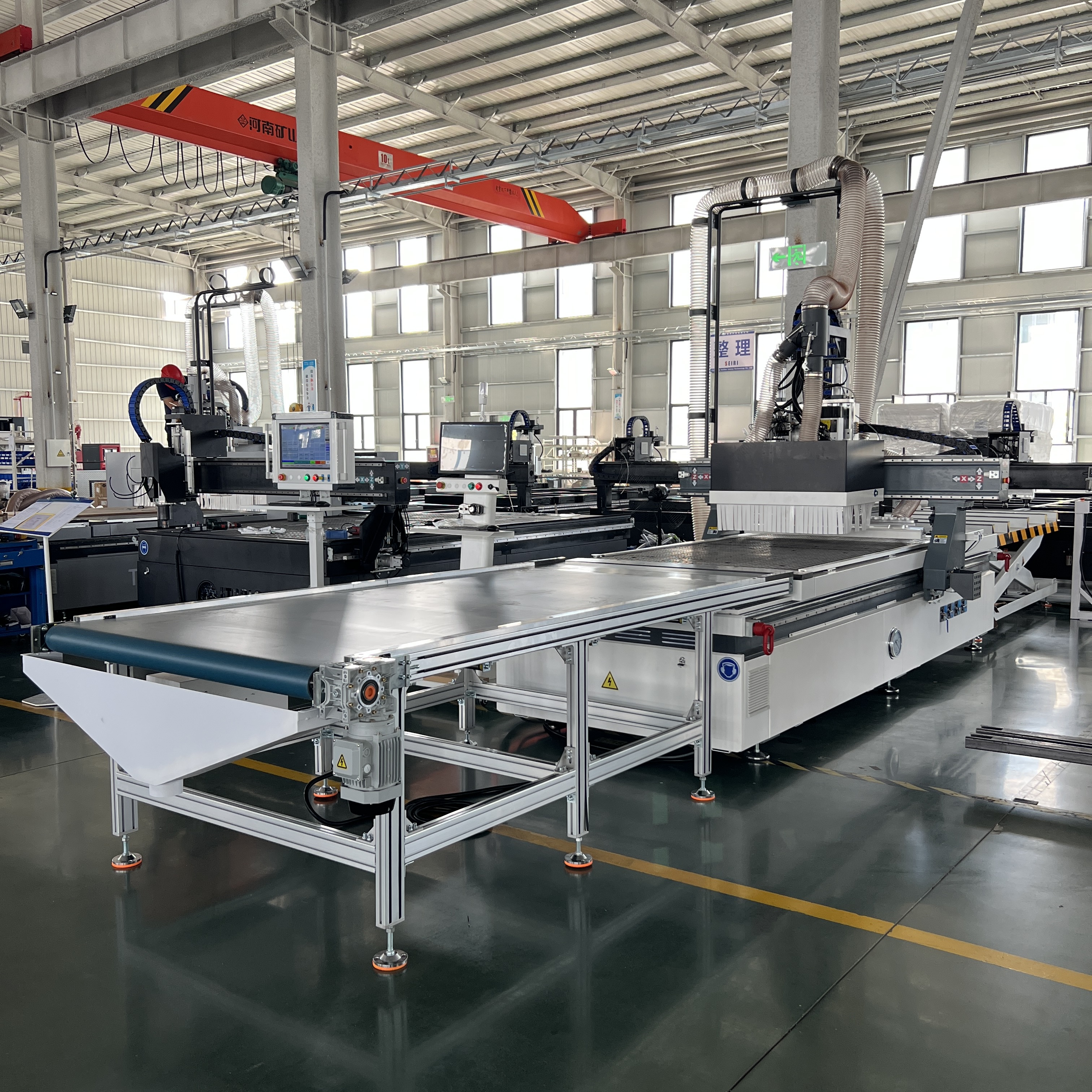

New Design CNC Nesting Router Machine with Automatic Loading & Unloading for Panel Furniture

Models:  T12K CNC Nesting Router Machine
Application :Panel Furniture Production Line is specifically designed for cutting panel furniture.
Leadtime: 25-50 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Customized: Size customization is available for the Panel Furniture Production Line.
Warranty: 1 years
Supply Ability: 20 Sets/Month
Designed for factories that value speed and stability, this nesting CNC router helps you improve productivity without sacrificing precision. Easy to operate, customizable in size, and ready for long-term industrial use.

  • T12K

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

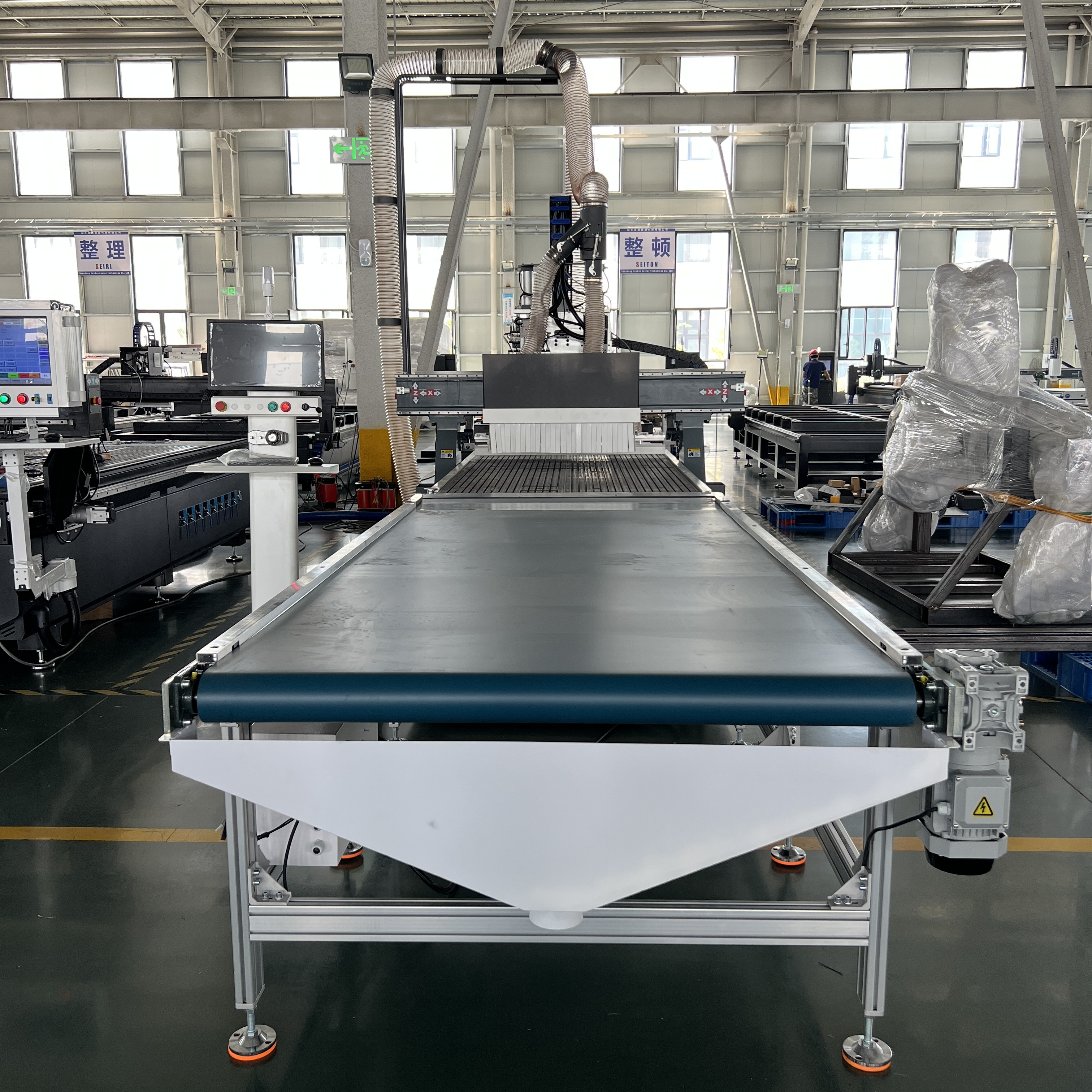

Automatic Loading System

Automatic Loading System

The automatic loading platform significantly reduces manual handling and keeps material feeding smooth and continuous. It improves production efficiency, lowers labor costs, and ensures consistent positioning for every sheet.

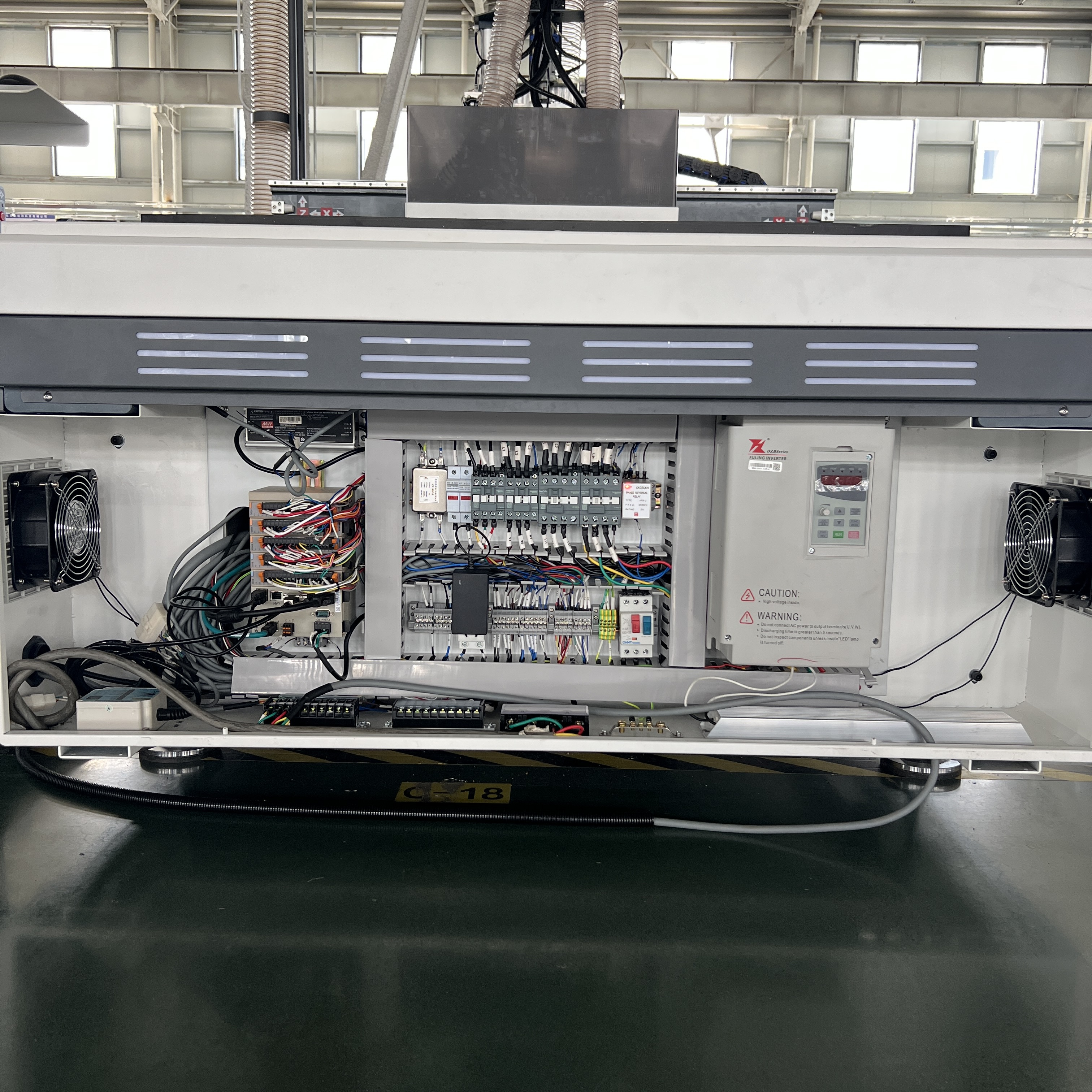

Syntec 60CB Control System

Powered by the Syntec 60CB control system, the machine offers fast response, stable operation, and user-friendly programming. It is widely used in the furniture industry and ensures precise processing during long production cycles.

 Syntec 60CB Control System

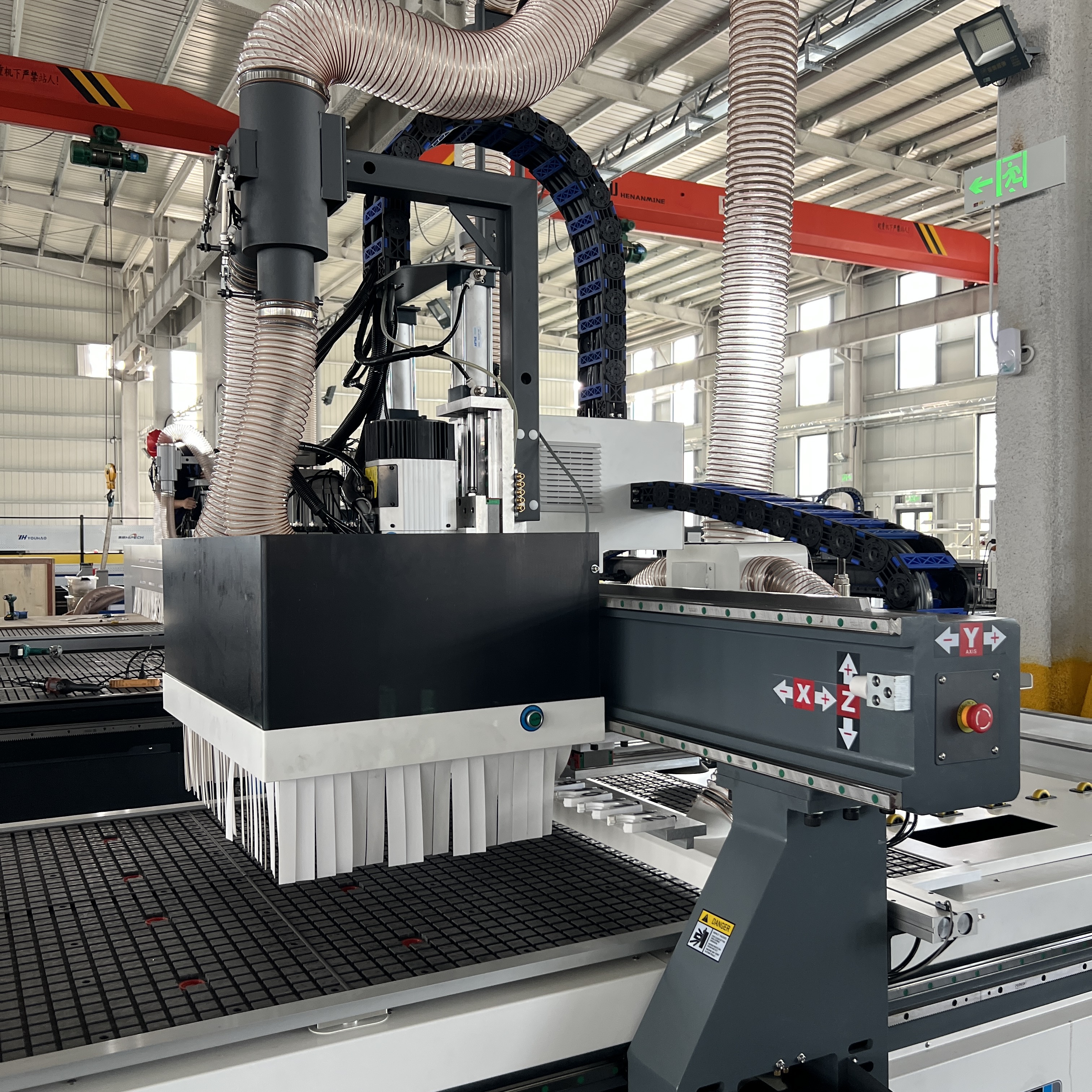

HQD 9KW Air-Cooling Spindle

HQD 9KW Air-Cooling Spindle

The 9KW HQD air-cooling spindle provides strong cutting power and stable performance. It handles cutting, drilling, and grooving with ease, making it ideal for MDF, plywood, particle board, and other panel materials.

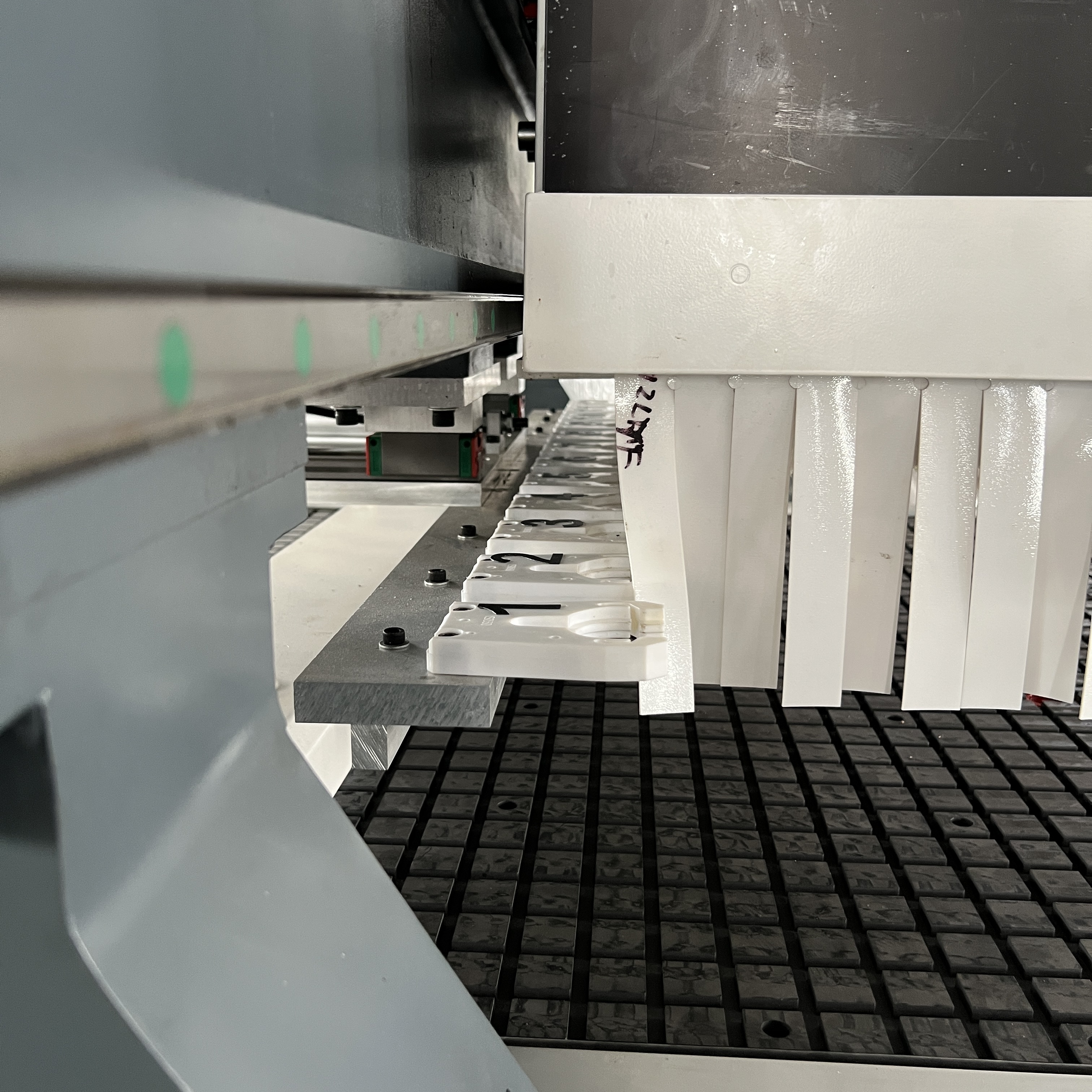

Linear Tool Magazine (12 Tools, Under Gantry)

The 12-position linear tool magazine installed under the gantry enables quick and accurate tool changing. This design improves workflow efficiency and allows complex processing tasks to be completed in one setup.

Linear Tool Magazine

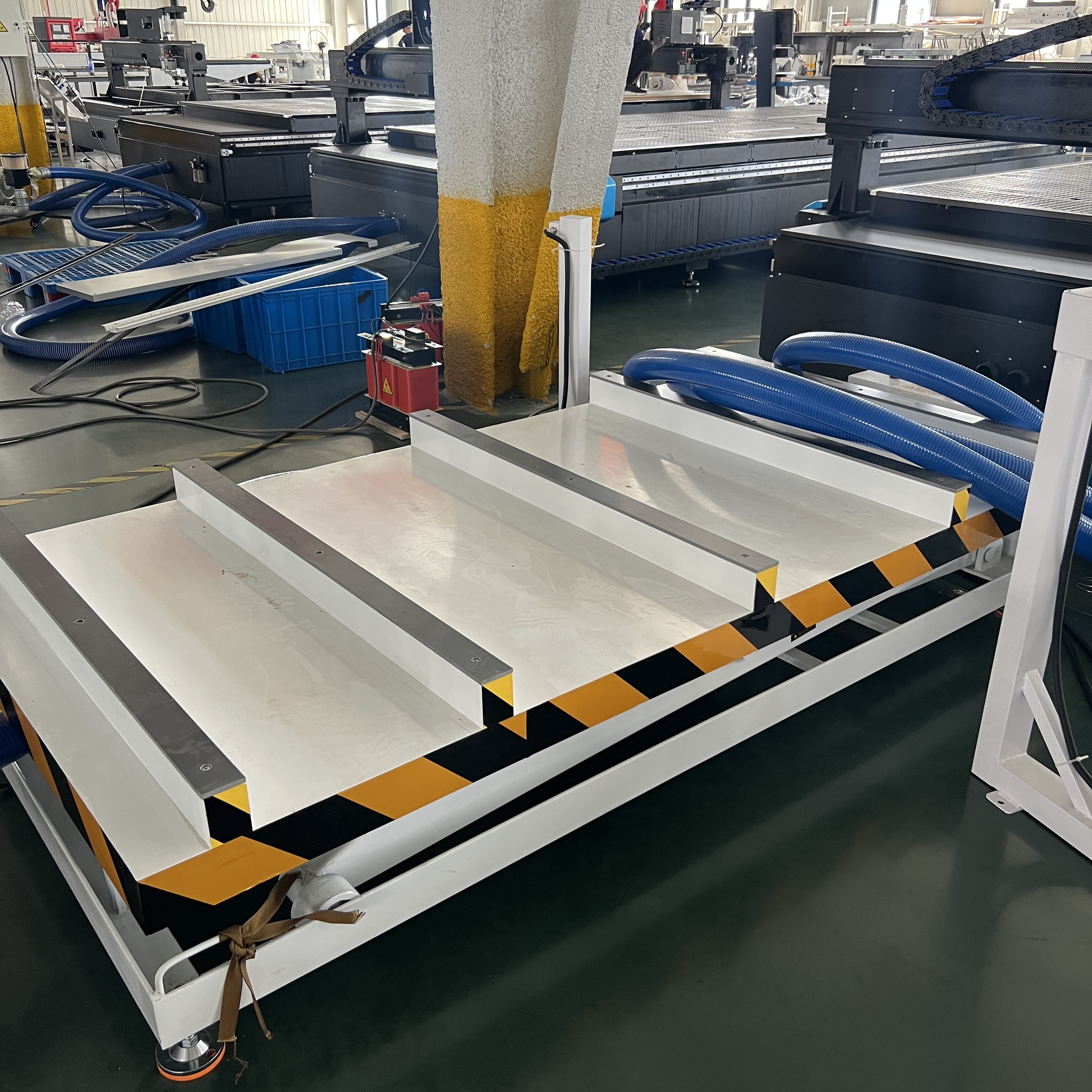

.Rear Pusher with Secondary Dust Removal

Rear Pusher with Secondary Dust Removal

The rear pushing system automatically unloads finished panels, increasing automation level and saving time. The secondary dust removal system helps maintain a cleaner working environment and supports better production efficiency.

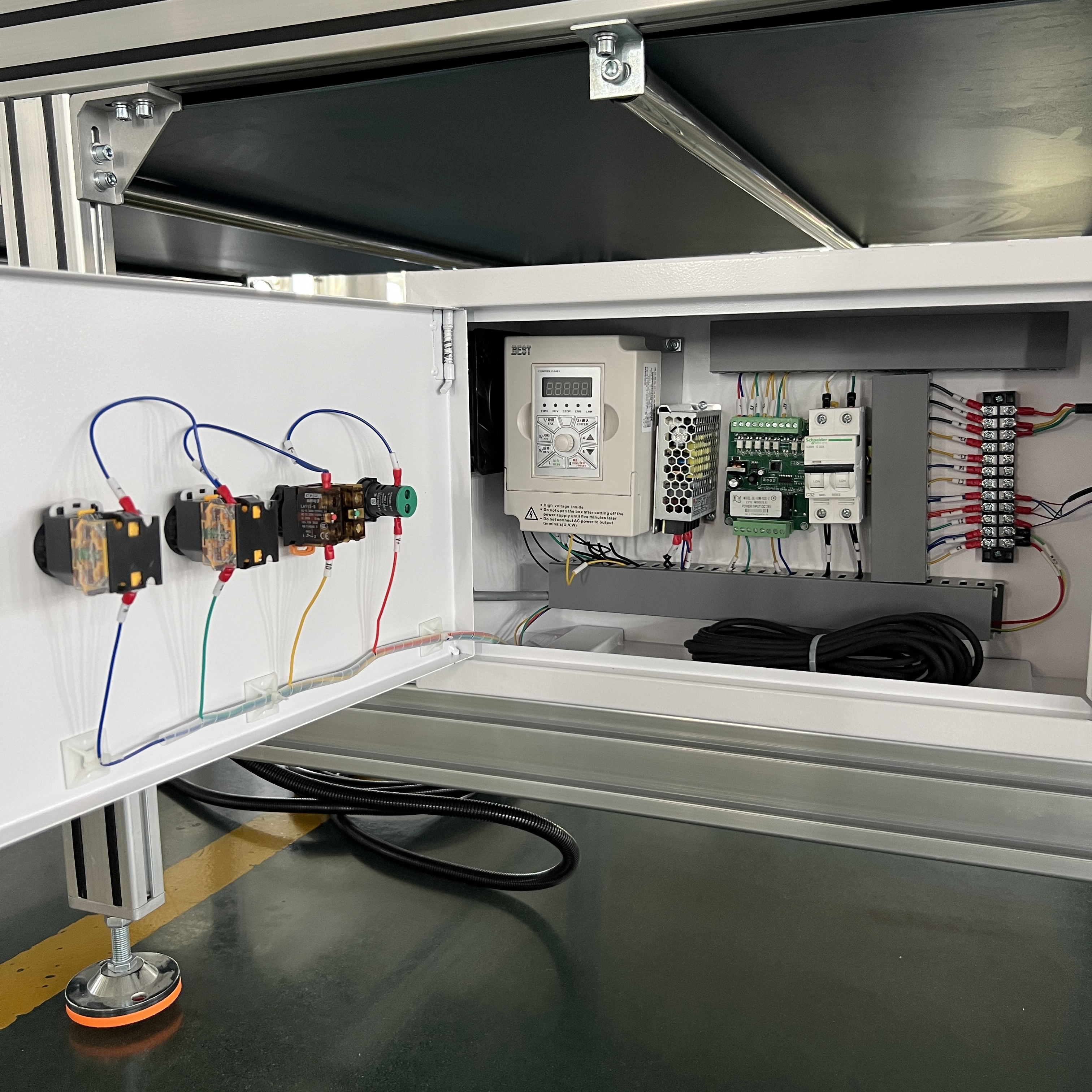

Schneider Electrical Components

Equipped with Schneider electrical components, the machine ensures reliable electrical performance, enhanced safety, and long-term durability under industrial working conditions.

Schneider Electrical Components


Advantage


• Higher Production Efficiency
Automatic loading, processing, and unloading significantly reduce manual intervention and shorten production cycles.

• All-in-One Processing
Cutting, drilling, grooving and tool changing are completed in one setup, improving workflow and minimizing errors.

• Stable and Reliable Performance
Industrial-grade structure combined with quality components ensures long-term stability, even during continuous operation.

• Lower Labor Cost
Automation reduces dependence on manual labor while improving consistency and repeatability.

• Cleaner Working Environment
Optimized dust collection system helps maintain a tidy workshop and supports healthier production conditions.

• Flexible for Different Production Needs
Suitable for cabinets, wardrobes, and customized panel furniture, with customizable working sizes and configurations.

• Easy Operation & Fast Learning Curve
User-friendly control system allows operators to quickly master the machine and start production efficiently.


Specifications

Description

Parameter

Model

T12K-1325
Control system Syntec 60CB Control system

X,Y,Z Working Area

1300*2500*300mm  (can be customized)

Reposistioning resolution

0.02mm

System Resolution

0.0025mm

Guide

Taiwan HIWIN linear 25mm square rail

Table Surface

Vacuum working table

Structure

Heavy duty structure

X Y Z Structure

Germany Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel;

Max. Working Speed

30000m/min

Spindle

HQD 9KW air cooling spindle (HSD is optional)

Spindle Speed

0-24000RPM

Drive Motors

Leadshine 750w servo motor and driver

Inverter

11kw Fuling

Tool magazine

12pcs linear tool

Electrical component

French shneider

Working voltage

380v/3ph 50-60hz

Software

artcam/Alpacan/router 8

Standard equipment included

1 Drilling unit

2Auto loading and unloading system

3Automatic labling system

Optional

1.Dust collector
2.Germany Becker vacuum pum

3.rotary device

4.Mist cooling system

5.HSD drilling unit

6 Dust collector

7 Vacuum pump
