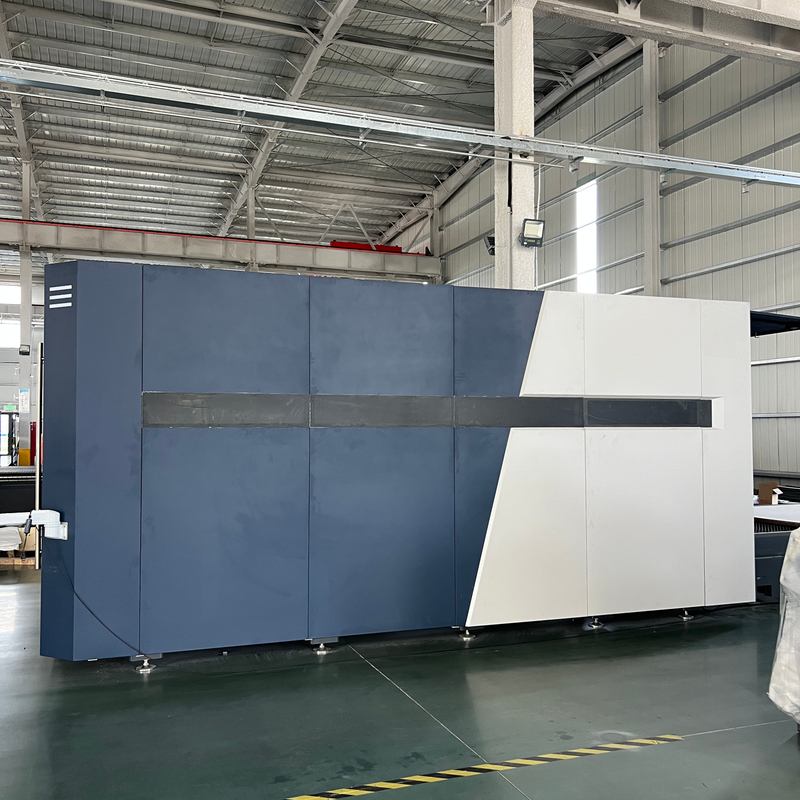

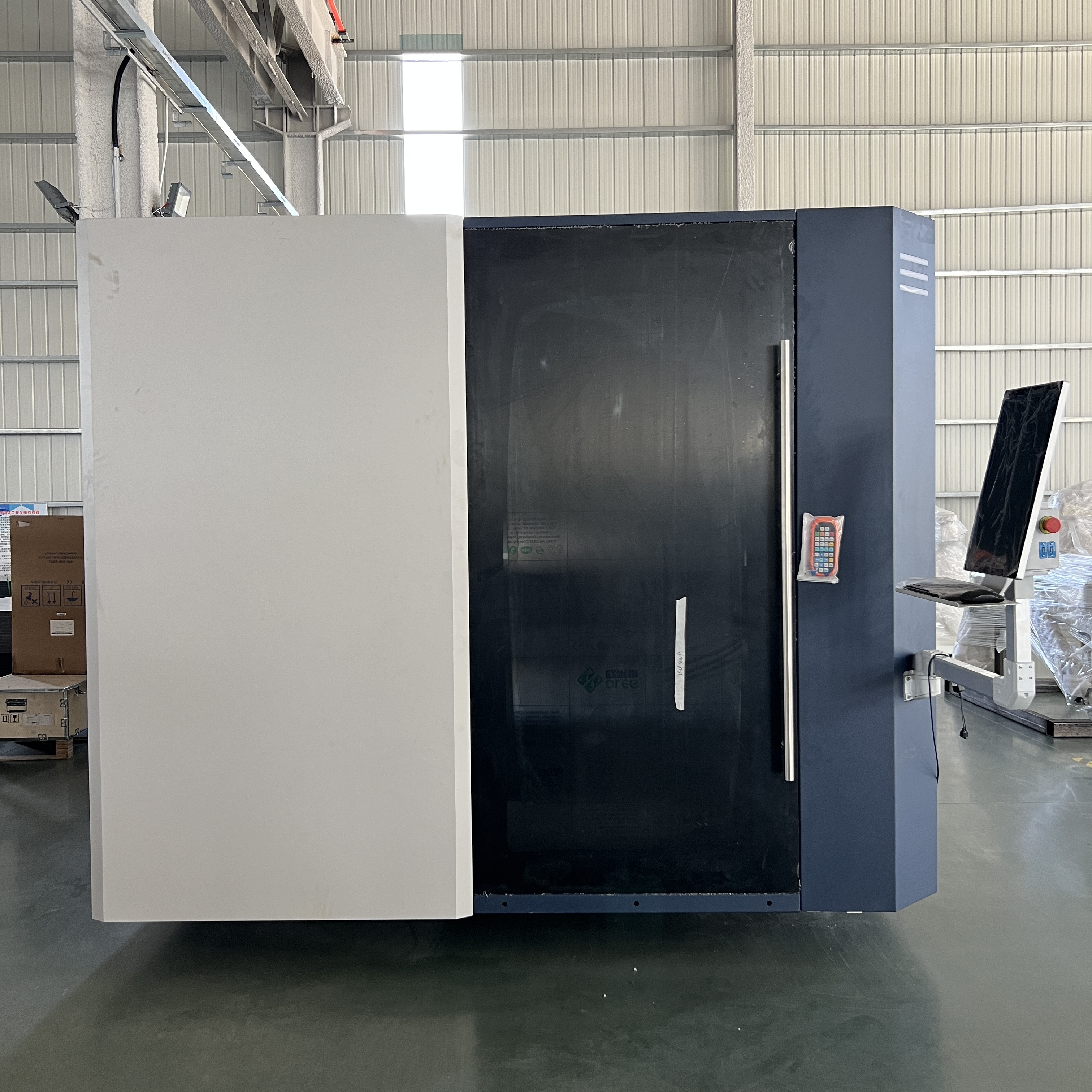

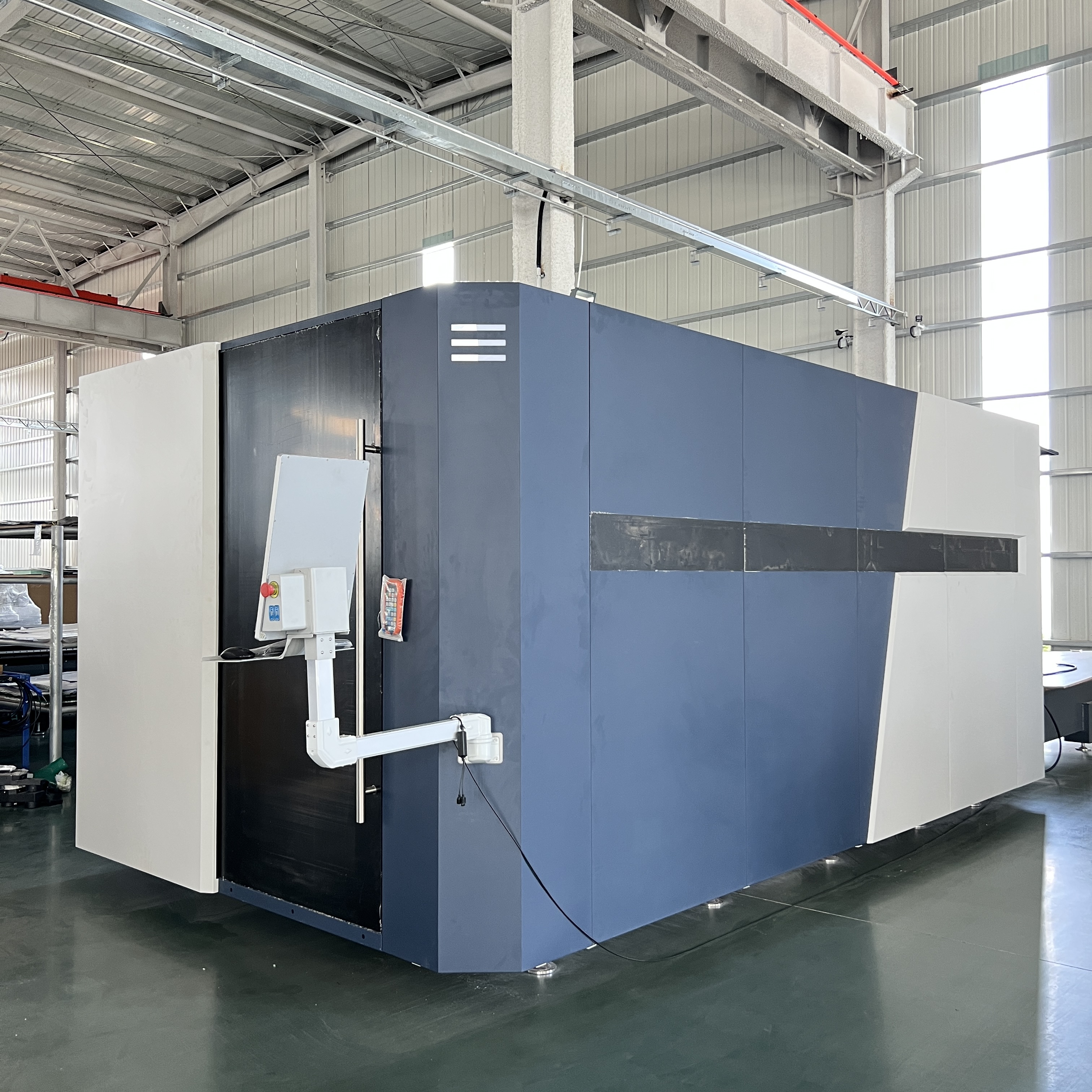

Full Enclosure Fiber Laser Cutting Machine with Exchange Table for Metal Sheets

Full Enclosure Fiber Laser Cutting Machine with Exchange Table for Metal Sheets
Leadtime: 20-30 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ or 60HZ,220V/3P/50HZ or 60HZ.220V/1P/50HZ or 60HZ
Customized: Size Can be customized
Warranty: 1years
Supply Ability: 20 Sets/Month
The full enclosure fiber laser cutting machine with exchange table improves safety and production efficiency.
The enclosed design protects operators from sparks and laser radiation, while the automatic exchange platform enables continuous cutting with fast loading and unloading. It reduces downtime, labor costs, and supports high-efficiency metal sheet processing, making it ideal for modern metal fabrication workshops.


  • UTF3015SC

  • YOUHAO

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

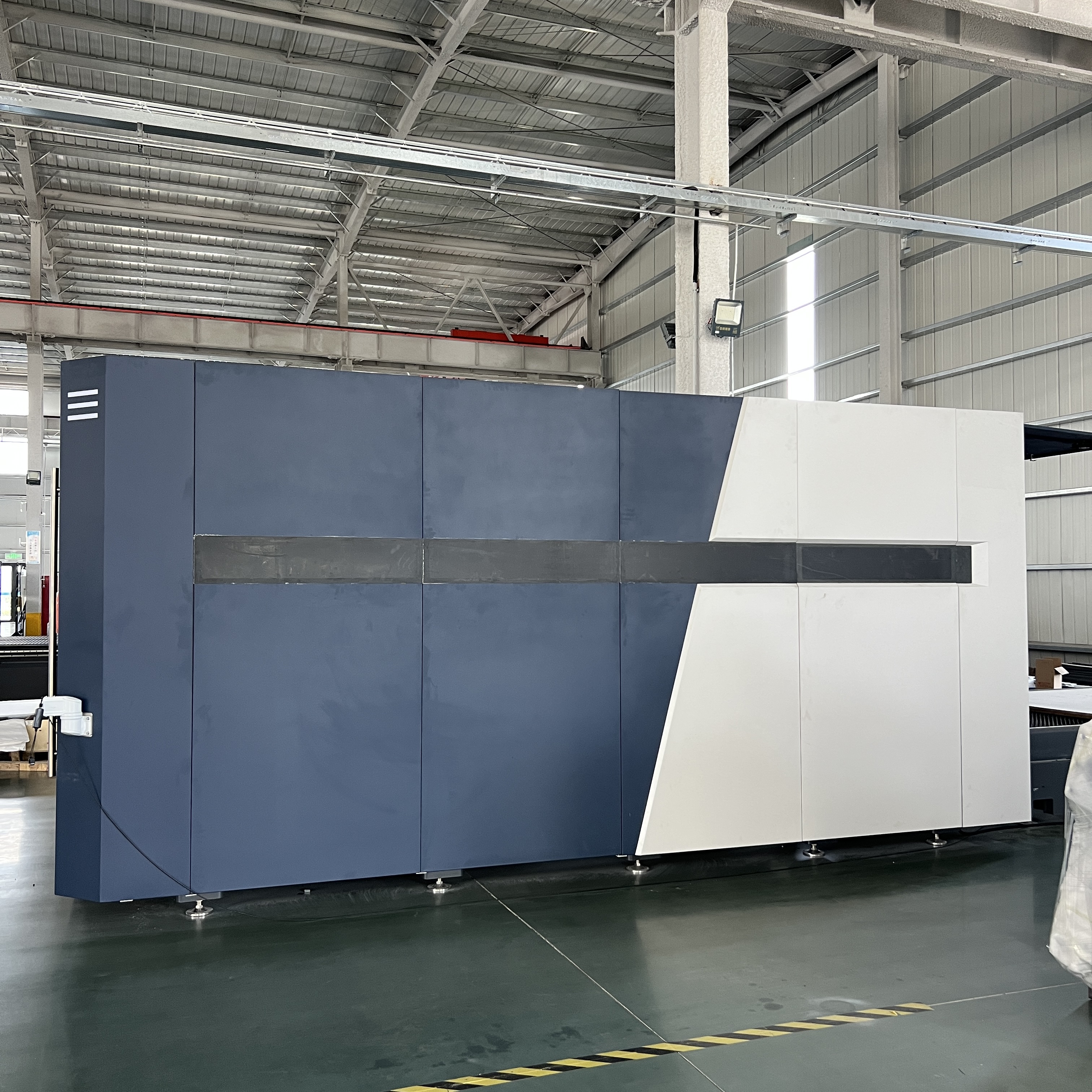

Fully Enclosed Fiber Laser Cutting Machine

Full Enclosure Design


The full enclosure fiber laser cutting machine is designed to provide maximum safety and stable cutting performance. The fully enclosed protective cover effectively blocks laser radiation, sparks, and metal debris, creating a safer and cleaner working environment. It also helps reduce noise and dust during operation, improving workshop conditions. This design meets international safety standards and is ideal for high-power fiber laser cutting applications in modern metal fabrication.

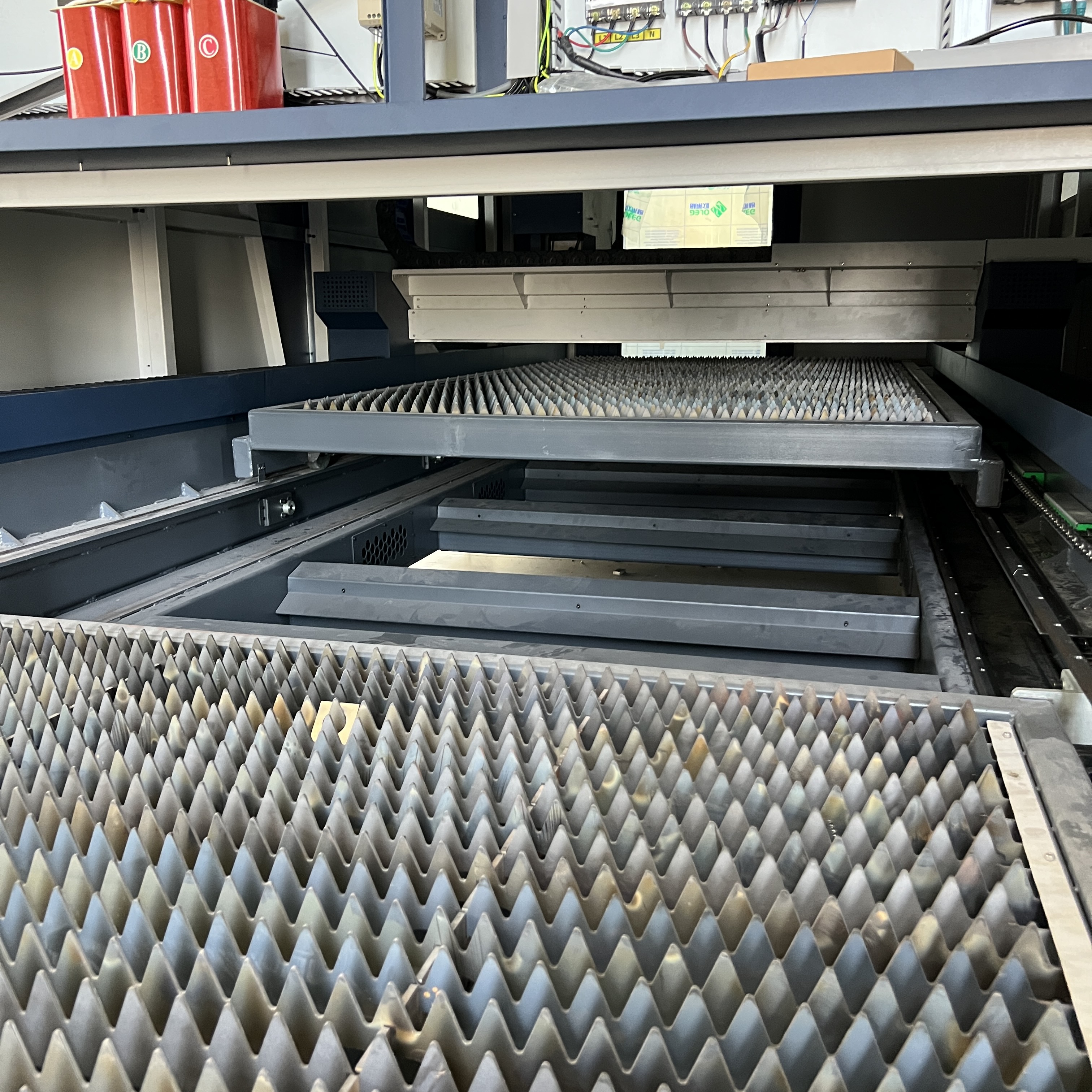

Automatic Exchange Table System


The exchange table system enables fast pallet switching for continuous cutting operations. While one table is cutting, the other can be loaded or unloaded, significantly reducing downtime and improving production efficiency. This system is ideal for high-volume sheet metal processing.


 Automatic Exchange Table System

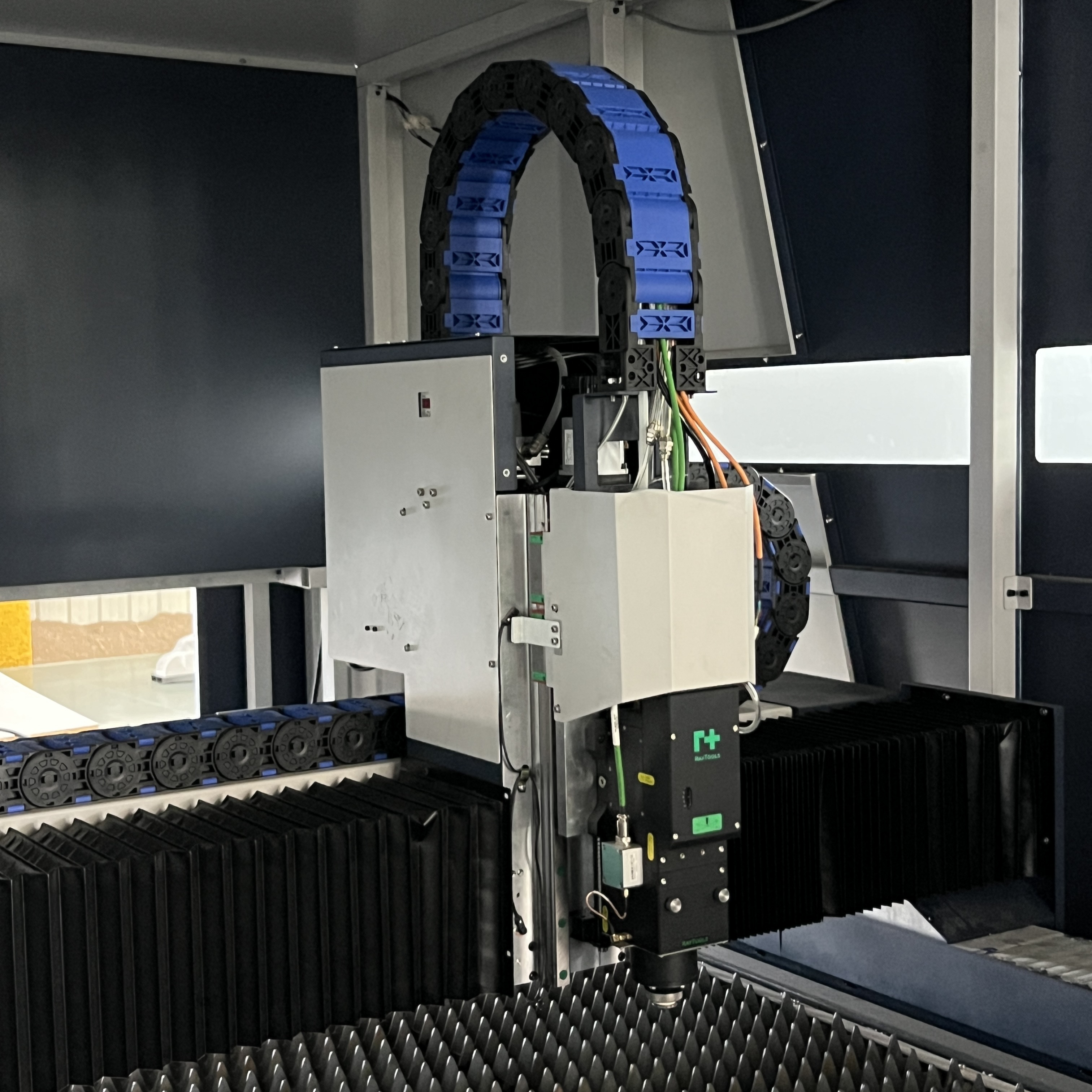

Raytools BM110E fiber laser cutting head



Raytools BM110E fiber laser cutting head


The Raytools BM110E fiber laser cutting head ensures stable and precise cutting within a full enclosure and exchange table system. Its auto-focus design maintains consistent cutting quality during continuous operation, while the enclosed structure protects the cutting head from sparks and dust, improving safety and overall efficiency.

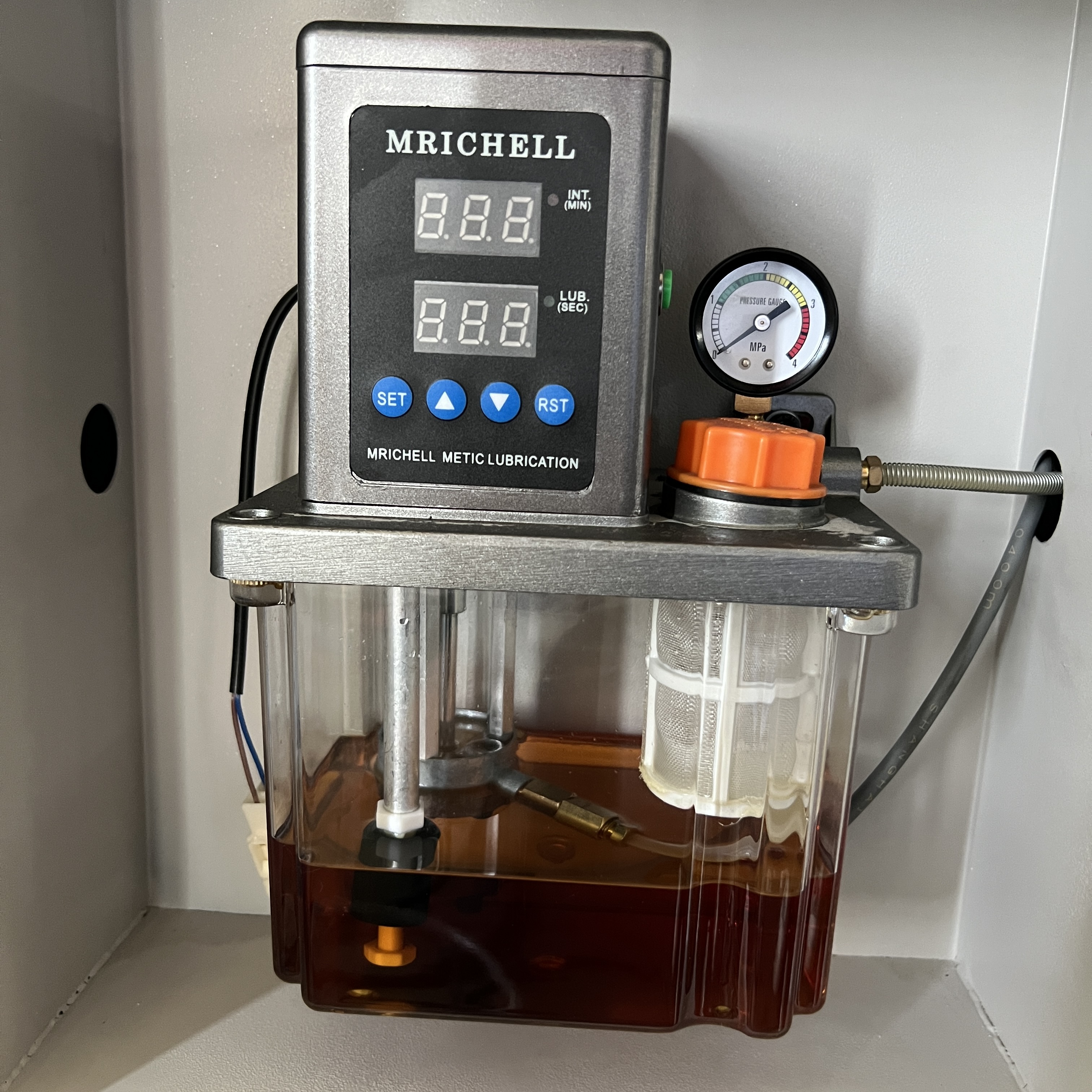

Auto lubrication with automatic oil separator


Automatic lubrication with oil separator ensures continuous, clean lubrication for rails, screws, and gears, reducing wear, maintaining high cutting precision, and minimizing maintenance. Ideal for large-frame and interactive platform fiber laser cutting machines, it guarantees smooth, stable operation even during long, high-speed cutting.

 Auto lubrication with automatic oil separator

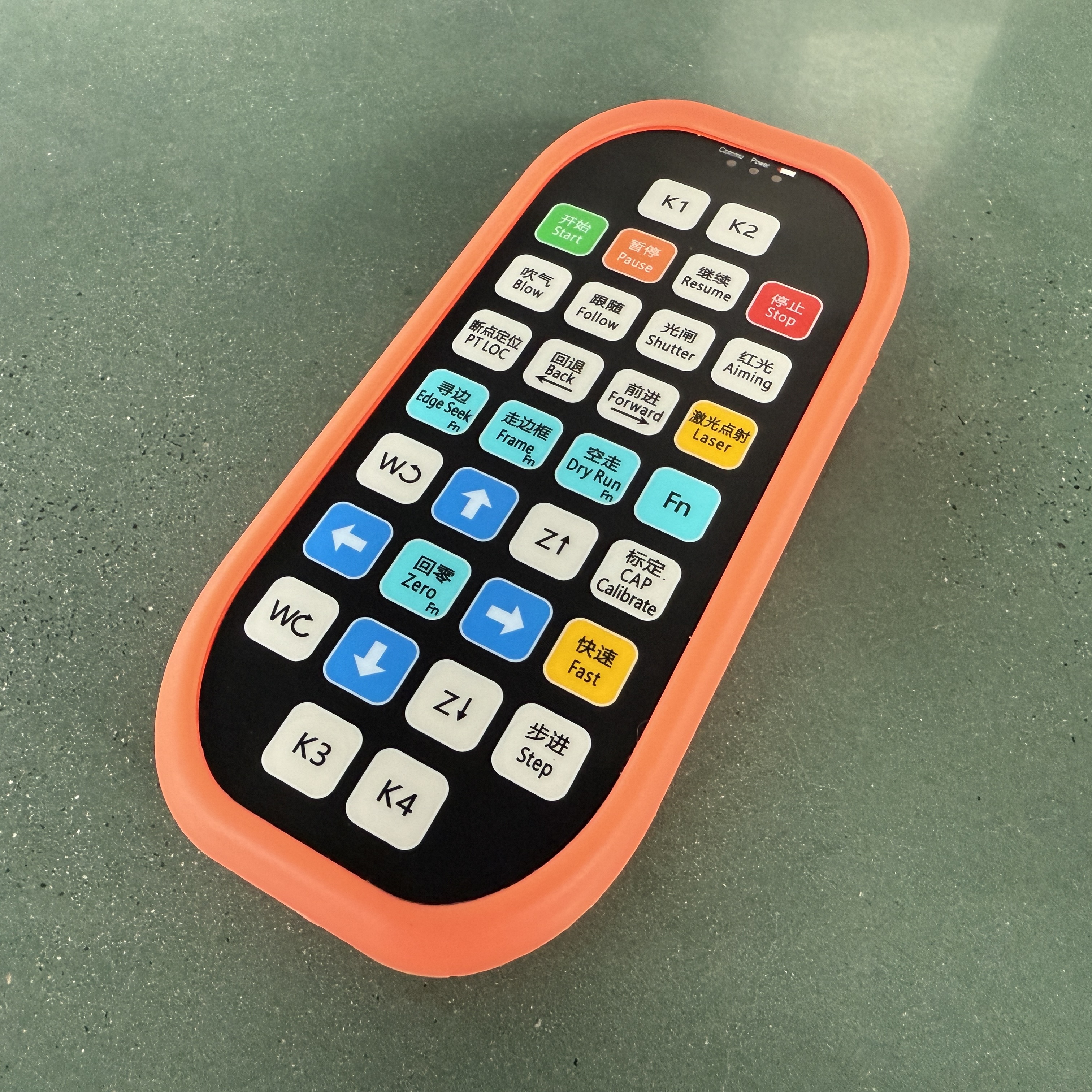

Laser cutting machine with Control handle

Laser cutting machine with Control handle


The fiber laser cutting machine with control handle delivers precise, efficient cutting with easy operation. Designed for large-frame and interactive platform setups, it ensures stable performance, high accuracy, and reduced maintenance.


Advantage

Advantages of Full Enclosure Fiber Laser Cutting Machine with Exchange Table

Full Enclosure Protection
Effectively blocks laser radiation, sparks, and dust, ensuring higher operator safety and a cleaner workshop.

Automatic Exchange Table
Enables fast pallet switching, allowing loading and unloading during cutting to reduce downtime.

Higher Production Efficiency
Continuous operation improves throughput and shortens production cycles.

Lower Labor & Operating Costs
Automated workflow reduces manual handling and labor intensity.

Ideal for Mass Metal Processing
Suitable for high-efficiency sheet metal fabrication in industrial applications.


Specifications

Model

UTF3015SC

X, Y ,Z Working size

1500*3000*200mm,1500*4000*200mm，2000*3000*200mm,4000*2000*200mm,6000*2000*200mm

speed reducer

Janpan Shimpo reducer

motor

HCFA/Delta/Yaskawa(optional)
Cutting Thickness 1-40mm(Depends on material and power)
Laser Power 1500w/2000W/3000w/6000w/12000W/20000W
Laser Source Max/Raycus/ laser source(optional)
Laser Cutting Head Raytools/BOCI laser cutting head
Transmission System Imported ball screw /Gear rack(optional)
X.Y Axis Location Accuracy ±0.01mm
X.Y Axis Repeat Location Accuracy ±0.01mm
X.Y Axis Max Moving Speed 30m/min
Maximum Idle Running Speed 120m/min
Machine Area Size 4.0x2.2x1.5m
Water Chiller Teyu water chiller
Laser wave length 1080nm


download YOUHAO CNC catalog.new.pdf
