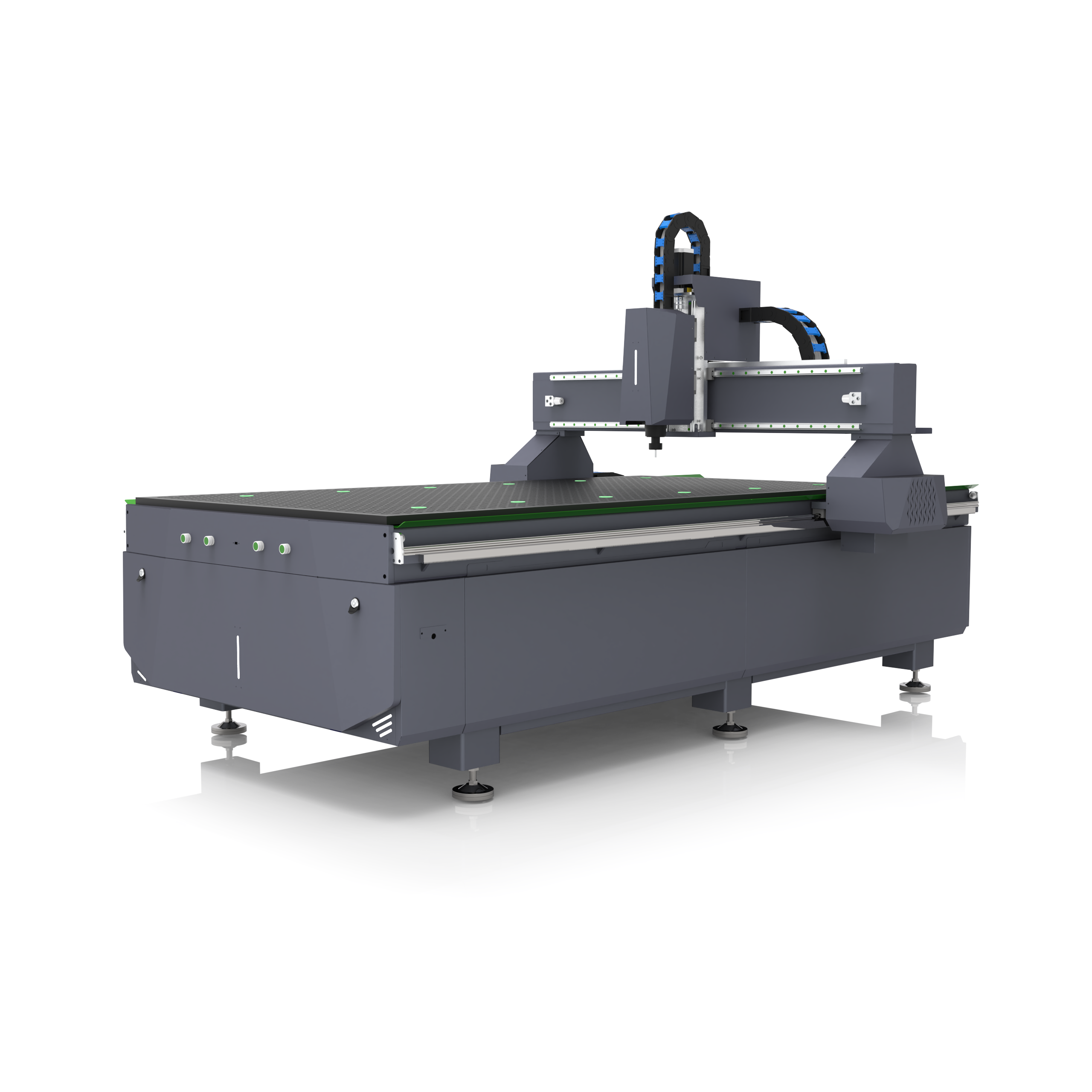

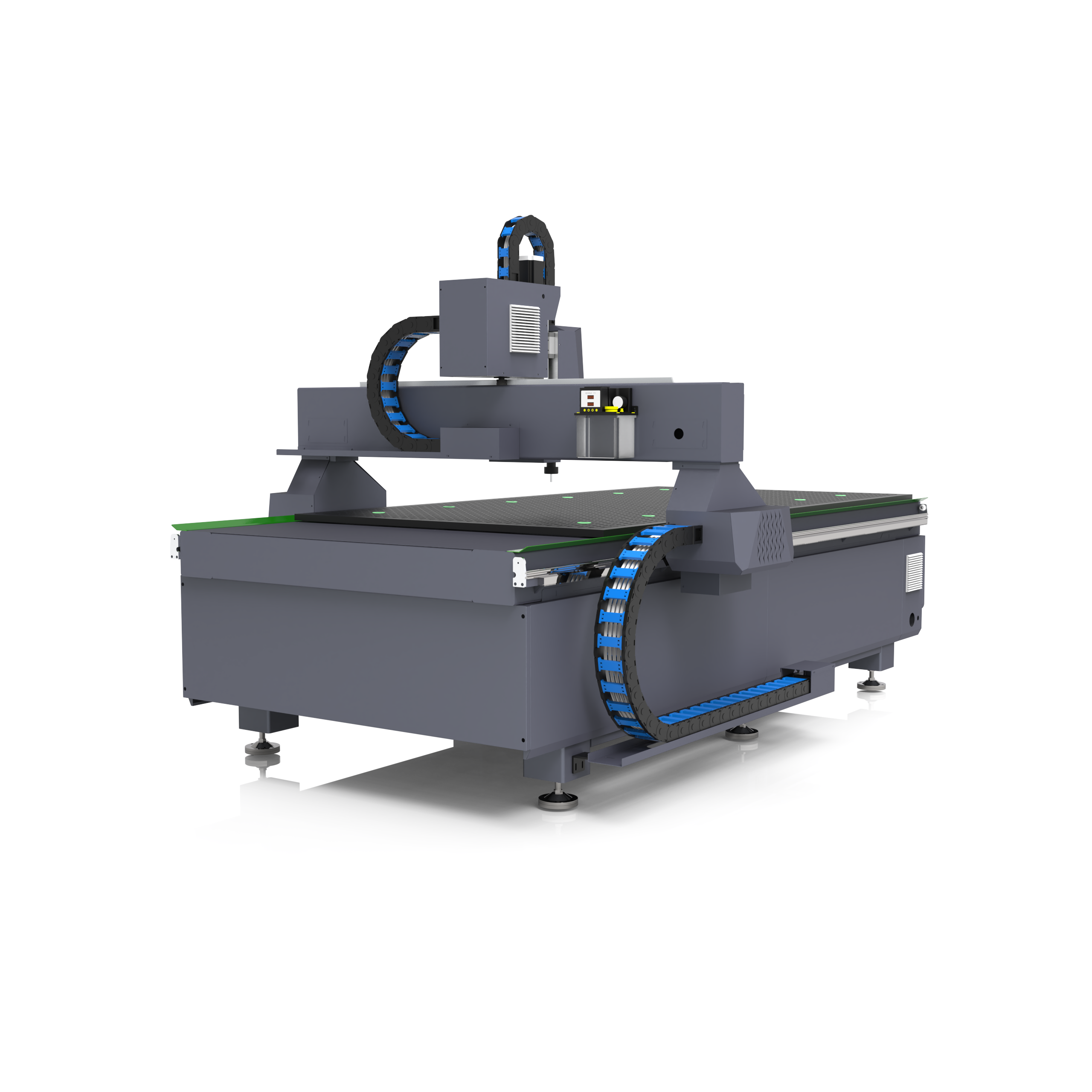

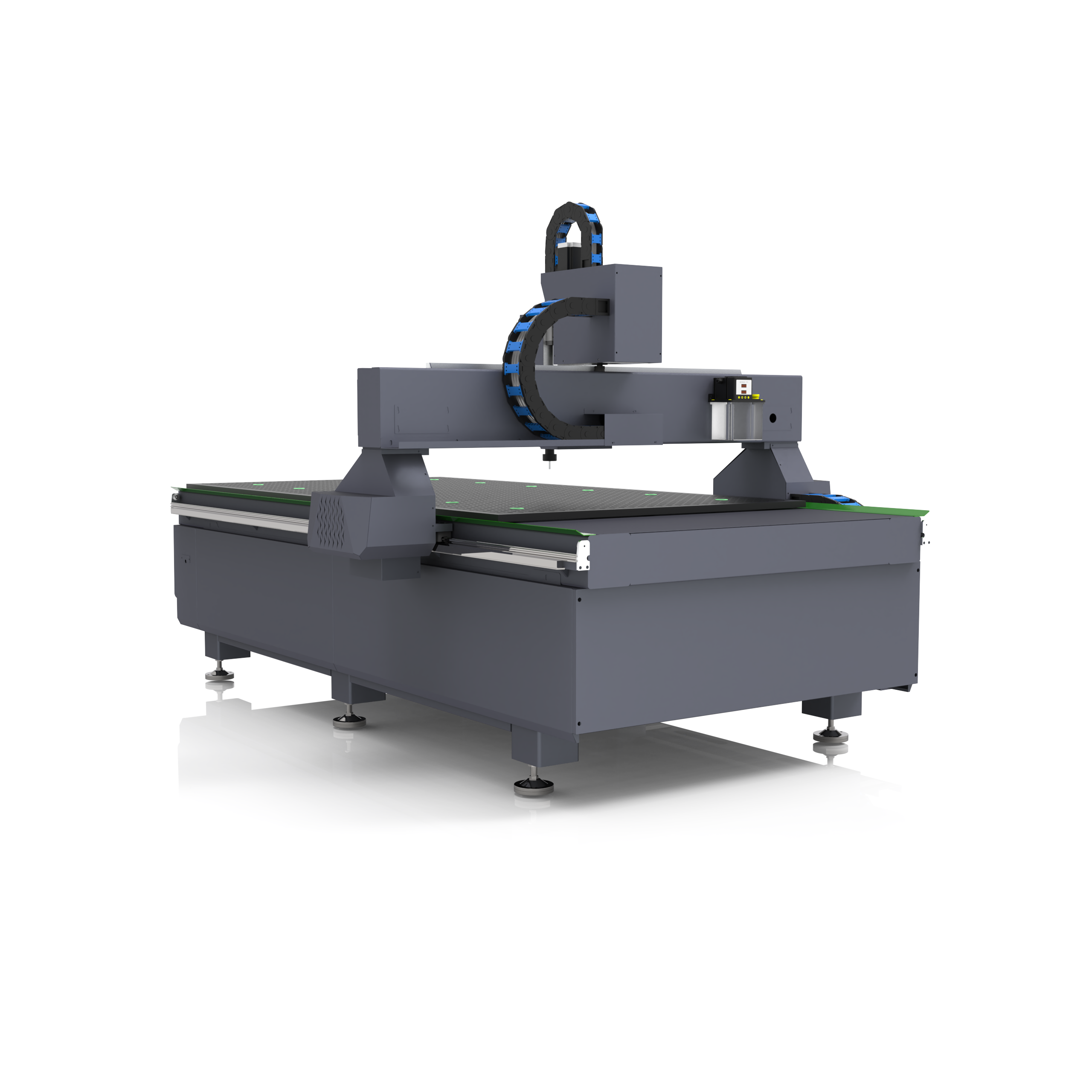

Economic 2030 CNC Router Machine for Wood, Acrylic & Aluminum Composite

Models: T5 CNC Router
Application: Wood, soft metal, Acrylic
Leadtime: 20-30 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Size：1325,1530,2030,2040（Size can be customized according to customer needs）
Warranty: 1years
Supply Ability: 10 Sets/Month
The Economic 1530 CNC Router Machine offers stable performance for cutting and engraving soft metals, acrylic, and wood, making it a practical and affordable solution for multi-material processing.

  • T5

  • YOUHAOCNC

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Control System

Control System – RichAuto DSP A11E


Standalone DSP controller with stable performance and user-friendly operation, supporting efficient machining without a dedicated computer.

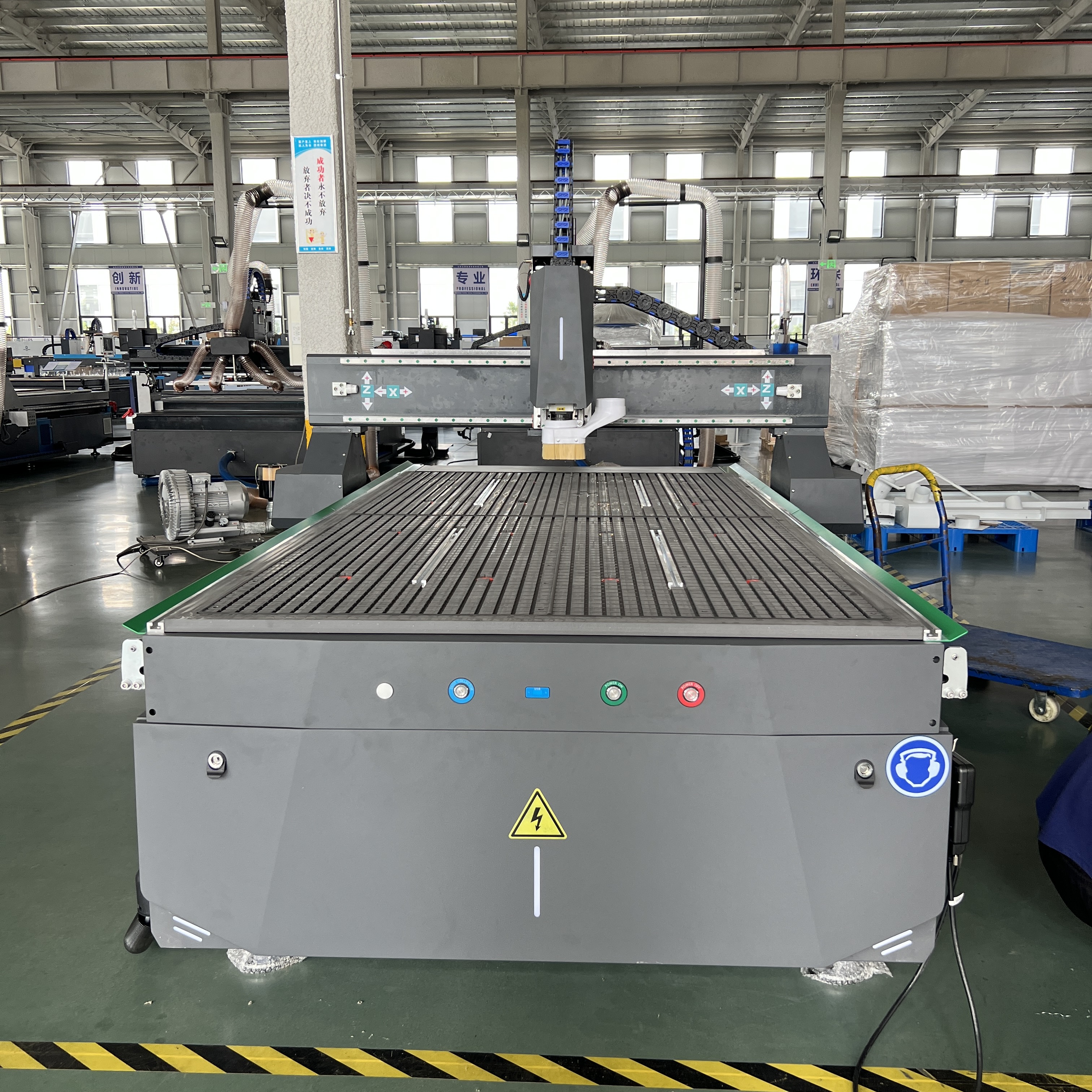

Vacuum Table


High-efficiency vacuum adsorption ensures firm material holding, improving cutting accuracy and reducing setup time during processing.

 Vacuum Table

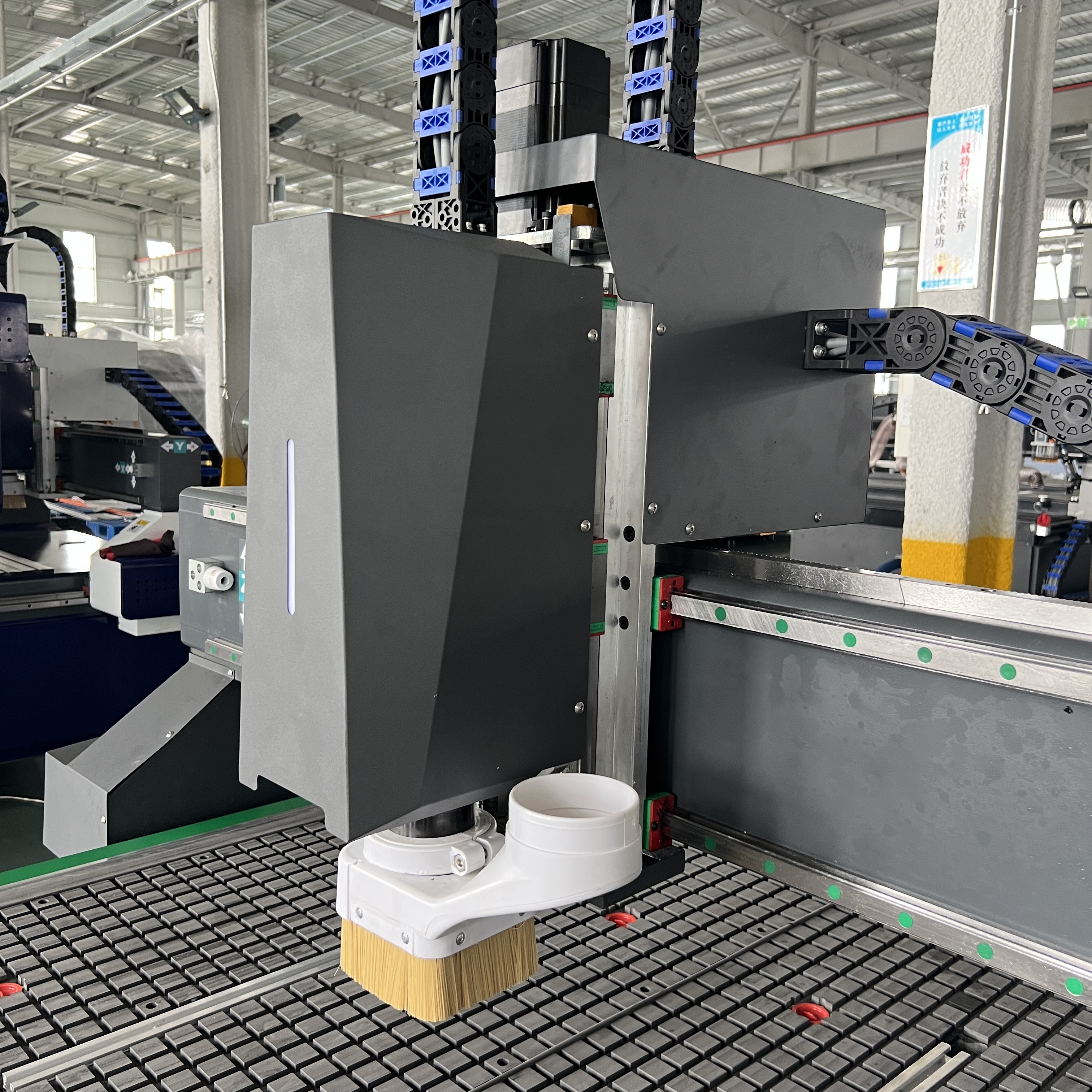

HQD 3.5kW Air-Cooled Spindle

Spindle – HQD 3.5kW Air-Cooled, 18,000 RPM


Reliable air-cooled spindle provides strong cutting power, stable operation, and low maintenance for long-term continuous work.

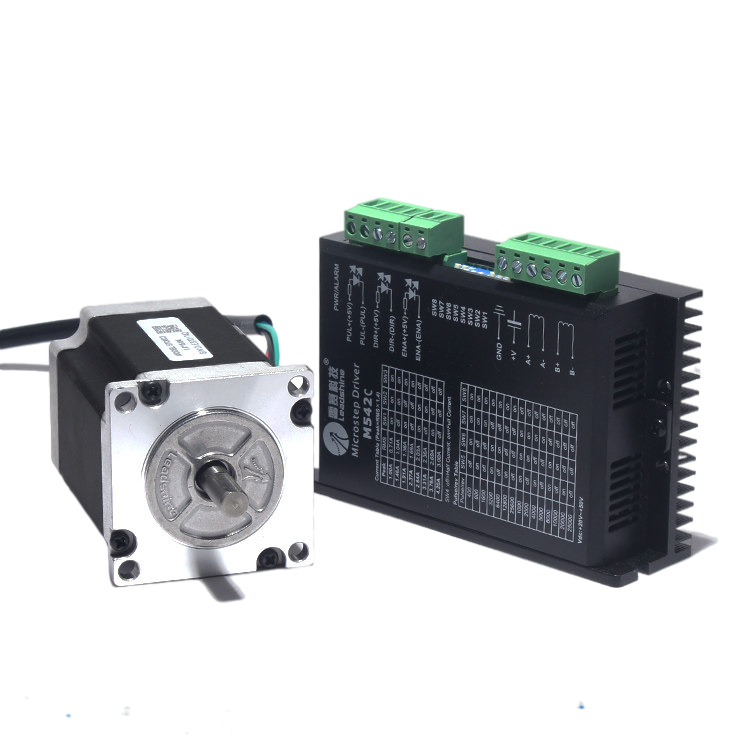

Motor & Driver – Leadshine Stepper Motor and Driver


High-quality stepper motors and drivers deliver smooth motion, precise positioning, and consistent performance across multiple materials.

 Leadshine Stepper Motor and Driver

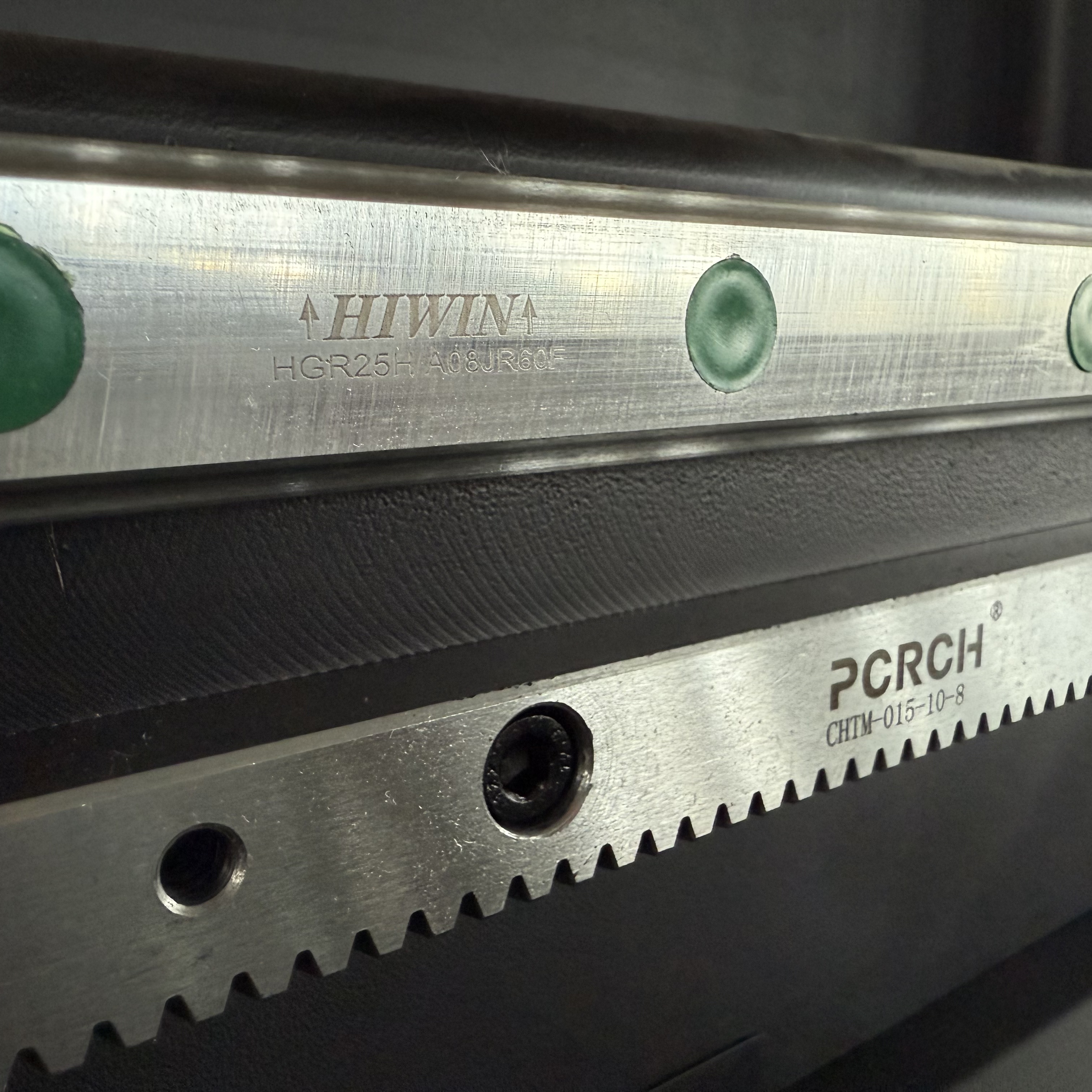

HIWIN Linear Guide

Linear Guide – HIWIN 25 (X / Y / Z Axis)


Industrial-grade HIWIN linear guides offer high rigidity and wear resistance, ensuring accuracy and stability during high-speed movement.


Advantage

Cost-Effective CNC Routing Solution
Designed as an economic CNC router, this machine balances performance and price, making it suitable for small workshops, startups, and expanding production lines.

Wide Application Range
Capable of processing soft metals, acrylic, wood, and aluminum composite panels, supporting a variety of advertising, furniture, and light industrial applications.

Optional CCD Camera System (T5 Version)
The T5 model can be upgraded with a CCD camera for visual positioning, enabling accurate contour cutting of printed materials and improving automation efficiency.

Stable Mechanical Structure
Rigid machine frame combined with industrial-grade linear guides ensures long-term stability and reliable machining accuracy.

Efficient Vacuum Table Design
Vacuum adsorption system enhances workpiece fixation, reduces manual clamping, and improves overall processing efficiency.

Easy Operation & Low Maintenance
User-friendly control system and air-cooled spindle design simplify daily operation while keeping maintenance costs low.


Specifications

NO.

Description

Parameter

1

XYZ working area

2000*3000*200mm, 6*10ft

2

Optional working area

1300*2500*200mm, 4*8ft/ 1300*2500*300mm

1500*3000*200mm, 5*10ft/1500*3000*300mm

2000*4000*200mm, 6*13ft/2000*4000*300mm

3

Guide

Original TAIWAN HIWIN

4

Z Structure

Original TAIWAN TBI Ball Screw transmission

5

Traveling Positioning Accuracy

±0.02/300mm

6

Repositioning Positioning Accuracy

±0.02

7

Table

Aluminum table with PVC on it /vacuum table

8

Vacuum pump

7.5KW Taiwan EUROVAC vacuum pump

9

Max. Speed

35000mm/min

10

Max. Working Speed

25000mm/min

11

Spindle Power Motor

3.5KW air cooling Spindle

12

Spindle Speed

18000RPM/24000RPM

13

Drive Mode

leadshine stepper motors and drivers

14

Lubrication system

Manual lubrication/Automatic lubrication

15

Working Voltage

380V/50Hz/3 phases

16

Control System

Richauto DSP A11E Controller

20

Collet

ER32

21

Software

Type3/Artcam

22

Dust cleaning system

Spindle cover+dust collector+pipe+bags


economic 2030 cnc router for wood acrylic aluminum affordable 2030cnc router machine multi material cnc router cnc router with vacuum table 2030 cnc router machine cnc router machine
