H5
YOUHAO
| SKU: | |
|---|---|
| Availability: | |
| Quantity: | |

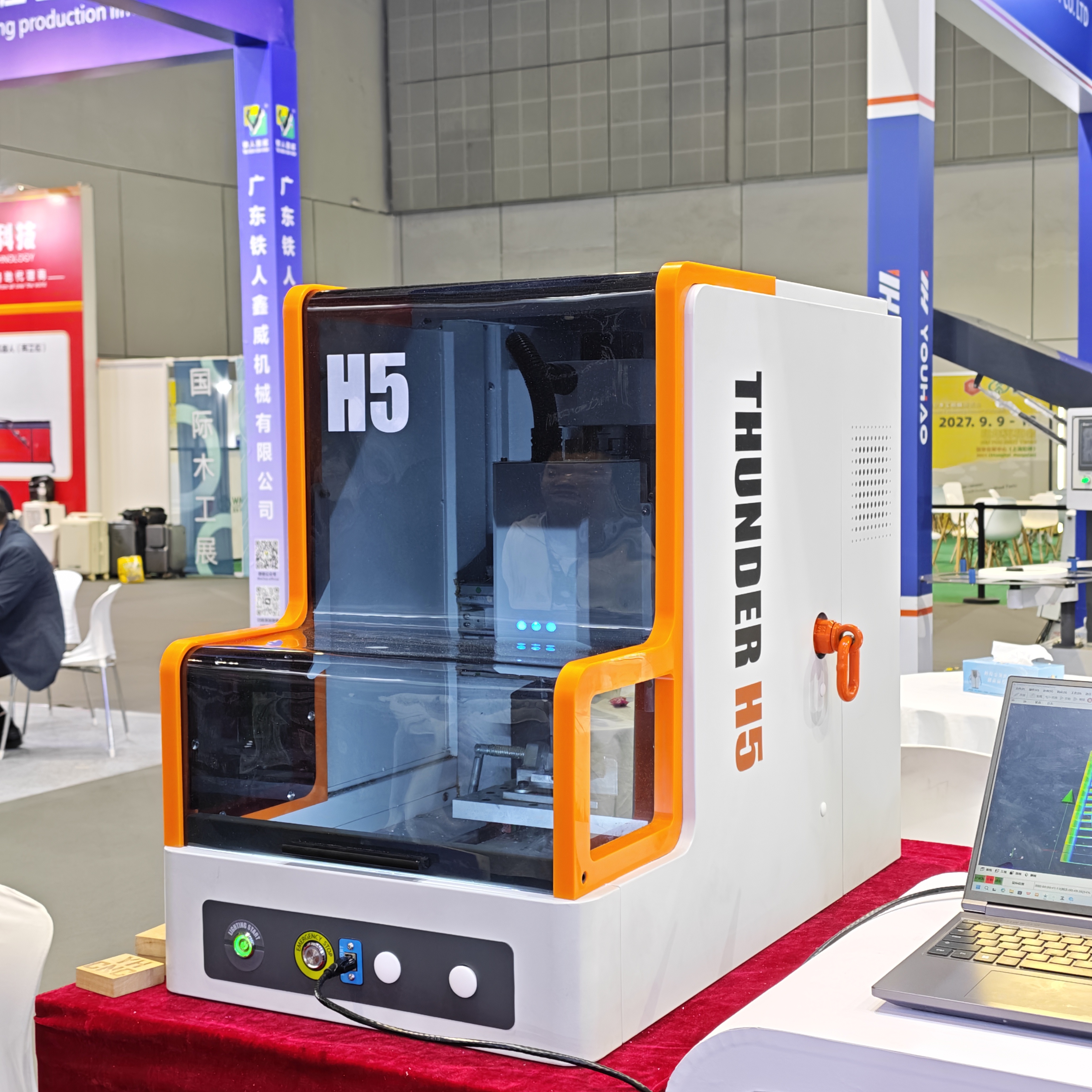

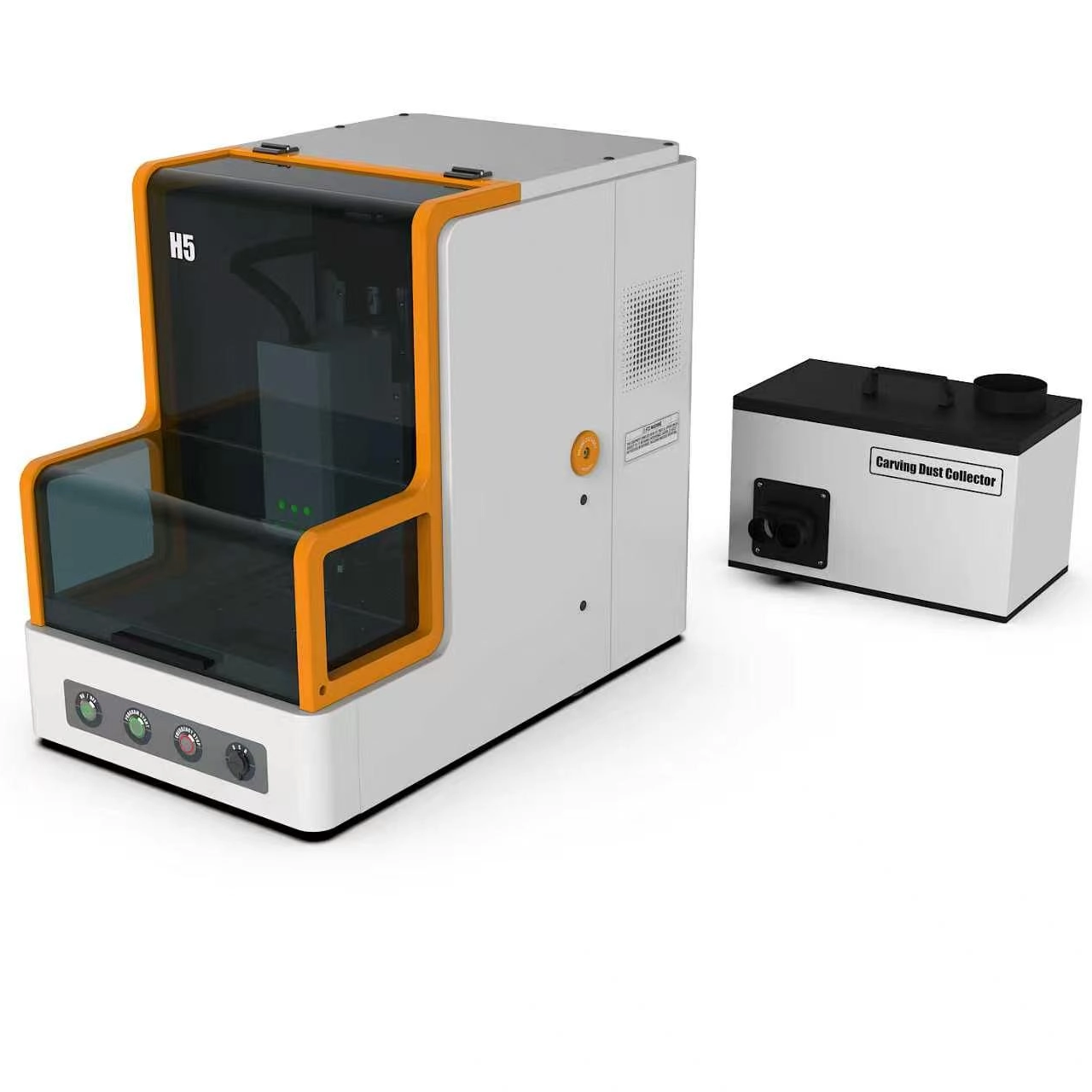

![]() | mini desktop cnc engraving machine is equipped with a fully enclosed protective cover. Operator safety can be ensured. An industrial -grade engraving dust collector can also be optionally equipped, occupying minimal space while ensuring cleanliness in both the workshop and machine interiors. |

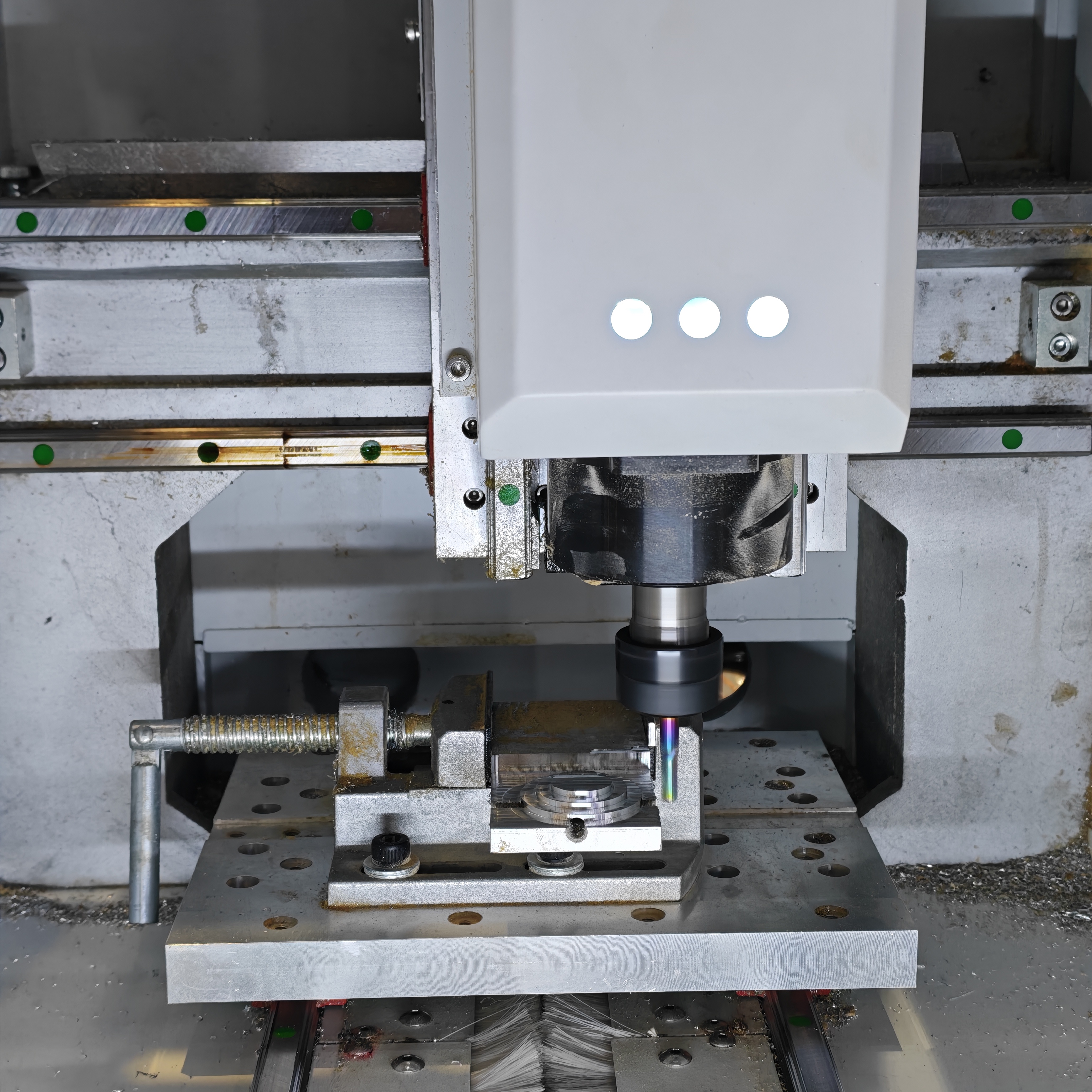

Cast aluminum frame, gantry, and work surface (cast aluminum is also an option); includes a vise fixture; cast aluminum parts should preferably be made of ZL104 alloy; equipped with a 260W desktop dust collector. | ![]() |

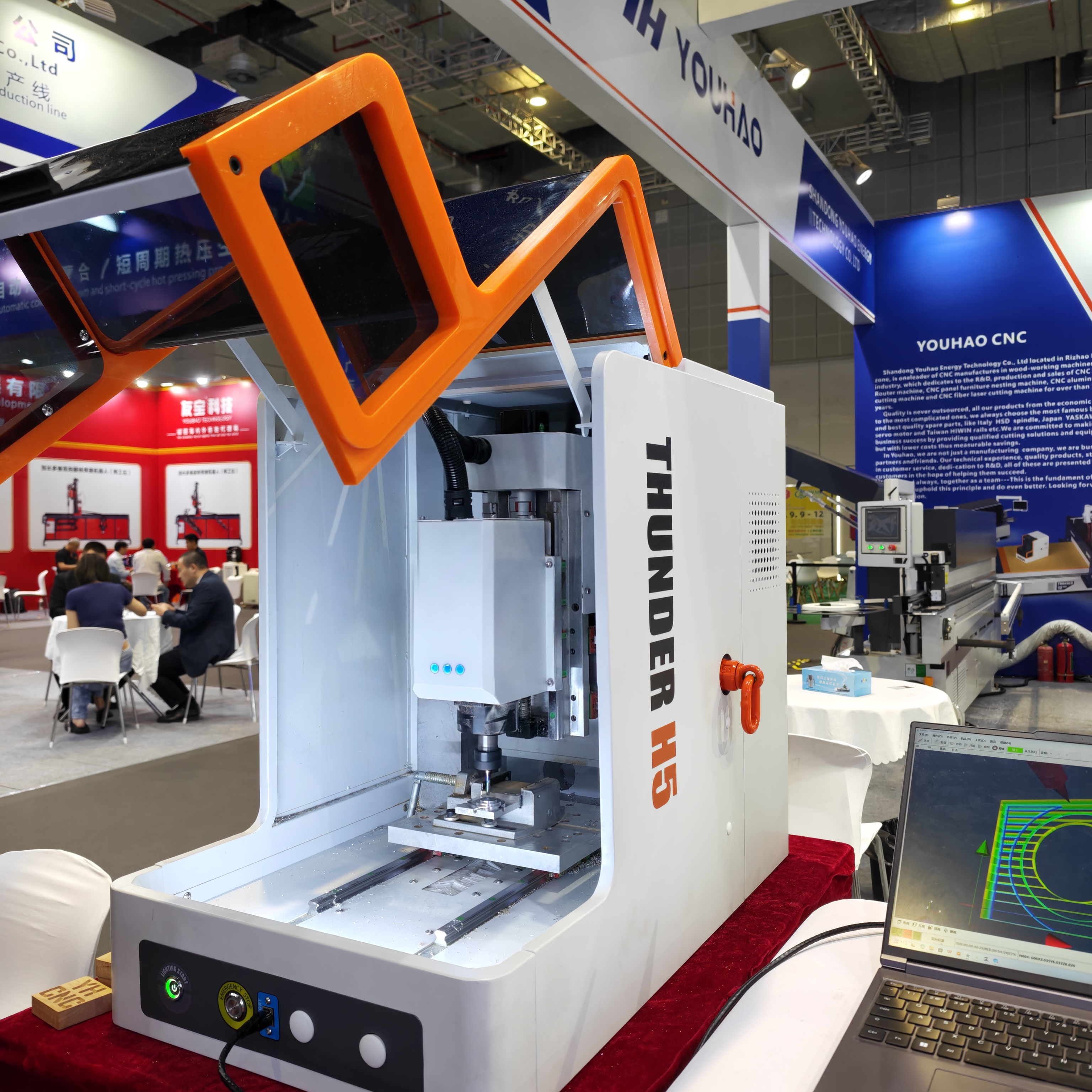

![]() | Buttons: Power On, Pause, Program Start, and USB port (all labeled in English); Door frame made of PVC or acrylic; base equipped with foot pads; note the installation positions for lifting rings on both sides; Overall dimensions and weight controlled to approximately 50 kg. |

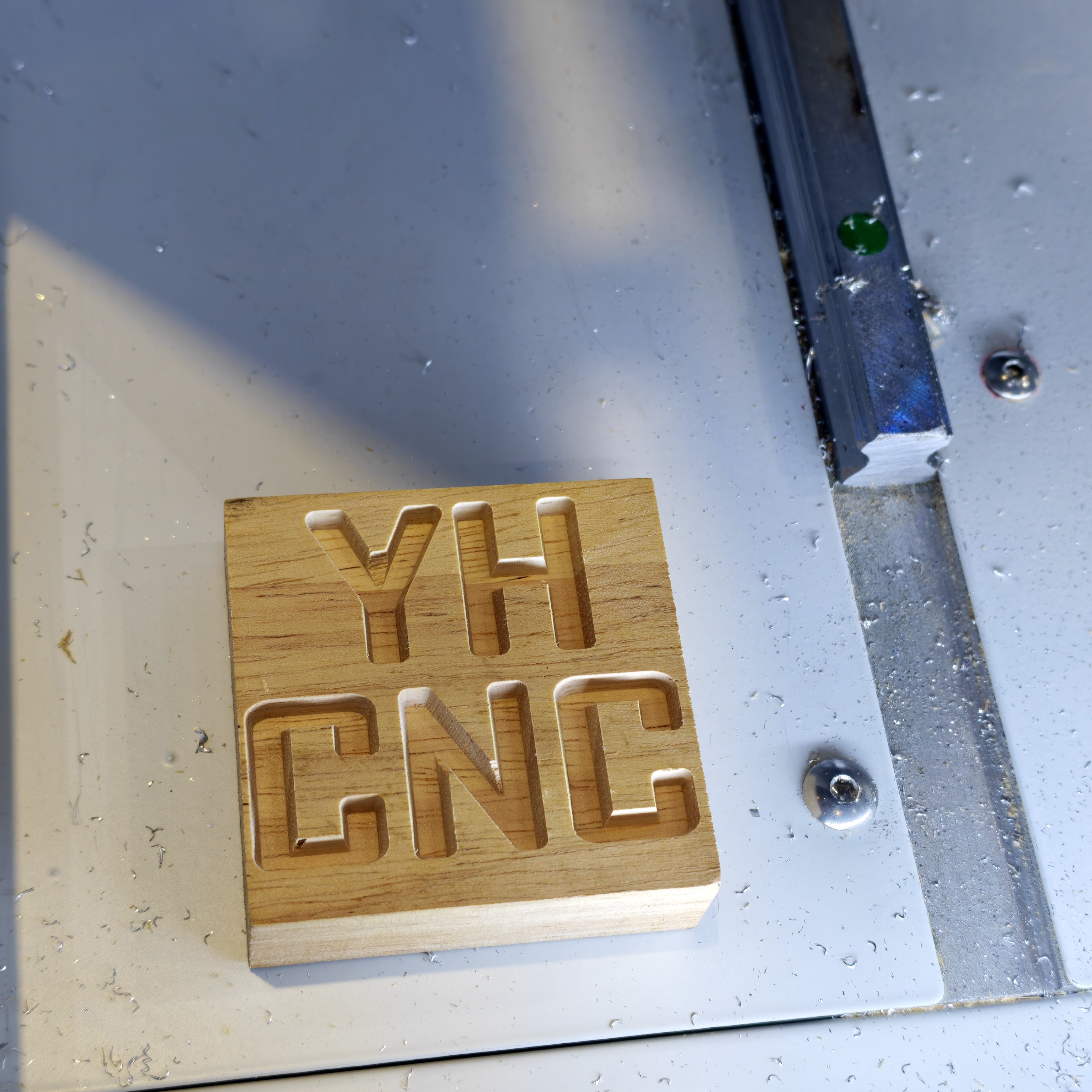

The 2020 CNC engraving machine features a compact design and ease of operation, making it suitable for processing various small engraved products, small non-metallic molds, and soft metals such as copper and aluminum. Widely used in fields like advertising signage, craft gifts, and model making, it is an ideal choice for small studios and entry-level machining operations. | ![]() |

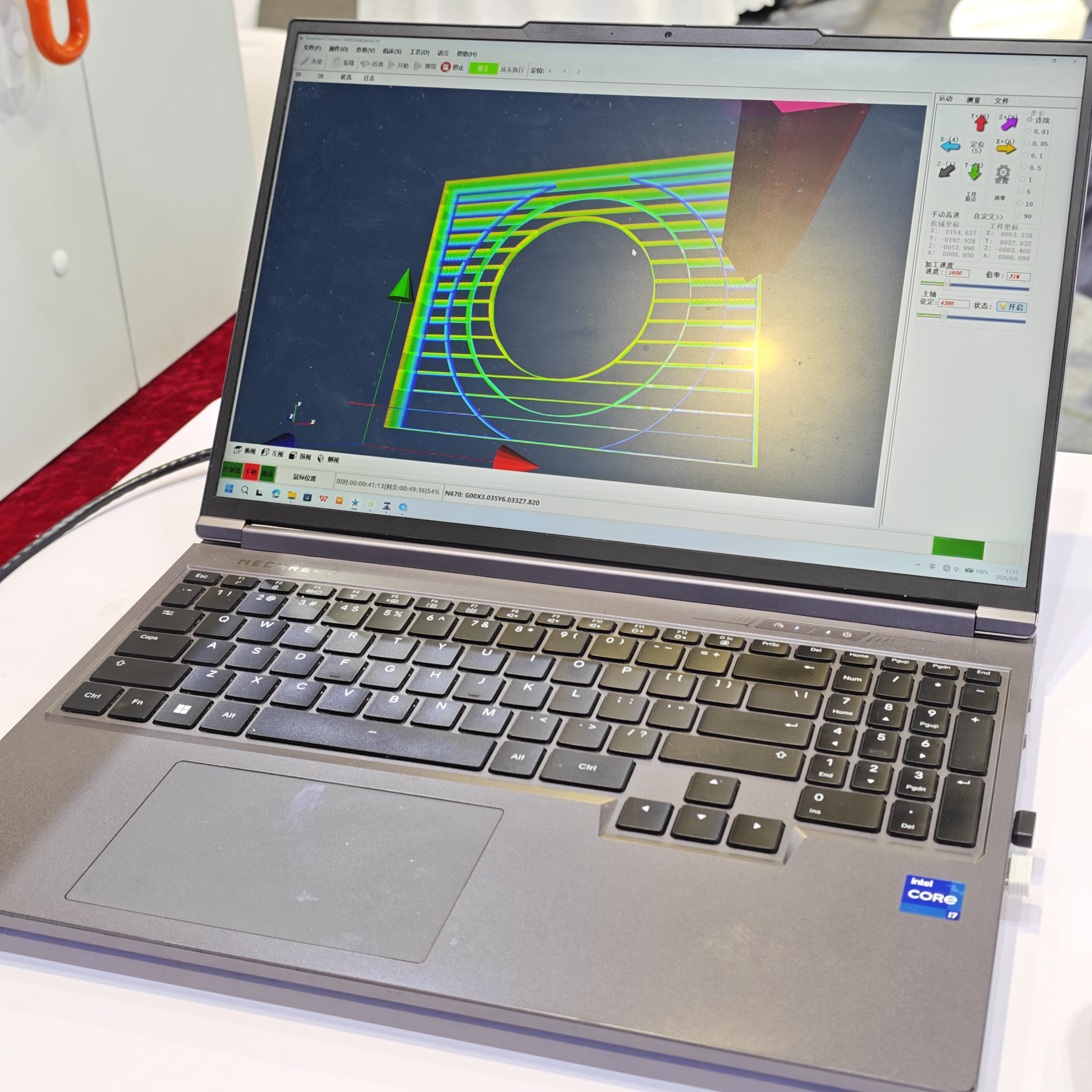

![]() | No programming, no installation, intelligent CNC, one-click machining, bid farewell to programming hassles, skip the complexity of setup, machining has never been this simple. |
Advantage
1. Compact and space-saving: Its compact design makes it suitable for small studios, retail shops, and home workshops without requiring a dedicated facility.
2. Wide processing range: Capable of engraving various small non-metallic items (acrylic, wood, MDF, etc.) while also compatible with soft metals like copper and aluminum.
3. Easy to operate and master: Features a user-friendly control interface; beginners can operate it independently after minimal training, reducing the learning curve.
4. High precision and excellent detail: Utilizes precision guide rails and high-quality lead screws to ensure smooth edges and crisp details, meeting the demands of intricate work.
5. Outstanding cost-performance ratio: Affordable pricing and low maintenance costs make it an ideal entry-level choice for small businesses, startups, and hobbyists.
6. Versatile applications: Suitable for a wide range of uses—including advertising signage, crafts and gifts, model making, and mold prototyping—offering multi-functional utility in a single machine.
Specifications
| Control System | ZoneStar |
| Spindle | HQD 1.8KW air-cooled |
| Inverter | FULING 2.2KW |
| motor | Leadshine 400W servo motor |
| Rail | CSK 15/15/15 |

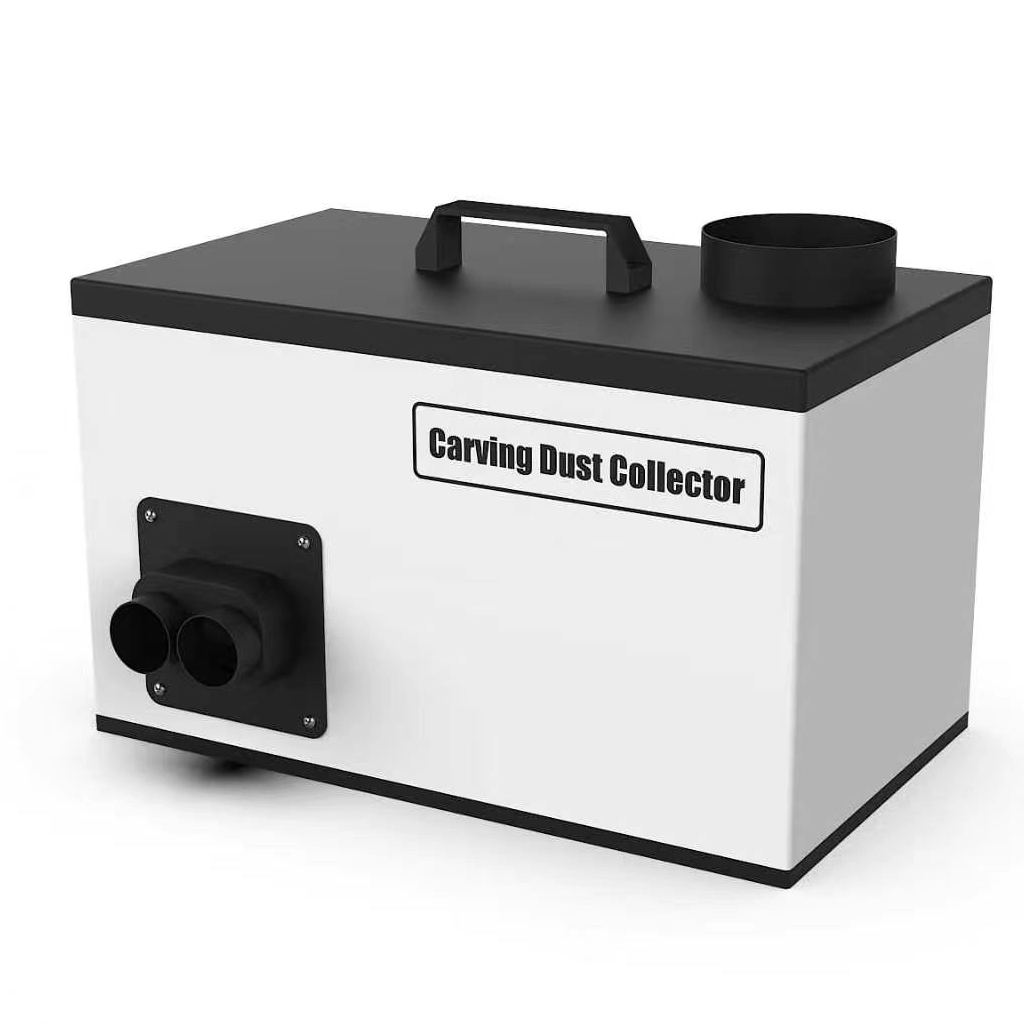

| Dust collector | 260W |
| Ball Screw | TBI ball,Xaxis-1.25M |
| Accuracy | 0.05mm |
| Repeatability | 0.05mm |
| MAX. Speed | XY=30m/min Z=15m/min |
| Working Speed | XY=20m/min Z=8m/min |
