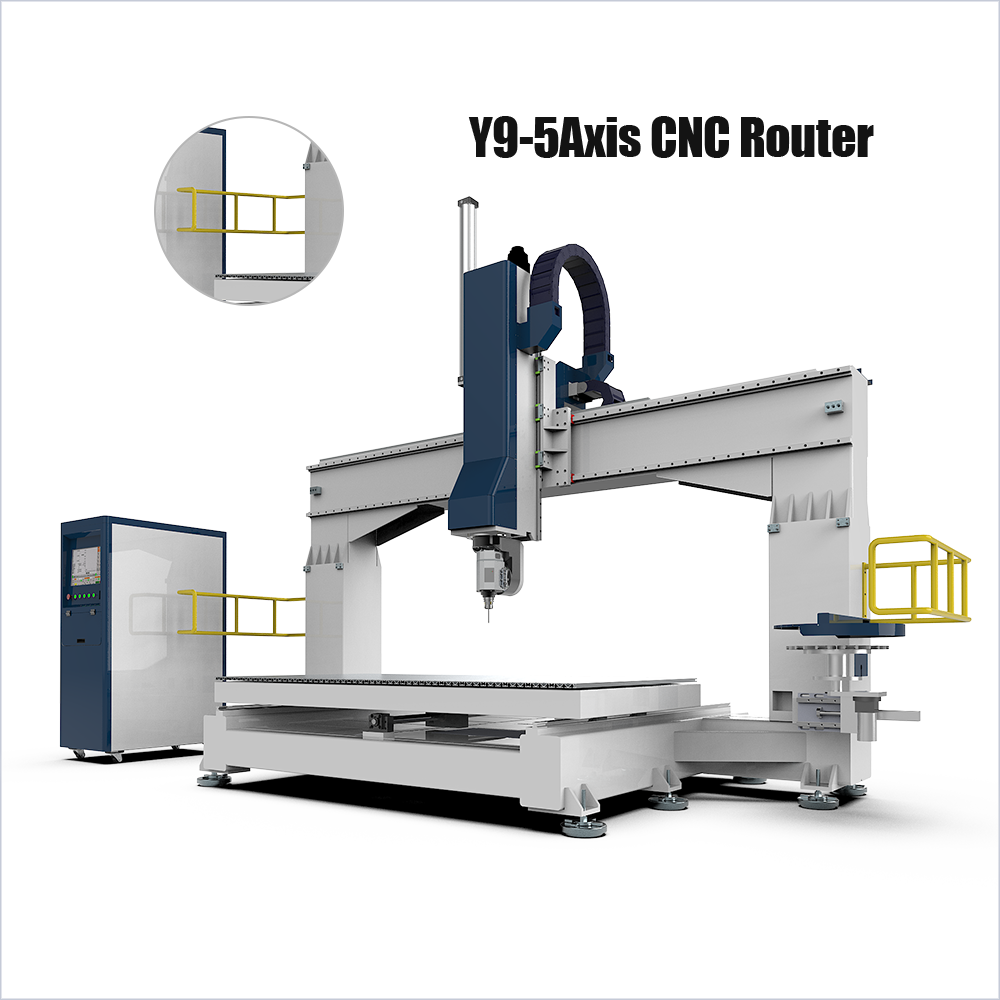

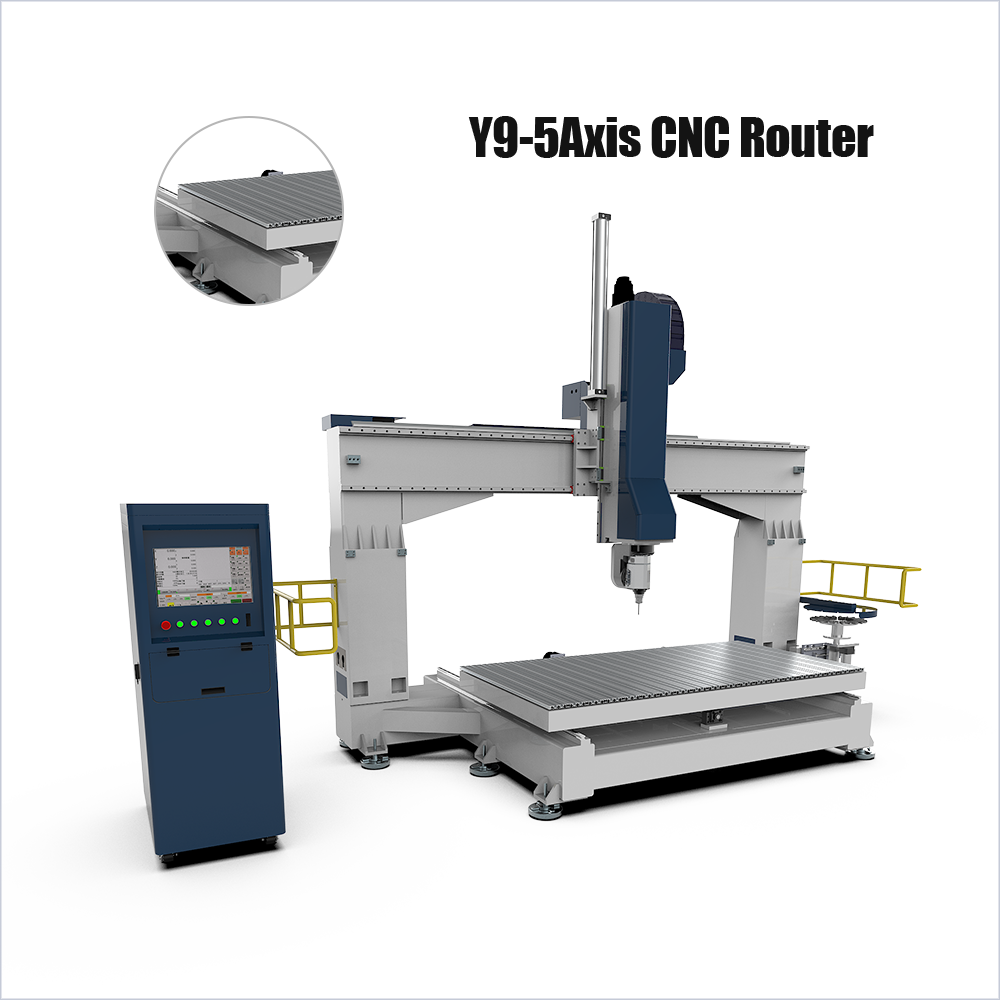

5 Axis CNC Wood Router Machine with Syntec Control System for 3D Wood Carving from China manufacturer

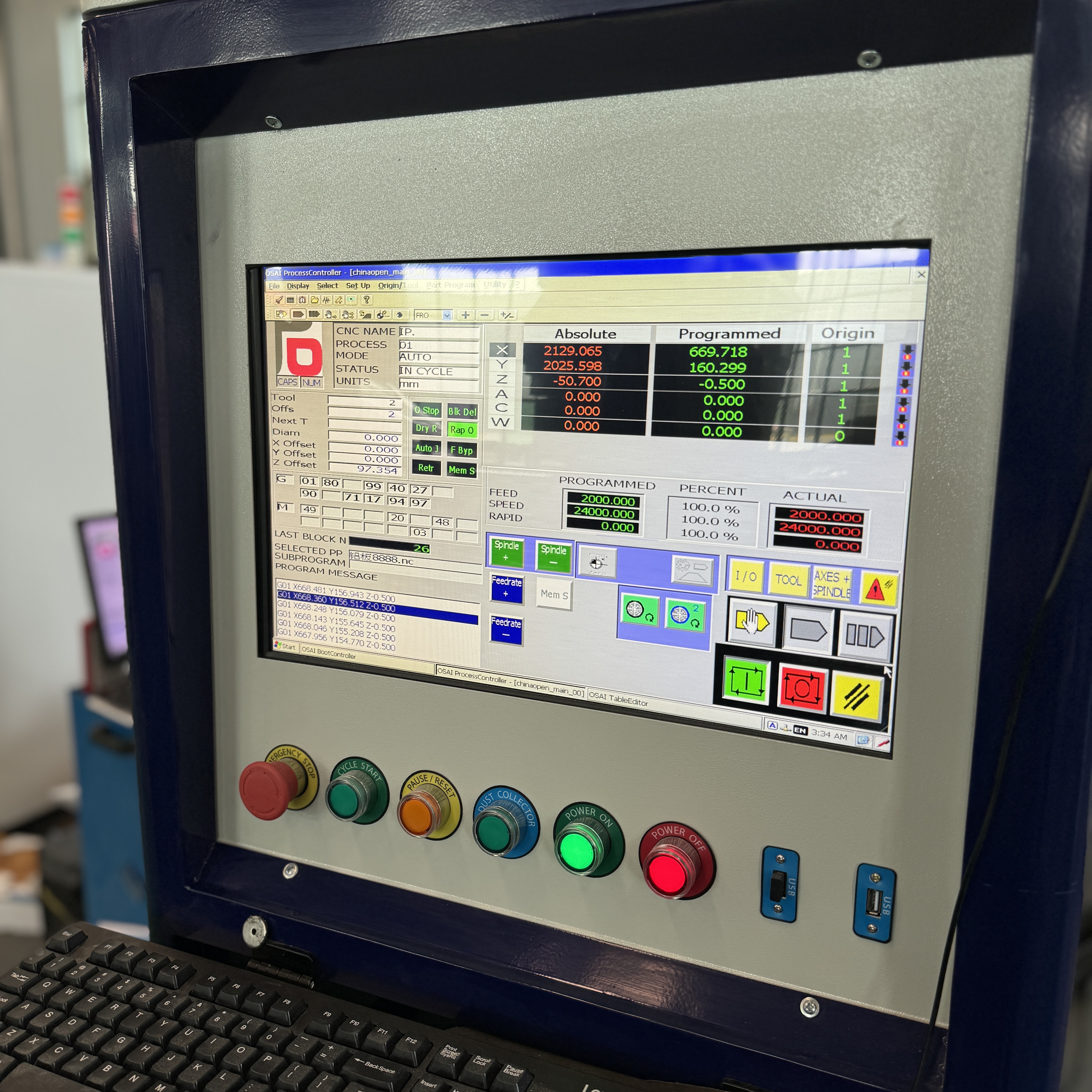

	OSAI Control System The machine is equipped with the advanced OSAI control system, specially developed for high-end 5 axis CNC applications. It provides precise interpolation of X, Y, Z, A, and C axes, ensuring smooth and accurate multi-angle machining. The system supports complex 3D surface processing, mold manufacturing, and high-precision wood component production. With intelligent motion control and high-speed data processing, it guarantees stable operation, reduced vibration, and improved machining accuracy for continuous industrial use.

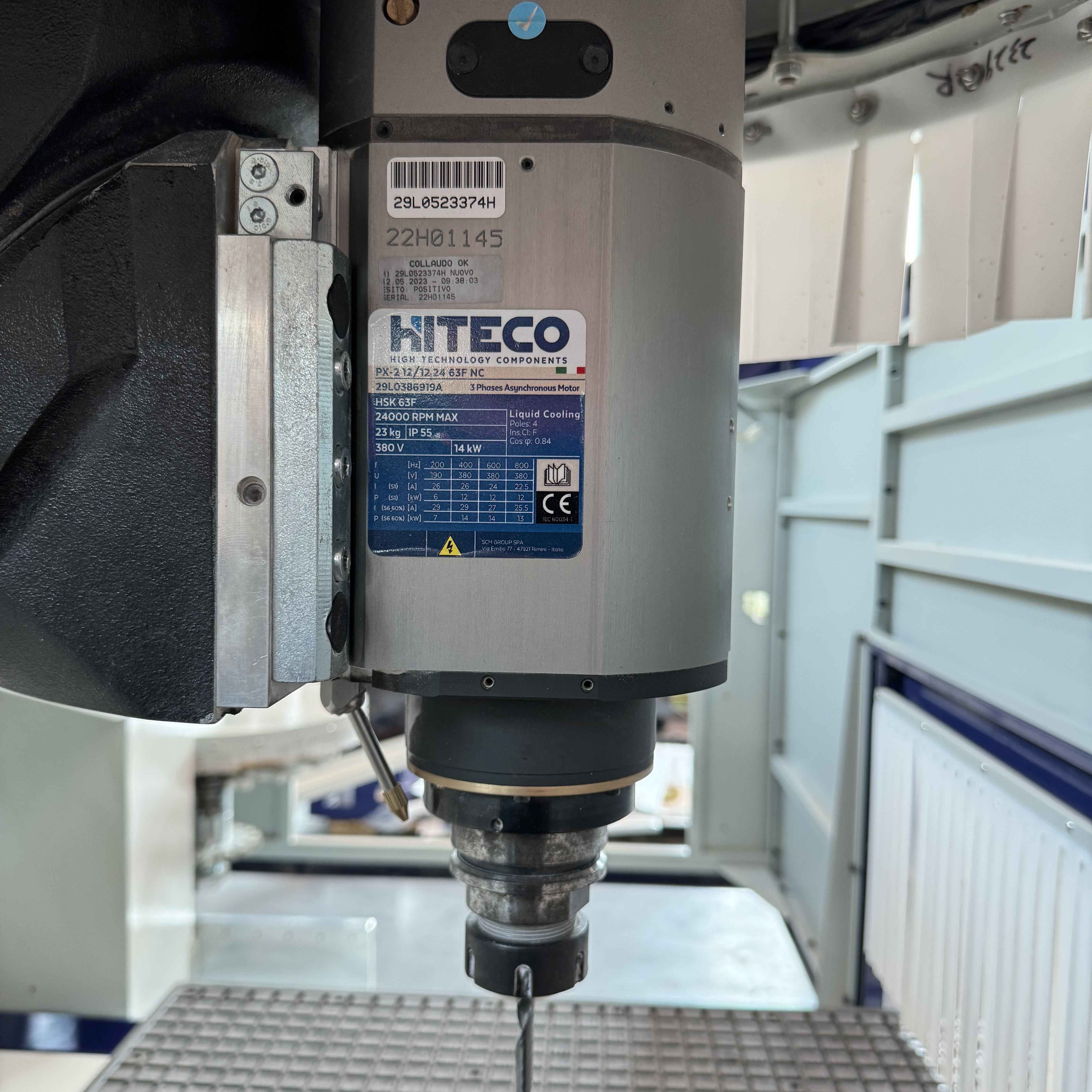

Hiteco 5-Axis Head The Hiteco 5-axis head enables multi-directional cutting and full 3D machining capability. It allows the spindle to rotate and tilt automatically, making it ideal for complex curved surfaces, undercut structures, and intricate architectural components. This high-precision Italian technology ensures excellent rigidity, smooth rotation, and long-term durability, significantly improving flexibility and production efficiency in advanced woodworking and composite processing.

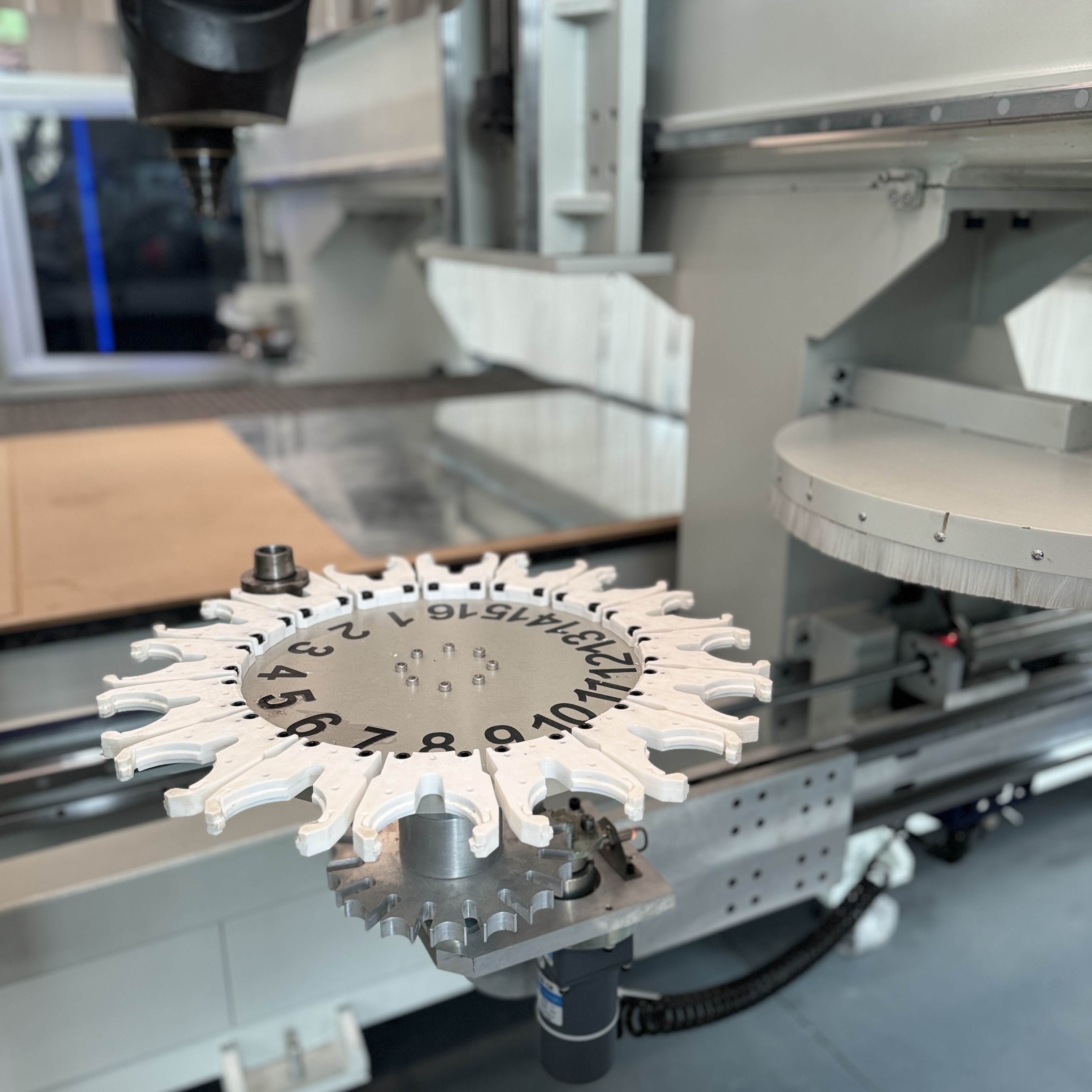

	Carousel Tool Magazine The carousel tool magazine provides automatic tool changing functionality, greatly enhancing machining efficiency. It can store multiple tools and complete tool changes quickly and accurately during operation. This system reduces manual intervention, shortens production time, and allows the machine to perform complex multi-process jobs in one setup, improving overall productivity and consistency.

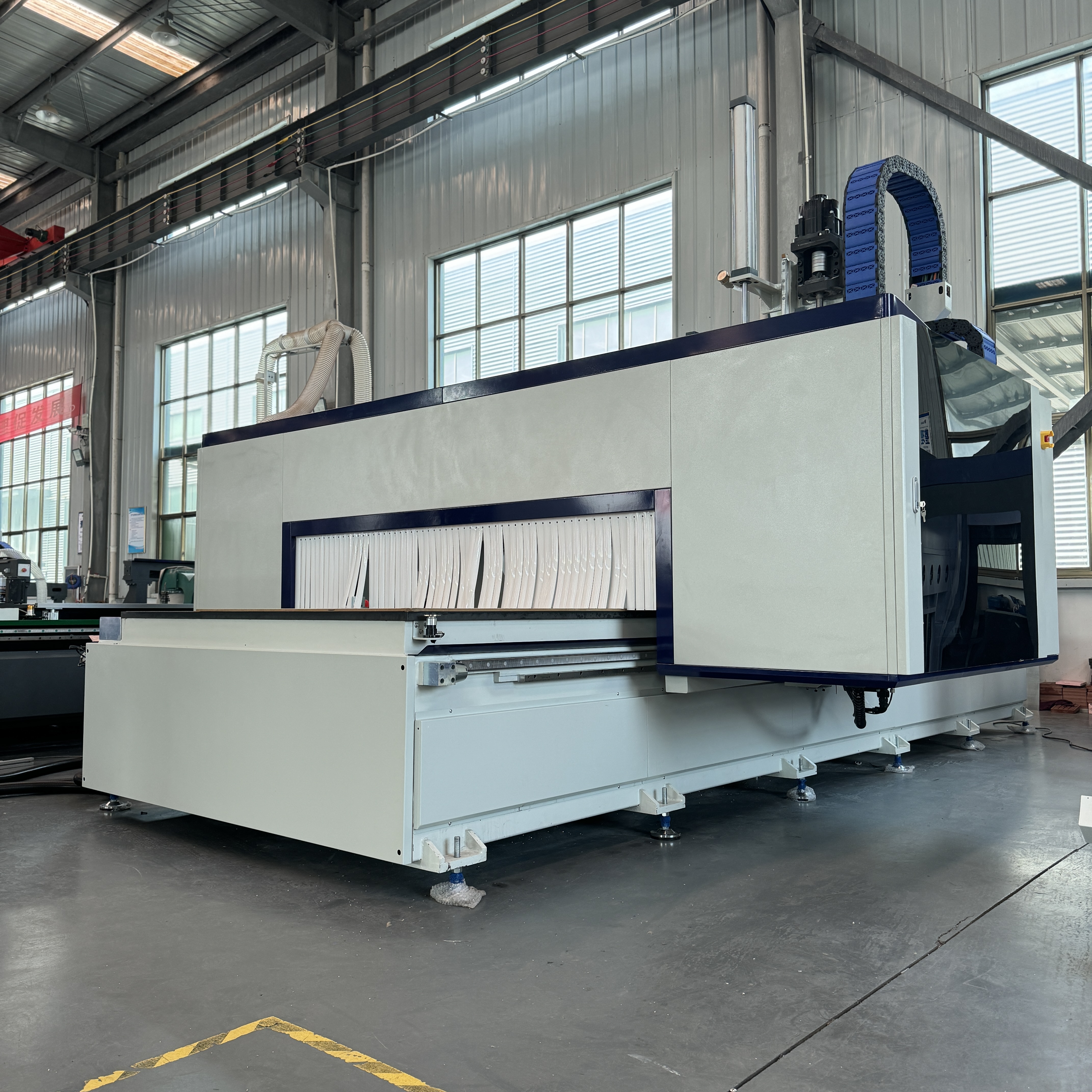

Gantry Protective Cover The gantry protective cover is designed to protect critical transmission components such as linear guides, racks, and cables from dust and debris generated during machining. It enhances the machine’s durability and maintains long-term accuracy by minimizing contamination and wear. Additionally, the enclosed structure improves operational safety and gives the machine a more robust and professional industrial appearance.

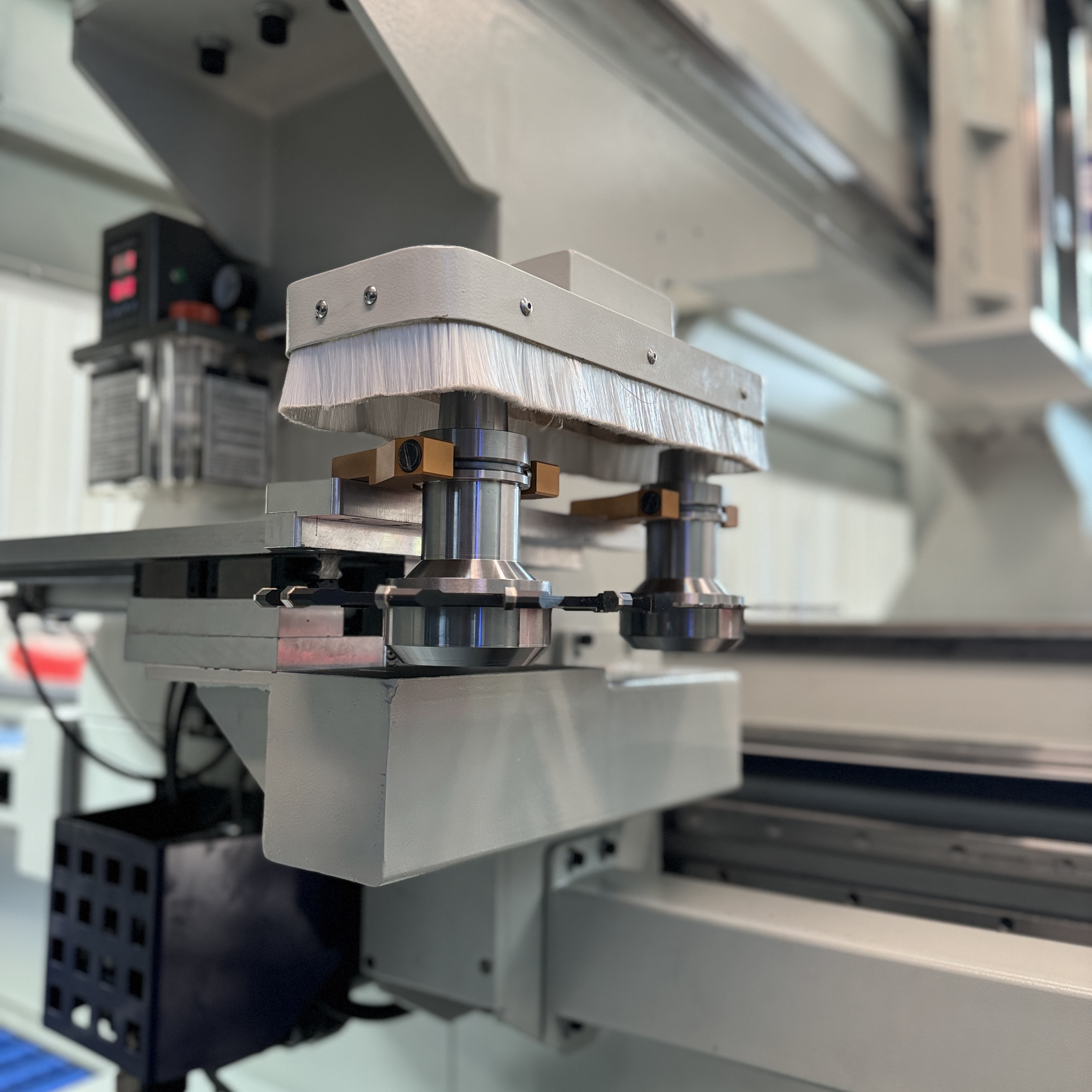

Saw Blade Unit

The integrated saw blade unit expands the machine’s processing capability beyond traditional milling. It is ideal for slotting, grooving, trimming, and precise cutting applications. By combining milling and sawing functions in one machine, it reduces secondary operations and increases overall production flexibility, especially for furniture manufacturing and panel processing.

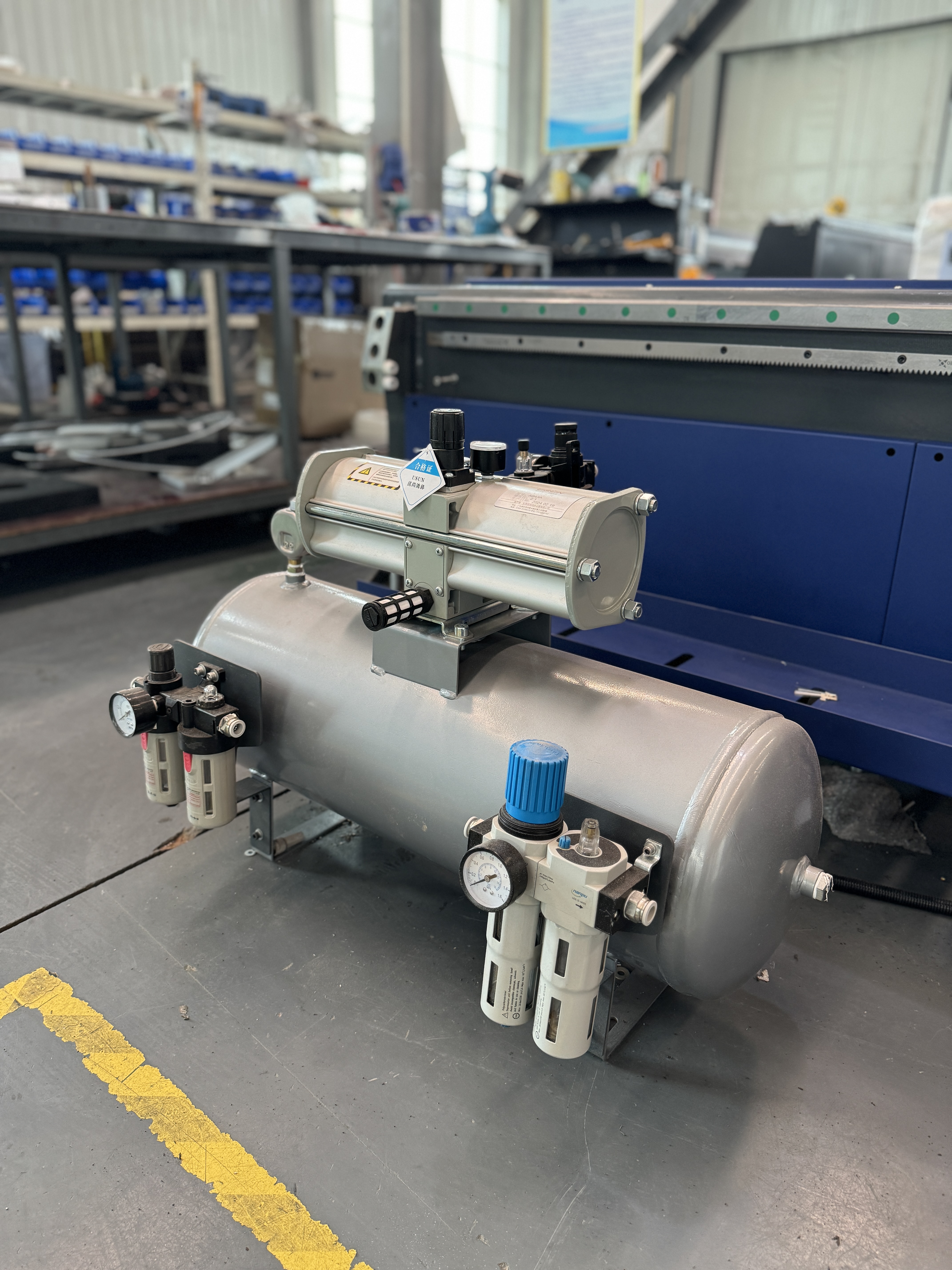

Air Booster Pump

The air booster pump provides stable and high-pressure air supply for pneumatic components and auxiliary functions. It ensures reliable operation of tool clamping systems, dust cleaning, and other air-driven mechanisms. By maintaining consistent air pressure, it enhances system stability, improves machining performance, and supports long-term efficient production.

Air Booster Pump

Advantage

Advantages of 5 Axis CNC Router

1. True 5-Axis Simultaneous Machining
Allows complex 3D surface processing and multi-angle cutting in a single setup, ideal for molds, curved furniture components, and architectural elements.

2. One-Time Clamping, Higher Accuracy
Reduces repositioning errors by completing multiple sides and angles in one operation, ensuring superior dimensional precision and surface quality.

3. Increased Production Efficiency
Simultaneous multi-axis movement shortens machining paths and cycle time, greatly improving overall productivity.

4. Strong Capability for Complex Designs
Perfect for intricate carvings, undercut structures, and deep cavity machining that traditional 3-axis machines cannot achieve.

5. Reduced Manual Intervention
Automatic tool changing and intelligent control system minimize labor requirements and improve workflow automation.

6. Excellent Surface Finish
Continuous smooth motion of rotary axes reduces tool marks, resulting in cleaner and more refined surface finishing.

7. Versatile Material Processing
Suitable for wood, MDF, foam, resin, composite materials, aluminum, and other non-ferrous metals.

8. High Structural Stability
Heavy-duty gantry structure ensures rigidity and long-term stability during high-speed and heavy cutting operations.

9. Flexible Application Range
Widely used in furniture manufacturing, mold production, sculpture, aerospace components, boat interiors, and customized decorative elements.

10. Higher Added Value Output
Enables production of high-end, customized, and complex products, helping manufacturers improve competitiveness and profit margins.

Specifications

SPECIFICATIONS FOR 5 AXIS CNC ROUTER
Size(1325/1530)	X Axis Traveling size(mm)	650mm/customize
	Working size(mm)	1300x2500x600/800	1500x3000x600/800
Speed	Idling speed(m/min)	X:45m/min Y:45m/min Z:10m/min
	Working speed(m/min)	X:15m/min Y:15m/min Z:8m/min
Structure	Heavy steel duty structure with thermal aged and tempering treatment
Guide Rail	X/Y/Z CSK 30/30/30 square guide rail
Transmission	XY:High precision Germany Herion rack pinion Y:Taiwan TBI ball screw
Reducer	Taiwan PHT Planetary reducer
Spindle	Original Italy Omlat spindle(auto tool change)/Hiteco 5 axis head
Motor	Japan Yaskawa servo motor
Control system	Taiwan Syntec 5axis system (RTCP) ousai open controller is optional
Work table	Vacuum + T-slot movable work table/Aluminum table with pvc on it
Inverter	Fuling 15kw inverter
Tool magazine	12 pcs disc tool magazine (customize)
Oil feeding system	Auto
Control system	Osai control system/Syntec control system
Installation	Engineers available to service machinery overseas
