3 in 1 handheld 1000w fiber laser welding machine for metal

Models:YOUHAO FL8laser welding machine
This laser welding machine is maily used for welding cleaning cutting aluminium, carbon steel,stainless steel .
The speed is quick stable.
We can provide OEM service ,customize the logo and colour for your own use.
Certificate :CE
Delivery Detail: Shipped in 10-15 working days after payment.
  • FL8

  • YOUHAO

SKU:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


         Why are handheld laser welding machines becoming more and more popular? Welders are hard to recruit, and good welders are even harder to find. We all know that welders are currently difficult to recruit sheet metal manufacturing jobs. The personnel mobility is large, the technical requirements are high, and the handheld laser welding with its advantages of not requiring professional welders has become a device that can replace the traditional welding machine. And its welding speed is fast, 5-10 times faster than the traditional welding machine, a machine a year can do two welders 's work, save a lot of labor costs, greatly improve the work efficiency, we


Youhao CNC designed this FL8 3-in-1 handheld welding machine, you can choose between 1000W-3000 W according to the material you want to weld, power can choose between 1000W-3000 W, You just need to tell us the material you need to weld, as well as the thickness of the material, we can recommend you the right welding machine for you. 4
1_0003_control panel

CONTROL SCREEN


Touch screen control panel can change the parameters. The user could save the normal using parameter inside the system, and fast Setting it before work.

Welding Head


Chinese famouse brand ,it equiped lence to protect the operator from the damage . It also has temperature sensor function in the laser head, ensure the long life using.

1_0001_welding head

1_0002_MAX laser source

MAX laser source


Chinese famouse brand Professional welding laser source, small in size, light in weight, and easy to move. Support lasers with power from 1kw to 3kw.

Wire Feeding


Our wire feeding system support max 3.0mm diameter metal wire, and with the double motor inside the machine case, which give the more stable support for the machine working.


1_0000_wire feeder

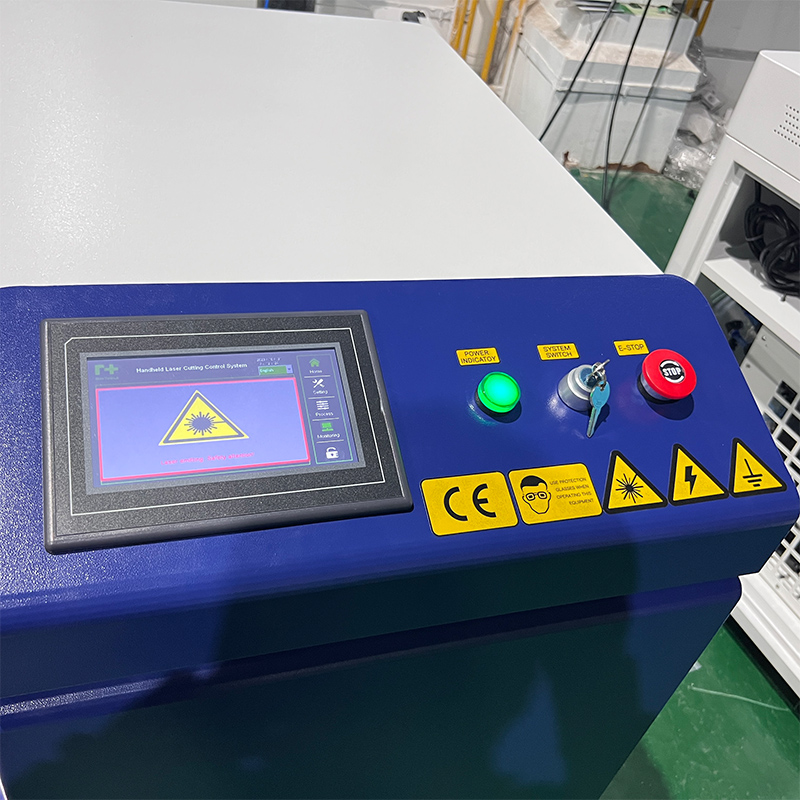

1_0004_Button

Power switch


Give the electrical power on for the whole machine.System switch: give the start for the machine control system. Emergency top: use this to protect the operator from the danger during the working.

Emergency top: use this to protect the operator from the danger during the working.


Advantage


1:YOUHAO FL9 3 in 1 fiber laser welding machine can output high quality laser beam


2 It has  has flexible and beautiful and firm welding effect and the high quality welding .


3it occupies a small space.and can meet the requiements of welding operations in narrow spaces,


4 the laser welding head is flexible and lightweight.,supports multiple driving modes can weld any parts of the workpiece.


the手持焊接



HOW TO CHOOSE A LASER WELDING MACHINE



1.Look at the power: First of all, we must first confirm the welding power wether suitable for you  different power, different efficiency, different welding thickness. The power of hand-held welding machine on the market is about 1000W-3000, and we can give you reasonable suggestions according to your material and material thickness.



2 Optional configuration: Handheld laser welding machine is generally composed of laser source, water chiller , control system,  wire feeding machine ,laser welding gun and other components. The production of handheld laser welding manufacturers can not be all parts of the production, because no one has such a research and development strength is not necessary, generally from other manufacturers to take goods, and then configuration. The better components, the more trustworthy the hand-held laser welding produced. Our Youhao cnc laser welding machine adopts raytools controller , ang raytools laser head .


 3  Look manufacturers: There are two aspects here. One is strength, the other is  after sales. It is not that a random person with a combination of components out of the machine can be used, the stronger the company, the more mature its technology must be. The strength of the company may not be easy to judge for people who do not know this line, but a simple one is the operation time, the longer the company runs the time indicates that the technology is more mature, and the longer the company's existence indicates that its after-sales service is more guaranteed, we have been in this industry for many years, we have our own independent design and development team, 24 hours online after-sales team at any time, handle after sales issues for customers.




Specifications

Model

FL-1000,FL-2000,FL-3000

Welding Dot Width

0.2-5mm

Laser Source

MAX / Raycus / IPG / JPT / RECI

Welding Head/Gun

Handheld 800g

Wire Feeding System

Support Wire max 3.0mm diameter

Protective Lens

Double lens, update protect

Working Mode

Welding, Cutting and Cleaning,

Voltage

220V 1Ph 50Hz/60Hz


Welding Penetration


1000W 1500W 2000W
Stainless Steel 2mm 2mm 4mm
Carbon Steel 1.5mm 2.5mm 3mm
Galvanized Sheet 2mm 3mm 4mm
Aluminum 1.5mm 2mm 3mm
Auto Feeding 0.8-1.2mm Wire 0.8-1.6mm Wire 0.8-1.6mm Wire
Power Voltage AC 220V AC 220V AC 220V/380V
Scan Width Less than 40mm
Welding Method Joint, Outer Corner, Inside Corner, Overlapping, Wire Welding
Notice The actual welding effect shall prevail, this data is for reference.
