1530 woodworking atc cnc router for beginners

Models: 1325 ATC CNC Router
Application: Wood, stone, metal, mold, plastic, aluminium, acrylic，Aluminum-plastic panel, KT panel
Leadtime: 20-35 days
Certificate: CE, lSO
Voltage: 380V/3P/50HZ, 220V/3P/50HZ.110V/3P/50HZ
Size：1325 1530 2030 2040（Size can be customized according to customer needs）
Warranty: 2years
Supply Ability: 10 Sets/Month
We accept OEM, can creat your logo, customize machine according to your need.Our company attaches great importance to product quality and strictly controls every link, from research and development, production to after-sales service, to consistently provide high-quality products to customers.

  • T9 1212 ATC

  • YOUHAOCNC

SKU:
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

photobank (54)

This atc cnc router is a samll size one  all size we can customize according to your need .

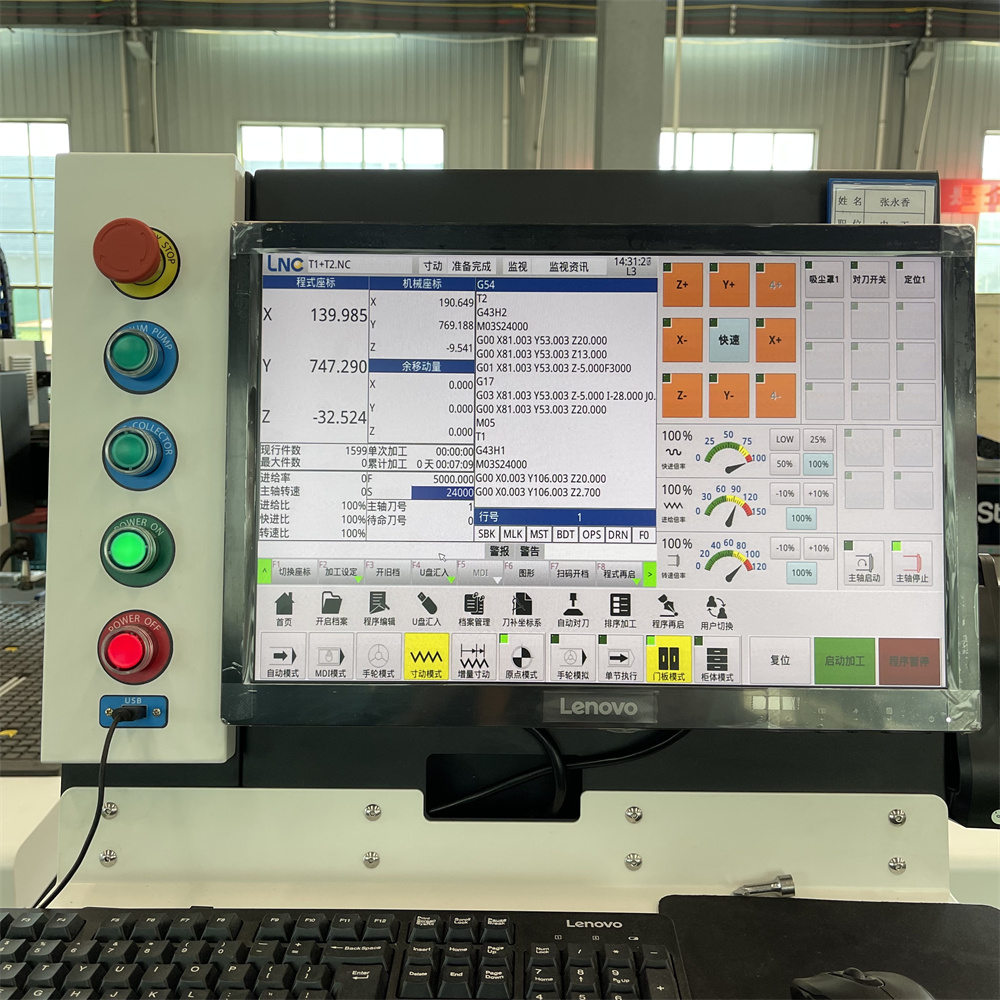

It adapts Taiwan famous brand controller system, cna read files quikly and set files easily .

 photobank (48)
9KW主轴

With Chines hqd 9KW ATC air cooling spindle with 12 linear tool magazine .can change tools quickly at 3 seconds.

Toolsensor


Adjust the accuracy of the machine's tool change thickness to improve efficiency.

 photobank (4)
photobank (2)

Linear type tool change


Automatic tool changing can improve accuracy and reliability, reduce the operator's labor intensity, improve production efficiency and be more convenient.


Advantage

  1. The equipment can be used for the milling of the plastic door panel, the cutting of the panel furniture cabinet, and the cutting of various non-metal plates.

  2.  Double-layer tabel more adsorption holes, reasonable structure, stronger adsorption force.

  3. Compared with the traditional cutting method, it saves labor, only requires one person to operate, and even one person can operate multiple equipment, zero errors, simple operation efficiency is greatly improved.

  4. Optional automatic loading and unloading, automatic feeding, optimization of cutting, vertical hole, automatic cutting one gas completion, the process without interruption, to achieve maximum efficiency output.

  5. fast speed cnc router, equipped with round or carrousel type auto tool changer. This kind of Multi-use cnc cutting center (furniture cnc router for side punching) is not only very suitable for wooden furniture cabinet, but also processing foam mould. It can also finish side punching work for door hole, because that rotary spindle can rotate 180 degree.




photobank (54) t11.6
photobank (8) 3






Specifications

Model
SIGN A4-1325
X, Y Working size
1300*2500mm
Z feed Height
300mm
Table Surface
Vacuum working table with 7.5kw vacuum pump
X, Y Structure
25mm Square Guide Rail and Helical Rack
Z Structure
25mm Linear Square Guide Rail and Ball Screw
Spindle Power
9.0kw HQD spindle
Inverter
11KW Delta
Linear tools magazine
8 PCS
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Tool sensor
With
Dust collector
3kw
Spindle Speed
0-24000RPM
Drive Motors
SYNTEC 1000W servo motor and driver
Working Voltage:
AC 380V 50Hz/60Hz
Command Language
G code
Control System
SYNTEC 60WE
X,Y,Z re positioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
ARTCAM
Running Temperature
0 degree - 45 degree


download YOUHAO CNC Catalog_.pdf
